Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

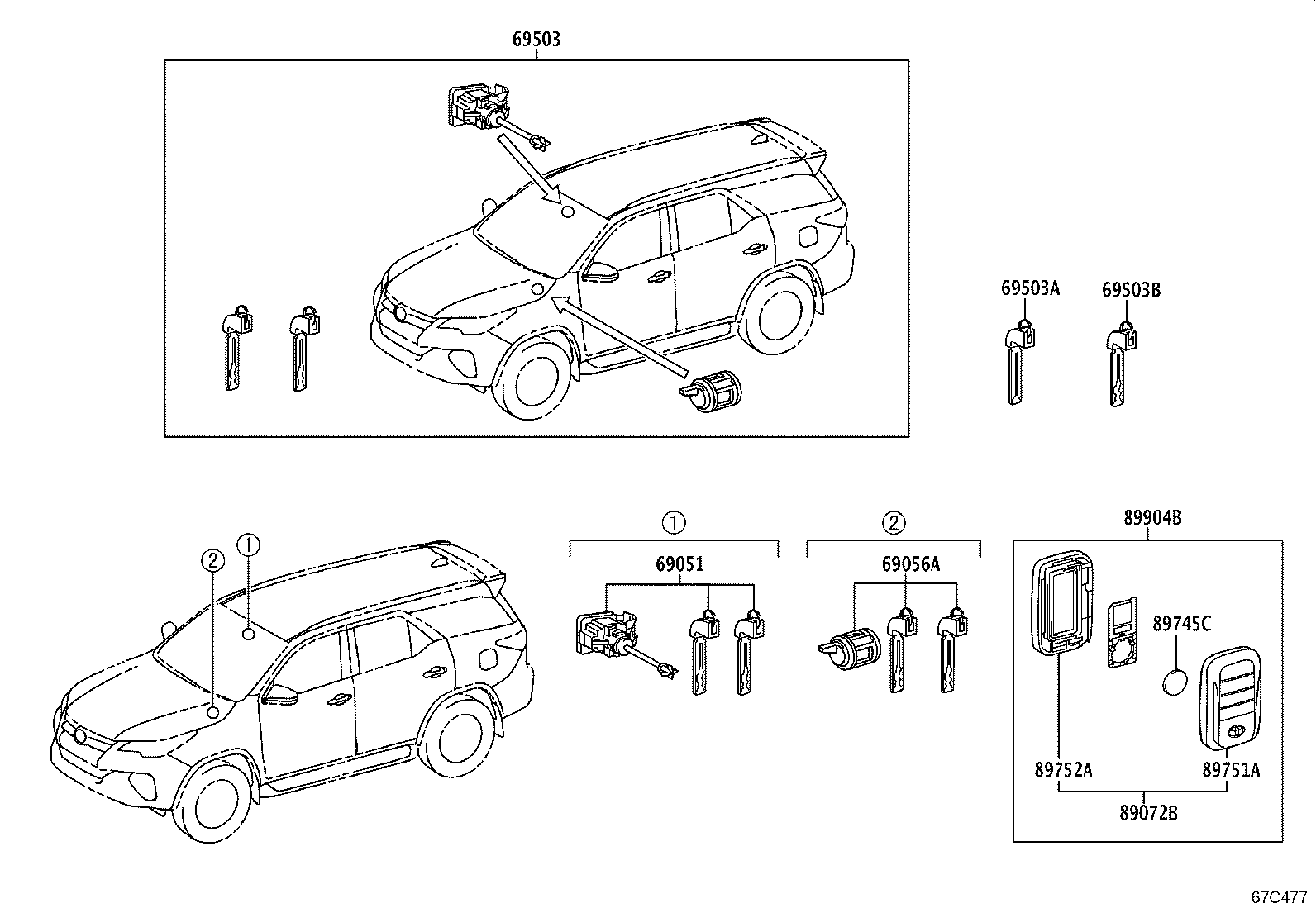

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-0K070 |
Cylinder & Key Set, Door Lock, RH
2023-06 → 2024-03
ended
|
GUN155 KEN | — | |
| 69051-0K070 note |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69051-0K070 note |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69051-0K080 note |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69051-0K080 |
Cylinder & Key Set, Door Lock, RH
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 69051-0K080 |
Cylinder & Key Set, Door Lock, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69051-0K080 |
Cylinder & Key Set, Door Lock, RH
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 69051-0K080 |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69051-0K100 |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN155,16# RHD SA;GUN156 RHD +2 | — | |
| 69051-0K100 |
Cylinder & Key Set, Door Lock, RH
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 69051-0K110 |
Cylinder & Key Set, Door Lock, RH
2022-09 → 2023-08
ended
|
GUN155,165 RHD IDNP S | — | |
| 69051-0K120 note |
Cylinder & Key Set, Door Lock, RH
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 69051-0K120 |
Cylinder & Key Set, Door Lock, RH
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP (H,L) | — | |
| 69051-0K130 |
Cylinder & Key Set, Door Lock, RH
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 69056A — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-0K050 note |
Cylinder & Key Set, Glove Compartment Lock
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69056-0K050 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 69056-0K050 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 69056-0K050 note |
Cylinder & Key Set, Glove Compartment Lock
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69056-0K050 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 69056-0K050 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 69056-0K060 note |
Cylinder & Key Set, Glove Compartment Lock
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 69056-0K060 note |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-07
ended
|
GUN156,166 THP;GGN155,GUN155 THP H;GUN165,TGN156 +2 | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 69056-0K070 |
Cylinder & Key Set, Glove Compartment Lock
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 69056-0K080 |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 69056-0K080 |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-08
ended
|
GUN165 C,GEN,IDN) RHD IDNP +6 | — | |
| 69056-0K090 |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 69056-0K090 note |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 69056-0K090 note |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 69056-0K090 |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-08
ended
|
GUN155,165 IDNP IDNP (H,L) +6 | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-0KC00 |
Cylinder Set, Lock
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 69005-0KC00 |
Cylinder Set, Lock
2022-08 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69005-0KC00 note |
Cylinder Set, Lock
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69005-0KC00 |
Cylinder Set, Lock
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 69005-0KC00 |
Cylinder Set, Lock
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69005-0KC70 |
Cylinder Set, Lock
2022-08 → 2023-07
ended
|
TGN156 THP S;GGN155,GUN15# LHD +2 | — | |
| 69005-0KC70 note |
Cylinder Set, Lock
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 69005-0KC70 note |
Cylinder Set, Lock
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 69005-0KC70 |
Cylinder Set, Lock
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 69005-0KC70 |
Cylinder Set, Lock
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 69005-0KF50 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP (H,L) | — | |
| 69005-0KF50 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 69005-0KF80 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GGN155,GUN155 IDNP S GCC | — | |
| 69005-0KF80 |
Cylinder Set, Lock
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 69005-0KF80 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GGN155,GUN15#,166 LHD IDNP H;GUN165,TGN156,166 +3 | — | |
| 69005-0KF80 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 69005-0KG00 |
Cylinder Set, Lock
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 69005-0KG20 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 69005-0KG20 |
Cylinder Set, Lock
2022-09 → 2024-01
ended
|
GUN155,16# RHD SA;GUN156 RHD +2 | — | |
| 69005-0KK30 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89704-0KS20 |
Cylinder Set, Lock
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89704-0KS20 note |
Cylinder Set, Lock
2022-08 → 2023-05
ended
|
GGN155,GUN155 THP S | — | |
| 89704-0KS20 |
Cylinder Set, Lock
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 89704-0KS20 |
Cylinder Set, Lock
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 (L,S) LA | — | |
| 89704-0KW30 |
Cylinder Set, Lock
2022-11 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89704-0KW30 |
Cylinder Set, Lock
2022-11 → 2023-10
ended
|
GUN156,TGN156 (L,S) BZAGT | — | |
| 89704-0KW30 note |
Cylinder Set, Lock
2022-11 → 2023-10
ended
|
GUN156,16#,TGN156,166 (6F,6FC) (L,S) LA | — | |
| 89704-0KW30 note |
Cylinder Set, Lock
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89704-0KW50 note |
Cylinder Set, Lock
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89704-0KW50 note |
Cylinder Set, Lock
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89704-0KW50 |
Cylinder Set, Lock
2023-06 → 2024-03
ended
|
GUN155 KEN | — | |
| 89704-0KY50 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
TGN156 IDNP L GCC | — | |
| 89704-0KY60 note |
Cylinder Set, Lock
2022-09 → 2023-05
ended
|
GGN155,GUN155 IDNP S GCC | — | |
| 89704-0KY60 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
TGN156 IDNP L;GGN155,GUN155,165,TGN166 IDNP +2 | — | |
| 89704-0KY70 note |
Cylinder Set, Lock
2022-09 → 2023-05
ended
|
GUN165 RHD GEN | — | |
| 89704-0KY70 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 89704-0KY90 |
Cylinder Set, Lock
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89704-0KY90 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
TGN156 L GEN | — | |
| 89704-0KY90 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN165 IDNP L (PH,VN) | — | |
| 89704-F0090 |
Cylinder Set, Lock
2022-09 → 2022-12
ended
|
GUN155,165 S IDN | — | |
| 89704-F0091 |
Cylinder Set, Lock
2023-01 → 2023-08
ended
|
GUN155,165 S IDN | — | |
| 69503A — Key, Blank | ||||
| 69515-0K100 note |
Key, Blank
2022-08 → 2023-07
ended
|
GUN156,166 THP;GGN155,GUN155 THP H;GUN165,TGN156 +2 | — | |
| 69515-0K100 note |
Key, Blank
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 69515-0K100 note |
Key, Blank
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 69515-0K100 note |
Key, Blank
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69515-0K100 note |
Key, Blank
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 69515-0K100 note |
Key, Blank
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 69515-0K100 note |
Key, Blank
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 69515-0K100 note |
Key, Blank
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 69515-33120 note |
Key, Blank
2022-09 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 69515-33120 note |
Key, Blank
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 69515-33120 note |
Key, Blank
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 69515-33120 note |
Key, Blank
2022-09 → 2023-08
ended
|
GUN155,165 IDNP IDNP (H,L) +6 | — | |
| 69503B — Key, Cut | ||||
| 69515-0K070 note |
Key, Cut
2022-08 → 2023-07
ended
|
GUN156,166 THP;GGN155,GUN155 THP H;GUN165,TGN156 +2 | — | |
| 69515-0K070 note |
Key, Cut
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69515-0K070 note |
Key, Cut
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 69515-0K070 note |
Key, Cut
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 69515-0K070 note |
Key, Cut
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 69515-0K070 note |
Key, Cut
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 69515-0K070 note |
Key, Cut
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 69515-0K070 note |
Key, Cut
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 69515-33110 note |
Key, Cut
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 69515-33110 note |
Key, Cut
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 69515-33110 note |
Key, Cut
2022-09 → 2023-08
ended
|
GUN155,165 IDNP IDNP (H,L) +6 | — | |
| 69515-33110 note |
Key, Cut
2022-09 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 89072B — Housing Set, Door Control Transmitter (FOR SMART KEY) | ||||
| 89072-0K760 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN166 H IDN | — | |
| 89072-0K780 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156 H LA | — | |
| 89072-0K780 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89072-0KE80 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 89072-0KE90 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → —
|
GUN156 PKN | — | |
| 89072-0KE90 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-10
ended
|
GUN156 H LA | — | |
| 89072-0KE90 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 89072-0KE90 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89072-0KE90 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 89072-0KF20 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 89072-0KF20 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
TGN156 THP S | — | |
| 89072-0KF20 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89072-0KF20 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN155 MA;GUN165,TGN156 LHD IDNP +2 | — | |
| 89072-0KF20 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89072-0KF30 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2024-01
ended
|
GUN15#,165 RHD SA | — | |
| 89072-0KF30 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 89072-0KF30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2023-11
ended
|
GUN156 RHD 6FC SA | — | |
| 89072-0KF30 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 89072-0KF30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2023-11
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89072-0KF30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89072-0KF30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89072-0KF30 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN165,TGN166 IDNP S (PH,VN) | — | |
| 89072-0KF30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89072-0KF30 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → —
|
TGN166 PKN | — | |
| 89072-0KF40 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN156 H LHD (GCC,MA) +6 | — | |
| 89072-0KF40 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 89072-0KF40 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 89072-0KF40 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GGN155,GUN15# LHD THP H | — | |
| 89072-0KF50 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 89072-0KF50 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2024-01
ended
|
GUN166 SA | — | |
| 89072-0KF50 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2024-01
ended
|
GUN156 RHD SA | — | |
| 89072-0KF50 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89072-0KF50 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 89072-0KF50 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → —
|
GUN156,TGN156 PKNP | — | |
| 89072-0KF50 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 H LA | — | |
| 89072-0KF50 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN156 RHD GEN;GUN156 IDNP +3 | — | |
| 89072-0KF50 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 89072-0KF50 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 89072-0KF50 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89072-0KF50 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN155 RHD GEN;GUN156 LHD +2 | — | |
| 89072-0KF50 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-08
ended
|
TGN166 IDNP VN | — | |
| 89072-0KF60 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 89072-0KF80 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 89072-0KG00 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN156 THP (L,S) | — | |
| 89072-0KG00 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN156 IDNP ARL | — | |
| 89072-0KG20 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89072-0KG30 |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN156 H ARL | — | |
| 89072-0KG30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156,TGN166 H LA | — | |
| 89072-0KJ20 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89072-0KJ20 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89072-0KJ20 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN156 MA;GUN156 LHD IDNP +1 | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → —
|
GUN156 PKN | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2024-01
ended
|
GUN156 RHD SA | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2024-01
ended
|
GUN166 SA | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 89072-0KJ30 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-08 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 89072-0KJ40 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 89072-0KJ50 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2024-01
ended
|
GUN156 RHD SA | — | |
| 89072-0KJ50 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89072-0KJ70 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89072-0KJ80 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89072-0KJ80 note |
Housing Set, Door Control Transmitter (FOR SMART KEY)
2022-11 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 89745C — Battery, Transmitter | ||||
| 89745-0K010 note |
Battery, Transmitter
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2024-01
ended
|
GUN155,16# RHD SA;GUN156 RHD +2 | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-08 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2023-11
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-08 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-08 → 2023-08
ended
|
GUN155 6FC IDNP (H,L) +10 | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 89745-0K010 note |
Battery, Transmitter
2022-08 → 2023-07
ended
|
GUN156,166 THP;GGN155,GUN155 THP H;GUN165,TGN156 +2 | — | |
| 89745-0K010 note |
Battery, Transmitter
2023-01 → 2023-11
ended
|
GUN156 RHD 6FC SA | — | |
| 89751A — Cover, Transmitter Housing | ||||
| 89751-0K120 note |
Cover, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89751-0K120 |
Cover, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN155 MA;GUN165,TGN156 LHD IDNP +2 | — | |
| 89751-0K120 note |
Cover, Transmitter Housing
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89751-0K120 note |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 89751-0K120 |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
TGN156 THP S | — | |
| 89751-0K130 |
Cover, Transmitter Housing
2022-08 → —
|
TGN166 PKN | — | |
| 89751-0K130 note |
Cover, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89751-0K130 |
Cover, Transmitter Housing
2022-08 → 2024-01
ended
|
GUN15#,165 RHD SA | — | |
| 89751-0K130 note |
Cover, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89751-0K130 note |
Cover, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89751-0K130 note |
Cover, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN156 RHD 6FC SA | — | |
| 89751-0K130 |
Cover, Transmitter Housing
2022-08 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 89751-0K130 note |
Cover, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89751-0K130 |
Cover, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN165 IDNP S (PH,VN);GUN156,TGN166 +3 | — | |
| 89751-0K130 |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156,165 RHD THP (L,S) | — | |
| 89751-0K140 |
Cover, Transmitter Housing
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 89751-0K140 |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GGN155,GUN15# LHD THP H | — | |
| 89751-0K140 |
Cover, Transmitter Housing
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 89751-0K140 note |
Cover, Transmitter Housing
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 89751-0K140 |
Cover, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN155 (GCC,IDN,MA) IDNP H;GUN156 +5 | — | |
| 89751-0K150 note |
Cover, Transmitter Housing
2022-09 → 2024-01
ended
|
GUN156 RHD SA | — | |
| 89751-0K150 |
Cover, Transmitter Housing
2022-08 → 2024-01
ended
|
GUN166 SA | — | |
| 89751-0K150 note |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89751-0K150 |
Cover, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN156 RHD GEN;GUN156 IDNP +3 | — | |
| 89751-0K150 |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP H | — | |
| 89751-0K150 |
Cover, Transmitter Housing
2022-08 → —
|
GUN156,TGN156 PKNP | — | |
| 89751-0K150 note |
Cover, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89751-0K150 note |
Cover, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN155 RHD GEN;GUN156 LHD +2 | — | |
| 89751-0K150 |
Cover, Transmitter Housing
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 89751-0K150 note |
Cover, Transmitter Housing
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 89751-0K150 |
Cover, Transmitter Housing
2022-08 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 89751-0K150 |
Cover, Transmitter Housing
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 89751-0K150 note |
Cover, Transmitter Housing
2022-09 → 2023-08
ended
|
TGN166 IDNP VN | — | |
| 89751-0K380 note |
Cover, Transmitter Housing
2022-08 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 89751-0K380 note |
Cover, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN156 MA;GUN156 LHD IDNP +1 | — | |
| 89751-0K380 note |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89751-0K380 note |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD SA | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2022-09 → 2024-01
ended
|
GUN166 SA | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2022-09 → —
|
GUN156 PKN | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 89751-0K390 note |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 89751-0K400 note |
Cover, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD SA | — | |
| 89751-0K400 note |
Cover, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89751-0K410 note |
Cover, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89751-0K410 note |
Cover, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 89751-0K410 note |
Cover, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89752A — Case, Transmitter Housing | ||||
| 89752-0K360 |
Case, Transmitter Housing
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN166 H IDN | — | |
| 89752-0K720 note |
Case, Transmitter Housing
2023-01 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 89752-0K740 |
Case, Transmitter Housing
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 H LA | — | |
| 89752-0K740 |
Case, Transmitter Housing
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 89752-0K740 note |
Case, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN156 RHD 6FC SA | — | |
| 89752-0K740 note |
Case, Transmitter Housing
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89752-0K740 note |
Case, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89752-0K740 note |
Case, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89752-0K740 note |
Case, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89752-0K740 |
Case, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN155 .(IDNP,MAP) IDNP 6FC +11 | — | |
| 89752-0K740 note |
Case, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89752-0K740 |
Case, Transmitter Housing
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 89752-0K740 note |
Case, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89752-0K740 |
Case, Transmitter Housing
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 89752-0K740 |
Case, Transmitter Housing
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 89752-0K740 note |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 89752-0K740 |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP H;GUN156,16#,TGN156 THP +2 | — | |
| 89752-0K750 |
Case, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN156 IDNP ARL | — | |
| 89752-0K750 |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP ARL | — | |
| 89752-0K750 note |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156,TGN166 H LA | — | |
| 89752-0K760 |
Case, Transmitter Housing
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 89752-0K790 note |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89752-0K800 |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 89752-0K860 note |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89752-0K860 note |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 H LA | — | |
| 89752-0K870 note |
Case, Transmitter Housing
2022-09 → —
|
GUN156 PKN | — | |
| 89752-0K870 note |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89752-0K870 note |
Case, Transmitter Housing
2022-09 → 2023-10
ended
|
GUN156 H LA | — | |
| 89752-0K870 note |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 89752-0K870 note |
Case, Transmitter Housing
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD SA | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN156,166 MA,PH;GUN156 LHD IDNP +1 | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → —
|
GUN156 PKN | — | |
| 89752-0K880 note |
Case, Transmitter Housing
2022-08 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 89752-0K890 note |
Case, Transmitter Housing
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 89752-0KA10 note |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89752-0KA20 note |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 89752-0KA20 note |
Case, Transmitter Housing
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89904B — Transmitter Sub-assy, Electrical Key | ||||
| 89904-0K780 |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN166 H IDN | — | |
| 89904-0K800 note |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89904-0K800 note |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156 H LA | — | |
| 89904-0KK60 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89904-0KK60 |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN165,TGN156 LHD IDNP S +1 | — | |
| 89904-0KK60 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89904-0KK90 |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GGN155 IDNP H GCC;GUN155 +6 | — | |
| 89904-0KK90 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 89904-0KL10 |
Transmitter Sub-assy, Electrical Key
2022-08 → —
|
GUN156,TGN156 PKNP | — | |
| 89904-0KL10 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 89904-0KL10 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89904-0KL10 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89904-0KL10 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 89904-0KL10 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 H LA | — | |
| 89904-0KL10 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 89904-0KL10 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89904-0KL10 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 89904-0KL11 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89904-0KL11 |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN166 SA | — | |
| 89904-0KL31 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-08
ended
|
GUN156 IDNP ARL | — | |
| 89904-0KL31 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN156 THP (L,S) | — | |
| 89904-0KL40 note |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156,TGN166 H LA | — | |
| 89904-0KL41 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN156 H ARL | — | |
| 89904-0KL50 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-08
ended
|
GUN155 MA | — | |
| 89904-0KL50 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 89904-0KL50 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
TGN156 THP S | — | |
| 89904-0KL60 |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN165,TGN166 IDNP S (PH,VN) | — | |
| 89904-0KL70 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN155 RHD GEN;GUN156 LHD +2 | — | |
| 89904-0KL70 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
TGN166 IDNP VN | — | |
| 89904-0KL70 |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN156 RHD GEN;GUN156 IDNP +3 | — | |
| 89904-0KL80 |
Transmitter Sub-assy, Electrical Key
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 89904-0KL90 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89904-0KL90 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 89904-0KL90 |
Transmitter Sub-assy, Electrical Key
2022-08 → —
|
TGN166 PKN | — | |
| 89904-0KL90 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN165 S TH | — | |
| 89904-0KL90 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89904-0KL90 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89904-0KL90 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89904-0KL90 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89904-0KL91 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2023-11
ended
|
GUN156 RHD 6FC SA | — | |
| 89904-0KL91 |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89904-0KL91 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2023-11
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89904-0KM00 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-08
ended
|
GUN156,TGN156 MA | — | |
| 89904-0KM00 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GGN155,GUN15# LHD THP H | — | |
| 89904-0KM00 |
Transmitter Sub-assy, Electrical Key
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 89904-0KM10 |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 89904-0KM30 note |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89904-0KN70 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-08
ended
|
GUN156 MA;GUN156 LHD IDNP +1 | — | |
| 89904-0KN70 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89904-0KN70 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN156,166 PH | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2022-09 → —
|
GUN156 PKN | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN15#,16# H TH | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 89904-0KN80 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-09
ended
|
GUN156,165 VNP H | — | |
| 89904-0KN81 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN166 SA | — | |
| 89904-0KN81 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89904-0KN90 note |
Transmitter Sub-assy, Electrical Key
2022-10 → 2023-09
ended
|
GUN156,166 6FC IND | — | |
| 89904-0KP00 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89904-0KP00 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89904-0KP01 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89904-0KP30 note |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89904-0KP40 note |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89904-0KP40 note |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 89904-0KP80 note |
Transmitter Sub-assy, Electrical Key
2023-01 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 89904-0KQ40 note |
Transmitter Sub-assy, Electrical Key
2022-09 → —
|
GUN156 PKN | — | |
| 89904-0KQ40 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 89904-0KQ40 note |
Transmitter Sub-assy, Electrical Key
2022-09 → 2023-10
ended
|
GUN156 H LA | — | |
| 89904-0KQ40 note |
Transmitter Sub-assy, Electrical Key
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 89904-0KQ40 note |
Transmitter Sub-assy, Electrical Key
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
