Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

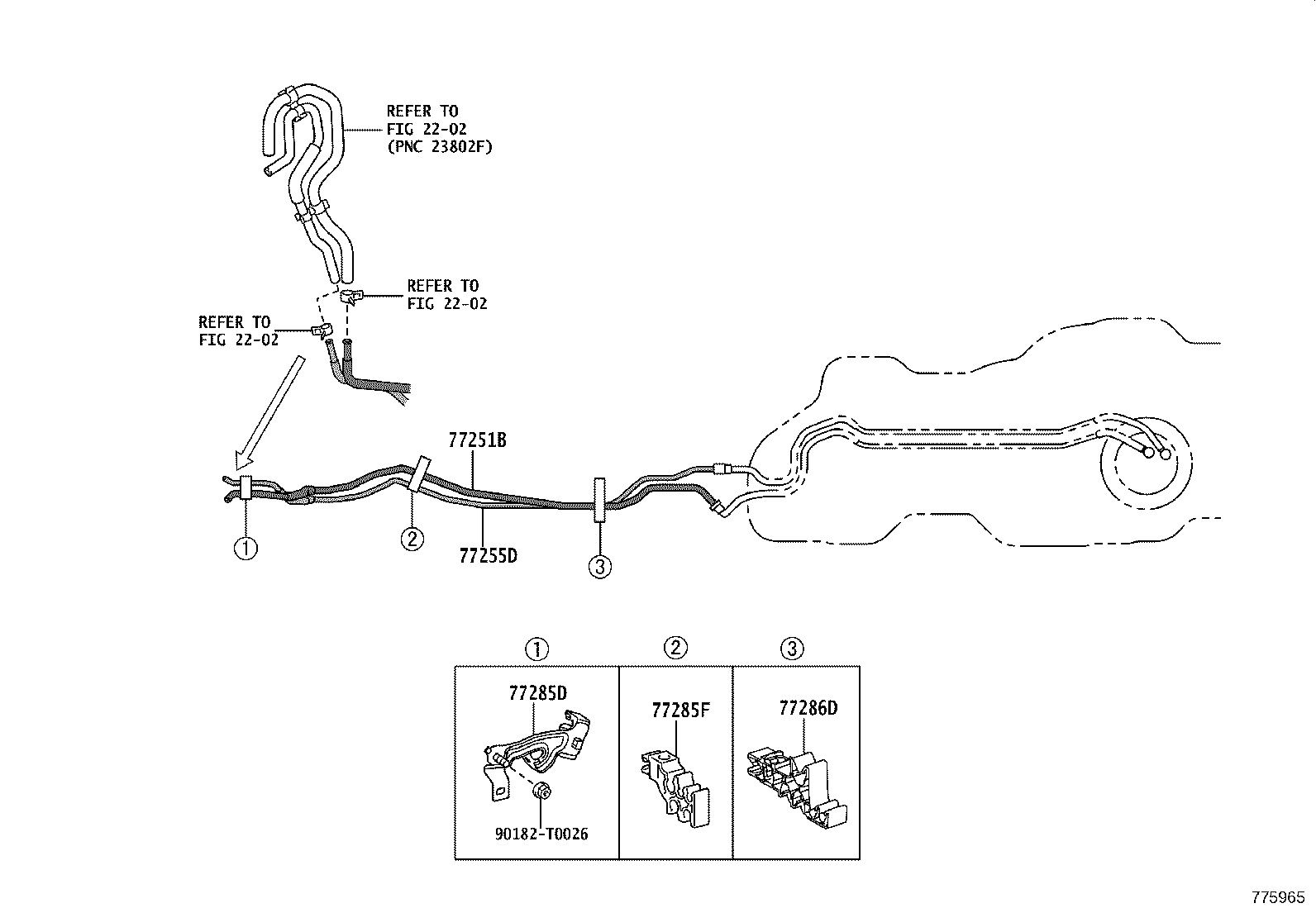

Exploded illustration 775965 2202 — not listed in this catalogue 2202 — not listed in this catalogue 2202 — not listed in this catalogue 77251B — TUBE, FUEL MAIN (17 parts) 77255D — TUBE, FUEL RETURN (17 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (9 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (9 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (17 parts) 90182T0026 — not listed in this catalogue
775965 · 5 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77205-KK050 Tube, Fuel Main
2022-08 → 2023-07 ended
GGN155,TGN156,166 THP —
77205-KK050 Tube, Fuel Main
2022-08 → 2023-08 ended
GGN155,TGN156,166 IDNP,MAP —
77205-KK050 Tube, Fuel Main
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
77205-KK050 Tube, Fuel Main
2022-08 → —
TGN156,166 PKN —
77205-KK050 Tube, Fuel Main
2022-08 → 2023-10 ended
GGN155,TGN156,166 AGTP —
77205-KK050 Tube, Fuel Main
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
77205-KK050 Tube, Fuel Main
2022-08 → 2024-01 ended
TGN156 SA —
77251-KK080 Tube, Fuel Main
2023-01 → 2024-01 ended
LAN155 —
77251-KK100 Tube, Fuel Main
2022-08 → 2023-07 ended
GUN15#,16# THP —
77251-KK100 Tube, Fuel Main
2022-08 → —
GUN156 PKNP —
77251-KK100 Tube, Fuel Main
2022-08 → 2024-03 ended
GUN15# KEN —
77251-KK100 Tube, Fuel Main
2022-08 → 2024-01 ended
GUN15#,16# SA —
77251-KK100 Tube, Fuel Main
2022-08 → 2023-10 ended
GUN156,16# AGTP —
77251-KK100 Tube, Fuel Main
2022-08 → 2023-09 ended
GUN156,165 VNP —
77251-KK100 Tube, Fuel Main
2022-08 → 2023-08 ended
GUN15#,16# IDNP,MAP —
77251-KK140 Tube, Fuel Main
2022-10 → 2023-09 ended
GUN156,166 IND —
77251-KK160 note Tube, Fuel Main
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
77255D — Tube, Fuel Return
77255-KK070 Tube, Fuel Return
2023-01 → 2024-01 ended
LAN155 —
77255-KK100 Tube, Fuel Return
2022-08 → 2023-08 ended
GGN155,TGN156,166 IDNP,MAP —
77255-KK100 Tube, Fuel Return
2022-08 → —
TGN156,166 PKN —
77255-KK100 Tube, Fuel Return
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
77255-KK100 Tube, Fuel Return
2022-08 → 2024-01 ended
TGN156 SA —
77255-KK100 Tube, Fuel Return
2022-08 → 2023-10 ended
GGN155,TGN156,166 AGTP —
77255-KK100 Tube, Fuel Return
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
77255-KK100 Tube, Fuel Return
2022-08 → 2023-07 ended
GGN155,TGN156,166 THP —
77255-KK140 Tube, Fuel Return
2022-08 → 2023-09 ended
GUN156,165 VNP —
77255-KK140 Tube, Fuel Return
2022-08 → 2023-10 ended
GUN156,16# AGTP —
77255-KK140 Tube, Fuel Return
2022-08 → 2024-01 ended
GUN15#,16# SA —
77255-KK140 Tube, Fuel Return
2022-08 → 2023-08 ended
GUN15#,16# IDNP,MAP —
77255-KK140 Tube, Fuel Return
2022-08 → 2024-03 ended
GUN15# KEN —
77255-KK140 Tube, Fuel Return
2022-08 → 2023-07 ended
GUN15#,16# THP —
77255-KK140 Tube, Fuel Return
2022-08 → —
GUN156 PKNP —
77255-KK190 Tube, Fuel Return
2022-10 → 2023-09 ended
GUN156,166 IND —
77255-KK210 note Tube, Fuel Return
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
77285D — Clamp, Fuel Tube, NO.1
77285-0K130 Clamp, Fuel Tube, NO.1
2022-08 → 2023-07 ended
GGN155,TGN156,166 THP —
77285-0K130 Clamp, Fuel Tube, NO.1
2022-08 → —
TGN156,166 PKN —
77285-0K130 Clamp, Fuel Tube, NO.1
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
77285-0K130 Clamp, Fuel Tube, NO.1
2022-08 → 2024-01 ended
TGN156 SA —
77285-0K130 Clamp, Fuel Tube, NO.1
2022-08 → 2023-10 ended
GGN155,TGN156,166 AGTP —
77285-0K130 Clamp, Fuel Tube, NO.1
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
77285-0K130 Clamp, Fuel Tube, NO.1
2022-08 → 2023-08 ended
GGN155,TGN156,166 IDNP,MAP —
77285-0K160 Clamp, Fuel Tube, NO.1
2022-08 → 2023-09 ended
GUN156,165 VNP —
77285-0K160 Clamp, Fuel Tube, NO.1
2022-08 → 2023-10 ended
GUN156,16# AGTP —
77285-0K160 Clamp, Fuel Tube, NO.1
2022-08 → —
GUN156 PKNP —
77285-0K160 Clamp, Fuel Tube, NO.1
2022-08 → 2023-08 ended
GUN15#,16# IDNP,MAP —
77285-0K160 Clamp, Fuel Tube, NO.1
2022-08 → 2024-01 ended
GUN15#,16# SA —
77285-0K160 Clamp, Fuel Tube, NO.1
2022-08 → 2024-03 ended
GUN15# KEN —
77285-0K160 Clamp, Fuel Tube, NO.1
2022-08 → 2023-07 ended
GUN15#,16# THP —
77285-0K240 Clamp, Fuel Tube, NO.1
2023-01 → 2024-01 ended
LAN155 —
77285-0K430 Clamp, Fuel Tube, NO.1
2022-10 → 2023-09 ended
GUN156,166 IND —
77285-0K430 note Clamp, Fuel Tube, NO.1
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
77285F — Clamp, Fuel Tube, NO.1
77285-0K230 Clamp, Fuel Tube, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
77285-0K230 Clamp, Fuel Tube, NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
77285-0K230 Clamp, Fuel Tube, NO.1
2022-08 → 2023-09 ended
GUN156,165 VNP;TGN166 INDP,VNP —
77285-0K230 Clamp, Fuel Tube, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
77285-0K230 Clamp, Fuel Tube, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
77285-0K230 Clamp, Fuel Tube, NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
77285-0K230 Clamp, Fuel Tube, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
77285-0K290 Clamp, Fuel Tube, NO.1
2022-10 → 2023-09 ended
GUN156,166 IND —
77285-0K460 note Clamp, Fuel Tube, NO.1
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
77286D — Clamp, Fuel Tube, NO.2
77286-0K030 Clamp, Fuel Tube, NO.2
2022-10 → 2023-09 ended
GUN156,166 IND —
77286-0K170 Clamp, Fuel Tube, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
77286-0K170 Clamp, Fuel Tube, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
77286-0K170 Clamp, Fuel Tube, NO.2
2022-08 → 2023-09 ended
GUN156,165 VNP;TGN166 INDP,VNP —
77286-0K170 Clamp, Fuel Tube, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
77286-0K170 Clamp, Fuel Tube, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
77286-0K170 Clamp, Fuel Tube, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
77286-0K170 Clamp, Fuel Tube, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
77286-0K250 note Clamp, Fuel Tube, NO.2
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
