Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

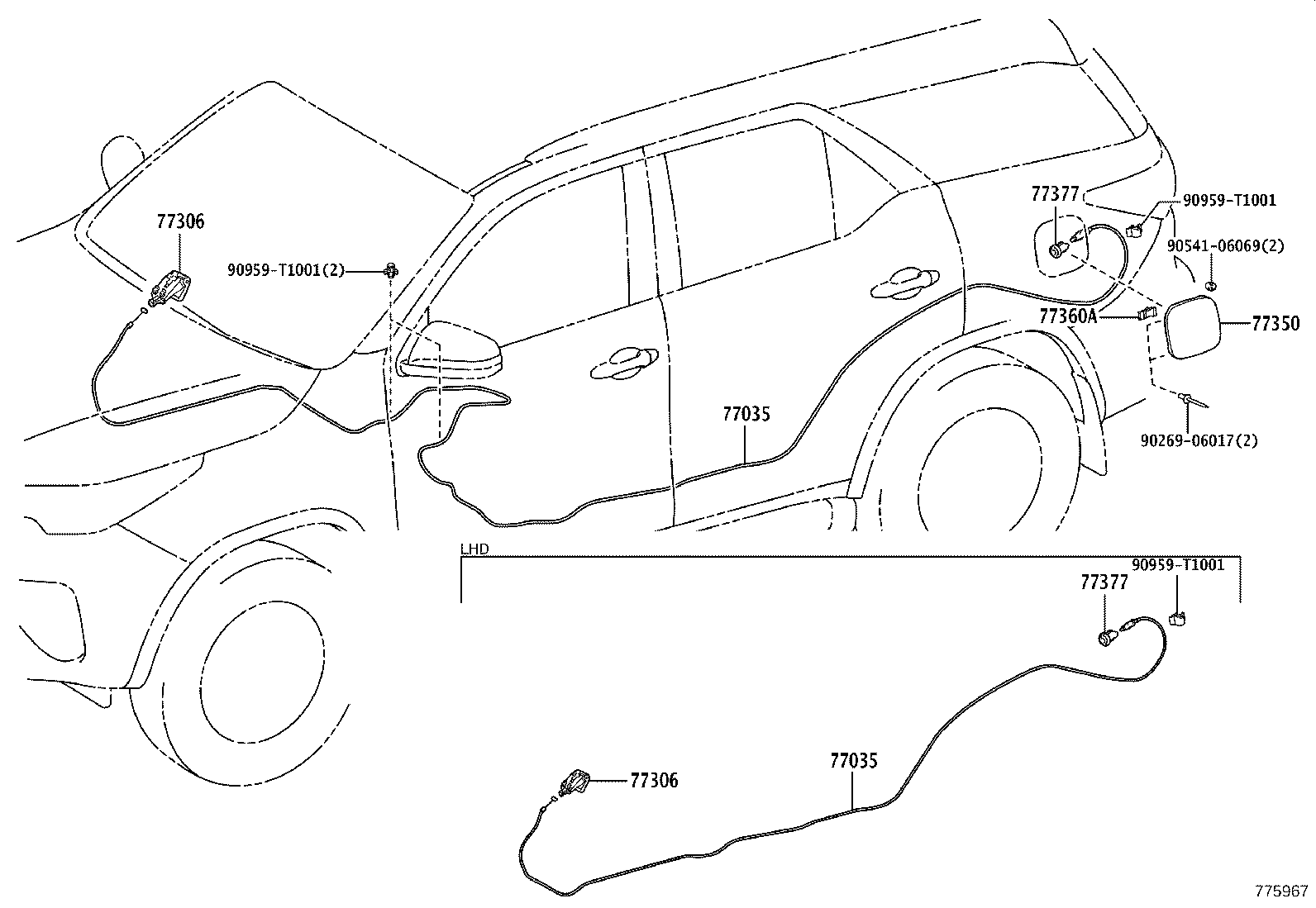

Exploded illustration 775967 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (13 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (10 parts) 77350 — LID ASSY, FUEL FILLER OPENING (7 parts) 77360A — SPRING ASSY, FUEL FILLER OPENING LID (7 parts) 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (8 parts) 9026906017 — not listed in this catalogue 9054106069 — not listed in this catalogue 90959T1001 — not listed in this catalogue 90959T1001 — not listed in this catalogue 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (10 parts) 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (8 parts) 90959T1001 — not listed in this catalogue 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (13 parts)
775967 · 8 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-0K400 Cable Sub-assy, Fuel Lid Lock Control
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
77035-0K410 Cable Sub-assy, Fuel Lid Lock Control
2022-08 → 2023-07 ended
GGN155,GUN15#,165,TGN156,166 LHD THP —
77035-0K410 Cable Sub-assy, Fuel Lid Lock Control
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
77035-0K410 Cable Sub-assy, Fuel Lid Lock Control
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
77035-0K410 Cable Sub-assy, Fuel Lid Lock Control
2022-08 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
77035-0K420 Cable Sub-assy, Fuel Lid Lock Control
2022-08 → 2023-07 ended
GUN15#,16# RHD THP —
77035-0K420 Cable Sub-assy, Fuel Lid Lock Control
2022-08 → —
GUN156,TGN156,166 PKNP —
77035-0K420 Cable Sub-assy, Fuel Lid Lock Control
2022-08 → 2024-03 ended
GUN15# KEN —
77035-0K420 Cable Sub-assy, Fuel Lid Lock Control
2022-08 → 2024-01 ended
GUN15#,16# RHD SA —
77035-0K510 Cable Sub-assy, Fuel Lid Lock Control
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 LHD IDNP —
77035-0K520 Cable Sub-assy, Fuel Lid Lock Control
2022-09 → 2023-08 ended
GUN15#,16#,TGN156,166 RHD IDNP —
77035-0K530 Cable Sub-assy, Fuel Lid Lock Control
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
77035-0K600 Cable Sub-assy, Fuel Lid Lock Control
2022-09 → 2023-08 ended
GUN15#,TGN156 MA —
77306 — Lever Sub-assy, Fuel Lid Lock Open
77306-0K080 Lever Sub-assy, Fuel Lid Lock Open
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
77306-0K090 Lever Sub-assy, Fuel Lid Lock Open
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
77306-0K090 Lever Sub-assy, Fuel Lid Lock Open
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
77306-0K100 Lever Sub-assy, Fuel Lid Lock Open
2022-08 → —
GUN156,TGN156,166 PKNP —
77306-0K100 Lever Sub-assy, Fuel Lid Lock Open
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
77306-0K100 Lever Sub-assy, Fuel Lid Lock Open
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
77306-0K100 Lever Sub-assy, Fuel Lid Lock Open
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
77306-0K100 Lever Sub-assy, Fuel Lid Lock Open
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
77306-0K110 Lever Sub-assy, Fuel Lid Lock Open
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
77306-0K110 Lever Sub-assy, Fuel Lid Lock Open
2023-01 → 2024-03 ended
GUN15# KEN —
77350 — Lid Assy, Fuel Filler Opening
77350-KK080 Lid Assy, Fuel Filler Opening
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
77350-KK080 Lid Assy, Fuel Filler Opening
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
77350-KK080 Lid Assy, Fuel Filler Opening
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
77350-KK080 Lid Assy, Fuel Filler Opening
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
77350-KK080 Lid Assy, Fuel Filler Opening
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
77350-KK080 Lid Assy, Fuel Filler Opening
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
77350-KK080 Lid Assy, Fuel Filler Opening
2022-08 → —
GUN156,TGN156,166 PKNP —
77360A — Spring Assy, Fuel Filler Opening Lid
77360-0K010 Spring Assy, Fuel Filler Opening Lid
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
77360-0K010 Spring Assy, Fuel Filler Opening Lid
2022-08 → —
GUN156,TGN156,166 PKNP —
77360-0K010 Spring Assy, Fuel Filler Opening Lid
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
77360-0K010 Spring Assy, Fuel Filler Opening Lid
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
77360-0K010 Spring Assy, Fuel Filler Opening Lid
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
77360-0K010 Spring Assy, Fuel Filler Opening Lid
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
77360-0K010 Spring Assy, Fuel Filler Opening Lid
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
77377-0D080 Retainer, Fuel Filler Opening Lid Lock
2022-08 → —
GUN156,TGN156,166 PKNP —
77377-0K050 Retainer, Fuel Filler Opening Lid Lock
2023-01 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
77377-0K050 Retainer, Fuel Filler Opening Lid Lock
2023-01 → 2024-03 ended
GUN15# KEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
