Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

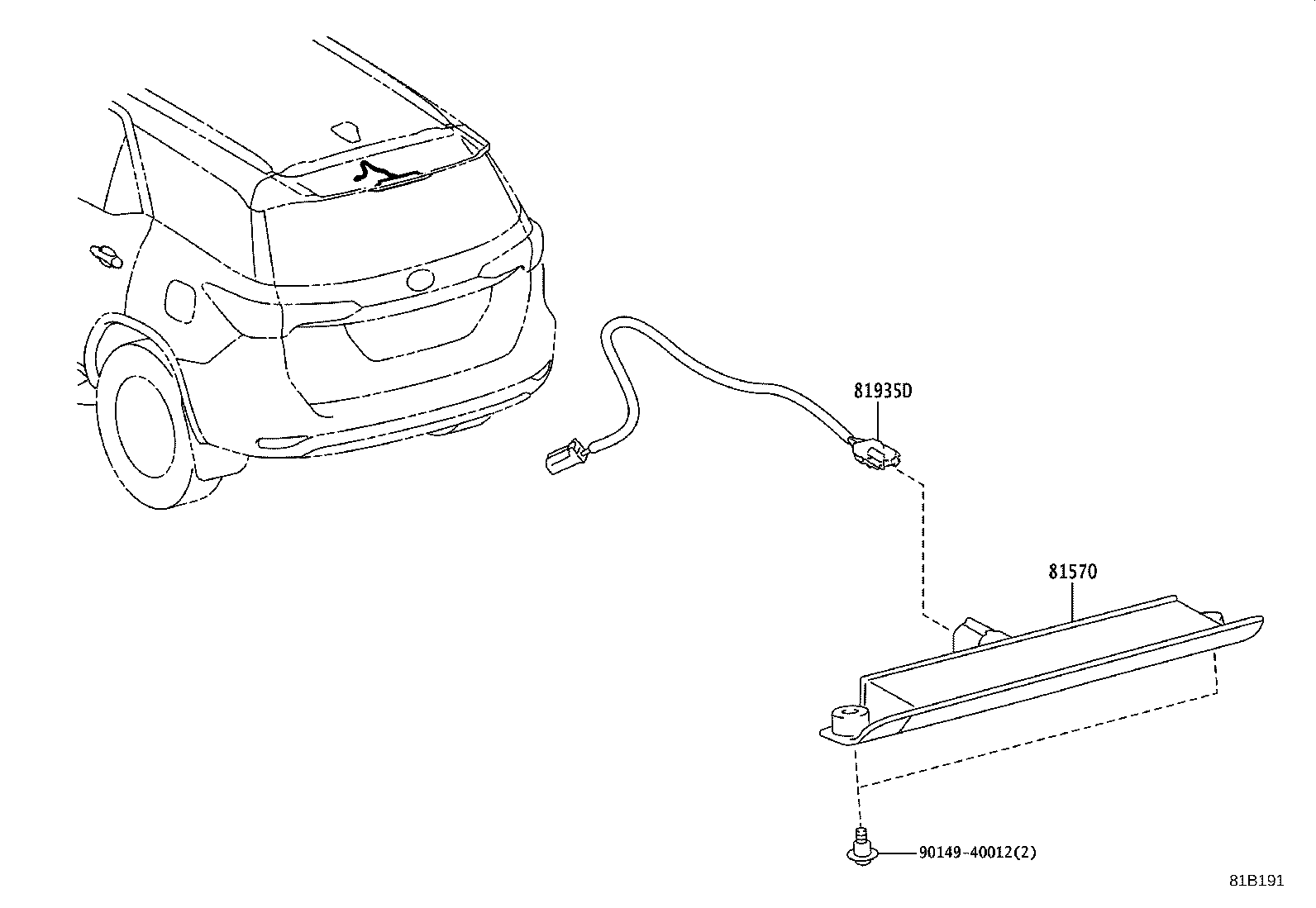

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-0K090 |
Lamp Assy, Center Stop
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 81570-0K090 note |
Lamp Assy, Center Stop
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 81570-0K090 |
Lamp Assy, Center Stop
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 81570-0K090 |
Lamp Assy, Center Stop
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 81570-0K090 |
Lamp Assy, Center Stop
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 81570-0K090 note |
Lamp Assy, Center Stop
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 81570-0K090 |
Lamp Assy, Center Stop
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 81570-0K090 note |
Lamp Assy, Center Stop
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 81570-0K120 |
Lamp Assy, Center Stop
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 81570-0K120 note |
Lamp Assy, Center Stop
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 81570-0K130 note |
Lamp Assy, Center Stop
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 81570-0K130 note |
Lamp Assy, Center Stop
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 81570-0K130 |
Lamp Assy, Center Stop
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 81570-0K160 |
Lamp Assy, Center Stop
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 81935D — Cord Assy, Center Stop Lamp | ||||
| 81935-0K030 |
Cord Assy, Center Stop Lamp
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 81935-0K030 note |
Cord Assy, Center Stop Lamp
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 81935-0K030 |
Cord Assy, Center Stop Lamp
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 81935-0K030 note |
Cord Assy, Center Stop Lamp
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 81935-0K030 |
Cord Assy, Center Stop Lamp
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 81935-0K030 note |
Cord Assy, Center Stop Lamp
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 81935-0K030 |
Cord Assy, Center Stop Lamp
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 81935-0K030 |
Cord Assy, Center Stop Lamp
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 81935-0K040 |
Cord Assy, Center Stop Lamp
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 81935-0K040 note |
Cord Assy, Center Stop Lamp
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 81935-0K040 |
Cord Assy, Center Stop Lamp
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 81935-0K050 |
Cord Assy, Center Stop Lamp
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 81935-0K050 note |
Cord Assy, Center Stop Lamp
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 81935-0K050 note |
Cord Assy, Center Stop Lamp
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
