Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

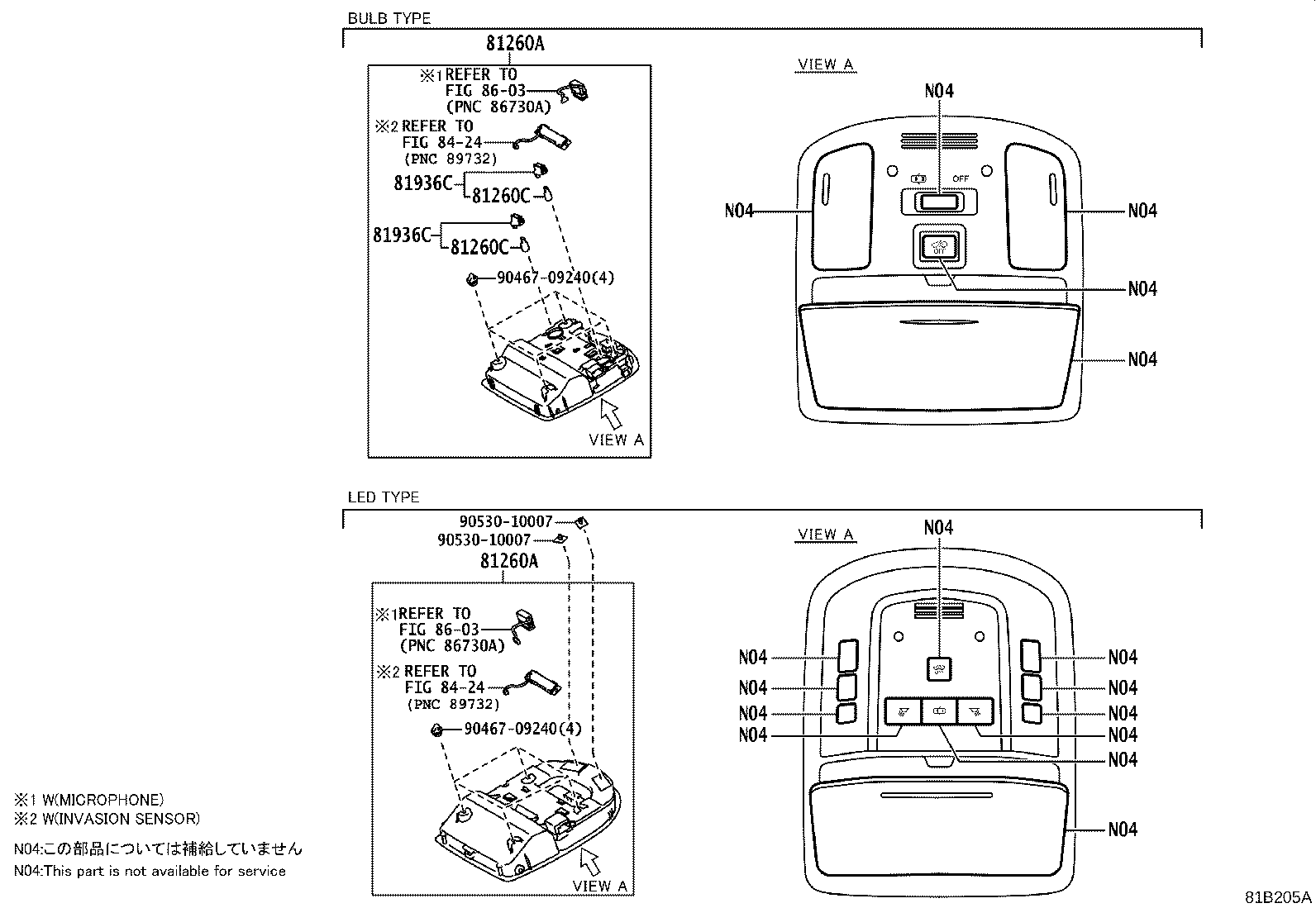

Exploded illustration 81B205A 8424 — not listed in this catalogue 9046709240 — not listed in this catalogue 81260A — LAMP ASSY, MAP (91 parts) 81936C — BULB ASSY (7 parts) 81260C — BULB(FOR MAP LAMP) (8 parts) 9046709240 — not listed in this catalogue 9053010007 — not listed in this catalogue 9053010007 — not listed in this catalogue 81260A — LAMP ASSY, MAP (91 parts) 81936C — BULB ASSY (7 parts) 81260C — BULB(FOR MAP LAMP) (8 parts) 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8424 — not listed in this catalogue
81B205A · 6 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
106 parts on this figure
Part number Description Fitment Price
81260A — Lamp Assy, Map
63650-0K830-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN156 THP (L,S) —
63650-0K830-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN156 H ARL —
63650-0K830-B0 note Lamp Assy, Map
2022-08 → 2023-08 ended
GUN156 IDNP ARL —
63650-0K840-B0 note Lamp Assy, Map
2023-05 → —
GUN156 PKN —
63650-0K840-B0 note Lamp Assy, Map
2023-02 → —
TGN156,166 PKN —
63650-0K840-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156,TGN166 H LA —
63650-0K840-C0 note Lamp Assy, Map
2023-05 → —
GUN156 PKN —
63650-0K840-C0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN156 TH —
63650-0K840-C0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN156 THP GEN;GUN155,16# H +1 —
63650-0K850-B0 note Lamp Assy, Map
2022-08 → —
GUN156 PKNP TH —
63650-0K850-B0 note Lamp Assy, Map
2022-08 → 2023-01 ended
GUN156 TH —
63650-0K850-B0 note Lamp Assy, Map
2023-01 → 2023-07 ended
GUN156 TH —
63650-0K850-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN156 H ARL —
63650-0K850-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN155,16# H TH —
63650-0K850-C0 note Lamp Assy, Map
2023-01 → 2023-07 ended
GUN166 TH —
63650-0K850-C0 note Lamp Assy, Map
2023-01 → 2023-07 ended
GUN156 TH —
63650-0K860-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN15# THP H GCC —
63650-0K860-B0 note Lamp Assy, Map
2022-11 → 2024-03 ended
GGN155 EPT —
63650-0K860-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GGN155,GUN165 H LA —
63650-0K860-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 H LA —
63650-0K860-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
TGN166 H LA —
63650-0K860-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 H LA —
63650-0K860-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
TGN166 H LA —
63650-0K860-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GGN155 THP H;GUN156 THP +1 —
63650-0K860-C0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 H LA —
63650-0K860-C0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 H LA —
63650-0K860-C0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN156 THP GEN —
63650-0K870-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
63650-0K870-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
63650-0K870-C0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
63650-0K870-C0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
63650-0K880-B0 note Lamp Assy, Map
2023-01 → 2024-03 ended
GUN155 KEN —
63650-0K880-B0 note Lamp Assy, Map
2023-01 → 2024-01 ended
GUN155,165 L SA —
63650-0K880-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN155 MA —
63650-0K890-B0 note Lamp Assy, Map
2023-01 → 2024-01 ended
GUN15#,16# RHD SA —
63650-0K890-B0 note Lamp Assy, Map
2023-01 → 2024-03 ended
GUN15# KEN —
63650-0K890-C0 note Lamp Assy, Map
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
63650-0KA00-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
TGN156 L GEN —
63650-0KA00-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN155 L GEN —
63650-0KA00-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN165 L PH;GUN155,165,TGN166 IDNP +2 —
63650-0KA00-B0 note Lamp Assy, Map
2023-01 → 2023-08 ended
GGN155,GUN155 IDNP S GCC —
63650-0KA00-B0 note Lamp Assy, Map
2023-01 → 2023-08 ended
GUN155,165,TGN156,166 IDNP L GCC —
63650-0KA10-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN165,TGN166 IDNP S VN —
63650-0KA10-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN155,165,TGN156,166 IDNP L GCC —
63650-0KA10-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GGN155,GUN155,165,TGN156 LHD IDNP S +1 —
63650-0KA10-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN165 S PH —
63650-0KA20-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN165 RHD GEN —
63650-0KA30-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
TGN156 H GEN;GUN156 LHD +2 —
63650-0KA30-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
TGN156 H GEN;GUN156 LHD +2 —
63650-0KA30-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
TGN156 VN —
63650-0KA30-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GGN155 GEN —
63650-0KA30-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN15#,16#,TGN166 H IDN —
63650-0KA30-C0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
63650-0KA30-C0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
63650-0KA40-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GGN155 IDNP H GCC;GUN15# +4 —
63650-0KA40-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN166,TGN156 LHD H —
63650-0KA40-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN15# IDNP H GCC —
63650-0KA40-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
63650-0KA40-C0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN166 PH —
63650-0KA40-C0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN156 PH —
63650-0KA40-C0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN156 IDNP VN —
63650-0KA40-C0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
63650-0KA50-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN15#,TGN156,166 RHD GEN —
63650-0KA60-B0 note Lamp Assy, Map
2023-01 → 2023-07 ended
GGN155 THP S —
63650-0KA60-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156,166,TGN156,166 (6F,6FC) (L,S) LA —
63650-0KA60-B0 note Lamp Assy, Map
2023-01 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
63650-0KA60-B0 note Lamp Assy, Map
2022-11 → 2024-03 ended
TGN166 EPT —
63650-0KA70-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN155,165,TGN156,166 THP L —
63650-0KA70-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GGN155,GUN155,TGN156 THP S —
63650-0KA70-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN165 L LA;TGN166 S +3 —
63650-0KA70-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156,166,TGN166 (6F,6FC) (L,S) LA —
63650-0KA70-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156,166,TGN166 (6F,6FC) (L,S) LA —
63650-0KA70-B0 note Lamp Assy, Map
2023-01 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63650-0KA80-B0 note Lamp Assy, Map
2022-08 → 2023-07 ended
GUN165 S TH —
63650-0KA90-B0 note Lamp Assy, Map
2022-10 → 2023-09 ended
GUN156 6FC IND —
63650-0KA90-B0 note Lamp Assy, Map
2022-10 → 2023-09 ended
GUN156 6F IND;GUN166,TGN166 IND —
63650-0KA90-C0 note Lamp Assy, Map
2022-10 → 2023-09 ended
GUN166 6FC IND —
63650-0KA90-C0 note Lamp Assy, Map
2022-10 → 2023-09 ended
GUN156 6FC IND —
63650-0KB00-B0 note Lamp Assy, Map
2022-11 → 2024-01 ended
GUN15#,LAN155,TGN156 LHD SA —
63650-0KB00-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 L BZAGT —
63650-0KB00-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156,TGN156 S BZAGT —
63650-0KB10-B0 note Lamp Assy, Map
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
63650-0KB10-C0 note Lamp Assy, Map
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
63650-0KB20-B0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN156,TGN156 MA —
63650-0KB20-B0 note Lamp Assy, Map
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
63650-0KB20-C0 note Lamp Assy, Map
2022-09 → 2023-08 ended
GUN156 MA —
63650-0KC50-B0 note Lamp Assy, Map
2022-09 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
63650-0KC60 note Lamp Assy, Map
2022-09 → 2023-09 ended
GUN165,TGN166 VNP S —
63650-0KC60-C0 note Lamp Assy, Map
2022-09 → 2023-09 ended
GUN165 H VN —
63650-0KC70-B0 note Lamp Assy, Map
2022-09 → 2023-09 ended
GUN156 VNP —
63650-0KC70-C0 note Lamp Assy, Map
2022-09 → 2023-09 ended
GUN156 VNP —
81260C — Bulb(FOR MAP LAMP)
99132-12050 note Bulb(FOR MAP LAMP)
2022-09 → 2023-09 ended
GUN165,TGN166 VNP —
99132-12050 note Bulb(FOR MAP LAMP)
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
99132-12050 note Bulb(FOR MAP LAMP)
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
99132-12050 note Bulb(FOR MAP LAMP)
2022-08 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
99132-12050 note Bulb(FOR MAP LAMP)
2022-09 → 2023-08 ended
GGN155,GUN155,165,TGN156,166 IDNP (L,S) —
99132-12050 note Bulb(FOR MAP LAMP)
2022-08 → 2023-08 ended
GUN15# RHD (IDNP,MAP) L —
99132-12050 note Bulb(FOR MAP LAMP)
2022-08 → 2023-07 ended
GUN156 H ARL —
99132-12050 note Bulb(FOR MAP LAMP)
2022-08 → 2023-07 ended
GGN155,GUN15#,165,TGN156,166 THP (L,S) —
81936C — Bulb Assy
81936-28010 Bulb Assy
2022-08 → 2023-07 ended
GGN155,GUN15#,165,TGN156,166 THP (L,S) —
81936-28010 note Bulb Assy
2022-08 → 2023-07 ended
GUN156 H ARL —
81936-28010 Bulb Assy
2022-08 → 2023-08 ended
GGN155,GUN15#,165,TGN156,166 (IDNP,MAP) (L,S) —
81936-28010 Bulb Assy
2022-08 → 2023-09 ended
GUN165,TGN166 VNP —
81936-28010 Bulb Assy
2022-08 → 2023-10 ended
GUN156,16#,TGN156,166 AGTP (L,S) —
81936-28010 Bulb Assy
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
81936-28010 Bulb Assy
2022-08 → 2024-03 ended
GUN15#,TGN166 EPT,KEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
