Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

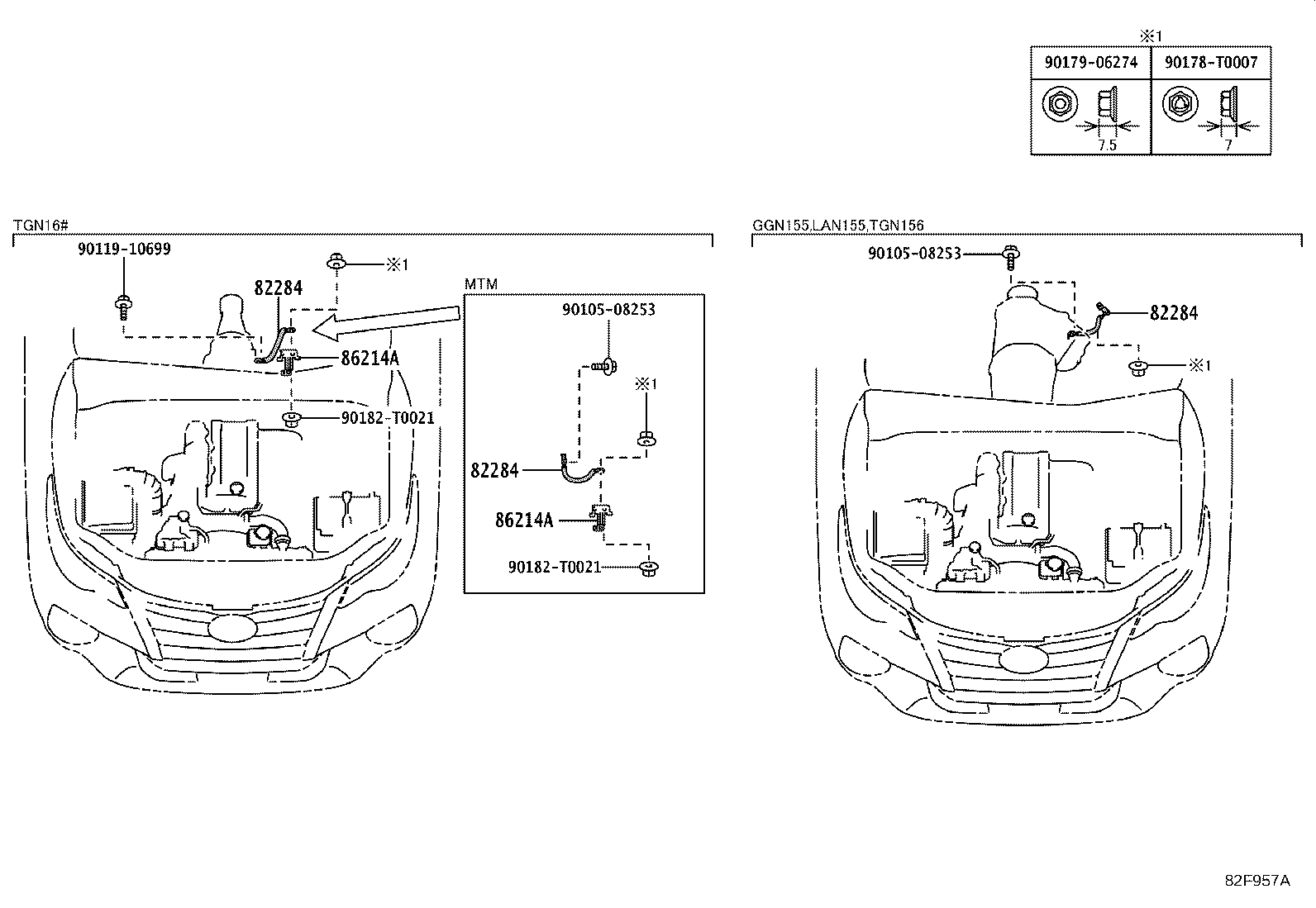

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82284 — Wire, Earth | ||||
| 82284-KK010 |
Wire, Earth
2022-08 → 2023-01
ended
|
GUN165 VNP 6FC | — | |
| 82284-KK010 |
Wire, Earth
2022-08 → 2023-07
ended
|
TGN166 THP | — | |
| 82284-KK010 |
Wire, Earth
2022-08 → 2023-08
ended
|
TGN166 IDNP | — | |
| 82284-KK010 |
Wire, Earth
2022-08 → —
|
TGN166 EPT,PKN | — | |
| 82284-KK010 |
Wire, Earth
2022-08 → 2023-09
ended
|
TGN166 (INDP,VNP) 6FC | — | |
| 82284-KK010 |
Wire, Earth
2022-08 → 2023-10
ended
|
TGN166 6FC LA | — | |
| 82284-KK020 |
Wire, Earth
2022-09 → 2023-01
ended
|
GUN165 VNP L | — | |
| 82284-KK020 |
Wire, Earth
2022-09 → 2023-09
ended
|
TGN166 5F IND | — | |
| 82284-KK020 |
Wire, Earth
2022-09 → 2023-10
ended
|
TGN166 S LA | — | |
| 82284-KK030 |
Wire, Earth
2022-08 → 2023-01
ended
|
GUN156 VNP | — | |
| 82284-KK030 |
Wire, Earth
2022-08 → —
|
GGN155,TGN156 EPT,PKN | — | |
| 82284-KK030 |
Wire, Earth
2022-08 → 2024-01
ended
|
LAN155,TGN156 SA | — | |
| 82284-KK030 |
Wire, Earth
2022-08 → 2023-10
ended
|
GGN155,TGN156 AGTP | — | |
| 82284-KK030 |
Wire, Earth
2022-08 → 2023-08
ended
|
GGN155,TGN156 IDNP,MAP | — | |
| 82284-KK030 |
Wire, Earth
2022-08 → 2023-07
ended
|
GGN155,TGN156 THP | — | |
| 86214A — Bracket, Radio Earth | ||||
| 86214-KK010 |
Bracket, Radio Earth
2022-08 → 2023-01
ended
|
GUN165 VNP | — | |
| 86214-KK010 |
Bracket, Radio Earth
2022-08 → 2023-07
ended
|
TGN166 THP | — | |
| 86214-KK010 |
Bracket, Radio Earth
2022-08 → 2023-08
ended
|
TGN166 IDNP | — | |
| 86214-KK010 |
Bracket, Radio Earth
2022-08 → 2023-09
ended
|
TGN166 INDP,VNP | — | |
| 86214-KK010 |
Bracket, Radio Earth
2022-08 → 2023-10
ended
|
TGN166 LA | — | |
| 86214-KK010 |
Bracket, Radio Earth
2022-08 → —
|
TGN166 EPT,PKN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
