Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

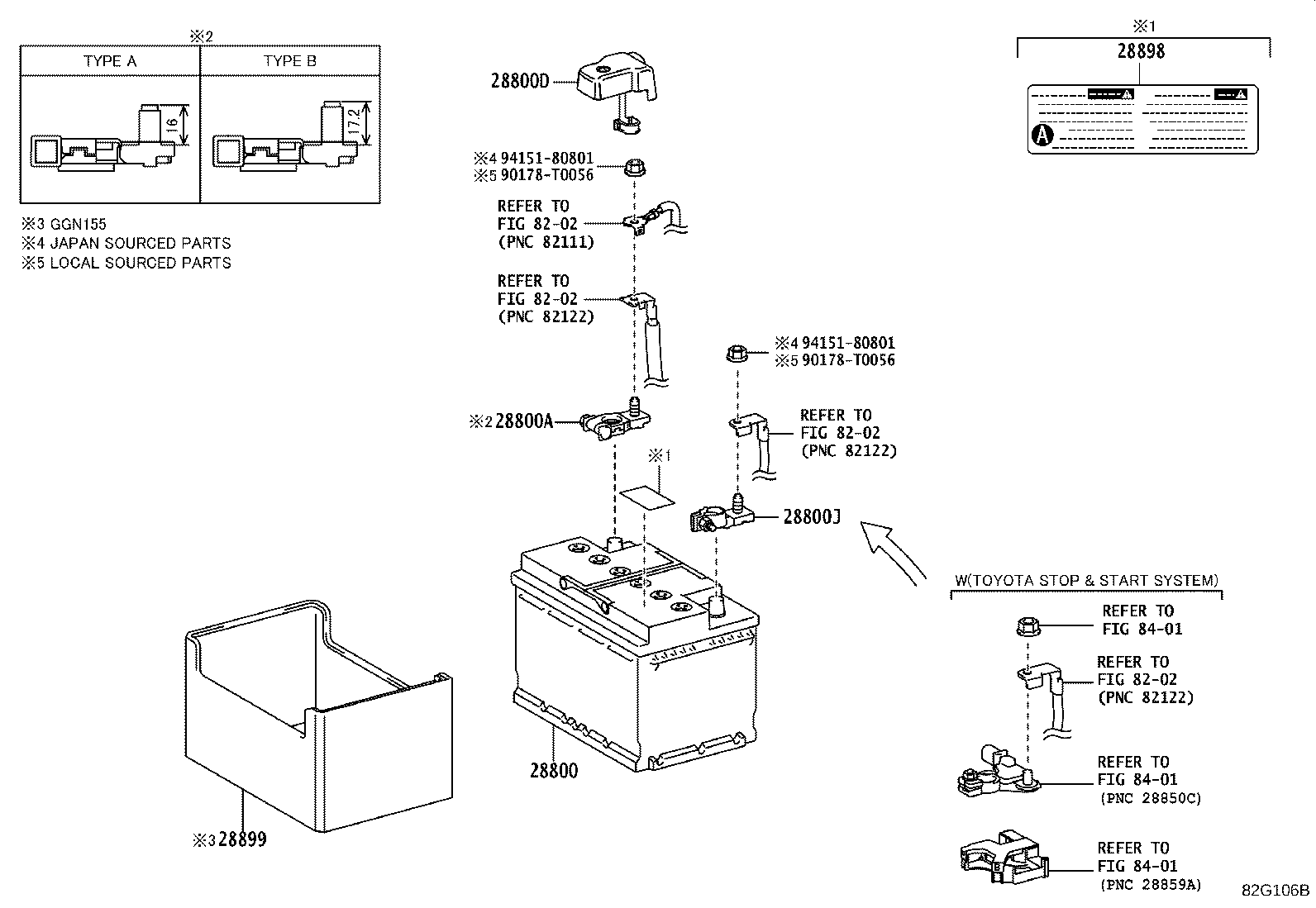

Exploded illustration 82G106B 28800D — COVER, CONNECTOR(FOR BATTERY TERMINAL) (7 parts) 28800A — TERMINAL, BATTERY POSITIVE (14 parts) 28800J — TERMINAL, BATTERY NEGATIVE (9 parts) 28800 — BATTERY (35 parts) 9415180801 — not listed in this catalogue 90178T0056 — not listed in this catalogue 28899 — INSULATOR, BATTERY (4 parts) 28898 — PLATE, BATTERY (2 parts) 9415180801 — not listed in this catalogue 90178T0056 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue
82G106B · 6 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
28800 — Battery
28800-0C241 note Battery
2023-05 → 2024-03 ended
2TRFE TGN166 EPT —
28800-0C251 note Battery
2023-06 → 2023-10 ended
2TRFE TGN156,166 AGTP —
28800-0C251 note Battery
2022-11 → 2023-06 ended
2TRFE TGN156,166 AGTP —
28800-0C261 note Battery
2023-01 → 2024-01 ended
2TRFE TGN156 SA —
28800-0C281 note Battery
2022-11 → 2023-06 ended
2TRFE TGN156,166 AGTP —
28800-0E011 note Battery
2022-08 → 2023-08 ended
2GDFTV GUN155 S IDN;1GDFTV +3 —
28800-0E011 note Battery
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GCC —
28800-0E031 note Battery
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GCC —
28800-0E031 note Battery
2022-08 → 2023-08 ended
2GDFTV GUN155 S IDN;1GDFTV +3 —
28800-0L461 note Battery
2022-11 → 2023-06 ended
1GDFTV GUN156 L LA;1GDFTV +5 —
28800-0L461 note Battery
2023-06 → 2023-10 ended
1GDFTV GUN156 6FC H +1 —
28800-0L461 note Battery
2023-06 → 2023-10 ended
1GDFTV GUN156 L LA;1GDFTV +5 —
28800-0L461 note Battery
2022-11 → 2023-10 ended
1GDFTV GUN156 L BZAGT —
28800-0L481 note Battery
2023-01 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
28800-0L481 note Battery
2023-01 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28800-0L490 note Battery
2023-01 → 2024-01 ended
5LE LAN155 —
28800-0L503 note Battery
2022-08 → 2022-11 ended
1GDFTV,2GDFTV GUN15#,16# TH —
28800-0L503 note Battery
2022-08 → 2022-11 ended
1GDFTV GUN156 THP (ARL,GEN) —
28800-0L504 note Battery
2022-12 → 2024-03 ended
1GRFE GGN155 EPT —
28800-0L504 note Battery
2022-12 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# TH —
28800-0L504 note Battery
2022-12 → 2023-07 ended
1GDFTV GUN156 THP (ARL,GEN) —
28800-0L520 note Battery
2022-08 → 2022-11 ended
1GDFTV,2GDFTV GUN155,16# TH;1GDFTV GUN156 +2 —
28800-0L521 note Battery
2022-12 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# TH —
28800-0L521 note Battery
2022-12 → 2023-09 ended
1GDFTV GUN156 6FC IND —
28800-0L521 note Battery
2022-12 → —
1GDFTV GUN156 PKNP TH —
28800-0L570 note Battery
2022-08 → 2022-11 ended
1GDFTV,2GDFTV GUN15#,16# TH —
28800-0L570 note Battery
2022-08 → 2022-11 ended
1GDFTV GUN156 THP (ARL,GEN) —
28800-0L571 note Battery
2022-12 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# TH —
28800-0L571 note Battery
2022-12 → 2023-07 ended
1GDFTV GUN156 THP (ARL,GEN) —
28800-0L600 note Battery
2022-11 → 2022-12 ended
1GDFTV GUN156 L LA;1GDFTV +5 —
28800-0L601 note Battery
2022-12 → 2023-06 ended
1GDFTV GUN156 L LA;1GDFTV +5 —
28800-0L721 note Battery
2022-08 → 2022-09 ended
2TRFE TGN156 S;1G#,2GDFTV GGN155,GUN15#,165 +1 —
28800-0L722 note Battery
2022-09 → 2023-07 ended
2TRFE TGN156 THP S;1G#,2GDFTV +3 —
28800-0L731 note Battery
2022-08 → 2022-09 ended
2TRFE TGN156,166 L —
28800-0L732 note Battery
2022-09 → 2023-07 ended
2TRFE TGN156,166 THP L —
28800A — Terminal, Battery Positive
90982-05054 note Terminal, Battery Positive
2022-08 → 2023-07 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 THP —
90982-05054 note Terminal, Battery Positive
2022-08 → —
1GDFTV,2TRFE GUN156,TGN156,166 PKNP —
90982-05054 note Terminal, Battery Positive
2022-08 → 2024-03 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,TGN166 EPT,KEN —
90982-05054 note Terminal, Battery Positive
2022-08 → 2024-01 ended
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA —
90982-05054 note Terminal, Battery Positive
2022-08 → 2023-10 ended
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP —
90982-05054 note Terminal, Battery Positive
2022-08 → 2023-09 ended
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN166 INDP,VNP —
90982-05054 note Terminal, Battery Positive
2022-08 → 2023-08 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
90982-05061 note Terminal, Battery Positive
2022-08 → 2023-10 ended
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP —
90982-05061 note Terminal, Battery Positive
2022-08 → 2023-08 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
90982-05061 note Terminal, Battery Positive
2022-08 → 2024-01 ended
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA —
90982-05061 note Terminal, Battery Positive
2022-08 → 2024-03 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,TGN166 EPT,KEN —
90982-05061 note Terminal, Battery Positive
2022-08 → 2023-07 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 THP —
90982-05061 note Terminal, Battery Positive
2022-08 → —
1GDFTV,2TRFE GUN156,TGN156,166 PKN —
90982-05061 note Terminal, Battery Positive
2022-08 → 2023-09 ended
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN166 INDP,VNP —
28800D — Cover, Connector(FOR BATTERY TERMINAL)
82821-33350 Cover, Connector(FOR BATTERY TERMINAL)
2022-08 → —
1GDFTV,2TRFE GUN156,TGN156,166 PKNP —
82821-33350 Cover, Connector(FOR BATTERY TERMINAL)
2022-08 → 2024-03 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,TGN166 EPT,KEN —
82821-33350 Cover, Connector(FOR BATTERY TERMINAL)
2022-08 → 2024-01 ended
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA —
82821-33350 Cover, Connector(FOR BATTERY TERMINAL)
2022-08 → 2023-09 ended
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN166 INDP,VNP —
82821-33350 Cover, Connector(FOR BATTERY TERMINAL)
2022-08 → 2023-08 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
82821-33350 Cover, Connector(FOR BATTERY TERMINAL)
2022-08 → 2023-07 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 THP —
82821-33350 Cover, Connector(FOR BATTERY TERMINAL)
2022-08 → 2023-10 ended
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP —
28800J — Terminal, Battery Negative
90982-06059 Terminal, Battery Negative
2022-08 → 2023-10 ended
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP —
90982-06059 Terminal, Battery Negative
2022-08 → —
1GDFTV,2TRFE GUN156,TGN156,166 PKN —
90982-06059 Terminal, Battery Negative
2022-08 → 2024-03 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,TGN166 EPT,KEN —
90982-06059 Terminal, Battery Negative
2022-08 → 2024-01 ended
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA —
90982-06059 note Terminal, Battery Negative
2022-08 → 2023-09 ended
1GDFTV GUN156 6FC IND —
90982-06059 Terminal, Battery Negative
2022-08 → 2023-09 ended
1GDFTV DP,VNP GUN156 VNP;1GDFTV +5 —
90982-06059 Terminal, Battery Negative
2022-08 → 2023-08 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
90982-06059 note Terminal, Battery Negative
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP TH —
90982-06059 Terminal, Battery Negative
2022-08 → 2023-07 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,165,TGN156,166 THP (ARL,GCC,GEN) —
28898 — Plate, Battery
28897-36030 Plate, Battery
2022-08 → 2023-07 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,165,TGN156,166 THP GCC —
28897-36030 Plate, Battery
2022-08 → 2023-08 ended
1G#,2GDFTV,2TRFE GGN155,GUN15#,165,TGN156,166 IDNP GCC —
28899 — Insulator, Battery
28899-27020 Insulator, Battery
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
28899-27020 Insulator, Battery
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
28899-27020 Insulator, Battery
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
28899-27020 Insulator, Battery
2022-08 → 2024-03 ended
1GRFE GGN155 EPT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
