Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

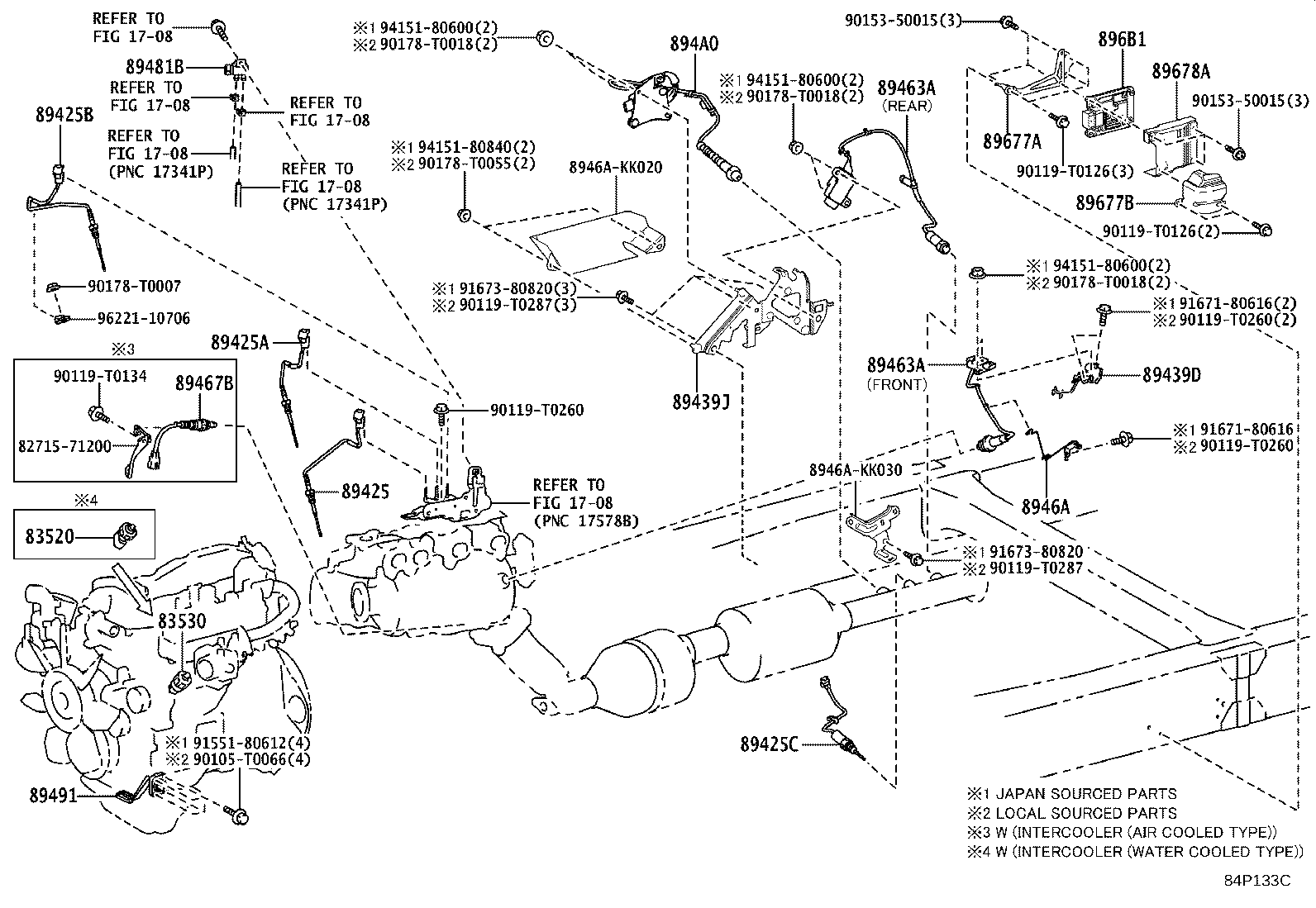

Exploded illustration 84P133C 89425C — SENSOR, EXHAUST GAS TEMPERATURE, NO.4 (4 parts) 89677B — BRACKET, UREA PUMP CONTROL, NO.3 (2 parts) 89677A — BRACKET, UREA PUMP CONTROL, NO.1 (2 parts) 89678A — BRACKET, UREA PUMP CONTROL, NO.2 (2 parts) 896B1 — COMPUTER, UREA PUMP CONTROL (2 parts) 89439J — BRACKET, SENSOR, NO.2 (2 parts) 90119T0126 — not listed in this catalogue 9015350015 — not listed in this catalogue 9015350015 — not listed in this catalogue 90119T0126 — not listed in this catalogue 8946AKK020 — not listed in this catalogue 89463A — SENSOR, NITROGEN OXIDES (4 parts) 9167380820 — not listed in this catalogue 90119T0287 — not listed in this catalogue 9167380820 — not listed in this catalogue 90119T0287 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178T0018 — not listed in this catalogue 9415180840 — not listed in this catalogue 90178T0055 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178T0018 — not listed in this catalogue 89491 — SENSOR, ENGINE OIL LEVEL (5 parts) 83520 — GAGE ASSY,OIL PRESSURE SENDER (17 parts) 89425 — SENSOR, EXHAUST GAS TEMPERATURE (12 parts) 89425A — SENSOR, EXHAUST GAS TEMPERATURE, NO.2 (12 parts) 89425B — SENSOR, EXHAUST GAS TEMPERATURE, NO.3 (12 parts) 894A0 — SENSOR ASSY, PARTICULATE MATTER (2 parts) 9622110706 — not listed in this catalogue 90119T0260 — not listed in this catalogue 1708 — not listed in this catalogue 89481B — SENSOR, DIFFERENTIAL PRESSURE (12 parts) 1708 — not listed in this catalogue 1708 — not listed in this catalogue 90178T0007 — not listed in this catalogue 89467B — SENSOR, AIR FUEL RATIO (28 parts) 8271571200 — not listed in this catalogue 90119T0134 — not listed in this catalogue 83530 — SWITCH ASSY, OIL PRESSURE (FOR ENGINE) (37 parts) 9155180612 — not listed in this catalogue 90105T0066 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 89439D — BRACKET, SENSOR, NO.1 (2 parts) 8946A — BRACKET, EXHAUST SENSOR CLAMP (2 parts) 89463A — SENSOR, NITROGEN OXIDES (4 parts) 9415180600 — not listed in this catalogue 90178T0018 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 8946AKK030 — not listed in this catalogue
84P133C · 19 callouts, 35 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
159 parts on this figure
Part number Description Fitment Price
83520 — Gage Assy,Oil Pressure Sender
83520-60060 Gage Assy,Oil Pressure Sender
2022-08 → 2023-07 ended
GUN15#,16# THP (ARL,GCC,TH) —
83520-60060 note Gage Assy,Oil Pressure Sender
2022-08 → 2023-02 ended
GUN15#,16# IDN —
83520-60060 Gage Assy,Oil Pressure Sender
2022-08 → —
GUN156 PKNP TH —
83520-60060 Gage Assy,Oil Pressure Sender
2022-08 → 2024-03 ended
GUN15# KEN —
83520-60060 note Gage Assy,Oil Pressure Sender
2023-01 → 2024-01 ended
GUN156 RHD 6FC SA —
83520-60060 note Gage Assy,Oil Pressure Sender
2022-08 → 2024-01 ended
GUN155 L SA;GUN156 RHD +2 —
83520-60060 note Gage Assy,Oil Pressure Sender
2023-08 → 2023-10 ended
GUN156 6F LA —
83520-60060 note Gage Assy,Oil Pressure Sender
2023-08 → 2023-10 ended
GUN166 6FC LA —
83520-60060 Gage Assy,Oil Pressure Sender
2022-08 → 2023-10 ended
GUN165 LA —
83520-60060 note Gage Assy,Oil Pressure Sender
2023-08 → 2023-09 ended
GUN165 VNP L —
83520-60060 Gage Assy,Oil Pressure Sender
2022-08 → 2023-09 ended
GUN165 VNP 6FC —
83520-60060 Gage Assy,Oil Pressure Sender
2023-02 → 2023-08 ended
GUN15#,16# IDN —
83520-60060 note Gage Assy,Oil Pressure Sender
2022-09 → 2023-08 ended
GUN15# RHD GEN —
83520-60060 note Gage Assy,Oil Pressure Sender
2022-09 → 2023-08 ended
GUN15# RHD GEN —
83520-60060 note Gage Assy,Oil Pressure Sender
2022-08 → 2023-08 ended
GUN15# MA —
83520-60060 Gage Assy,Oil Pressure Sender
2022-08 → 2023-08 ended
GUN155 P,INDP,VNP) LHD (ARL,BZAGT,GCC,IND,LA,PH,VN) +7 —
83520-60060 note Gage Assy,Oil Pressure Sender
2022-08 → 2023-07 ended
GUN156 THP GEN —
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2023-01 → 2023-11 ended
GUN156 RHD 6FC SA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
GUN156 PKN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
GUN15#,16# SA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-11 ended
GUN155 L SA;GUN156 RHD +2 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-11 → 2023-10 ended
GUN165 L LA;GUN156 6F +1 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-11 → 2023-10 ended
GUN156 H LA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GUN155,165 RHD (GEN,MA);GUN156 (IDNP,MAP) +1 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN156 THP GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-09 → 2023-05 ended
GUN156 RHD GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-02 ended
GUN15#,16# IDN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-09 → 2023-05 ended
GUN155 RHD GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2022-11 ended
GUN15#,16# IDN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-05 ended
GUN15# (MAP,THP) (GEN,MA) —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-09 → 2023-05 ended
GUN155 RHD GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-09 → 2023-05 ended
GUN156 RHD GEN —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GGN155,TGN156,166 THP —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
TGN156,166 PKN —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
TGN156 SA —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
GGN155,TGN156,166 AGTP —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GGN155,TGN156,166 IDNP,MAP —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-11 → 2023-10 ended
GUN165 L LA;GUN156 6F +1 —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
GUN156 PKN —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-02 ended
GUN15#,16# IDN —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GUN155,165 RHD (GEN,MA);GUN156 (IDNP,MAP) +1 —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
GUN15#,16# SA —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN156 THP GEN —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-11 → 2023-10 ended
GUN156 H LA —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
TGN156,166 PKN —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GGN155,TGN156,166 THP —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
GGN155,TGN156,166 AGTP —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
TGN156 SA —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GGN155,TGN156,166 IDNP,MAP —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
83530-60030 Switch Assy, Oil Pressure (FOR ENGINE)
2023-01 → 2024-01 ended
LAN155 —
89425 — Sensor, Exhaust Gas Temperature
89425-71070 Sensor, Exhaust Gas Temperature
2022-08 → 2023-07 ended
GUN166 6FC LA;GUN165 IDNP +4 —
89425-71070 Sensor, Exhaust Gas Temperature
2022-08 → —
GUN156 PKNP TH —
89425-71070 note Sensor, Exhaust Gas Temperature
2023-07 → 2023-10 ended
GUN166 6FC LA —
89425-71070 note Sensor, Exhaust Gas Temperature
2022-11 → 2023-10 ended
GUN156,165 6FC LA —
89425-71070 note Sensor, Exhaust Gas Temperature
2022-11 → 2023-10 ended
GUN156 6F LA —
89425-71070 note Sensor, Exhaust Gas Temperature
2022-11 → 2023-10 ended
GUN156 6F LA —
89425-71070 Sensor, Exhaust Gas Temperature
2022-08 → 2023-09 ended
GUN156,166 IND —
89425-71070 note Sensor, Exhaust Gas Temperature
2022-11 → 2023-07 ended
GUN156 6FC LA —
89425-71070 note Sensor, Exhaust Gas Temperature
2022-09 → 2023-07 ended
GUN15# RHD GEN —
89425-71070 note Sensor, Exhaust Gas Temperature
2022-09 → 2023-07 ended
GUN156,165 VNP —
89425-71070 note Sensor, Exhaust Gas Temperature
2022-08 → 2023-07 ended
GUN15# GCC —
89425-71070 Sensor, Exhaust Gas Temperature
2022-08 → 2023-10 ended
GUN156 6F BZAGT —
89425A — Sensor, Exhaust Gas Temperature, NO.2
89425-71080 Sensor, Exhaust Gas Temperature, NO.2
2022-08 → 2023-10 ended
GUN156 6F BZAGT —
89425-71080 Sensor, Exhaust Gas Temperature, NO.2
2022-08 → —
GUN156 PKNP TH —
89425-71080 note Sensor, Exhaust Gas Temperature, NO.2
2023-07 → 2023-10 ended
GUN166 6FC LA —
89425-71080 note Sensor, Exhaust Gas Temperature, NO.2
2022-11 → 2023-10 ended
GUN156,165 6FC LA —
89425-71080 note Sensor, Exhaust Gas Temperature, NO.2
2022-11 → 2023-10 ended
GUN156 6F LA —
89425-71080 note Sensor, Exhaust Gas Temperature, NO.2
2022-11 → 2023-10 ended
GUN156 6F LA —
89425-71080 Sensor, Exhaust Gas Temperature, NO.2
2022-08 → 2023-09 ended
GUN156,166 IND —
89425-71080 note Sensor, Exhaust Gas Temperature, NO.2
2022-11 → 2023-07 ended
GUN156 6FC LA —
89425-71080 note Sensor, Exhaust Gas Temperature, NO.2
2022-09 → 2023-07 ended
GUN15# RHD GEN —
89425-71080 note Sensor, Exhaust Gas Temperature, NO.2
2022-09 → 2023-07 ended
GUN156,165 VNP —
89425-71080 note Sensor, Exhaust Gas Temperature, NO.2
2022-08 → 2023-07 ended
GUN15# GCC —
89425-71080 Sensor, Exhaust Gas Temperature, NO.2
2022-08 → 2023-07 ended
GUN166 6FC LA;GUN165 IDNP +4 —
89425B — Sensor, Exhaust Gas Temperature, NO.3
89425-71090 Sensor, Exhaust Gas Temperature, NO.3
2022-08 → —
GUN156 PKNP TH —
89425-71090 note Sensor, Exhaust Gas Temperature, NO.3
2022-08 → 2023-07 ended
GUN15# GCC —
89425-71090 note Sensor, Exhaust Gas Temperature, NO.3
2023-07 → 2023-10 ended
GUN166 6FC LA —
89425-71090 note Sensor, Exhaust Gas Temperature, NO.3
2022-11 → 2023-10 ended
GUN156,165 6FC LA —
89425-71090 note Sensor, Exhaust Gas Temperature, NO.3
2022-11 → 2023-10 ended
GUN156 6F LA —
89425-71090 note Sensor, Exhaust Gas Temperature, NO.3
2022-11 → 2023-10 ended
GUN156 6F LA —
89425-71090 Sensor, Exhaust Gas Temperature, NO.3
2022-08 → 2023-09 ended
GUN156,166 IND —
89425-71090 note Sensor, Exhaust Gas Temperature, NO.3
2022-11 → 2023-07 ended
GUN156 6FC LA —
89425-71090 note Sensor, Exhaust Gas Temperature, NO.3
2022-09 → 2023-07 ended
GUN15# RHD GEN —
89425-71090 note Sensor, Exhaust Gas Temperature, NO.3
2022-09 → 2023-07 ended
GUN156,165 VNP —
89425-71090 Sensor, Exhaust Gas Temperature, NO.3
2022-08 → 2023-07 ended
GUN166 6FC LA;GUN165 IDNP +4 —
89425-71090 Sensor, Exhaust Gas Temperature, NO.3
2022-08 → 2023-10 ended
GUN156 6F BZAGT —
89425C — Sensor, Exhaust Gas Temperature, NO.4
89425-71060 Sensor, Exhaust Gas Temperature, NO.4
2022-10 → 2023-09 ended
GUN156,166 IND —
89425-71060 note Sensor, Exhaust Gas Temperature, NO.4
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
89425-71100 Sensor, Exhaust Gas Temperature, NO.4
2022-11 → 2023-10 ended
GUN156 L BZAGT —
89425-71100 note Sensor, Exhaust Gas Temperature, NO.4
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
89439D — Bracket, Sensor, NO.1
8946A-71070 note Bracket, Sensor, NO.1
2022-10 → 2023-09 ended
GUN156 6FC IND —
8946A-71070 note Bracket, Sensor, NO.1
2022-10 → 2023-09 ended
GUN166 IND;GUN156 6F IND —
89439J — Bracket, Sensor, NO.2
8946A-71050 Bracket, Sensor, NO.2
2022-10 → 2023-09 ended
GUN156,166 IND —
8946A-71050 note Bracket, Sensor, NO.2
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
89463A — Sensor, Nitrogen Oxides
89463-71021 note Sensor, Nitrogen Oxides
2022-10 → 2023-09 ended
GUN156,166 IND —
89463-71021 note Sensor, Nitrogen Oxides
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
89463-71041 note Sensor, Nitrogen Oxides
2022-10 → 2023-09 ended
GUN156 6FC IND —
89463-71041 note Sensor, Nitrogen Oxides
2022-10 → 2023-09 ended
GUN166 IND;GUN156 6F IND —
89467B — Sensor, Air Fuel Ratio
89467-71110 Sensor, Air Fuel Ratio
2022-08 → —
GGN155 EPT —
89467-71110 Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GGN155 THP —
89467-71110 Sensor, Air Fuel Ratio
2022-08 → 2023-08 ended
GGN155 IDNP —
89467-71110 Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
GGN155 LA —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → —
GUN156 PKNP TH —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN156 LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN156,165 LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN156 6F LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN156 6F LA —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
GUN156 BZAGT;GUN166 6FC LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-09 → 2023-09 ended
GUN156,165 VNP —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-09 ended
GUN156,166 IND —
89467-71120 note Sensor, Air Fuel Ratio
2022-09 → 2023-08 ended
GUN15# RHD GEN —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-08 ended
GUN15# IDNP GCC —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-08 ended
GUN156,165 IDNP (ARL,VN) —
89467-71120 note Sensor, Air Fuel Ratio
2022-10 → 2023-05 ended
GUN156 6FC IND —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN15# THP GCC —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN156 THP ARL —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-05 ended
GUN166 6FC LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-10 → 2023-05 ended
GUN166 IND;GUN156 6F IND —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
89467-71130 Sensor, Air Fuel Ratio
2023-05 → —
TGN166 PKN —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → —
TGN156 PKN —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2024-03 ended
TGN166 EPT —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2024-01 ended
TGN156 SA —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
TGN156,166 THP —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
TGN156,166 AGTP —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-08 ended
TGN156,166 IDNP,MAP —
8946A — Bracket, Exhaust Sensor Clamp
8946A-71010 note Bracket, Exhaust Sensor Clamp
2022-10 → 2023-09 ended
GUN156 6FC IND —
8946A-71010 note Bracket, Exhaust Sensor Clamp
2022-10 → 2023-09 ended
GUN166 IND;GUN156 6F IND —
89481B — Sensor, Differential Pressure
89481-71010 Sensor, Differential Pressure
2022-08 → —
GUN156 PKNP TH —
89481-71010 note Sensor, Differential Pressure
2022-11 → 2023-10 ended
GUN156 6F LA —
89481-71010 note Sensor, Differential Pressure
2022-09 → 2023-09 ended
GUN165 VNP L —
89481-71010 note Sensor, Differential Pressure
2022-11 → 2023-08 ended
GUN156 6FC L LA —
89481-71010 note Sensor, Differential Pressure
2022-09 → 2023-08 ended
GUN156,165 VNP 6FC —
89481-71010 note Sensor, Differential Pressure
2022-11 → 2023-08 ended
GUN156,165 LA —
89481-71010 note Sensor, Differential Pressure
2022-09 → 2023-08 ended
GUN15# RHD GEN —
89481-71010 note Sensor, Differential Pressure
2022-08 → 2023-08 ended
GUN15# IDNP GCC —
89481-71010 Sensor, Differential Pressure
2022-08 → 2023-08 ended
GUN166 6FC LA;GUN156,16# (AGTP,IDNP,INDP) +1 —
89481-71010 note Sensor, Differential Pressure
2022-08 → 2023-07 ended
GUN15# THP GCC —
89481-71010 Sensor, Differential Pressure
2022-08 → 2023-07 ended
GUN156 THP ARL —
89481-71010 note Sensor, Differential Pressure
2022-11 → 2023-08 ended
GUN156 H LA —
89491 — Sensor, Engine Oil Level
89491-26190 Sensor, Engine Oil Level
2022-08 → —
GUN15#,16# AGTP,IDNP,INDP,KENP,MAP,SAP,THP,VNP —
89491-26190 Sensor, Engine Oil Level
2022-08 → 2024-11 ended
GUN156 PKNP —
89491-26190 note Sensor, Engine Oil Level
2022-11 → 2023-05 ended
GUN165 L LA;GUN156 6F +1 —
89491-26190 note Sensor, Engine Oil Level
2022-08 → 2023-05 ended
GUN155 THP GCC —
89491-26190 note Sensor, Engine Oil Level
2022-08 → 2023-05 ended
GUN155 THP S —
894A0 — Sensor Assy, Particulate Matter
894A0-71020 note Sensor Assy, Particulate Matter
2022-10 → 2023-09 ended
GUN156 6FC IND —
894A0-71020 note Sensor Assy, Particulate Matter
2023-02 → 2023-09 ended
GUN166 IND;GUN156 6F IND —
89677A — Bracket, Urea Pump Control, NO.1
89677-71020 Bracket, Urea Pump Control, NO.1
2022-10 → 2023-09 ended
GUN156,166 IND —
89677-71020 note Bracket, Urea Pump Control, NO.1
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
89677B — Bracket, Urea Pump Control, NO.3
89677-0K020 Bracket, Urea Pump Control, NO.3
2022-10 → 2023-09 ended
GUN156,166 IND —
89677-0K020 note Bracket, Urea Pump Control, NO.3
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
89678A — Bracket, Urea Pump Control, NO.2
89678-71010 Bracket, Urea Pump Control, NO.2
2022-10 → 2023-09 ended
GUN156,166 IND —
89678-71010 note Bracket, Urea Pump Control, NO.2
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
896B1 — Computer, Urea Pump Control
896B1-71030 Computer, Urea Pump Control
2022-10 → 2023-09 ended
GUN156,166 IND —
896B1-71030 note Computer, Urea Pump Control
2022-11 → 2023-10 ended
GUN156,165 LA;GUN166 6FC LA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
