Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

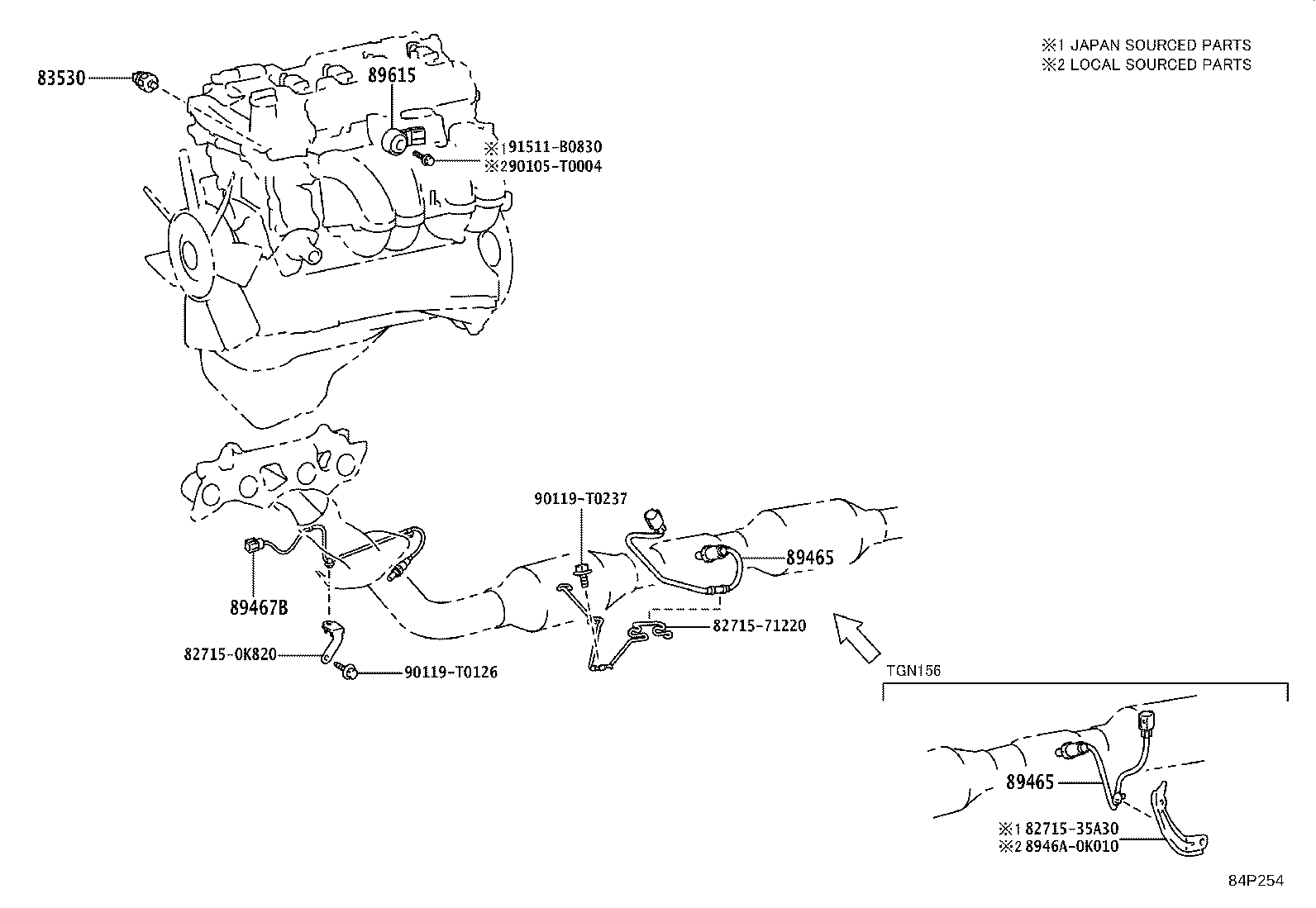

Exploded illustration 84P254 827150K820 — not listed in this catalogue 90119T0126 — not listed in this catalogue 89467B — SENSOR, AIR FUEL RATIO (28 parts) 83530 — SWITCH ASSY, OIL PRESSURE (FOR ENGINE) (37 parts) 8271571220 — not listed in this catalogue 90119T0237 — not listed in this catalogue 89615 — SENSOR, KNOCK CONTROL (12 parts) 91511B0830 — not listed in this catalogue 90105T0004 — not listed in this catalogue 89465 — SENSOR, OXYGEN (15 parts) 89465 — SENSOR, OXYGEN (15 parts) 8271535A30 — not listed in this catalogue 8946A0K010 — not listed in this catalogue
84P254 · 5 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
83530 — Switch Assy, Oil Pressure (FOR ENGINE)
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-02 ended
GUN15#,16# IDN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2022-11 ended
GUN15#,16# IDN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
GUN156 PKN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
GUN15#,16# SA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2023-01 → 2023-11 ended
GUN156 RHD 6FC SA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-11 ended
GUN155 L SA;GUN156 RHD +2 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-11 → 2023-10 ended
GUN165 L LA;GUN156 6F +1 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-11 → 2023-10 ended
GUN156 H LA —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GUN155,165 RHD (GEN,MA);GUN156 (IDNP,MAP) +1 —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN156 THP GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-05 ended
GUN15# (MAP,THP) (GEN,MA) —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-09 → 2023-05 ended
GUN155 RHD GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-09 → 2023-05 ended
GUN156 RHD GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-09 → 2023-05 ended
GUN155 RHD GEN —
83530-28010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-09 → 2023-05 ended
GUN156 RHD GEN —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GGN155,TGN156,166 THP —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
TGN156 SA —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
GGN155,TGN156,166 AGTP —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
TGN156,166 PKN —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
83530-28020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GGN155,TGN156,166 IDNP,MAP —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-02 ended
GUN15#,16# IDN —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-11 → 2023-10 ended
GUN156 H LA —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-11 → 2023-10 ended
GUN165 L LA;GUN156 6F +1 —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
GUN156 PKN —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GUN155,165 RHD (GEN,MA);GUN156 (IDNP,MAP) +1 —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
GUN15#,16# SA —
83530-60010 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GUN156 THP GEN —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → —
TGN156,166 PKN —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2024-01 ended
TGN156 SA —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-10 ended
GGN155,TGN156,166 AGTP —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-08 ended
GGN155,TGN156,166 IDNP,MAP —
83530-60020 note Switch Assy, Oil Pressure (FOR ENGINE)
2022-08 → 2023-07 ended
GGN155,TGN156,166 THP —
83530-60030 Switch Assy, Oil Pressure (FOR ENGINE)
2023-01 → 2024-01 ended
LAN155 —
89465 — Sensor, Oxygen
89465-0K180 Sensor, Oxygen
2022-08 → 2024-03 ended
GGN155 EPT —
89465-0K180 Sensor, Oxygen
2022-08 → 2023-10 ended
GGN155 LA —
89465-0K180 Sensor, Oxygen
2022-08 → 2023-08 ended
GGN155 IDNP —
89465-0K180 Sensor, Oxygen
2022-08 → 2023-07 ended
GGN155 THP —
89465-0K190 Sensor, Oxygen
2023-05 → —
TGN166 PKN —
89465-0K190 Sensor, Oxygen
2022-08 → 2023-08 ended
TGN166 IDNP —
89465-0K190 Sensor, Oxygen
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
89465-0K190 Sensor, Oxygen
2022-08 → 2023-07 ended
TGN166 THP —
89465-0K190 Sensor, Oxygen
2022-08 → 2023-10 ended
TGN166 LA —
89465-0K190 Sensor, Oxygen
2022-08 → 2024-03 ended
TGN166 EPT —
89465-0K200 Sensor, Oxygen
2022-08 → —
TGN156 PKN —
89465-0K200 Sensor, Oxygen
2022-08 → 2023-10 ended
TGN156 AGTP —
89465-0K200 Sensor, Oxygen
2022-08 → 2023-08 ended
TGN156 IDNP,MAP —
89465-0K200 Sensor, Oxygen
2022-08 → 2023-07 ended
TGN156 THP —
89465-0K200 Sensor, Oxygen
2022-08 → 2024-01 ended
TGN156 SA —
89467B — Sensor, Air Fuel Ratio
89467-71110 Sensor, Air Fuel Ratio
2022-08 → —
GGN155 EPT —
89467-71110 Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GGN155 THP —
89467-71110 Sensor, Air Fuel Ratio
2022-08 → 2023-08 ended
GGN155 IDNP —
89467-71110 Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
GGN155 LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN156 6F LA —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → —
GUN156 PKNP TH —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN156 LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN156,165 LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-10 ended
GUN156 6F LA —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
GUN156 BZAGT;GUN166 6FC LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-09 → 2023-09 ended
GUN156,165 VNP —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-09 ended
GUN156,166 IND —
89467-71120 note Sensor, Air Fuel Ratio
2022-09 → 2023-08 ended
GUN15# RHD GEN —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-08 ended
GUN15# IDNP GCC —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-08 ended
GUN156,165 IDNP (ARL,VN) —
89467-71120 note Sensor, Air Fuel Ratio
2022-10 → 2023-05 ended
GUN156 6FC IND —
89467-71120 note Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN15# THP GCC —
89467-71120 Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
GUN156 THP ARL —
89467-71120 note Sensor, Air Fuel Ratio
2022-11 → 2023-05 ended
GUN166 6FC LA —
89467-71120 note Sensor, Air Fuel Ratio
2022-10 → 2023-05 ended
GUN166 IND;GUN156 6F IND —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
89467-71130 Sensor, Air Fuel Ratio
2023-05 → —
TGN166 PKN —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → —
TGN156 PKN —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2024-01 ended
TGN156 SA —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-07 ended
TGN156,166 THP —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-10 ended
TGN156,166 AGTP —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2023-08 ended
TGN156,166 IDNP,MAP —
89467-71130 Sensor, Air Fuel Ratio
2022-08 → 2024-03 ended
TGN166 EPT —
89615 — Sensor, Knock Control
89615-20090 Sensor, Knock Control
2023-05 → —
TGN166 PKN —
89615-20090 Sensor, Knock Control
2022-08 → —
TGN156 PKN —
89615-20090 Sensor, Knock Control
2022-08 → 2024-03 ended
GGN155 EPT —
89615-20090 Sensor, Knock Control
2022-08 → 2024-03 ended
TGN166 EPT —
89615-20090 Sensor, Knock Control
2022-08 → 2024-01 ended
TGN156 SA —
89615-20090 Sensor, Knock Control
2022-08 → 2023-10 ended
GGN155 LA —
89615-20090 Sensor, Knock Control
2022-08 → 2023-10 ended
TGN156,166 AGTP —
89615-20090 Sensor, Knock Control
2022-08 → 2023-09 ended
TGN166 INDP,VNP —
89615-20090 Sensor, Knock Control
2022-08 → 2023-08 ended
GGN155 IDNP —
89615-20090 Sensor, Knock Control
2022-08 → 2023-08 ended
TGN156,166 IDNP,MAP —
89615-20090 Sensor, Knock Control
2022-08 → 2023-07 ended
GGN155 THP —
89615-20090 Sensor, Knock Control
2022-08 → 2023-07 ended
TGN156,166 THP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
