Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

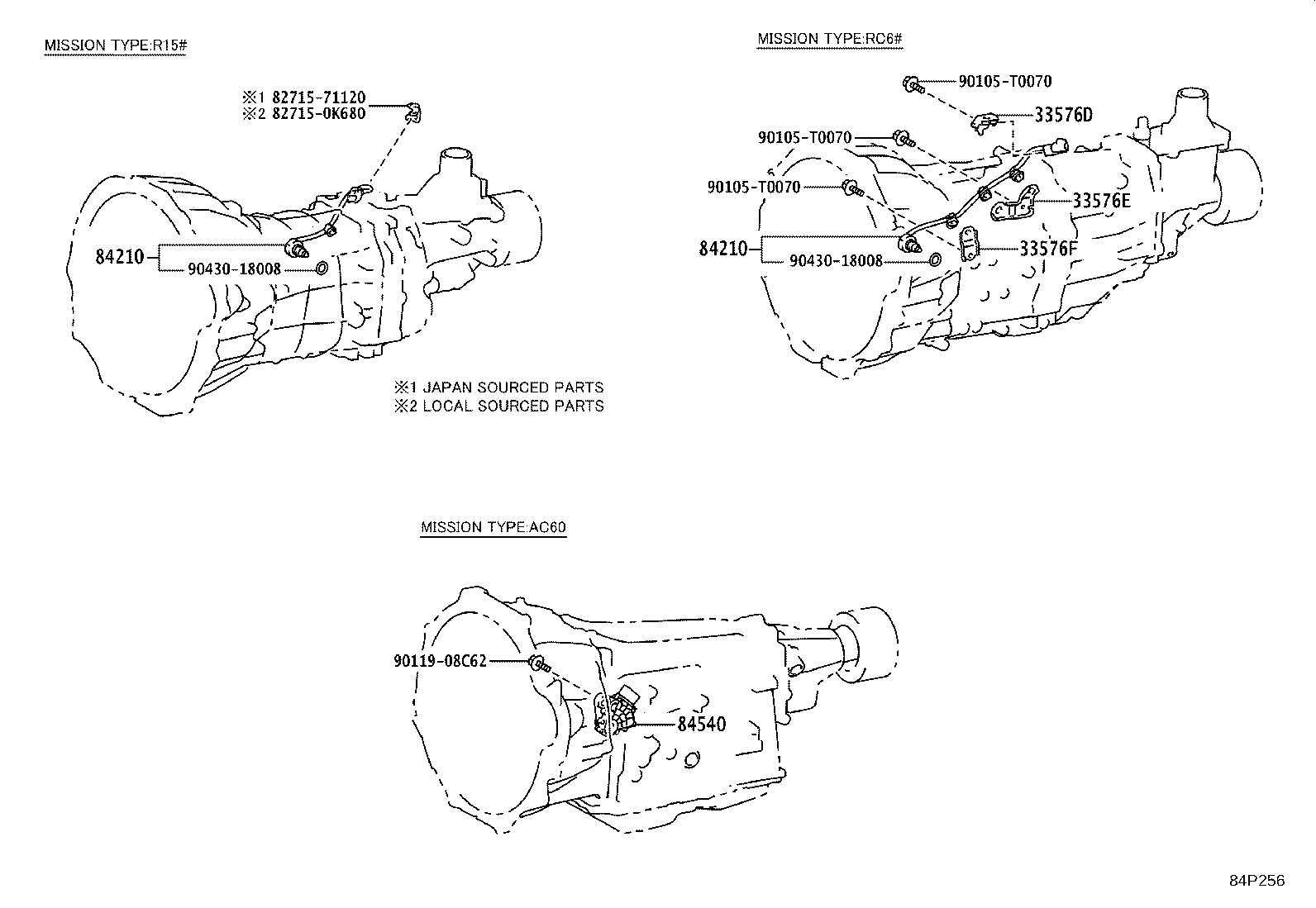

Exploded illustration 84P256 9011908C62 — not listed in this catalogue 90105T0070 — not listed in this catalogue 90105T0070 — not listed in this catalogue 90105T0070 — not listed in this catalogue 84210 — SWITCH ASSY, BACK-UP LAMP (9 parts) 9043018008 — not listed in this catalogue 84540 — SWITCH ASSY, NEUTRAL START (7 parts) 33576D — BRACKET, BACK-UP LAMP SWITCH, NO.1 (12 parts) 33576E — BRACKET, BACK-UP LAMP SWITCH, NO.2 (12 parts) 33576F — BRACKET, BACK-UP LAMP SWITCH, NO.3 (12 parts) 8271571120 — not listed in this catalogue 827150K680 — not listed in this catalogue 84210 — SWITCH ASSY, BACK-UP LAMP (9 parts) 9043018008 — not listed in this catalogue
84P256 · 6 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
33576D — Bracket, Back-up Lamp Switch, NO.1
33576-0K010 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2023-09 ended
GUN156,16# (INDP,VNP) 6F —
33576-0K010 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2023-10 ended
GUN156,166 AGTP 6F —
33576-0K010 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2024-01 ended
GUN156,165 6F SA —
33576-0K010 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2024-03 ended
GUN156 6F KEN —
33576-0K010 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2023-08 ended
GUN155,165 IDNP 6F —
33576-0K040 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2023-08 ended
GUN155,165 IDNP 6F —
33576-0K040 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2023-09 ended
GUN156,165 (INDP,VNP) 6F —
33576-0K040 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2023-10 ended
GUN156 AGTP 6F —
33576-0K040 note Bracket, Back-up Lamp Switch, NO.1
2022-11 → 2023-10 ended
GUN166 6F LA —
33576-0K040 note Bracket, Back-up Lamp Switch, NO.1
2022-11 → 2023-10 ended
GUN166 6F LA —
33576-0K040 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2024-01 ended
GUN156,165 6F SA —
33576-0K040 note Bracket, Back-up Lamp Switch, NO.1
2022-09 → 2024-03 ended
GUN156 6F KEN —
33576E — Bracket, Back-up Lamp Switch, NO.2
33576-0K020 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2023-09 ended
GUN156,16# (INDP,VNP) 6F —
33576-0K020 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2024-03 ended
GUN156 6F KEN —
33576-0K020 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2024-01 ended
GUN156,165 6F SA —
33576-0K020 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2023-10 ended
GUN156,166 AGTP 6F —
33576-0K020 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2023-08 ended
GUN155,165 IDNP 6F —
33576-0K050 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2023-09 ended
GUN156,165 (INDP,VNP) 6F —
33576-0K050 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2023-10 ended
GUN156 AGTP 6F —
33576-0K050 note Bracket, Back-up Lamp Switch, NO.2
2022-11 → 2023-10 ended
GUN166 6F LA —
33576-0K050 note Bracket, Back-up Lamp Switch, NO.2
2022-11 → 2023-10 ended
GUN166 6F LA —
33576-0K050 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2024-01 ended
GUN156,165 6F SA —
33576-0K050 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2023-08 ended
GUN155,165 IDNP 6F —
33576-0K050 note Bracket, Back-up Lamp Switch, NO.2
2022-09 → 2024-03 ended
GUN156 6F KEN —
33576F — Bracket, Back-up Lamp Switch, NO.3
33576-0K030 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2023-09 ended
GUN156,16# (INDP,VNP) 6F —
33576-0K030 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2024-03 ended
GUN156 6F KEN —
33576-0K030 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2024-01 ended
GUN156,165 6F SA —
33576-0K030 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2023-10 ended
GUN156,166 AGTP 6F —
33576-0K030 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2023-08 ended
GUN155,165 IDNP 6F —
33576-0K060 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2023-10 ended
GUN156 AGTP 6F —
33576-0K060 note Bracket, Back-up Lamp Switch, NO.3
2022-11 → 2023-10 ended
GUN166 6F LA —
33576-0K060 note Bracket, Back-up Lamp Switch, NO.3
2022-11 → 2023-10 ended
GUN166 6F LA —
33576-0K060 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2023-08 ended
GUN155,165 IDNP 6F —
33576-0K060 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2024-01 ended
GUN156,165 6F SA —
33576-0K060 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2024-03 ended
GUN156 6F KEN —
33576-0K060 note Bracket, Back-up Lamp Switch, NO.3
2022-09 → 2023-09 ended
GUN156,165 (INDP,VNP) 6F —
84210 — Switch Assy, Back-up Lamp
84210-71030 Switch Assy, Back-up Lamp
2022-09 → 2023-08 ended
TGN156 L GEN —
84210-71030 Switch Assy, Back-up Lamp
2022-09 → 2024-01 ended
LAN155 —
84210-71040 Switch Assy, Back-up Lamp
2022-10 → 2023-09 ended
TGN166 5F IND —
84210-71040 Switch Assy, Back-up Lamp
2022-10 → 2023-10 ended
TGN166 S LA —
84210-71050 Switch Assy, Back-up Lamp
2022-09 → 2023-10 ended
GUN156,166 AGTP 6F —
84210-71050 Switch Assy, Back-up Lamp
2022-09 → 2024-03 ended
GUN156 6F KEN —
84210-71050 Switch Assy, Back-up Lamp
2022-09 → 2024-01 ended
GUN156,165 6F SA —
84210-71050 Switch Assy, Back-up Lamp
2022-09 → 2023-09 ended
GUN156,16# (INDP,VNP) 6F —
84210-71050 Switch Assy, Back-up Lamp
2022-09 → 2023-08 ended
GUN155,165 IDNP 6F —
84540 — Switch Assy, Neutral Start
84540-60050 Switch Assy, Neutral Start
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
84540-60050 Switch Assy, Neutral Start
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 (IDNP,MAP) 6FC —
84540-60050 Switch Assy, Neutral Start
2022-08 → 2023-09 ended
GUN156,16#,TGN166 (INDP,VNP) 6FC —
84540-60050 Switch Assy, Neutral Start
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP 6FC —
84540-60050 Switch Assy, Neutral Start
2022-08 → 2024-01 ended
GUN15#,16#,TGN156 6FC SA —
84540-60050 Switch Assy, Neutral Start
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 6FC (EPT,KEN) —
84540-60050 Switch Assy, Neutral Start
2022-08 → —
GUN156,TGN156,166 PKNP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
