Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

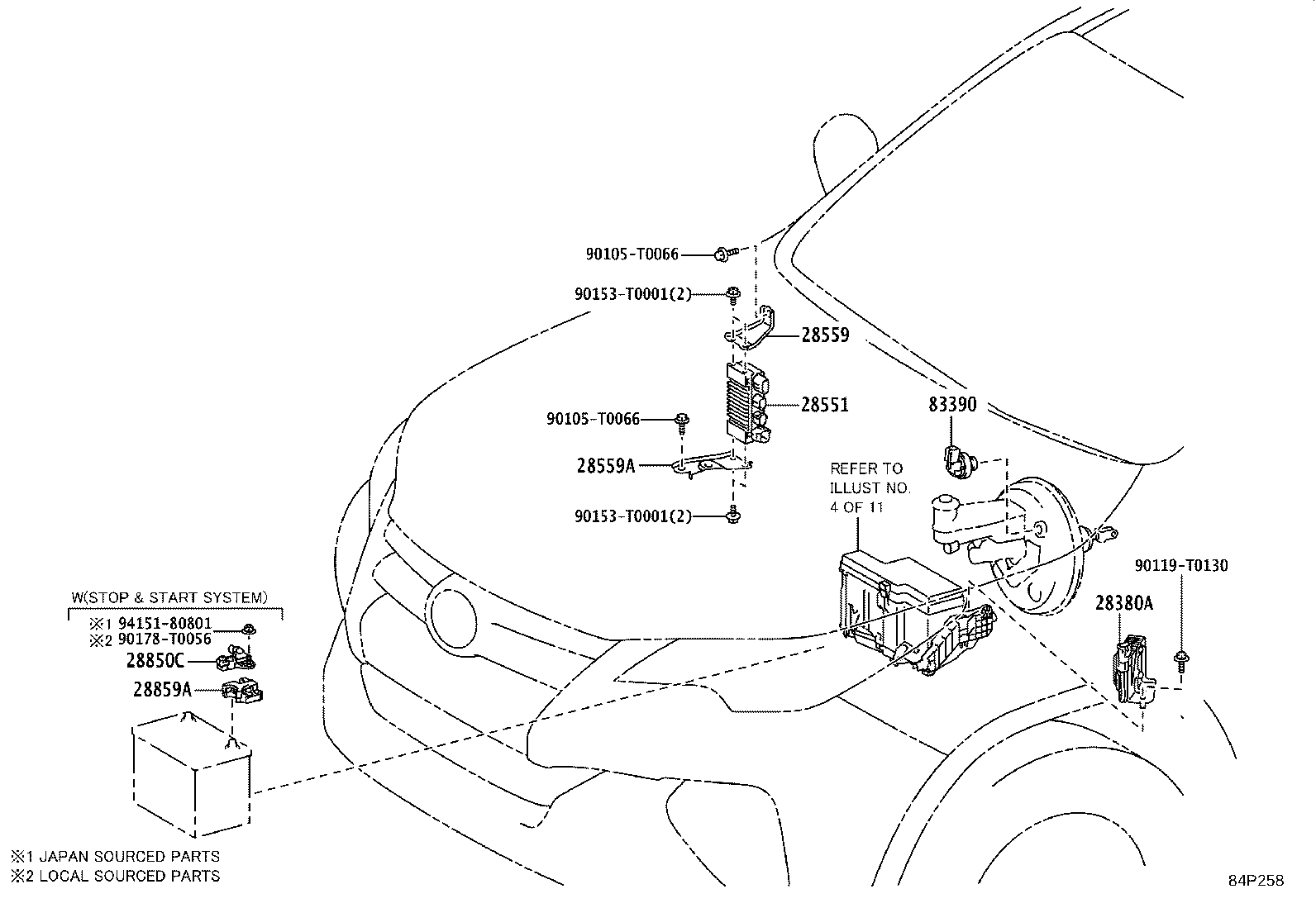

Exploded illustration 84P258 28551 — CONTROLLER, GLOW PLUG (14 parts) 28559 — BRACKET, GLOW PLUG CONTROLLER, NO.1 (23 parts) 28559A — BRACKET, GLOW PLUG CONTROLLER, NO.2 (23 parts) 83390 — SWITCH ASSY, VACUUM WARNING (10 parts) 90153T0001 — not listed in this catalogue 90105T0066 — not listed in this catalogue 90153T0001 — not listed in this catalogue 90105T0066 — not listed in this catalogue 28380A — RESISTER, FUEL PUMP (4 parts) 90119T0130 — not listed in this catalogue 28850C — SENSOR ASSY, BATTERY STATE (6 parts) 28859A — HOLDER, BATTERY CURRENT SENSOR (6 parts) 90178T0056 — not listed in this catalogue 9415180801 — not listed in this catalogue
84P258 · 7 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
86 parts on this figure
Part number Description Fitment Price
28380A — Resister, Fuel Pump
23080-31210 Resister, Fuel Pump
2022-08 → 2023-08 ended
1GRFE GGN155 IDNP —
23080-31210 Resister, Fuel Pump
2022-08 → 2023-10 ended
1GRFE GGN155 LA —
23080-31210 Resister, Fuel Pump
2022-08 → 2024-03 ended
1GRFE GGN155 EPT —
23080-31210 Resister, Fuel Pump
2022-08 → 2023-07 ended
1GRFE GGN155 THP —
28551 — Controller, Glow Plug
28551-0E010 note Controller, Glow Plug
2022-08 → —
1GDFTV GUN156 PKNP —
28551-0E010 note Controller, Glow Plug
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28551-0E010 note Controller, Glow Plug
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
28551-0E010 note Controller, Glow Plug
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
28551-0E010 note Controller, Glow Plug
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
28551-0E010 note Controller, Glow Plug
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
28551-0E010 note Controller, Glow Plug
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
28551-30010 note Controller, Glow Plug
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,16# INDP,VNP —
28551-30010 note Controller, Glow Plug
2022-08 → —
1GDFTV GUN156 PKNP —
28551-30010 note Controller, Glow Plug
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28551-30010 note Controller, Glow Plug
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# SA —
28551-30010 note Controller, Glow Plug
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# THP —
28551-30010 note Controller, Glow Plug
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
28551-30010 note Controller, Glow Plug
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# IDNP,MAP —
28559 — Bracket, Glow Plug Controller, NO.1
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# RHD THP —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# RHD SA —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# RHD (IDNP,MAP) —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → —
1GDFTV GUN156 PKNP —
28559-0L010 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
28559-0L030 Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15# LHD SA —
28559-0L030 Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
28559-0L030 Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
28559-0L030 Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# LHD IDNP —
28559-0L030 Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,165 LHD THP —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# RHD SA —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → —
1GDFTV GUN156 PKNP —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# RHD (IDNP,MAP) —
28559-0L050 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# RHD THP —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# RHD SA —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# RHD (IDNP,MAP) —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# RHD THP —
28559-0L090 note Bracket, Glow Plug Controller, NO.1
2022-08 → —
1GDFTV GUN156 PKNP —
28559A — Bracket, Glow Plug Controller, NO.2
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# RHD (IDNP,MAP) —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# RHD SA —
28559-0L020 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# RHD THP —
28559-0L040 Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-10 ended
1GDFTV,2GDFTV GUN156,16# AGTP —
28559-0L040 Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-09 ended
1GDFTV,2GDFTV GUN156,165 VNP —
28559-0L040 Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15# LHD SA —
28559-0L040 Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# LHD IDNP —
28559-0L040 Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,165 LHD THP —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# RHD SA —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# RHD THP —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
28559-0L060 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# RHD (IDNP,MAP) —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-01 ended
1GDFTV,2GDFTV GUN15#,16# RHD SA —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-08 ended
1GDFTV,2GDFTV GUN15#,16# RHD (IDNP,MAP) —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2024-03 ended
1GDFTV,2GDFTV GUN15# KEN —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# RHD THP —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → —
1GDFTV GUN156 PKNP —
28559-0L100 note Bracket, Glow Plug Controller, NO.2
2022-08 → 2023-09 ended
1GDFTV GUN156,166 IND —
28850C — Sensor Assy, Battery State
28850-0Y010 note Sensor Assy, Battery State
2022-08 → 2023-05 ended
1GDFTV,2GDFTV GUN155,16# TH;1GDFTV GUN156 +2 —
28850-0Y010 Sensor Assy, Battery State
2022-08 → 2023-09 ended
1GDFTV GUN156 6FC IND —
28850-0Y010 note Sensor Assy, Battery State
2022-08 → 2023-08 ended
2GDFTV GUN155 S IDN;1GDFTV +3 —
28850-0Y010 note Sensor Assy, Battery State
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GCC —
28850-0Y010 Sensor Assy, Battery State
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# TH —
28850-36030 Sensor Assy, Battery State
2024-06 → —
1GDFTV GUN156 TH —
28859A — Holder, Battery Current Sensor
28859-0L010 Holder, Battery Current Sensor
2022-08 → —
1GDFTV GUN156 PKNP TH —
28859-0L010 Holder, Battery Current Sensor
2022-08 → 2023-07 ended
1GDFTV,2GDFTV GUN15#,16# TH —
28859-0L010 Holder, Battery Current Sensor
2022-08 → 2023-09 ended
1GDFTV GUN156 6FC IND —
28859-0L010 note Holder, Battery Current Sensor
2022-08 → 2023-08 ended
2GDFTV GUN155 S IDN;1GDFTV +3 —
28859-0L010 note Holder, Battery Current Sensor
2022-08 → 2023-07 ended
1GDFTV GUN156 THP GCC —
28859-0L010 note Holder, Battery Current Sensor
2022-08 → 2023-05 ended
1GDFTV,2GDFTV GUN155,16# TH;1GDFTV GUN156 +2 —
83390 — Switch Assy, Vacuum Warning
83390-28120 note Switch Assy, Vacuum Warning
2022-08 → 2023-05 ended
GUN155 S IDN;GUN156,166 GCC,IDN —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2023-07 ended
GUN15#,165 THP (ARL,GCC,GEN) —
83390-28120 note Switch Assy, Vacuum Warning
2022-08 → 2023-07 ended
GUN15#,16# THP TH —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2023-08 ended
GUN15#,16# IDNP,MAP —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2023-09 ended
GUN156 VNP;GUN156 6F IND;GUN16# +1 —
83390-28120 note Switch Assy, Vacuum Warning
2022-08 → 2023-09 ended
GUN156 6FC IND —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2023-10 ended
GUN156,16# AGTP —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2024-01 ended
GUN15#,16#,LAN155 SA —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → 2024-03 ended
GUN15# KEN —
83390-28120 Switch Assy, Vacuum Warning
2022-08 → —
GUN156 PKN —
