Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

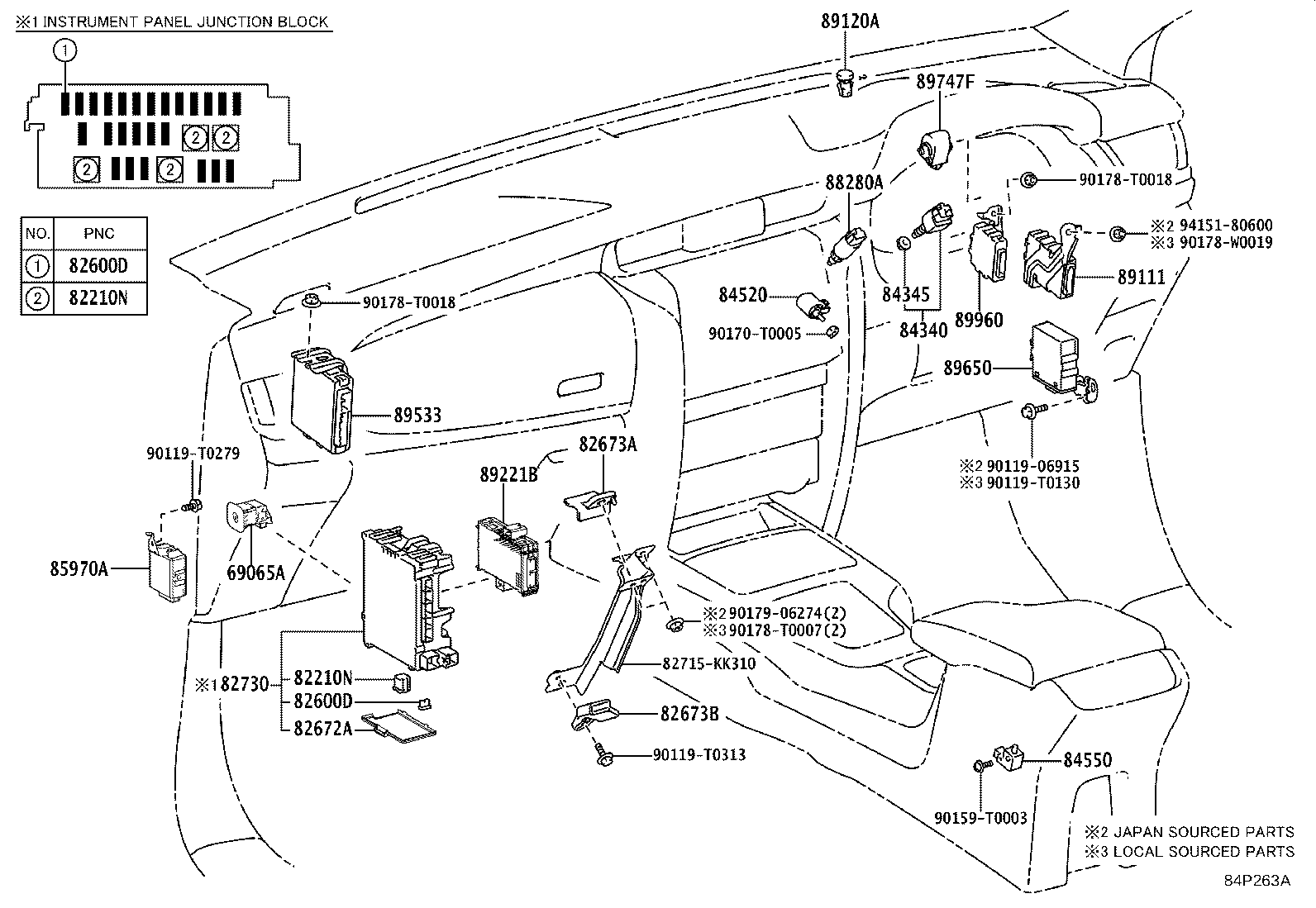

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69065A — Cylinder Sub-assy, Airbag Cut Off Switch | ||||
| 69065-0K010 note |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 69065-0K010 |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-08 → 2023-07
ended
|
GUN15#,16# TH | — | |
| 69065-0K010 |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69065-0K010 note |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 69065-0K010 |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 69065-0K010 note |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 69065-0K010 note |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-09 → 2023-08
ended
|
TGN166 GEN | — | |
| 69065-0K010 note |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-08 → 2023-08
ended
|
GUN156 IDNP GEN | — | |
| 69065-0K010 |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-08 → 2023-08
ended
|
TGN156 UN15#,TGN156,166 L (IDNP,MAP) +7 | — | |
| 69065-0K010 note |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 69065-0K010 note |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-09 → 2023-08
ended
|
GUN156,TGN166 RHD GEN | — | |
| 69065-0K030 |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 69065-0K040 note |
Cylinder Sub-assy, Airbag Cut Off Switch
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82210N — Instrument Panel Fusible Link | ||||
| 90982-08294 note |
Instrument Panel Fusible Link
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-08295 note |
Instrument Panel Fusible Link
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09020 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09023 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09024 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09025 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-0K020 |
Cover, Junction Block
2022-08 → 2023-07
ended
|
GGN155,TGN156,166 THP | — | |
| 82672-0K020 |
Cover, Junction Block
2022-08 → 2023-08
ended
|
GGN155,TGN156,166 (IDNP,MAP) (GCC,GEN,MA,VN) | — | |
| 82672-0K020 |
Cover, Junction Block
2022-08 → —
|
TGN156,166 PKN | — | |
| 82672-0K020 |
Cover, Junction Block
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82672-0K020 |
Cover, Junction Block
2022-08 → 2024-01
ended
|
LAN155,TGN156 SA | — | |
| 82672-0K020 |
Cover, Junction Block
2022-08 → 2023-09
ended
|
TGN166 INDP,VNP | — | |
| 82672-0K020 |
Cover, Junction Block
2022-08 → 2023-10
ended
|
GGN155,TGN156,166 AGTP | — | |
| 82672-0K060 |
Cover, Junction Block
2022-09 → 2023-08
ended
|
TGN166 IDN | — | |
| 82672-0K090 |
Cover, Junction Block
2022-08 → 2023-10
ended
|
GUN156,16# AGTP | — | |
| 82672-0K090 |
Cover, Junction Block
2022-08 → 2024-01
ended
|
GUN15#,16# SA | — | |
| 82672-0K090 |
Cover, Junction Block
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82672-0K090 |
Cover, Junction Block
2022-08 → 2023-08
ended
|
GUN15#,16# (IDNP,MAP) (ARL,GCC,GEN,MA,PH,VN) | — | |
| 82672-0K090 |
Cover, Junction Block
2022-08 → —
|
GUN156 PKNP | — | |
| 82672-0K090 |
Cover, Junction Block
2022-08 → 2023-09
ended
|
GUN156,16# INDP,VNP | — | |
| 82672-0K090 |
Cover, Junction Block
2022-08 → 2023-07
ended
|
GUN15#,16# THP | — | |
| 82672-0K120 |
Cover, Junction Block
2022-09 → 2023-08
ended
|
GUN15#,16# IDN | — | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| 82673-0K010 |
Bracket, Junction Block, NO.1
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 82673-0K010 |
Bracket, Junction Block, NO.1
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82673-0K010 |
Bracket, Junction Block, NO.1
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 82673-0K010 |
Bracket, Junction Block, NO.1
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82673-0K010 |
Bracket, Junction Block, NO.1
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 82673-0K030 |
Bracket, Junction Block, NO.1
2022-08 → 2023-09
ended
|
GUN156,166 IND | — | |
| 82673-0K030 |
Bracket, Junction Block, NO.1
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 82673-0K030 |
Bracket, Junction Block, NO.1
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 82673-0K030 |
Bracket, Junction Block, NO.1
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82673-0K030 |
Bracket, Junction Block, NO.1
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82673-0K030 |
Bracket, Junction Block, NO.1
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82673-0K150 |
Bracket, Junction Block, NO.1
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 82673B — Bracket, Junction Block, NO.2 | ||||
| 82673-0K020 |
Bracket, Junction Block, NO.2
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 82673-0K020 |
Bracket, Junction Block, NO.2
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 82673-0K020 |
Bracket, Junction Block, NO.2
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82673-0K020 |
Bracket, Junction Block, NO.2
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 82673-0K020 |
Bracket, Junction Block, NO.2
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 82673-0K020 |
Bracket, Junction Block, NO.2
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82673-0K020 |
Bracket, Junction Block, NO.2
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 82673-0K180 |
Bracket, Junction Block, NO.2
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| 82730-0K160 |
Block Assy, Instrument Panel Junction
2022-11 → 2023-10
ended
|
GGN155,TGN166 H LA | — | |
| 82730-0K160 |
Block Assy, Instrument Panel Junction
2022-11 → —
|
TGN156,166 PKN | — | |
| 82730-0K160 note |
Block Assy, Instrument Panel Junction
2023-01 → 2024-01
ended
|
TGN156 SA | — | |
| 82730-0K170 |
Block Assy, Instrument Panel Junction
2022-11 → 2023-10
ended
|
TGN156 BZAGT | — | |
| 82730-0K170 note |
Block Assy, Instrument Panel Junction
2022-11 → 2023-10
ended
|
TGN166 L LA | — | |
| 82730-0K170 |
Block Assy, Instrument Panel Junction
2022-11 → 2024-01
ended
|
LAN155,TGN156 SA | — | |
| 82730-0K280 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN15# MA | — | |
| 82730-0K340 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-09
ended
|
GUN156,165 VNP 6FC | — | |
| 82730-0K340 note |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 82730-0K340 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN165 IDNP S (PH,VN);GUN15#,166 +3 | — | |
| 82730-0K360 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN165 LHD GEN;GUN15# IDNP +2 | — | |
| 82730-0K360 note |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 82730-0K360 note |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN155 IDNP S GCC | — | |
| 82730-0K380 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 82730-0K380 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GUN165 IDNP +2 | — | |
| 82730-0K390 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN165 IDNP GCC;GUN155 LHD +2 | — | |
| 82730-0K440 |
Block Assy, Instrument Panel Junction
2022-10 → 2023-09
ended
|
GUN156,166 IND | — | |
| 82730-0K550 |
Block Assy, Instrument Panel Junction
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 82730-0K550 note |
Block Assy, Instrument Panel Junction
2022-08 → 2023-07
ended
|
GGN155 THP S | — | |
| 82730-0K550 |
Block Assy, Instrument Panel Junction
2022-08 → 2023-07
ended
|
GGN155 THP H;TGN156 THP +1 | — | |
| 82730-0K560 |
Block Assy, Instrument Panel Junction
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 82730-0K560 |
Block Assy, Instrument Panel Junction
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,TGN166 THP +1 | — | |
| 82730-0K560 |
Block Assy, Instrument Panel Junction
2022-08 → 2023-10
ended
|
TGN156,166 (L,S) LA | — | |
| 82730-0K710 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
TGN156 MA | — | |
| 82730-0K750 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
TGN166 IDN | — | |
| 82730-0K810 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GGN155,TGN156,166 IDNP 6FC (GEN,VN) | — | |
| 82730-0K810 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 82730-0K830 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
TGN156 IDNP L;GGN155,TGN166 IDNP +2 | — | |
| 82730-0K850 |
Block Assy, Instrument Panel Junction
2022-10 → 2023-09
ended
|
TGN166 IND | — | |
| 82730-0K860 note |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GGN155 IDNP S | — | |
| 82730-0K860 note |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
TGN156,166 H GEN | — | |
| 82730-0K860 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
TGN156 IDNP S;GGN155 IDNP +2 | — | |
| 82730-0KB10 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN155,165 S IDN | — | |
| 82730-0KB20 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN15#,16# H IDN | — | |
| 82730-0KB60 |
Block Assy, Instrument Panel Junction
2022-08 → 2023-07
ended
|
GUN155 THP H GCC;GUN156 +2 | — | |
| 82730-0KB60 note |
Block Assy, Instrument Panel Junction
2022-08 → 2023-07
ended
|
GUN155 THP S | — | |
| 82730-0KB70 |
Block Assy, Instrument Panel Junction
2022-08 → 2023-10
ended
|
GUN156,16# (L,S) LA | — | |
| 82730-0KB70 |
Block Assy, Instrument Panel Junction
2022-08 → 2023-07
ended
|
GUN155,165 THP (L,S) GCC | — | |
| 82730-0KB80 |
Block Assy, Instrument Panel Junction
2022-08 → 2023-07
ended
|
GUN15#,16# THP (GEN,TH) | — | |
| 82730-0KB80 |
Block Assy, Instrument Panel Junction
2022-08 → —
|
GUN156 PKNP | — | |
| 82730-0KB80 |
Block Assy, Instrument Panel Junction
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 82730-0KB80 note |
Block Assy, Instrument Panel Junction
2023-01 → 2024-01
ended
|
GUN15# LHD 6FC SA | — | |
| 82730-0KB80 |
Block Assy, Instrument Panel Junction
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82730-0KB80 |
Block Assy, Instrument Panel Junction
2022-08 → 2023-10
ended
|
GUN156,165 AGTP H | — | |
| 82730-0KB90 note |
Block Assy, Instrument Panel Junction
2023-01 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 82730-0KB90 note |
Block Assy, Instrument Panel Junction
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 82730-0KB90 |
Block Assy, Instrument Panel Junction
2022-11 → 2024-01
ended
|
GUN15# LHD SA | — | |
| 82730-0KB90 note |
Block Assy, Instrument Panel Junction
2022-11 → 2023-10
ended
|
GUN165 L LA | — | |
| 82730-0KB90 |
Block Assy, Instrument Panel Junction
2022-11 → 2024-03
ended
|
GUN155 KEN | — | |
| 82730-0KB90 |
Block Assy, Instrument Panel Junction
2022-11 → 2023-10
ended
|
GUN156 (L,S) BZAGT | — | |
| 82730-0KD70 |
Block Assy, Instrument Panel Junction
2022-09 → 2023-08
ended
|
GUN156 IDNP ARL | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-09380 |
Switch Assy, Stop Lamp
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 84340-09380 |
Switch Assy, Stop Lamp
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 84340-09380 |
Switch Assy, Stop Lamp
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 84340-09380 |
Switch Assy, Stop Lamp
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 84340-09380 |
Switch Assy, Stop Lamp
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 84340-09380 |
Switch Assy, Stop Lamp
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 84340-09380 |
Switch Assy, Stop Lamp
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 84340-09420 |
Switch Assy, Stop Lamp
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 84340-09430 |
Switch Assy, Stop Lamp
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-0K010 |
Adjuster, Stop Lamp Switch Mounting
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 84345-0K010 |
Adjuster, Stop Lamp Switch Mounting
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 84345-0K010 |
Adjuster, Stop Lamp Switch Mounting
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 84345-0K010 note |
Adjuster, Stop Lamp Switch Mounting
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 84345-0K010 |
Adjuster, Stop Lamp Switch Mounting
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 84345-0K010 |
Adjuster, Stop Lamp Switch Mounting
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 84345-0K010 |
Adjuster, Stop Lamp Switch Mounting
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 84345-0K010 |
Adjuster, Stop Lamp Switch Mounting
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 84345-51010 note |
Adjuster, Stop Lamp Switch Mounting
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 84520 — Switch Assy, Clutch Start | ||||
| 84520-42010 |
Switch Assy, Clutch Start
2022-09 → 2024-01
ended
|
GUN156,165,LAN155 MTM SA | — | |
| 84520-42010 |
Switch Assy, Clutch Start
2022-09 → 2024-03
ended
|
GUN156 6F KEN | — | |
| 84520-42010 |
Switch Assy, Clutch Start
2022-09 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) MTM | — | |
| 84520-42010 |
Switch Assy, Clutch Start
2022-09 → 2023-08
ended
|
GUN155,165,TGN156 IDNP MTM | — | |
| 84520-42010 |
Switch Assy, Clutch Start
2022-09 → 2023-10
ended
|
GUN156,166,TGN166 AGTP MTM | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-02030 |
Switch Assy, Parking Brake
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 84550-02030 |
Switch Assy, Parking Brake
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 84550-02030 |
Switch Assy, Parking Brake
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 84550-02030 |
Switch Assy, Parking Brake
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 84550-02030 |
Switch Assy, Parking Brake
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 84550-02030 |
Switch Assy, Parking Brake
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 84550-02030 |
Switch Assy, Parking Brake
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 84550-0K010 |
Switch Assy, Parking Brake
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 84550-0K010 |
Switch Assy, Parking Brake
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 85970A — Relay Assy, Double Lock Door Control | ||||
| 85970-71020 |
Relay Assy, Double Lock Door Control
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 85970-71020 note |
Relay Assy, Double Lock Door Control
2023-01 → 2023-11
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 85970-71020 |
Relay Assy, Double Lock Door Control
2022-09 → 2024-01
ended
|
GUN155,16# RHD SA;GUN156 RHD +2 | — | |
| 88280A — Switch Assy, Clutch | ||||
| 88280-42010 |
Switch Assy, Clutch
2022-09 → 2024-03
ended
|
GUN156 6F KEN | — | |
| 88280-42010 |
Switch Assy, Clutch
2022-09 → 2024-01
ended
|
GUN156,165 6F SA | — | |
| 88280-42010 note |
Switch Assy, Clutch
2023-08 → 2023-10
ended
|
GUN156 6F LA | — | |
| 88280-42010 |
Switch Assy, Clutch
2022-09 → 2023-10
ended
|
TGN166 S LA | — | |
| 88280-42010 |
Switch Assy, Clutch
2022-09 → 2023-09
ended
|
TGN166 5F IND | — | |
| 88280-42010 |
Switch Assy, Clutch
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156 (AGTP,IDNP,INDP,VNP) MTM | — | |
| 88280-42010 note |
Switch Assy, Clutch
2023-08 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89111 — Computer, Network Gateway | ||||
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-08
ended
|
GUN156 IDNP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-08
ended
|
GUN156 IDNP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-08
ended
|
GUN156 IDNP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-08
ended
|
GUN156 IDNP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-08
ended
|
GGN155,GUN156,TGN156 IDNP (H,S) GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-08
ended
|
GGN155,GUN156 IDNP H GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-08
ended
|
GGN155,GUN156 IDNP H GCC | — | |
| 89100-71011 |
Computer, Network Gateway
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 89100-71011 |
Computer, Network Gateway
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 89100-71011 |
Computer, Network Gateway
2022-08 → 2024-01
ended
|
GUN166 SA | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2024-01
ended
|
GUN156 RHD 6FC SA | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2024-01
ended
|
GUN15#,165,TGN156 SA | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2024-01
ended
|
GUN15#,TGN156 S SA | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2024-01
ended
|
GUN15#,TGN156 S SA | — | |
| 89100-71011 |
Computer, Network Gateway
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 89100-71011 |
Computer, Network Gateway
2022-08 → —
|
GUN156,TGN156 PKNP | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → —
|
TGN166 PKN | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 |
Computer, Network Gateway
2022-08 → 2023-08
ended
|
TGN156 ,VN) IDNP (H,L);GUN155,16#,TGN166 +3 | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-11 → 2023-05
ended
|
GUN156 L BZAGT | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-11 → 2023-05
ended
|
GUN156 LA;GUN165 L LA | — | |
| 89100-71011 |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP (ARL,GEN,TH);GGN155,GUN155,16#,TGN156,166 THP | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-05
ended
|
GUN155,TGN156 N,LA) LHD L;GUN165,TGN166 +5 | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89100-71011 note |
Computer, Network Gateway
2022-08 → 2023-07
ended
|
GUN156 THP GCC | — | |
| 89120A — Sensor, Automatic Light Control | ||||
| 89121-50020 |
Sensor, Automatic Light Control
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 89121-50020 |
Sensor, Automatic Light Control
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 89121-50020 |
Sensor, Automatic Light Control
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 89121-50020 |
Sensor, Automatic Light Control
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 89121-50020 |
Sensor, Automatic Light Control
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 89121-50020 |
Sensor, Automatic Light Control
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 89121-50020 |
Sensor, Automatic Light Control
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 89221B — Computer, Body | ||||
| 89221-0K192 |
Computer, Body
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 THP GCC | — | |
| 89221-0K601 |
Computer, Body
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 89221-0K642 |
Computer, Body
2022-09 → 2023-08
ended
|
GUN156 IDNP ARL | — | |
| 89221-0K642 note |
Computer, Body
2022-09 → 2023-08
ended
|
TGN156,166 H GEN | — | |
| 89221-0K662 |
Computer, Body
2022-09 → 2023-08
ended
|
GUN165 IDNP (PH,VN);GUN156,166,TGN156,166 LHD +3 | — | |
| 89221-0K691 |
Computer, Body
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN166 IDN | — | |
| 89221-0KA12 |
Computer, Body
2022-08 → 2023-07
ended
|
GUN156 THP ARL | — | |
| 89221-0KA22 |
Computer, Body
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 89221-0KA22 |
Computer, Body
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 89221-0KA52 |
Computer, Body
2022-09 → 2023-08
ended
|
GGN155,GUN15#,165,TGN156,166 IDNP GCC | — | |
| 89221-0KB90 note |
Computer, Body
2022-09 → 2023-08
ended
|
TGN166 GEN | — | |
| 89221-0KC00 |
Computer, Body
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 89221-0KC10 note |
Computer, Body
2022-09 → 2023-08
ended
|
TGN166 GEN | — | |
| 89221-0KC20 |
Computer, Body
2022-11 → 2023-10
ended
|
GUN156 H BZAGT | — | |
| 89221-0KC30 note |
Computer, Body
2022-11 → 2023-10
ended
|
GUN165,TGN166 L LA | — | |
| 89221-0KC30 |
Computer, Body
2022-11 → 2023-10
ended
|
GUN156 H LA;GUN156 (L,S) +4 | — | |
| 89221-0KC40 |
Computer, Body
2022-11 → 2023-10
ended
|
GUN156,16#,TGN156,166 (L,S) LA | — | |
| 89221-0KC50 |
Computer, Body
2022-09 → 2023-08
ended
|
GGN155 GEN | — | |
| 89221-0KD10 |
Computer, Body
2022-09 → 2023-08
ended
|
TGN156 L GEN | — | |
| 89221-0KE11 |
Computer, Body
2022-08 → 2023-07
ended
|
GUN15#,16# TH | — | |
| 89221-0KE11 |
Computer, Body
2022-08 → —
|
GUN156 PKNP TH | — | |
| 89221-0KF30 note |
Computer, Body
2022-09 → 2023-08
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 89221-0KF41 |
Computer, Body
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 89221-0KZ81 |
Computer, Body
2022-09 → 2023-08
ended
|
GUN155 LHD H GEN | — | |
| 89221-F0D10 note |
Computer, Body
2022-09 → 2023-08
ended
|
TGN156,166 H GEN | — | |
| 89221-F0G41 |
Computer, Body
2023-05 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 89221-F0J61 note |
Computer, Body
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89221-F0J61 |
Computer, Body
2023-06 → 2024-03
ended
|
GUN155 KEN | — | |
| 89221-F0J61 note |
Computer, Body
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89221-F0K91 |
Computer, Body
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD SA | — | |
| 89221-F0K91 note |
Computer, Body
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89221-F0L01 note |
Computer, Body
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89221-F0M41 |
Computer, Body
2022-09 → 2023-08
ended
|
GUN155,165 LHD (L,S) GEN | — | |
| 89221-F0M51 |
Computer, Body
2022-09 → 2023-08
ended
|
GUN15#,165,TGN156,166 RHD GEN | — | |
| 89221-F0M71 |
Computer, Body
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89221-F0M71 note |
Computer, Body
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89221-F0M71 |
Computer, Body
2023-01 → 2024-03
ended
|
GUN156 KEN | — | |
| 89221-F0N62 |
Computer, Body
2023-01 → 2024-01
ended
|
GUN155,16# RHD SA;GUN156 RHD +2 | — | |
| 89221-F0N72 |
Computer, Body
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 89221-F0N91 |
Computer, Body
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 89533 — Computer, 4 Wheel Drive Control | ||||
| 89533-71092 note |
Computer, 4 Wheel Drive Control
2022-08 → 2024-01
ended
|
TGN156 SA | — | |
| 89533-71092 |
Computer, 4 Wheel Drive Control
2022-08 → 2024-01
ended
|
GUN15#,LAN155 LHD SA | — | |
| 89533-71092 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-07
ended
|
GGN155,GUN15#,TGN156 LHD THP (H,S) | — | |
| 89533-71092 note |
Computer, 4 Wheel Drive Control
2022-08 → 2023-10
ended
|
GGN155 LA;GUN156 AGTP L | — | |
| 89533-71092 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-10
ended
|
TGN156 AGTP;GUN156 AGTP (H,S) | — | |
| 89533-71092 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-09
ended
|
GUN156 VNP | — | |
| 89533-71092 note |
Computer, 4 Wheel Drive Control
2022-08 → 2023-08
ended
|
GUN155 IDNP L GCC | — | |
| 89533-71092 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-08
ended
|
GUN15# LHD IDNP (H,S);GGN155,TGN156 +3 | — | |
| 89533-71092 note |
Computer, 4 Wheel Drive Control
2022-08 → 2023-07
ended
|
GUN155 THP L | — | |
| 89533-71102 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-08
ended
|
GUN156 RHD (IDNP,MAP);GUN155,TGN156 RHD +2 | — | |
| 89533-71102 |
Computer, 4 Wheel Drive Control
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 89533-71102 |
Computer, 4 Wheel Drive Control
2022-08 → 2024-01
ended
|
GUN15# RHD SA | — | |
| 89533-71102 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-07
ended
|
GUN156 THP ARL | — | |
| 89533-71102 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-09
ended
|
GUN156 IND | — | |
| 89533-71102 |
Computer, 4 Wheel Drive Control
2022-08 → —
|
GUN156,TGN156 PKN | — | |
| 89533-71111 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-07
ended
|
GUN155,TGN156 THP L | — | |
| 89533-71111 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-10
ended
|
GGN155 LA;GUN156 AGTP L | — | |
| 89533-71111 note |
Computer, 4 Wheel Drive Control
2022-11 → 2023-10
ended
|
TGN156 LA | — | |
| 89533-71111 |
Computer, 4 Wheel Drive Control
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 89533-71111 |
Computer, 4 Wheel Drive Control
2022-08 → 2024-01
ended
|
TGN156 SA | — | |
| 89533-71111 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-08
ended
|
GGN155 GEN;GUN155,TGN156 IDNP L | — | |
| 89533-71121 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-07
ended
|
GUN15# TH | — | |
| 89533-71121 |
Computer, 4 Wheel Drive Control
2022-08 → —
|
GUN156 PKNP TH | — | |
| 89533-71121 |
Computer, 4 Wheel Drive Control
2022-08 → 2023-08
ended
|
GUN155 MA | — | |
| 89533-71131 |
Computer, 4 Wheel Drive Control
2022-11 → 2023-10
ended
|
TGN166 LA;GUN165 H LA | — | |
| 89533-71131 note |
Computer, 4 Wheel Drive Control
2022-11 → 2023-10
ended
|
GUN16# (L,S) LA | — | |
| 89533-71131 note |
Computer, 4 Wheel Drive Control
2022-11 → 2023-06
ended
|
TGN166 L LA | — | |
| 89533-71141 |
Computer, 4 Wheel Drive Control
2022-09 → 2024-01
ended
|
GUN16# SA | — | |
| 89533-71141 |
Computer, 4 Wheel Drive Control
2022-09 → 2023-08
ended
|
TGN166 GEN | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-71040 note |
Computer Assy, Power Steering
2022-08 → 2023-07
ended
|
GUN15#,16# THP | — | |
| 89650-71040 note |
Computer Assy, Power Steering
2022-08 → 2023-08
ended
|
GUN15#,16# IDNP,MAP | — | |
| 89650-71040 note |
Computer Assy, Power Steering
2022-08 → 2023-09
ended
|
GUN156,16# INDP,VNP | — | |
| 89650-71040 note |
Computer Assy, Power Steering
2022-08 → 2023-10
ended
|
GUN156,16# AGTP | — | |
| 89650-71040 note |
Computer Assy, Power Steering
2022-08 → 2024-01
ended
|
GUN15#,16# SA | — | |
| 89650-71040 note |
Computer Assy, Power Steering
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 89650-71040 note |
Computer Assy, Power Steering
2022-08 → —
|
GUN156 PKNP | — | |
| 89747F — Buzzer, Blind Spot Monitor | ||||
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2024-01
ended
|
GUN15#,166,TGN156 S SA | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2023-10
ended
|
GGN155 LA;GUN156 S BZAGT | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2023-10
ended
|
GUN156,TGN166 H LA | — | |
| 89747-52010 |
Buzzer, Blind Spot Monitor
2022-08 → 2023-10
ended
|
GUN165 H LA;GUN156 H +1 | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2023-09
ended
|
GUN165,TGN166 VNP S | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2023-09
ended
|
GUN156 VNP | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2023-08
ended
|
GUN165 S PH;TGN166 IDNP +4 | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2023-08
ended
|
GUN156,TGN156 IDNP VN;GUN156,TGN166 RHD +1 | — | |
| 89747-52010 |
Buzzer, Blind Spot Monitor
2022-08 → 2023-08
ended
|
GUN156,166 PH | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2023-07
ended
|
GUN165 S TH;GGN155,GUN156,166 THP +2 | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-08 → 2023-07
ended
|
GUN156 H ARL | — | |
| 89747-52010 |
Buzzer, Blind Spot Monitor
2022-08 → 2023-07
ended
|
GUN155,165 H TH | — | |
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2022-11 → 2023-05
ended
|
GUN156 6FC H BZAGT | — | |
| 89747-52010 |
Buzzer, Blind Spot Monitor
2022-08 → 2023-09
ended
|
GUN165 H VN | — | |
| 89960 — Computer Assy, Headlamp Leveling | ||||
| 89960-71110 |
Computer Assy, Headlamp Leveling
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 THP (ARL,GCC,GEN) | — | |
| 89960-71110 |
Computer Assy, Headlamp Leveling
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 (IDNP,MAP) (ARL,GCC,GEN,IDN,MA,VN) | — | |
| 89960-71110 |
Computer Assy, Headlamp Leveling
2022-08 → —
|
GUN156,TGN156,166 PKN | — | |
| 89960-71110 |
Computer Assy, Headlamp Leveling
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 89960-71110 |
Computer Assy, Headlamp Leveling
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 89960-71110 |
Computer Assy, Headlamp Leveling
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 89960-71110 |
Computer Assy, Headlamp Leveling
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 89960-71120 |
Computer Assy, Headlamp Leveling
2022-08 → —
|
GUN156 PKNP TH | — | |
| 89960-71120 |
Computer Assy, Headlamp Leveling
2022-08 → 2023-08
ended
|
GUN156,16# PH | — | |
| 89960-71120 |
Computer Assy, Headlamp Leveling
2022-08 → 2023-07
ended
|
GUN15#,16# TH | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
