Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

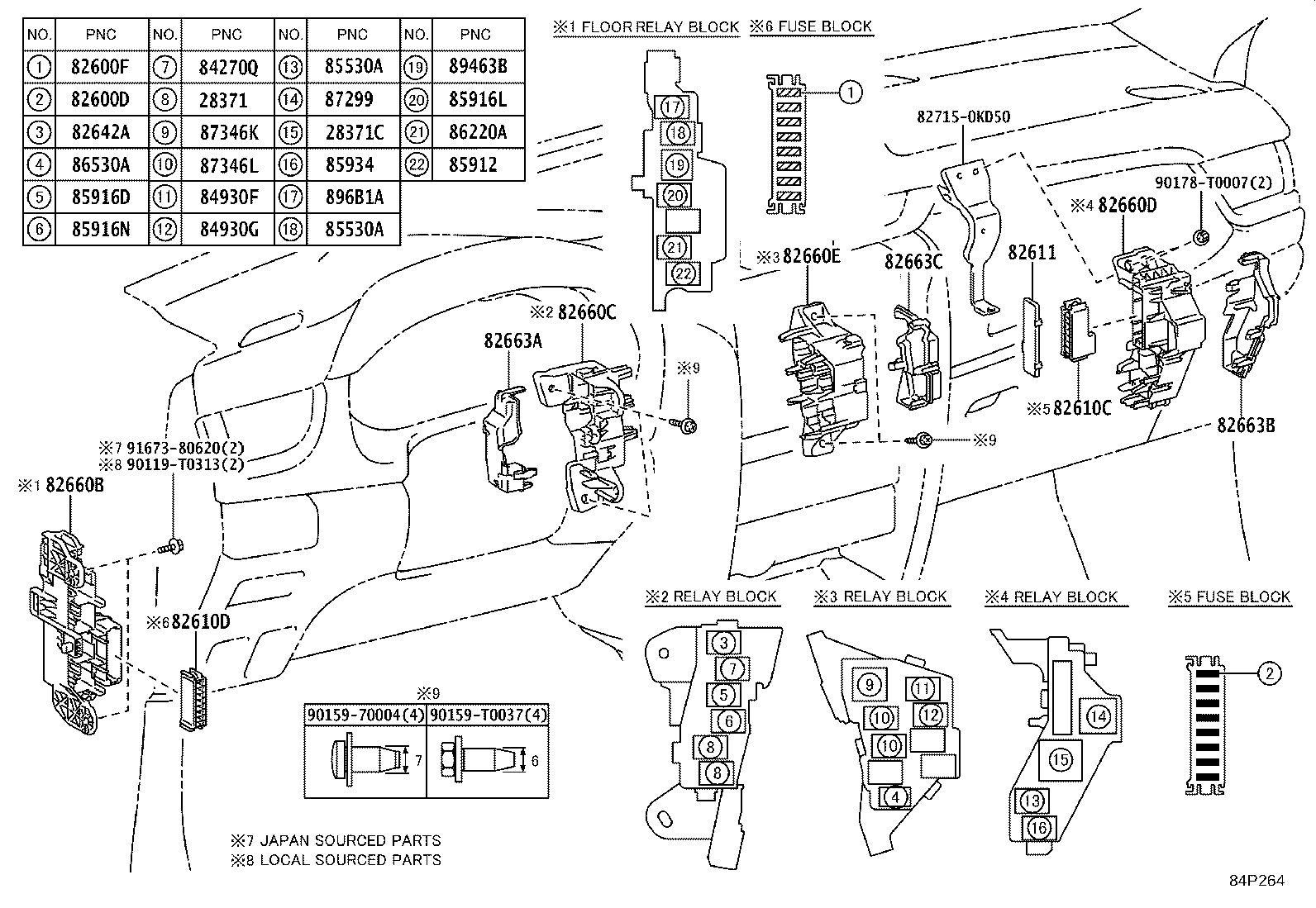

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2023-07
ended
|
1GRFE,2GDFTV GGN155,GUN155 THP S | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2023-07
ended
|
1GDFTV GN156 GUN156,166 THP +6 | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKNP | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2024-03
ended
|
1G# GGN155,GUN156 EPT,KEN | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,TGN156 LHD 6FC +1 | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# RHD SA | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2023-01 → 2023-11
ended
|
1GDFTV,2GDFTV GUN15#,165 RHD SA | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,165,TGN166 AGTP H | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-09 → 2023-08
ended
|
2GDFTV GUN155 L GEN | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2023-08
ended
|
2GDFTV GUN165 RHD GEN;1GRFE,2GDFTV +4 | — | |
| 90987-02027 note |
Relay, Ignition, NO.1
2022-08 → 2023-08
ended
|
2GDFTV ,MAP) ,L) GUN155 +17 | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2023-01 → 2024-01
ended
|
1GDFTV,2GDFTV,2TRFE GUN15#,TGN156 LHD 6FC +1 | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-09 → 2023-08
ended
|
2GDFTV GUN155 L GEN | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKNP | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2023-07
ended
|
1GDFTV GN156 GUN156,166 THP +6 | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2024-03
ended
|
1G# GGN155,GUN156 EPT,KEN | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2023-07
ended
|
1GRFE,2GDFTV GGN155,GUN155 THP S | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV GUN15#,16# RHD SA | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2023-08
ended
|
2GDFTV ,MAP) ,L) GUN155 +17 | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,165,TGN166 AGTP H | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2023-08
ended
|
2GDFTV GUN165 RHD GEN;1GRFE,2GDFTV +4 | — | |
| 90987-T2001 note |
Relay, Ignition, NO.1
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 28371C — Relay, Ignition, NO.2 | ||||
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKNP | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2024-03
ended
|
1G#,2GDFTV GGN155,GUN15# EPT,KEN | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2023-08
ended
|
2TRFE TGN166 IDNP (H,S);1G#,2GDFTV,2TRFE +2 | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-08 → 2023-07
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156 THP | — | |
| 90987-02025 note |
Relay, Ignition, NO.2
2022-11 → 2023-05
ended
|
2TRFE TGN166 L LA | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2023-09
ended
|
1GDFTV,2GDFTV,2TRFE GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2023-10
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2023-07
ended
|
1G#,2GDFTV,2TRFE GGN155,GUN15#,16#,TGN156 THP | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2024-01
ended
|
1GDFTV,2GDFTV,5LE,2TRFE GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2024-03
ended
|
1G#,2GDFTV GGN155,GUN15# EPT,KEN | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → —
|
1GDFTV,2TRFE GUN156,TGN156,166 PKNP | — | |
| 90987-T2002 note |
Relay, Ignition, NO.2
2022-08 → 2023-08
ended
|
2TRFE TGN166 IDNP (H,S);1G#,2GDFTV,2TRFE +2 | — | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 90982-09019 note |
Instrument Panel Fuse
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 90982-09020 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09021 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09022 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09023 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09024 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09025 note |
Instrument Panel Fuse
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09019 note |
Fuse, Fuse Block
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09020 note |
Fuse, Fuse Block
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09021 note |
Fuse, Fuse Block
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09022 note |
Fuse, Fuse Block
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09023 note |
Fuse, Fuse Block
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09024 note |
Fuse, Fuse Block
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 90982-09025 note |
Fuse, Fuse Block
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 | — | |
| 82610C — Block Assy, Fuse | ||||
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 82610-0K010 note |
Block Assy, Fuse
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82610-0K010 note |
Block Assy, Fuse
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82610-0K010 note |
Block Assy, Fuse
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82610-0K010 note |
Block Assy, Fuse
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82610D — Block Assy, Fuse | ||||
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 82610-0K010 |
Block Assy, Fuse
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 82611 — Cover, Fuse Block | ||||
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 82611-0K070 |
Cover, Fuse Block
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82611-0K080 note |
Cover, Fuse Block
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 82611-0K080 |
Cover, Fuse Block
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 82611-0K080 note |
Cover, Fuse Block
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82611-0K080 note |
Cover, Fuse Block
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82611-0K080 note |
Cover, Fuse Block
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82642A — Relay, Running Light | ||||
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-02027 note |
Relay, Running Light
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90987-T2001 note |
Relay, Running Light
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 82660B — Block Assy, Relay | ||||
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 82660-0K161 |
Block Assy, Relay
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82660C — Block Assy, Relay | ||||
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 82660-0K050 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 82660-0K050 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82660-0K050 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82660-0K050 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82660-0K050 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82660-0K060 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 82660D — Block Assy, Relay | ||||
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 82660-0K070 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 82660-0K070 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82660-0K070 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82660-0K070 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82660-0K070 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 82660-0K080 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 82660E — Block Assy, Relay | ||||
| 82660-0K090 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 82660-0K090 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 82660-0K090 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82660-0K090 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82660-0K090 note |
Block Assy, Relay
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82660-0K100 |
Block Assy, Relay
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 82663A — Cover, Relay Block, Lower, NO.2 | ||||
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82663-0K050 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 82663-0K050 note |
Cover, Relay Block, Lower, NO.2
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82663-0K050 note |
Cover, Relay Block, Lower, NO.2
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82663-0K050 note |
Cover, Relay Block, Lower, NO.2
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82663-0K050 note |
Cover, Relay Block, Lower, NO.2
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 82663-0K060 |
Cover, Relay Block, Lower, NO.2
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 82663B — Cover, Relay Block, Lower, NO.3 | ||||
| 82663-0K070 note |
Cover, Relay Block, Lower, NO.3
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82663-0K070 note |
Cover, Relay Block, Lower, NO.3
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82663-0K070 note |
Cover, Relay Block, Lower, NO.3
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82663-0K070 note |
Cover, Relay Block, Lower, NO.3
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82663-0K070 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 82663-0K080 |
Cover, Relay Block, Lower, NO.3
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 82663C — Cover, Relay Block Lower, NO.4 | ||||
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2024-03
ended
|
GUN15# KEN | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (IDNP,MAP) | — | |
| 82663-0K090 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 82663-0K090 note |
Cover, Relay Block Lower, NO.4
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82663-0K090 note |
Cover, Relay Block Lower, NO.4
2022-08 → 2022-10
ended
|
GUN156,166 TH | — | |
| 82663-0K090 note |
Cover, Relay Block Lower, NO.4
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82663-0K090 note |
Cover, Relay Block Lower, NO.4
2022-08 → 2022-10
ended
|
GUN156 TH | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-07
ended
|
GGN155,GUN15#,165,TGN156,166 LHD THP | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 82663-0K100 |
Cover, Relay Block Lower, NO.4
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 84270Q — Relay, Lamp Cut | ||||
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-02027 note |
Relay, Lamp Cut
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90987-T2001 note |
Relay, Lamp Cut
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 84930F — Relay, Door Lock Contorol | ||||
| 90080-87009 note |
Relay, Door Lock Contorol
2022-08 → 2023-10
ended
|
GUN156 L BZAGT;GGN155,GUN156,165,TGN156,166 AGTP +2 | — | |
| 90080-87009 note |
Relay, Door Lock Contorol
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 90080-87009 note |
Relay, Door Lock Contorol
2022-11 → 2023-10
ended
|
GUN165,TGN166 L LA | — | |
| 90080-87009 note |
Relay, Door Lock Contorol
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90080-87009 note |
Relay, Door Lock Contorol
2022-08 → 2023-08
ended
|
GUN165 IDNP (PH,VN);GGN155,GUN15#,166,TGN156,166 LHD +3 | — | |
| 90080-87009 note |
Relay, Door Lock Contorol
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 90987-04004 note |
Relay, Door Lock Contorol
2022-08 → 2023-08
ended
|
GUN165 IDNP (PH,VN);GGN155,GUN15#,166,TGN156,166 LHD +3 | — | |
| 90987-04004 note |
Relay, Door Lock Contorol
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90987-04004 note |
Relay, Door Lock Contorol
2022-08 → 2023-10
ended
|
GUN156 L BZAGT;GGN155,GUN156,165,TGN156,166 AGTP +2 | — | |
| 90987-04004 note |
Relay, Door Lock Contorol
2022-11 → 2023-10
ended
|
GUN165,TGN166 L LA | — | |
| 90987-04004 note |
Relay, Door Lock Contorol
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 90987-04004 note |
Relay, Door Lock Contorol
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 84930G — Relay, Door Lock Control, NO.2 | ||||
| 90080-87009 note |
Relay, Door Lock Control, NO.2
2022-11 → 2023-10
ended
|
GUN165,TGN166 L LA | — | |
| 90080-87009 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-10
ended
|
GUN156 L BZAGT;GGN155,GUN156,165,TGN156,166 AGTP +2 | — | |
| 90080-87009 note |
Relay, Door Lock Control, NO.2
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 90080-87009 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90080-87009 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-08
ended
|
GUN165 IDNP (PH,VN);GGN155,GUN15#,166,TGN156,166 LHD +3 | — | |
| 90080-87009 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 90987-04004 note |
Relay, Door Lock Control, NO.2
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 90987-04004 note |
Relay, Door Lock Control, NO.2
2022-11 → 2023-10
ended
|
GUN165,TGN166 L LA | — | |
| 90987-04004 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-08
ended
|
GUN165 IDNP (PH,VN);GGN155,GUN15#,166,TGN156,166 LHD +3 | — | |
| 90987-04004 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90987-04004 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 90987-04004 note |
Relay, Door Lock Control, NO.2
2022-08 → 2023-10
ended
|
GUN156 L BZAGT;GGN155,GUN156,165,TGN156,166 AGTP +2 | — | |
| 85530A — Relay, Power Outlet Socket | ||||
| 90987-02027 note |
Relay, Power Outlet Socket
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90987-T2001 note |
Relay, Power Outlet Socket
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90987-T2001 |
Relay, Power Outlet Socket
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 85912 — Relay, Defogger | ||||
| 90080-87009 |
Relay, Defogger
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90080-87009 |
Relay, Defogger
2022-08 → —
|
GGN155,GUN15#,16#,LAN155,TGN156,166 EPT,KEN,PKN,SA | — | |
| 90080-87009 |
Relay, Defogger
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90080-87009 |
Relay, Defogger
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90080-87009 |
Relay, Defogger
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → —
|
GUN156,TGN156,166 PKN | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-10
ended
|
GUN165 L LA;GGN155,GUN156,166,TGN156,166 AGTP +1 | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-10
ended
|
GUN165 H LA;TGN166 S +1 | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN156 THP (H,S) (ARL,GCC) | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-08
ended
|
GUN165 S PH;GUN165 IDNP +3 | — | |
| 90987-02027 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN156 THP (GEN,TH);GGN155,GUN155,16#,TGN156 THP +1 | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → —
|
GUN156,TGN156,166 PKN | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN156 THP (H,S) (ARL,GCC) | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-10
ended
|
GUN165 L LA;GGN155,GUN156,166,TGN156,166 AGTP +1 | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-10
ended
|
GUN165 H LA;TGN166 S +1 | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-07
ended
|
GUN156 THP (GEN,TH);GGN155,GUN155,16#,TGN156 THP +1 | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-T2001 note |
Relay, Fog Lamp
2022-08 → 2023-08
ended
|
GUN165 S PH;GUN165 IDNP +3 | — | |
| 85916L — Relay, Rear Fog Lamp | ||||
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-05
ended
|
GUN156,TGN156 H GEN | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → —
|
GUN156 PKNP TH | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2023-01 → 2024-01
ended
|
GUN15#,166 RHD SA | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD SA | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-10
ended
|
GUN156,TGN156 BZAGT | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-08
ended
|
GUN155 .(GCC,MA,VN);GUN156,TGN156 LHD (IDNP,MAP) +7 | — | |
| 90987-02027 note |
Relay, Rear Fog Lamp
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP (GCC,GEN,TH) | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2023-10
ended
|
GUN156,TGN156 BZAGT | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2023-08
ended
|
GUN155 .(GCC,MA,VN);GUN156,TGN156 LHD (IDNP,MAP) +7 | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD SA | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2023-01 → 2024-01
ended
|
GUN15#,166 RHD SA | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP (GCC,GEN,TH) | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → —
|
GUN156 PKNP TH | — | |
| 90987-T2001 note |
Relay, Rear Fog Lamp
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 85916N — Relay, Taillamp | ||||
| 90987-02027 note |
Relay, Taillamp
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90987-02027 note |
Relay, Taillamp
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90987-T2001 note |
Relay, Taillamp
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 85934 — Relay, Magnet-clutch | ||||
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → —
|
GUN156,TGN156,166 PKN | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2023-09
ended
|
GUN156,166 IND;TGN166 INDP,VNP | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2023-08
ended
|
TGN166 IDNP;GGN155,GUN15#,16#,TGN156 IDNP,MAP,VNP | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90987-02028 |
Relay, Magnet-clutch
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 86220A — Relay, Inverter | ||||
| 90987-02027 note |
Relay, Inverter
2022-08 → 2023-10
ended
|
GUN156,TGN156 (H,S) BZAGT | — | |
| 90987-02027 note |
Relay, Inverter
2023-01 → 2023-11
ended
|
GUN156 RHD 6FC SA | — | |
| 90987-02027 note |
Relay, Inverter
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90987-02027 note |
Relay, Inverter
2022-08 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 90987-02027 note |
Relay, Inverter
2022-09 → 2023-08
ended
|
GUN156 RHD GEN | — | |
| 90987-02027 note |
Relay, Inverter
2022-09 → 2023-08
ended
|
GUN156 RHD GEN | — | |
| 90987-02027 note |
Relay, Inverter
2022-09 → 2023-08
ended
|
GUN156 IDNP GEN | — | |
| 90987-02027 note |
Relay, Inverter
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90987-02027 note |
Relay, Inverter
2022-08 → 2023-08
ended
|
GUN155 RHD GEN;GUN156,165,TGN156,166 IDNP +1 | — | |
| 90987-02027 note |
Relay, Inverter
2022-08 → 2023-07
ended
|
GUN155,16# TH;GUN156 RHD THP +1 | — | |
| 90987-02027 note |
Relay, Inverter
2022-11 → 2023-05
ended
|
GUN156 6FC H BZAGT | — | |
| 90987-02027 note |
Relay, Inverter
2022-09 → 2023-05
ended
|
GUN155 RHD GEN | — | |
| 90987-T2001 note |
Relay, Inverter
2022-08 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 90987-T2001 note |
Relay, Inverter
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90987-T2001 note |
Relay, Inverter
2022-09 → 2023-08
ended
|
GUN156 RHD GEN | — | |
| 90987-T2001 note |
Relay, Inverter
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 90987-T2001 note |
Relay, Inverter
2022-09 → 2023-08
ended
|
GUN156 RHD GEN | — | |
| 90987-T2001 note |
Relay, Inverter
2022-09 → 2023-08
ended
|
GUN156 IDNP GEN | — | |
| 90987-T2001 note |
Relay, Inverter
2022-08 → 2023-08
ended
|
GUN155 RHD GEN;GUN156,165,TGN156,166 IDNP +1 | — | |
| 90987-T2001 note |
Relay, Inverter
2022-08 → 2023-07
ended
|
GUN155,16# TH;GUN156 RHD THP +1 | — | |
| 90987-T2001 note |
Relay, Inverter
2022-08 → 2023-10
ended
|
GUN156,TGN156 (H,S) BZAGT | — | |
| 86530A — Relay, Horn | ||||
| 90987-02027 note |
Relay, Horn
2022-09 → 2023-08
ended
|
GUN165 LHD GEN | — | |
| 90987-02027 note |
Relay, Horn
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 90987-02027 note |
Relay, Horn
2022-10 → 2023-08
ended
|
GUN156 L BZAGT | — | |
| 90987-T2001 |
Relay, Horn
2022-08 → 2023-08
ended
|
GUN165 6 PH;GUN156 H +6 | — | |
| 90987-T2001 note |
Relay, Horn
2022-08 → 2023-08
ended
|
TGN156 .(6F,6FC) L (L,S) +7 | — | |
| 90987-T2001 note |
Relay, Horn
2022-09 → 2023-08
ended
|
GUN165 LHD GEN | — | |
| 90987-T2001 note |
Relay, Horn
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 90987-T2001 note |
Relay, Horn
2022-10 → 2023-08
ended
|
GUN156 L BZAGT | — | |
| 90987-T2001 |
Relay, Horn
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 90987-T2001 note |
Relay, Horn
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 90987-T2001 |
Relay, Horn
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 90987-T2001 |
Relay, Horn
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 90987-T2001 note |
Relay, Horn
2022-09 → 2023-05
ended
|
GUN156,TGN156,166 RHD GEN | — | |
| 87299 — Relay, Heater | ||||
| 90987-T2003 |
Relay, Heater
2022-08 → 2023-07
ended
|
GUN155,165,TGN156,166 THP L | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2024-01
ended
|
GUN155 L SA;GUN165,LAN155 SA | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2023-09
ended
|
GUN165 VNP L | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2023-08
ended
|
GUN15#,165,TGN156,166 (IDNP,MAP) L | — | |
| 90987-T2003 |
Relay, Heater
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 87346K — Relay, Ptc Heater | ||||
| 90987-T2002 |
Relay, Ptc Heater
2022-11 → 2023-10
ended
|
GUN156 (H,S) BZAGT | — | |
| 87346L — Relay, Ptc Heater | ||||
| 90987-T2001 |
Relay, Ptc Heater
2022-11 → 2023-10
ended
|
GUN156 (H,S) BZAGT | — | |
| 89463B — Relay, Nitrogen Oxides | ||||
| 90987-02027 note |
Relay, Nitrogen Oxides
2022-10 → 2023-08
ended
|
GUN156,166 IND | — | |
| 90987-02027 note |
Relay, Nitrogen Oxides
2022-11 → 2023-08
ended
|
GUN156,165 LA;GUN166 6FC LA | — | |
| 90987-02030 note |
Relay, Nitrogen Oxides
2023-02 → 2023-08
ended
|
GUN166 IND;GUN156 6F IND | — | |
| 90987-02030 note |
Relay, Nitrogen Oxides
2023-02 → 2023-08
ended
|
GUN156 6FC IND | — | |
| 90987-T2001 note |
Relay, Nitrogen Oxides
2022-11 → 2023-08
ended
|
GUN156,165 LA;GUN166 6FC LA | — | |
| 90987-T2001 note |
Relay, Nitrogen Oxides
2022-10 → 2023-08
ended
|
GUN156,166 IND | — | |
| 90987-T2009 note |
Relay, Nitrogen Oxides
2023-02 → 2023-08
ended
|
GUN156 6FC IND | — | |
| 90987-T2009 note |
Relay, Nitrogen Oxides
2023-02 → 2023-08
ended
|
GUN166 IND;GUN156 6F IND | — | |
| 896B1A — Relay, Dcu Main | ||||
| 90987-02027 note |
Relay, Dcu Main
2022-10 → 2023-09
ended
|
GUN156,166 IND | — | |
| 90987-02027 note |
Relay, Dcu Main
2022-11 → 2023-10
ended
|
GUN156,165 LA;GUN166 6FC LA | — | |
| 90987-T2001 note |
Relay, Dcu Main
2022-10 → 2023-09
ended
|
GUN156,166 IND | — | |
| 90987-T2001 note |
Relay, Dcu Main
2022-11 → 2023-10
ended
|
GUN156,165 LA;GUN166 6FC LA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
