Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

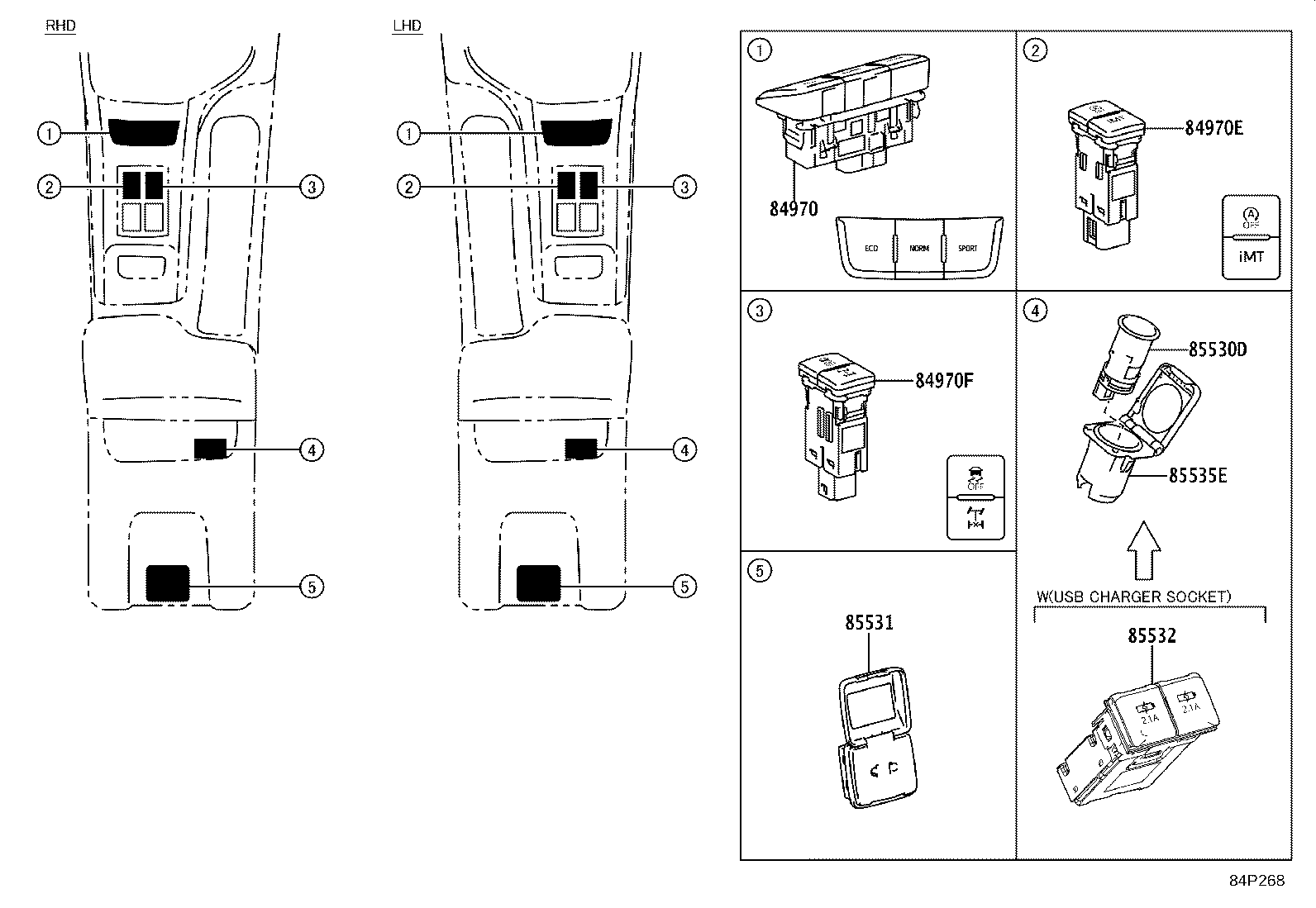

Exploded illustration 84P268 85531 — SOCKET, POWER OUTLET (20 parts) 85530D — SOCKET ASSY, POWER OUTLET, NO.2 (9 parts) 85535E — COVER, POWER OUTLET SOCKET, NO.2 (9 parts) 85532 — SOCKET, USB CHARGER (16 parts) 84970 — SWITCH ASSY, COMBINATION (19 parts) 84970E — SWITCH ASSY, COMBINATION NO.2 (9 parts) 84970F — SWITCH ASSY, COMBINATION, NO.3 (22 parts)
84P268 · 7 callouts Full size ↗
104 parts on this figure
Part number Description Fitment Price
84970 — Switch Assy, Combination
84970-0K031 Switch Assy, Combination
2022-09 → 2023-08 ended
GUN156 IDNP ARL;GGN155,GUN155,165,TGN156,166 IDNP —
84970-0K041 Switch Assy, Combination
2022-10 → 2023-09 ended
TGN166 IND —
84970-0K091 Switch Assy, Combination
2022-08 → 2023-07 ended
GGN155,GUN155,165,TGN156,166 THP —
84970-0K091 Switch Assy, Combination
2022-08 → 2023-08 ended
GUN155,TGN156 MA —
84970-0K091 Switch Assy, Combination
2022-08 → 2023-09 ended
GUN165,TGN166 VNP —
84970-0K091 Switch Assy, Combination
2022-08 → —
TGN156,166 PKN —
84970-0K091 Switch Assy, Combination
2022-08 → 2023-10 ended
GUN156 AGTP (L,S);GGN155,GUN16#,TGN156,166 AGTP —
84970-0K091 Switch Assy, Combination
2022-08 → 2024-03 ended
GGN155,GUN155,TGN166 EPT,KEN —
84970-0K091 Switch Assy, Combination
2022-08 → 2024-01 ended
GUN155,165,TGN156 SA —
84970-0K380 Switch Assy, Combination
2022-09 → 2023-08 ended
GUN156,166 IDNP H —
84970-0K390 Switch Assy, Combination
2022-08 → 2023-07 ended
GUN156,166 THP —
84970-0K390 Switch Assy, Combination
2022-08 → —
GUN156 PKNP —
84970-0K390 Switch Assy, Combination
2022-08 → 2024-03 ended
GUN156 KEN —
84970-0K390 Switch Assy, Combination
2022-08 → 2024-01 ended
GUN156,166 SA —
84970-0K390 Switch Assy, Combination
2022-08 → 2023-10 ended
GUN156 AGTP H —
84970-0K390 Switch Assy, Combination
2022-08 → 2023-09 ended
GUN156 VNP —
84970-0K390 Switch Assy, Combination
2022-08 → 2023-08 ended
GUN156 MA —
84970-0K390 note Switch Assy, Combination
2022-11 → 2023-10 ended
GUN156,166 AGTP 6FC S —
84970-0K400 Switch Assy, Combination
2022-10 → 2023-09 ended
GUN156,166 IND —
84970E — Switch Assy, Combination NO.2
84970-0K460 note Switch Assy, Combination NO.2
2022-08 → 2023-07 ended
GUN15#,16# TH —
84970-0K460 note Switch Assy, Combination NO.2
2022-08 → 2023-07 ended
GUN156 THP GCC —
84970-0K460 note Switch Assy, Combination NO.2
2022-08 → —
GUN156 PKNP TH —
84970-0K460 note Switch Assy, Combination NO.2
2022-08 → 2023-09 ended
GUN156 6FC IND —
84970-0K490 note Switch Assy, Combination NO.2
2022-10 → 2023-10 ended
GUN156 6F BZAGT —
84970-0K490 note Switch Assy, Combination NO.2
2022-10 → 2024-03 ended
GUN156 6F KEN —
84970-0K490 note Switch Assy, Combination NO.2
2022-10 → 2024-01 ended
GUN156 RHD 6F SA —
84970-0K490 note Switch Assy, Combination NO.2
2022-10 → 2023-09 ended
GUN156,166 6F IND —
84970-0K510 note Switch Assy, Combination NO.2
2022-09 → 2023-08 ended
GUN155 S IDN;GUN156,166 IDNP +1 —
84970F — Switch Assy, Combination, NO.3
84970-0K430 note Switch Assy, Combination, NO.3
2022-08 → 2023-07 ended
GUN15#,166 TH;GUN165,TGN166 THP;GUN155,TGN156 THP +1 —
84970-0K430 note Switch Assy, Combination, NO.3
2022-08 → —
TGN166 PKN;GUN156 PKNP TH —
84970-0K430 note Switch Assy, Combination, NO.3
2022-08 → 2024-03 ended
GGN155,TGN166 EPT —
84970-0K430 note Switch Assy, Combination, NO.3
2022-08 → 2024-01 ended
TGN156 SA —
84970-0K430 note Switch Assy, Combination, NO.3
2022-11 → 2023-10 ended
TGN156,166 L LA —
84970-0K430 note Switch Assy, Combination, NO.3
2022-08 → 2023-10 ended
GGN155,GUN166 LA;GUN156,165 AGTP L —
84970-0K430 note Switch Assy, Combination, NO.3
2022-08 → 2023-09 ended
GUN16#,TGN166 INDP,VNP —
84970-0K430 note Switch Assy, Combination, NO.3
2022-08 → 2023-08 ended
GUN155 MA —
84970-0K440 note Switch Assy, Combination, NO.3
2023-01 → 2024-01 ended
LAN155 —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → —
GUN156,TGN156 PKN —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2023-09 ended
GUN156 INDP,VNP —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2023-10 ended
TGN156,166 AGTP;GUN156,165 AGTP (H,S) —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2023-10 ended
GGN155,GUN166 LA;GUN156,165 AGTP L —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2023-08 ended
GUN156,TGN156 MA —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2024-01 ended
GUN15#,16# SA —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2024-01 ended
TGN156 SA —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2023-07 ended
GUN155 THP L —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2024-03 ended
GUN15# KEN —
84970-0K450 note Switch Assy, Combination, NO.3
2022-08 → 2023-07 ended
GUN156 THP (ARL,GCC,GEN);GGN155,GUN155,TGN156 THP +2 —
84970-0K540 note Switch Assy, Combination, NO.3
2022-09 → 2023-08 ended
GUN165 DN,VN) IDNP;GUN155,TGN156 IDNP +4 —
84970-0K560 note Switch Assy, Combination, NO.3
2022-09 → 2023-08 ended
TGN166 GEN;GUN156 IDNP;GGN155 IDNP +3 —
84970-0K560 note Switch Assy, Combination, NO.3
2022-09 → 2023-08 ended
GUN155 IDNP L GCC —
85530D — Socket Assy, Power Outlet, NO.2
85530-0K040 Socket Assy, Power Outlet, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85530-0K040 Socket Assy, Power Outlet, NO.2
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
85530-0K040 Socket Assy, Power Outlet, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
85530-0K040 Socket Assy, Power Outlet, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
85530-0K040 Socket Assy, Power Outlet, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85530-0K040 Socket Assy, Power Outlet, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
85530-0K070 Socket Assy, Power Outlet, NO.2
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
85530-0K070 Socket Assy, Power Outlet, NO.2
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
85530-0K080 Socket Assy, Power Outlet, NO.2
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
85531 — Socket, Power Outlet
85530-71010-C0 note Socket, Power Outlet
2022-09 → 2023-09 ended
GUN156,165 VNP H —
85530-71010-C0 note Socket, Power Outlet
2023-05 → —
GUN156 PKN —
85530-71010-C0 note Socket, Power Outlet
2022-09 → —
TGN156,166 PKN —
85530-71010-C0 note Socket, Power Outlet
2022-08 → —
GUN156 PKNP TH —
85530-71010-C0 note Socket, Power Outlet
2022-09 → 2024-01 ended
GUN156,166 RHD 6FC SA —
85530-71010-C0 note Socket, Power Outlet
2023-01 → 2023-11 ended
GUN156 RHD 6FC SA —
85530-71010-C0 note Socket, Power Outlet
2022-08 → 2023-09 ended
GUN165,TGN166 VNP (L,S) —
85530-71010-C0 note Socket, Power Outlet
2022-09 → 2023-08 ended
GUN156 RHD GEN —
85530-71010-C0 note Socket, Power Outlet
2022-09 → 2023-08 ended
GUN156 RHD GEN —
85530-71010-C0 note Socket, Power Outlet
2022-09 → 2023-08 ended
GUN156 LHD IDNP GEN —
85530-71010-C0 note Socket, Power Outlet
2022-09 → 2023-05 ended
GUN155 RHD GEN —
85530-71010-C0 note Socket, Power Outlet
2022-08 → 2023-07 ended
GUN15#,16# H TH —
85530-71010-C0 note Socket, Power Outlet
2022-08 → 2023-07 ended
GUN165 S TH —
85530-71010-C0 note Socket, Power Outlet
2022-08 → 2023-08 ended
GUN156,165,TGN156,166 IDNP VN —
85530-71010-C0 note Socket, Power Outlet
2022-09 → 2023-08 ended
GUN155 RHD GEN —
85530-71010-C0 note Socket, Power Outlet
2022-09 → 2023-08 ended
GUN156 RHD GEN —
85530-71030-C0 note Socket, Power Outlet
2022-11 → 2023-10 ended
GUN156,TGN156 S BZAGT —
85530-71030-C0 note Socket, Power Outlet
2022-11 → 2023-10 ended
GUN156 H BZAGT —
85530-71030-C0 note Socket, Power Outlet
2022-08 → 2023-07 ended
GUN156 H ARL —
85530-71030-C0 note Socket, Power Outlet
2022-11 → 2023-05 ended
GUN156 6FC H BZAGT —
85532 — Socket, Usb Charger
85532-0K010 note Socket, Usb Charger
2022-08 → 2023-07 ended
GUN156 THP GEN —
85532-0K010 note Socket, Usb Charger
2022-09 → —
GUN156 PKN —
85532-0K010 note Socket, Usb Charger
2022-08 → —
GUN156 PKN —
85532-0K010 note Socket, Usb Charger
2022-08 → 2024-01 ended
GUN156,166 RHD SA —
85532-0K010 note Socket, Usb Charger
2023-01 → 2023-09 ended
GUN156 6FC IND —
85532-0K010 note Socket, Usb Charger
2022-08 → 2023-09 ended
GUN156,166 6FC IND —
85532-0K010 note Socket, Usb Charger
2022-09 → 2023-08 ended
GUN156 IDNP (PH,VN) —
85532-0K010 note Socket, Usb Charger
2022-08 → 2023-07 ended
GUN156 THP GEN —
85532-0K010 note Socket, Usb Charger
2022-08 → 2023-07 ended
GUN15#,16# THP H TH —
85532-0K010 note Socket, Usb Charger
2022-08 → 2023-07 ended
GUN156 THP TH —
85532-0K010 note Socket, Usb Charger
2022-08 → 2023-08 ended
GUN156,166 MA,PH;GUN156 LHD IDNP +1 —
85532-0K010 note Socket, Usb Charger
2022-08 → 2023-09 ended
GUN156,165 VNP H —
85532-0K030 note Socket, Usb Charger
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
85532-0K030 note Socket, Usb Charger
2022-11 → 2023-10 ended
GUN156 H LA —
85532-0K030 note Socket, Usb Charger
2022-11 → 2023-10 ended
GUN156 6FC H BZAGT —
85532-0K030 note Socket, Usb Charger
2022-11 → 2023-10 ended
GUN156 6F BZAGT —
85535E — Cover, Power Outlet Socket, NO.2
85535-0K100 Cover, Power Outlet Socket, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85535-0K100 Cover, Power Outlet Socket, NO.2
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
85535-0K100 Cover, Power Outlet Socket, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85535-0K100 Cover, Power Outlet Socket, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
85535-0K100 Cover, Power Outlet Socket, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
85535-0K100 Cover, Power Outlet Socket, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
85535-0K120 Cover, Power Outlet Socket, NO.2
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
85535-0K120 Cover, Power Outlet Socket, NO.2
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
85535-0K140 Cover, Power Outlet Socket, NO.2
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
