Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

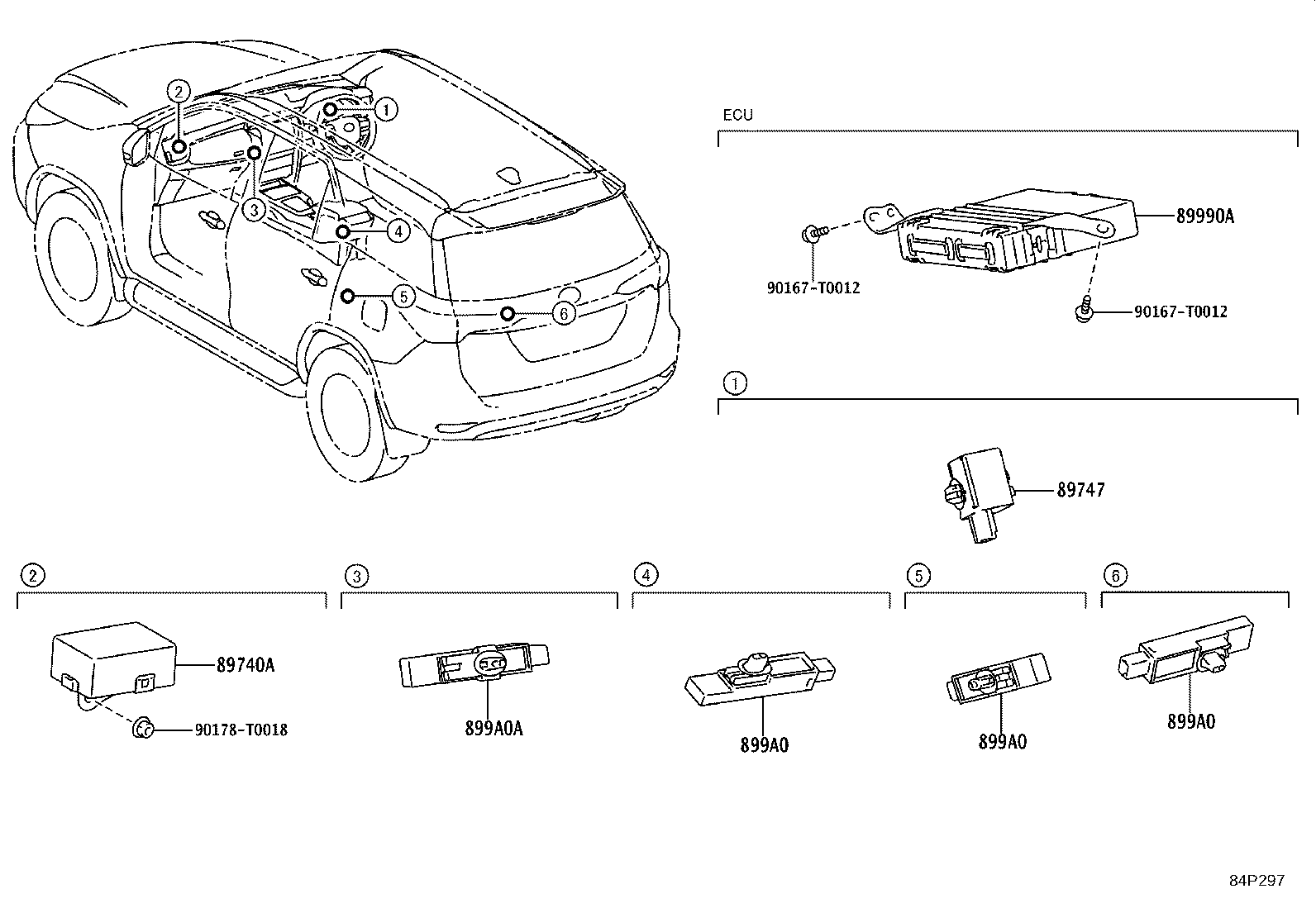

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89740A — Receiver Assy, Smart Door Control | ||||
| 89740-0K070 note |
Receiver Assy, Smart Door Control
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 89740-0K070 |
Receiver Assy, Smart Door Control
2022-08 → 2023-07
ended
|
TGN156 THP S;GGN155,GUN15# LHD +2 | — | |
| 89740-0K070 |
Receiver Assy, Smart Door Control
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 89740-0K070 |
Receiver Assy, Smart Door Control
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 89740-0K070 note |
Receiver Assy, Smart Door Control
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89740-0K070 note |
Receiver Assy, Smart Door Control
2022-09 → 2023-08
ended
|
GUN156,166 LHD IDNP (GEN,PH) | — | |
| 89740-0K070 note |
Receiver Assy, Smart Door Control
2022-09 → 2023-08
ended
|
GUN156 LHD IDNP GEN | — | |
| 89740-0K070 note |
Receiver Assy, Smart Door Control
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 89740-0K070 |
Receiver Assy, Smart Door Control
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 89740-0K230 |
Receiver Assy, Smart Door Control
2022-09 → 2023-08
ended
|
GGN155,GUN15#,166 LHD IDNP H;GUN165,TGN156,166 +3 | — | |
| 89740-0K230 note |
Receiver Assy, Smart Door Control
2022-09 → 2023-08
ended
|
GGN155,GUN155 IDNP S GCC | — | |
| 89740-0K230 note |
Receiver Assy, Smart Door Control
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89740-0K311 |
Receiver Assy, Smart Door Control
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 89740-0K311 note |
Receiver Assy, Smart Door Control
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89740-0K311 |
Receiver Assy, Smart Door Control
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 89740-0K311 note |
Receiver Assy, Smart Door Control
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89740-0K311 |
Receiver Assy, Smart Door Control
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 89740-0K311 note |
Receiver Assy, Smart Door Control
2023-01 → 2023-11
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89740-0K311 note |
Receiver Assy, Smart Door Control
2023-01 → 2023-11
ended
|
GUN156 RHD 6FC SA | — | |
| 89740-0K311 |
Receiver Assy, Smart Door Control
2022-08 → 2023-07
ended
|
GUN15#,16# TH | — | |
| 89740-0K311 |
Receiver Assy, Smart Door Control
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 89740-0K320 |
Receiver Assy, Smart Door Control
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP H | — | |
| 89740-0K320 note |
Receiver Assy, Smart Door Control
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 89740-0K330 note |
Receiver Assy, Smart Door Control
2022-11 → 2023-10
ended
|
GUN156,TGN166 H LA | — | |
| 89740-0K330 note |
Receiver Assy, Smart Door Control
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89740-0K330 note |
Receiver Assy, Smart Door Control
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89740-0K330 note |
Receiver Assy, Smart Door Control
2022-11 → 2023-10
ended
|
GUN156 6FC H BZAGT | — | |
| 89740-0K330 note |
Receiver Assy, Smart Door Control
2022-11 → 2023-10
ended
|
GUN156 H LA | — | |
| 89740-0K340 |
Receiver Assy, Smart Door Control
2022-08 → 2023-08
ended
|
GUN156 IDNP ARL | — | |
| 89740-0K340 |
Receiver Assy, Smart Door Control
2022-08 → 2023-07
ended
|
GUN156 THP ARL | — | |
| 89740-0K360 |
Receiver Assy, Smart Door Control
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-30040 |
Buzzer, Wireless Door Lock
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2023-01 → 2023-11
ended
|
GUN15#,165 RHD SA | — | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2022-08 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2022-08 → 2023-08
ended
|
GUN155 6FC IDNP (H,L) +10 | — | |
| 89747-30040 note |
Buzzer, Wireless Door Lock
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2022-08 → 2023-07
ended
|
GUN156,166 THP;GGN155,GUN155 THP H;GUN165,TGN156 +2 | — | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-0K620 note |
Computer Assy, Smart Key
2023-01 → 2023-11
ended
|
GUN156 RHD 6F SA | — | |
| 89990-0K620 |
Computer Assy, Smart Key
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89990-0K620 |
Computer Assy, Smart Key
2023-01 → 2024-03
ended
|
GUN156 6F KEN | — | |
| 89990-0K880 |
Computer Assy, Smart Key
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 89990-0K880 |
Computer Assy, Smart Key
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 89990-0K880 note |
Computer Assy, Smart Key
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89990-0K880 |
Computer Assy, Smart Key
2022-08 → 2024-03
ended
|
GUN156 6FC KEN | — | |
| 89990-0KF70 |
Computer Assy, Smart Key
2022-11 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 89990-0KG60 |
Computer Assy, Smart Key
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 MTM IND | — | |
| 89990-0KJ00 note |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89990-0KJ60 |
Computer Assy, Smart Key
2023-01 → 2024-01
ended
|
GUN155,16# RHD SA;GUN156 RHD +2 | — | |
| 89990-0KJ60 note |
Computer Assy, Smart Key
2023-01 → 2023-11
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89990-0KK10 |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 89990-0KK40 |
Computer Assy, Smart Key
2023-05 → 2024-03
ended
|
GGN155 EPT | — | |
| 89990-0KK80 note |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 89990-0KK80 |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN15#,TGN156,166 RHD GEN | — | |
| 89990-0KK90 |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN156 IDNP ARL | — | |
| 89990-0KK90 note |
Computer Assy, Smart Key
2022-08 → —
|
GUN156 PKN | — | |
| 89990-0KK90 note |
Computer Assy, Smart Key
2022-08 → 2023-07
ended
|
GUN156 TH | — | |
| 89990-0KL20 |
Computer Assy, Smart Key
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 89990-0KL20 |
Computer Assy, Smart Key
2022-08 → 2023-07
ended
|
TGN156 THP S;GGN155,GUN15# LHD +2 | — | |
| 89990-0KL20 |
Computer Assy, Smart Key
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 89990-0KL20 note |
Computer Assy, Smart Key
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 89990-0KL20 note |
Computer Assy, Smart Key
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89990-0KL30 |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN155 ) IDNP (GCC,PH,VN) +7 | — | |
| 89990-0KL30 note |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GGN155,GUN155 IDNP S GCC | — | |
| 89990-0KL40 note |
Computer Assy, Smart Key
2022-11 → 2023-10
ended
|
GUN156 AGTP 6FC H | — | |
| 89990-0KL50 note |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN156 IDNP (PH,VN) | — | |
| 89990-0KL60 |
Computer Assy, Smart Key
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 6FC IND | — | |
| 89990-0KL70 note |
Computer Assy, Smart Key
2022-10 → 2023-09
ended
|
GUN156 6FC IND | — | |
| 89990-0KL90 |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN155,165 LHD 6FC GEN | — | |
| 89990-0KM00 |
Computer Assy, Smart Key
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN166 H IDN | — | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-0D110 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 899A0-0D110 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 899A0-0D110 note |
Antenna Assy, Indoor Electrical Key, NO.1
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 899A0-0D110 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 899A0-0D110 note |
Antenna Assy, Indoor Electrical Key, NO.1
2023-01 → 2023-11
ended
|
GUN15#,165 RHD SA | — | |
| 899A0-0D110 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 899A0-0D110 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 899A0-0D110 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 899A0-0D110 note |
Antenna Assy, Indoor Electrical Key, NO.1
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 899A0-0D110 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-08 → 2023-07
ended
|
GUN156,166 THP;GGN155,GUN155 THP H;GUN165,TGN156 +2 | — | |
| 899A0-0D210 note |
Antenna Assy, Indoor Electrical Key, NO.1
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 899A0-0D210 note |
Antenna Assy, Indoor Electrical Key, NO.1
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 899A0-0D210 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-09 → 2023-08
ended
|
GUN155,165 IDNP IDNP (H,L) +6 | — | |
| 899A0-0K020 |
Antenna Assy, Indoor Electrical Key, NO.1
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 899A0A — Antenna Assy, Indoor Electrical Key, NO.2 | ||||
| 899A0-0D170 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-08 → 2023-07
ended
|
GUN156,166 THP;GGN155,GUN155 THP H;GUN165,TGN156 +2 | — | |
| 899A0-0D170 note |
Antenna Assy, Indoor Electrical Key, NO.2
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 899A0-0D170 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 899A0-0D170 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 899A0-0D170 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 899A0-0D170 note |
Antenna Assy, Indoor Electrical Key, NO.2
2023-01 → 2023-11
ended
|
GUN15#,165 RHD SA | — | |
| 899A0-0D170 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-08 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 899A0-0D170 note |
Antenna Assy, Indoor Electrical Key, NO.2
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 899A0-0D170 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 899A0-0D170 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 899A0-0D220 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-09 → 2023-08
ended
|
GUN155,165 IDNP IDNP (H,L) +6 | — | |
| 899A0-0D220 note |
Antenna Assy, Indoor Electrical Key, NO.2
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 899A0-0D220 note |
Antenna Assy, Indoor Electrical Key, NO.2
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 899A0-0K010 |
Antenna Assy, Indoor Electrical Key, NO.2
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
