Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

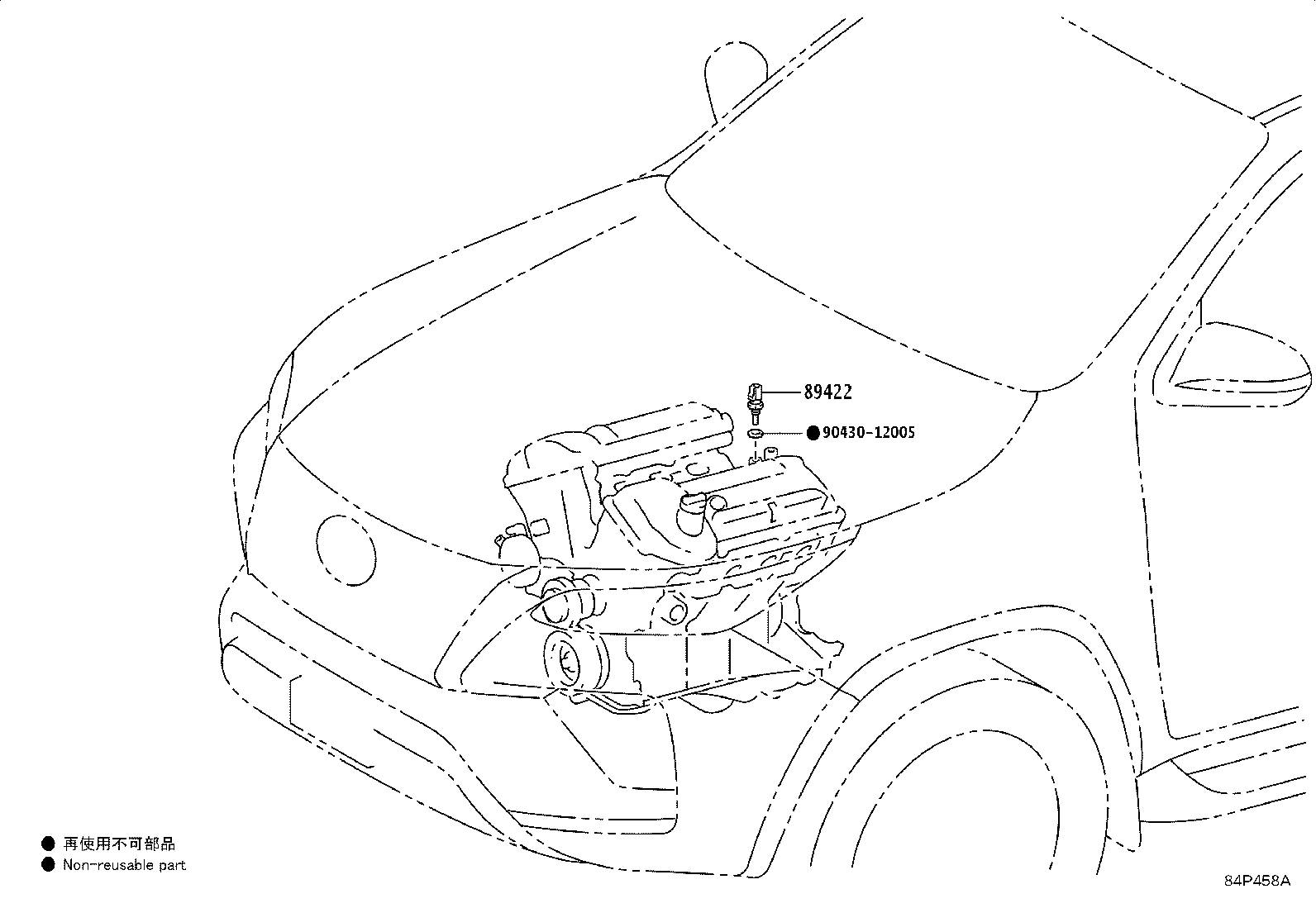

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2022-08 → 2023-07
ended
|
GGN155,TGN156,166 THP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2022-08 → 2023-08
ended
|
GGN155,TGN156,166 IDNP,MAP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2022-08 → 2023-09
ended
|
TGN166 INDP,VNP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2022-08 → 2023-10
ended
|
GGN155,TGN156,166 AGTP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2022-08 → 2024-01
ended
|
TGN156 SA | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2022-08 → —
|
TGN156 PKN | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2023-05 → —
|
TGN166 PKN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
