Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

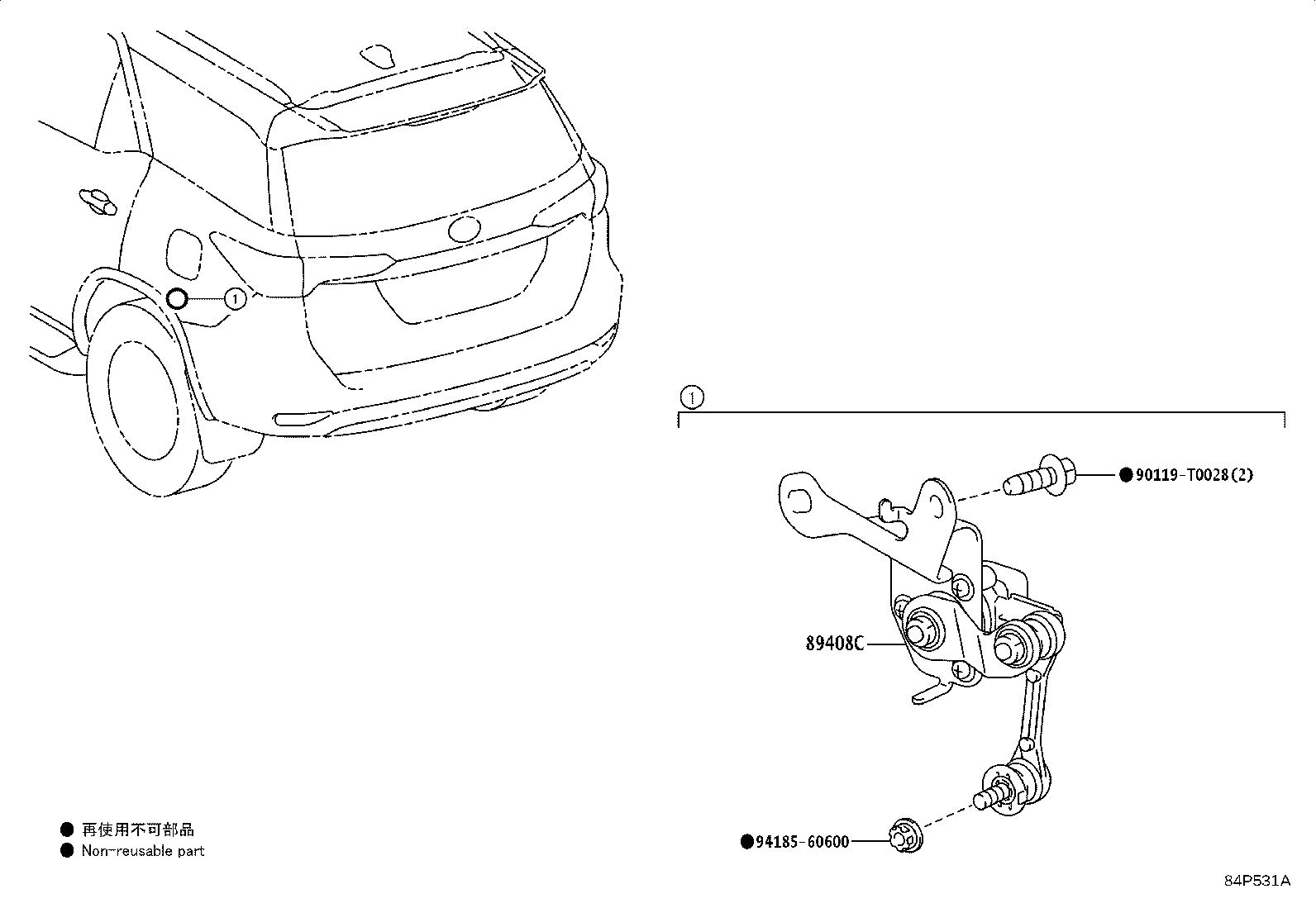

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89408C — Sensor Sub-assy, Height Control, Rear LH | ||||
| 89408-0K060 |
Sensor Sub-assy, Height Control, Rear LH
2022-10 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 89408-0K060 |
Sensor Sub-assy, Height Control, Rear LH
2022-10 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 89408-0K060 |
Sensor Sub-assy, Height Control, Rear LH
2022-10 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 89408-0K060 |
Sensor Sub-assy, Height Control, Rear LH
2022-10 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 89408-0K060 |
Sensor Sub-assy, Height Control, Rear LH
2022-10 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 89408-0K060 |
Sensor Sub-assy, Height Control, Rear LH
2022-10 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 89408-0K060 |
Sensor Sub-assy, Height Control, Rear LH
2022-10 → —
|
GUN156,TGN156,166 PKNP | — | |
| 89408-71030 |
Sensor Sub-assy, Height Control, Rear LH
2022-08 → 2022-10
ended
|
GGN155,GUN15#,16#,TGN156,166 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
