Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

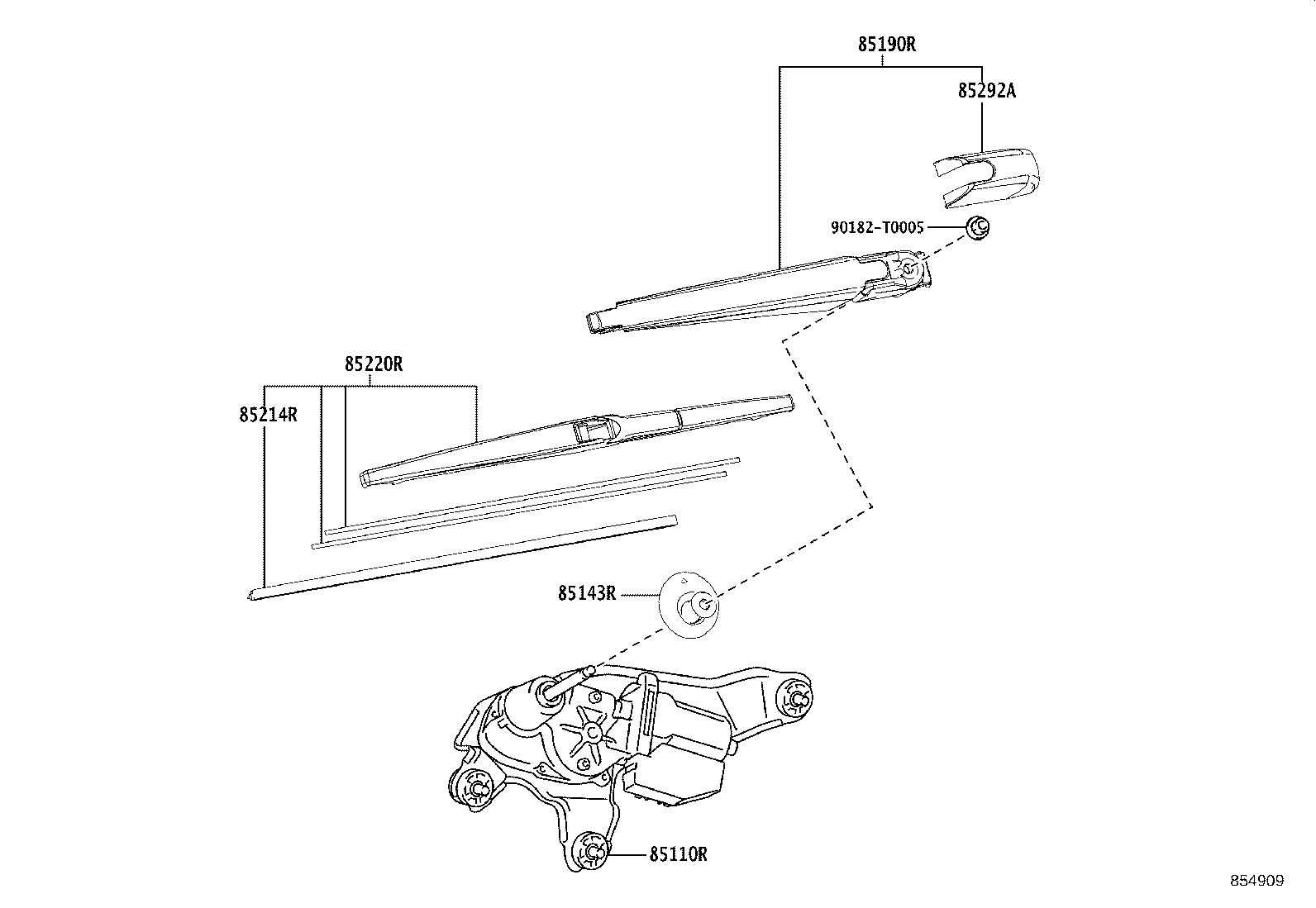

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110R — Motor Assy, Rear Wiper | ||||
| 85130-0K080 |
Motor Assy, Rear Wiper
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 85130-0K090 |
Motor Assy, Rear Wiper
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 85130-0K090 |
Motor Assy, Rear Wiper
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 85130-0K090 |
Motor Assy, Rear Wiper
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 85130-0K090 |
Motor Assy, Rear Wiper
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 85130-0K090 |
Motor Assy, Rear Wiper
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 85130-0K090 |
Motor Assy, Rear Wiper
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 85130-0K090 |
Motor Assy, Rear Wiper
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 85143R — Grommet, Rear Wiper Motor | ||||
| 85143-0K080 |
Grommet, Rear Wiper Motor
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 85143-0K080 |
Grommet, Rear Wiper Motor
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 85143-0K080 |
Grommet, Rear Wiper Motor
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 85143-0K080 |
Grommet, Rear Wiper Motor
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 85143-0K080 |
Grommet, Rear Wiper Motor
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 85143-0K080 |
Grommet, Rear Wiper Motor
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 85143-0K080 |
Grommet, Rear Wiper Motor
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 85143-0K110 |
Grommet, Rear Wiper Motor
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 85190R — Arm Assy, Rear Wiper | ||||
| 85241-0K060 |
Arm Assy, Rear Wiper
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 85241-0K060 |
Arm Assy, Rear Wiper
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 85241-0K060 |
Arm Assy, Rear Wiper
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 85241-0K060 |
Arm Assy, Rear Wiper
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 85241-0K060 |
Arm Assy, Rear Wiper
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 85241-0K060 |
Arm Assy, Rear Wiper
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 85241-0K060 |
Arm Assy, Rear Wiper
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 85241-0K090 |
Arm Assy, Rear Wiper
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 85214R — Rubber, Rear Wiper | ||||
| 85214-42040 |
Rubber, Rear Wiper
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 85214-42040 |
Rubber, Rear Wiper
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 85214-42040 |
Rubber, Rear Wiper
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 85214-42040 |
Rubber, Rear Wiper
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 85214-42040 |
Rubber, Rear Wiper
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 85214-42040 |
Rubber, Rear Wiper
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 85214-42040 |
Rubber, Rear Wiper
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 85220R — Blade Assy, Rear Wiper | ||||
| 85242-0K060 |
Blade Assy, Rear Wiper
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 85242-0K060 |
Blade Assy, Rear Wiper
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 85242-0K060 |
Blade Assy, Rear Wiper
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 85242-0K060 |
Blade Assy, Rear Wiper
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 85242-0K060 |
Blade Assy, Rear Wiper
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 85242-0K060 |
Blade Assy, Rear Wiper
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 85242-0K060 |
Blade Assy, Rear Wiper
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 85242-0K080 |
Blade Assy, Rear Wiper
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 85292A — Cap, Rear Wiper Arm Head | ||||
| 85292-0K070 |
Cap, Rear Wiper Arm Head
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 85292-0K080 |
Cap, Rear Wiper Arm Head
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 85292-0K080 |
Cap, Rear Wiper Arm Head
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 85292-0K080 |
Cap, Rear Wiper Arm Head
2022-08 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 85292-0K080 |
Cap, Rear Wiper Arm Head
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 85292-0K080 |
Cap, Rear Wiper Arm Head
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 85292-0K080 |
Cap, Rear Wiper Arm Head
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 85292-0K080 |
Cap, Rear Wiper Arm Head
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
