Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

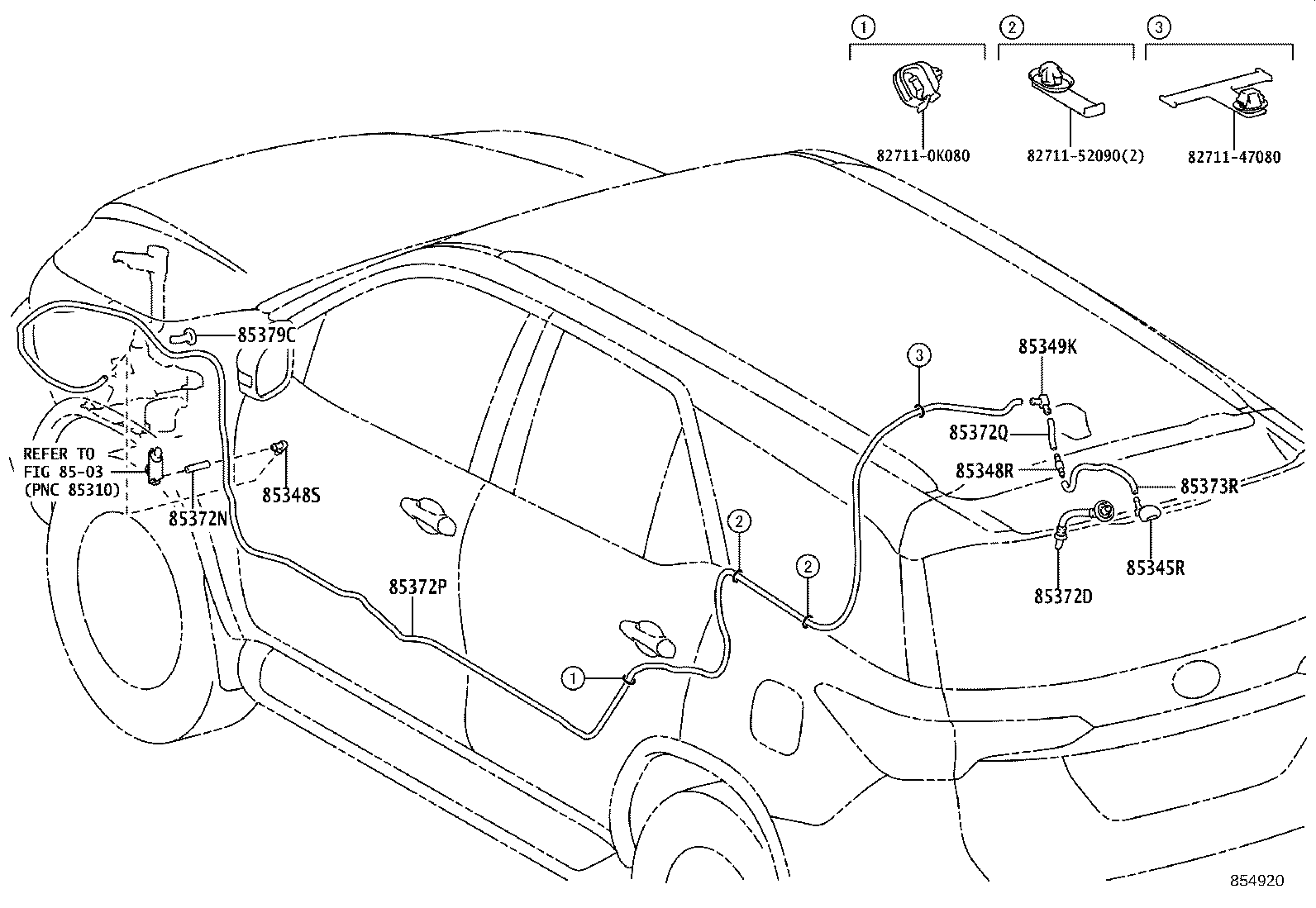

Exploded illustration 854920 85372N — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 (9 parts) 85348S — JOINT, REAR WASHER ELBOW, NO.1 (8 parts) 85345R — NOZZLE, REAR WASHER (7 parts) 85379C — GROMMET, REAR WASHER HOSE NO.1 (7 parts) 85372P — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 (9 parts) 85349K — JOINT, REAR WASHER ELBOW, NO.2 (7 parts) 85372D — GROMMET, REAR WASHER HOSE (7 parts) 827110K080 — not listed in this catalogue 8271152090 — not listed in this catalogue 8271147080 — not listed in this catalogue 8503 — not listed in this catalogue 85372Q — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 (8 parts) 85348R — JOINT, REAR WASHER HOSE, NO.1 (8 parts) 85373R — HOSE, REAR WASHER (FROM JOINT TO NOZZLE) (8 parts)
854920 · 10 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
78 parts on this figure
Part number Description Fitment Price
85345R — Nozzle, Rear Washer
85391-0K080 Nozzle, Rear Washer
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
85391-0K080 Nozzle, Rear Washer
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
85391-0K080 Nozzle, Rear Washer
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85391-0K080 Nozzle, Rear Washer
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
85391-0K080 Nozzle, Rear Washer
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
85391-0K080 Nozzle, Rear Washer
2022-08 → —
GUN156,TGN156,166 PKNP —
85391-0K080 Nozzle, Rear Washer
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85348R — Joint, Rear Washer Hose, NO.1
85349-89122 Joint, Rear Washer Hose, NO.1
2022-09 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
85349-89122 Joint, Rear Washer Hose, NO.1
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
85375-02330 Joint, Rear Washer Hose, NO.1
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
85375-02330 Joint, Rear Washer Hose, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85375-02330 Joint, Rear Washer Hose, NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
85375-02330 Joint, Rear Washer Hose, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
85375-02330 Joint, Rear Washer Hose, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
85375-02330 Joint, Rear Washer Hose, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85348S — Joint, Rear Washer Elbow, NO.1
85355-20200 Joint, Rear Washer Elbow, NO.1
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
85355-20200 Joint, Rear Washer Elbow, NO.1
2022-09 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
85377-0D040 Joint, Rear Washer Elbow, NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
85377-0D040 Joint, Rear Washer Elbow, NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
85377-0D040 Joint, Rear Washer Elbow, NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
85377-0D040 Joint, Rear Washer Elbow, NO.1
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
85377-0D040 Joint, Rear Washer Elbow, NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85377-0D040 Joint, Rear Washer Elbow, NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85349K — Joint, Rear Washer Elbow, NO.2
85376-10250 Joint, Rear Washer Elbow, NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85376-10250 Joint, Rear Washer Elbow, NO.2
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
85376-10250 Joint, Rear Washer Elbow, NO.2
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
85376-10250 Joint, Rear Washer Elbow, NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85376-10250 Joint, Rear Washer Elbow, NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
85376-10250 Joint, Rear Washer Elbow, NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
85376-10250 Joint, Rear Washer Elbow, NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
85372D — Grommet, Rear Washer Hose
85373-0K010 Grommet, Rear Washer Hose
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
85373-0K010 Grommet, Rear Washer Hose
2022-08 → —
GUN156,TGN156,166 PKNP —
85373-0K010 Grommet, Rear Washer Hose
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
85373-0K010 Grommet, Rear Washer Hose
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
85373-0K010 Grommet, Rear Washer Hose
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85373-0K010 Grommet, Rear Washer Hose
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
85373-0K010 Grommet, Rear Washer Hose
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
90068-33261 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
90068-33261 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
90069-46078 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
85372P — Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
90068-59150 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
90068-59150 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
90068-59150 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90068-59150 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
90068-59150 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
90068-59150 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-08 → —
GUN156,TGN156,166 PKNP —
90068-59151 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
90068-59151 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-09 → 2023-09 ended
GUN156,165,TGN166 VNP —
90069-46082 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2022-10 → 2023-09 ended
GUN156,166,TGN166 IND —
85372Q — Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2022-08 → —
GUN156,TGN156,166 PKNP —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
90068-33160 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
90068-33261 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
90068-33261 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2022-09 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
85373R — Hose, Rear Washer (FROM JOINT TO NOZZLE)
90068-59001 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2022-09 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
90068-59001 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2022-09 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
90068-59149 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
90068-59149 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2022-08 → —
GUN156,TGN156,166 PKNP —
90068-59149 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
90068-59149 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
90068-59149 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2022-08 → 2023-08 ended
GUN15#,TGN156 MA —
90068-59149 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85379C — Grommet, Rear Washer Hose NO.1
85379-16180 Grommet, Rear Washer Hose NO.1
2022-08 → 2023-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
85379-16180 Grommet, Rear Washer Hose NO.1
2022-08 → 2023-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
85379-16180 Grommet, Rear Washer Hose NO.1
2022-08 → 2023-09 ended
GUN156,16#,TGN166 INDP,VNP —
85379-16180 Grommet, Rear Washer Hose NO.1
2022-08 → 2023-10 ended
GGN155,GUN156,16#,TGN156,166 AGTP —
85379-16180 Grommet, Rear Washer Hose NO.1
2022-08 → 2024-01 ended
GUN15#,16#,LAN155,TGN156 SA —
85379-16180 Grommet, Rear Washer Hose NO.1
2022-08 → 2024-03 ended
GGN155,GUN15#,TGN166 EPT,KEN —
85379-16180 Grommet, Rear Washer Hose NO.1
2022-08 → —
GUN156,TGN156,166 PKNP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
