Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

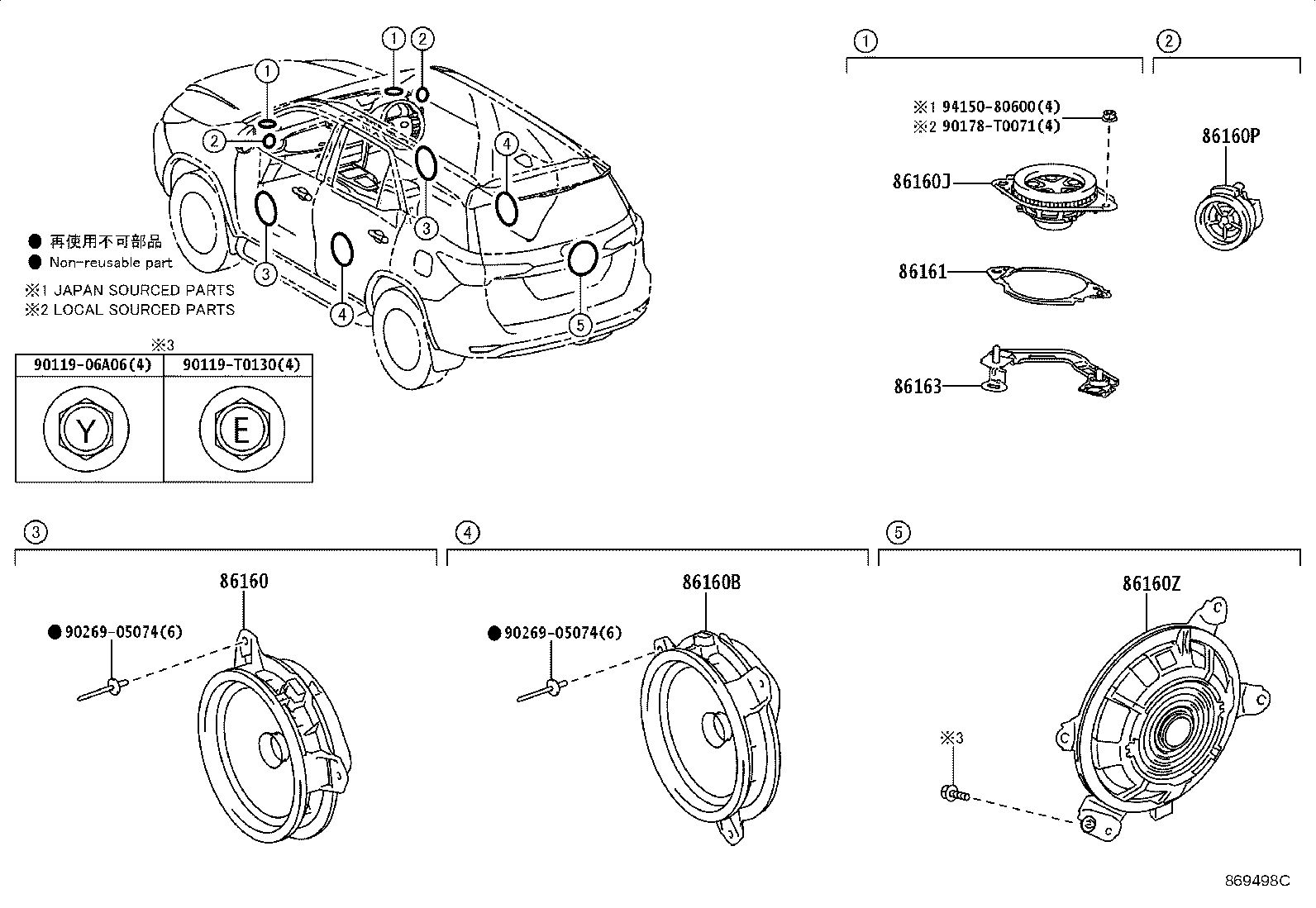

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-0K380 note |
Speaker Assy, Front NO.1
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86160-0K380 note |
Speaker Assy, Front NO.1
2022-08 → 2023-01
ended
|
GUN165 H VN | — | |
| 86160-0K380 |
Speaker Assy, Front NO.1
2022-09 → 2023-01
ended
|
GUN156 VNP | — | |
| 86160-0K380 note |
Speaker Assy, Front NO.1
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86160-0K380 note |
Speaker Assy, Front NO.1
2022-08 → 2023-07
ended
|
GUN156 THP H (ARL,GEN) | — | |
| 86160-0K380 note |
Speaker Assy, Front NO.1
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86160-0K380 note |
Speaker Assy, Front NO.1
2023-02 → 2023-07
ended
|
GUN156,166 TH | — | |
| 86160-0K380 note |
Speaker Assy, Front NO.1
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86160-0K380 |
Speaker Assy, Front NO.1
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86160-0K380 |
Speaker Assy, Front NO.1
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 86160-0K380 |
Speaker Assy, Front NO.1
2022-09 → 2023-09
ended
|
GUN156 IND | — | |
| 86160-0K380 note |
Speaker Assy, Front NO.1
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86160-0K500 |
Speaker Assy, Front NO.1
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 86160-0K500 |
Speaker Assy, Front NO.1
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 86160-0K500 |
Speaker Assy, Front NO.1
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 86160-0K500 |
Speaker Assy, Front NO.1
2022-08 → 2023-10
ended
|
GUN156 LA;GUN156 6FC BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 86160-0K500 note |
Speaker Assy, Front NO.1
2022-09 → 2023-09
ended
|
GUN156 INDP,VNP | — | |
| 86160-0K500 |
Speaker Assy, Front NO.1
2022-08 → 2023-09
ended
|
GUN16#,TGN166 INDP,VNP | — | |
| 86160-0K500 |
Speaker Assy, Front NO.1
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 86160-0K510 note |
Speaker Assy, Front NO.1
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86160-0K510 |
Speaker Assy, Front NO.1
2022-09 → 2023-08
ended
|
GGN155,GUN155,16#,TGN156,166 IDNP;GUN156 IDNP (ARL,GCC,GEN,IDN,VN) | — | |
| 86160-0K520 |
Speaker Assy, Front NO.1
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 86160-0K530 note |
Speaker Assy, Front NO.1
2023-01 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86160-0K570 note |
Speaker Assy, Front NO.1
2023-01 → 2023-09
ended
|
GUN165 H VN | — | |
| 86160-0K570 |
Speaker Assy, Front NO.1
2023-01 → 2023-09
ended
|
GUN156 VNP | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-0K330 note |
Speaker Assy, Rear
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86160-0K330 |
Speaker Assy, Rear
2022-09 → 2023-09
ended
|
GUN156 IND | — | |
| 86160-0K330 |
Speaker Assy, Rear
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 86160-0K330 |
Speaker Assy, Rear
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86160-0K330 note |
Speaker Assy, Rear
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86160-0K330 note |
Speaker Assy, Rear
2023-02 → 2023-07
ended
|
GUN156,166 TH | — | |
| 86160-0K330 note |
Speaker Assy, Rear
2022-08 → 2023-07
ended
|
GUN156 THP H (ARL,GEN) | — | |
| 86160-0K330 note |
Speaker Assy, Rear
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86160-0K330 note |
Speaker Assy, Rear
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86160-0K330 note |
Speaker Assy, Rear
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86160-0K330 |
Speaker Assy, Rear
2022-09 → 2022-12
ended
|
GUN156 VNP | — | |
| 86160-0K330 note |
Speaker Assy, Rear
2022-08 → 2022-12
ended
|
GUN165 H VN | — | |
| 86160-0K500 |
Speaker Assy, Rear
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 86160-0K500 |
Speaker Assy, Rear
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 86160-0K500 |
Speaker Assy, Rear
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 86160-0K500 |
Speaker Assy, Rear
2022-08 → 2023-10
ended
|
GUN156 LA;GUN156 6FC BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 86160-0K500 |
Speaker Assy, Rear
2022-08 → 2023-09
ended
|
GUN16#,TGN166 INDP,VNP | — | |
| 86160-0K500 note |
Speaker Assy, Rear
2022-09 → 2023-09
ended
|
GUN156 INDP,VNP | — | |
| 86160-0K500 |
Speaker Assy, Rear
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 86160-0K510 note |
Speaker Assy, Rear
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86160-0K510 |
Speaker Assy, Rear
2022-09 → 2023-08
ended
|
GGN155,GUN155,16#,TGN156,166 IDNP;GUN156 IDNP (ARL,GCC,GEN,IDN,VN) | — | |
| 86160-0K520 |
Speaker Assy, Rear
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 86160-0K560 note |
Speaker Assy, Rear
2023-01 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86160-0K580 |
Speaker Assy, Rear
2022-12 → 2023-09
ended
|
GUN156 VNP | — | |
| 86160-0K580 note |
Speaker Assy, Rear
2022-12 → 2023-09
ended
|
GUN165 H VN | — | |
| 86160J — Speaker Assy, Front NO.3 | ||||
| 86150-0K180 note |
Speaker Assy, Front NO.3
2023-02 → 2023-07
ended
|
GUN156,166 THP TH | — | |
| 86150-0K180 |
Speaker Assy, Front NO.3
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86150-0K180 |
Speaker Assy, Front NO.3
2022-09 → 2023-09
ended
|
GUN156 IND | — | |
| 86150-0K180 |
Speaker Assy, Front NO.3
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2022-08 → 2023-07
ended
|
GUN156 THP H (ARL,GEN) | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2022-09 → 2023-05
ended
|
GUN156 IND,PH | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2022-08 → 2023-01
ended
|
GUN165 H VN | — | |
| 86150-0K180 |
Speaker Assy, Front NO.3
2022-09 → 2023-01
ended
|
GUN156 VNP | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2022-09 → 2023-01
ended
|
GUN156 VNP | — | |
| 86150-0K180 note |
Speaker Assy, Front NO.3
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86150-0K440 note |
Speaker Assy, Front NO.3
2023-01 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86150-0K480 |
Speaker Assy, Front NO.3
2023-01 → 2023-09
ended
|
GUN156 VNP | — | |
| 86150-0K480 note |
Speaker Assy, Front NO.3
2023-01 → 2023-09
ended
|
GUN165 H VN | — | |
| 86150-0K480 note |
Speaker Assy, Front NO.3
2023-01 → 2023-05
ended
|
GUN156 VNP | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86150-0K160 note |
Speaker Assy, Front NO.2
2022-10 → 2023-09
ended
|
GUN156 IND | — | |
| 86150-0K160 |
Speaker Assy, Front NO.2
2022-10 → 2023-09
ended
|
GUN166,TGN166 IND | — | |
| 86150-0K260 |
Speaker Assy, Front NO.2
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 86150-0K260 |
Speaker Assy, Front NO.2
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 86150-0K260 |
Speaker Assy, Front NO.2
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 86150-0K260 |
Speaker Assy, Front NO.2
2022-08 → 2023-10
ended
|
GUN156 LA;GUN156 6FC BZAGT;GGN155,GUN16#,TGN156,166 +1 | — | |
| 86150-0K260 note |
Speaker Assy, Front NO.2
2022-09 → 2023-09
ended
|
GUN156 VNP | — | |
| 86150-0K260 |
Speaker Assy, Front NO.2
2022-08 → 2023-09
ended
|
GUN165,TGN166 VNP | — | |
| 86150-0K260 |
Speaker Assy, Front NO.2
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 86150-0K270 |
Speaker Assy, Front NO.2
2022-09 → 2023-08
ended
|
GGN155,GUN155,16#,TGN156,166 IDNP;GUN156 IDNP (ARL,GCC,GEN,IDN,VN) | — | |
| 86150-0K270 note |
Speaker Assy, Front NO.2
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86150-0K340 |
Speaker Assy, Front NO.2
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 86150-0K380 note |
Speaker Assy, Front NO.2
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86150-0K380 note |
Speaker Assy, Front NO.2
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86150-0K380 note |
Speaker Assy, Front NO.2
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86150-0K380 note |
Speaker Assy, Front NO.2
2022-08 → 2023-01
ended
|
GUN165 H VN | — | |
| 86150-0K380 |
Speaker Assy, Front NO.2
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 86150-0K380 note |
Speaker Assy, Front NO.2
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86150-0K380 |
Speaker Assy, Front NO.2
2022-09 → 2023-01
ended
|
GUN156 VNP | — | |
| 86150-0K380 note |
Speaker Assy, Front NO.2
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86150-0K380 |
Speaker Assy, Front NO.2
2022-09 → 2023-09
ended
|
GUN156 IND | — | |
| 86150-0K380 note |
Speaker Assy, Front NO.2
2022-08 → 2023-07
ended
|
GUN156 THP H (ARL,GEN) | — | |
| 86150-0K380 note |
Speaker Assy, Front NO.2
2023-02 → 2023-07
ended
|
GUN156,166 TH | — | |
| 86150-0K380 |
Speaker Assy, Front NO.2
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86150-0K420 note |
Speaker Assy, Front NO.2
2023-01 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86150-0K460 |
Speaker Assy, Front NO.2
2023-01 → 2023-09
ended
|
GUN156 VNP | — | |
| 86150-0K460 note |
Speaker Assy, Front NO.2
2023-01 → 2023-09
ended
|
GUN165 H VN | — | |
| 86160Z — Speaker Assy, Rear NO.3 | ||||
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86150-0K190 |
Speaker Assy, Rear NO.3
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 86150-0K190 |
Speaker Assy, Rear NO.3
2022-09 → 2023-09
ended
|
GUN156 IND | — | |
| 86150-0K190 |
Speaker Assy, Rear NO.3
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2023-02 → 2023-07
ended
|
GUN156,166 THP TH | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2022-08 → 2023-07
ended
|
GUN156 THP H (ARL,GEN) | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2022-09 → 2023-05
ended
|
GUN156 IND,PH | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2022-09 → 2023-01
ended
|
GUN156 VNP | — | |
| 86150-0K190 |
Speaker Assy, Rear NO.3
2022-09 → 2023-01
ended
|
GUN156 VNP | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2022-08 → 2023-01
ended
|
GUN165 H VN | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86150-0K190 note |
Speaker Assy, Rear NO.3
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86150-0K430 note |
Speaker Assy, Rear NO.3
2023-01 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86150-0K470 |
Speaker Assy, Rear NO.3
2023-01 → 2023-09
ended
|
GUN156 VNP | — | |
| 86150-0K470 note |
Speaker Assy, Rear NO.3
2023-01 → 2023-05
ended
|
GUN156 VNP | — | |
| 86150-0K470 note |
Speaker Assy, Rear NO.3
2023-01 → 2023-09
ended
|
GUN165 H VN | — | |
| 86161 — Bracket, Speaker, Front NO.1 | ||||
| 86161-0K030 note |
Bracket, Speaker, Front NO.1
2023-07 → 2023-09
ended
|
GUN156 IND | — | |
| 86161-0K040 note |
Bracket, Speaker, Front NO.1
2023-07 → 2023-09
ended
|
GUN156 IND | — | |
| 86161-71010 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-06
ended
|
GUN156 H ARL | — | |
| 86161-71010 note |
Bracket, Speaker, Front NO.1
2022-08 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86161-71010 note |
Bracket, Speaker, Front NO.1
2023-02 → 2023-06
ended
|
GUN156,166 TH | — | |
| 86161-71010 note |
Bracket, Speaker, Front NO.1
2022-10 → 2023-06
ended
|
GUN156 IND | — | |
| 86161-71010 note |
Bracket, Speaker, Front NO.1
2022-10 → 2023-05
ended
|
GUN156 IND | — | |
| 86161-71010 note |
Bracket, Speaker, Front NO.1
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86161-71010 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86161-71010 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86161-71020 note |
Bracket, Speaker, Front NO.1
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86161-71020 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86161-71020 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-07
ended
|
GUN156 H ARL | — | |
| 86161-71020 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86161-71020 note |
Bracket, Speaker, Front NO.1
2022-10 → 2023-07
ended
|
GUN156 IND | — | |
| 86161-71020 note |
Bracket, Speaker, Front NO.1
2023-02 → 2023-07
ended
|
GUN156,166 THP TH | — | |
| 86161-71020 note |
Bracket, Speaker, Front NO.1
2022-08 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86161-71051 note |
Bracket, Speaker, Front NO.1
2022-09 → 2023-09
ended
|
GUN156 VNP | — | |
| 86161-71051 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 86161-71051 note |
Bracket, Speaker, Front NO.1
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 86161-71051 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86161-71051 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-09
ended
|
GUN165 H VN | — | |
| 86161-71051 note |
Bracket, Speaker, Front NO.1
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86161-71051 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86161-71051 note |
Bracket, Speaker, Front NO.1
2022-09 → 2023-05
ended
|
GUN156 PH;GUN156 VNP | — | |
| 86161-71061 note |
Bracket, Speaker, Front NO.1
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 86161-71061 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 86161-71061 note |
Bracket, Speaker, Front NO.1
2022-09 → 2023-09
ended
|
GUN156 VNP | — | |
| 86161-71061 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-09
ended
|
GUN165 H VN | — | |
| 86161-71061 note |
Bracket, Speaker, Front NO.1
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86161-71061 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86161-71061 note |
Bracket, Speaker, Front NO.1
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86163 — Bracket, Speaker, NO.2 | ||||
| 86163-0K030 note |
Bracket, Speaker, NO.2
2023-07 → 2023-09
ended
|
GUN156 IND | — | |
| 86163-0K040 note |
Bracket, Speaker, NO.2
2023-07 → 2023-09
ended
|
GUN156 IND | — | |
| 86163-71010 note |
Bracket, Speaker, NO.2
2023-02 → 2023-06
ended
|
GUN156,166 TH | — | |
| 86163-71010 note |
Bracket, Speaker, NO.2
2022-10 → 2023-06
ended
|
GUN156 IND | — | |
| 86163-71010 note |
Bracket, Speaker, NO.2
2022-08 → 2023-06
ended
|
GUN156 H ARL | — | |
| 86163-71010 note |
Bracket, Speaker, NO.2
2022-10 → 2023-05
ended
|
GUN156 IND | — | |
| 86163-71010 note |
Bracket, Speaker, NO.2
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86163-71010 note |
Bracket, Speaker, NO.2
2022-08 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86163-71010 note |
Bracket, Speaker, NO.2
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86163-71010 note |
Bracket, Speaker, NO.2
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86163-71020 note |
Bracket, Speaker, NO.2
2023-02 → 2023-06
ended
|
GUN156,166 TH | — | |
| 86163-71020 note |
Bracket, Speaker, NO.2
2022-08 → 2024-01
ended
|
GUN156,166 RHD 6FC SA | — | |
| 86163-71020 note |
Bracket, Speaker, NO.2
2022-08 → 2023-06
ended
|
GUN156 H ARL | — | |
| 86163-71020 note |
Bracket, Speaker, NO.2
2022-08 → 2023-01
ended
|
GUN156,166 TH | — | |
| 86163-71020 note |
Bracket, Speaker, NO.2
2022-08 → 2023-01
ended
|
GUN156 TH | — | |
| 86163-71020 note |
Bracket, Speaker, NO.2
2023-01 → 2023-02
ended
|
GUN156,166 TH | — | |
| 86163-71020 note |
Bracket, Speaker, NO.2
2022-10 → 2023-06
ended
|
GUN156 IND | — | |
| 86163-71050 note |
Bracket, Speaker, NO.2
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86163-71050 note |
Bracket, Speaker, NO.2
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86163-71050 note |
Bracket, Speaker, NO.2
2022-08 → 2023-09
ended
|
GUN165 H VN | — | |
| 86163-71050 note |
Bracket, Speaker, NO.2
2022-09 → 2023-09
ended
|
GUN156 VNP | — | |
| 86163-71050 note |
Bracket, Speaker, NO.2
2022-09 → 2023-05
ended
|
GUN156 PH;GUN156 VNP | — | |
| 86163-71050 note |
Bracket, Speaker, NO.2
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86163-71050 note |
Bracket, Speaker, NO.2
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
| 86163-71050 note |
Bracket, Speaker, NO.2
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 86163-71060 note |
Bracket, Speaker, NO.2
2022-08 → 2023-08
ended
|
GUN156 IDNP VN;GUN166,TGN156 LHD +1 | — | |
| 86163-71060 note |
Bracket, Speaker, NO.2
2022-09 → 2023-08
ended
|
GUN156 PH | — | |
| 86163-71060 note |
Bracket, Speaker, NO.2
2022-08 → 2023-09
ended
|
GUN165 H VN | — | |
| 86163-71060 note |
Bracket, Speaker, NO.2
2022-09 → 2023-09
ended
|
GUN156 VNP | — | |
| 86163-71060 note |
Bracket, Speaker, NO.2
2022-08 → 2023-07
ended
|
GUN156 THP GEN | — | |
| 86163-71060 note |
Bracket, Speaker, NO.2
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP 6FC H | — | |
| 86163-71060 note |
Bracket, Speaker, NO.2
2022-09 → 2023-10
ended
|
GUN156 6F BZAGT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
