Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

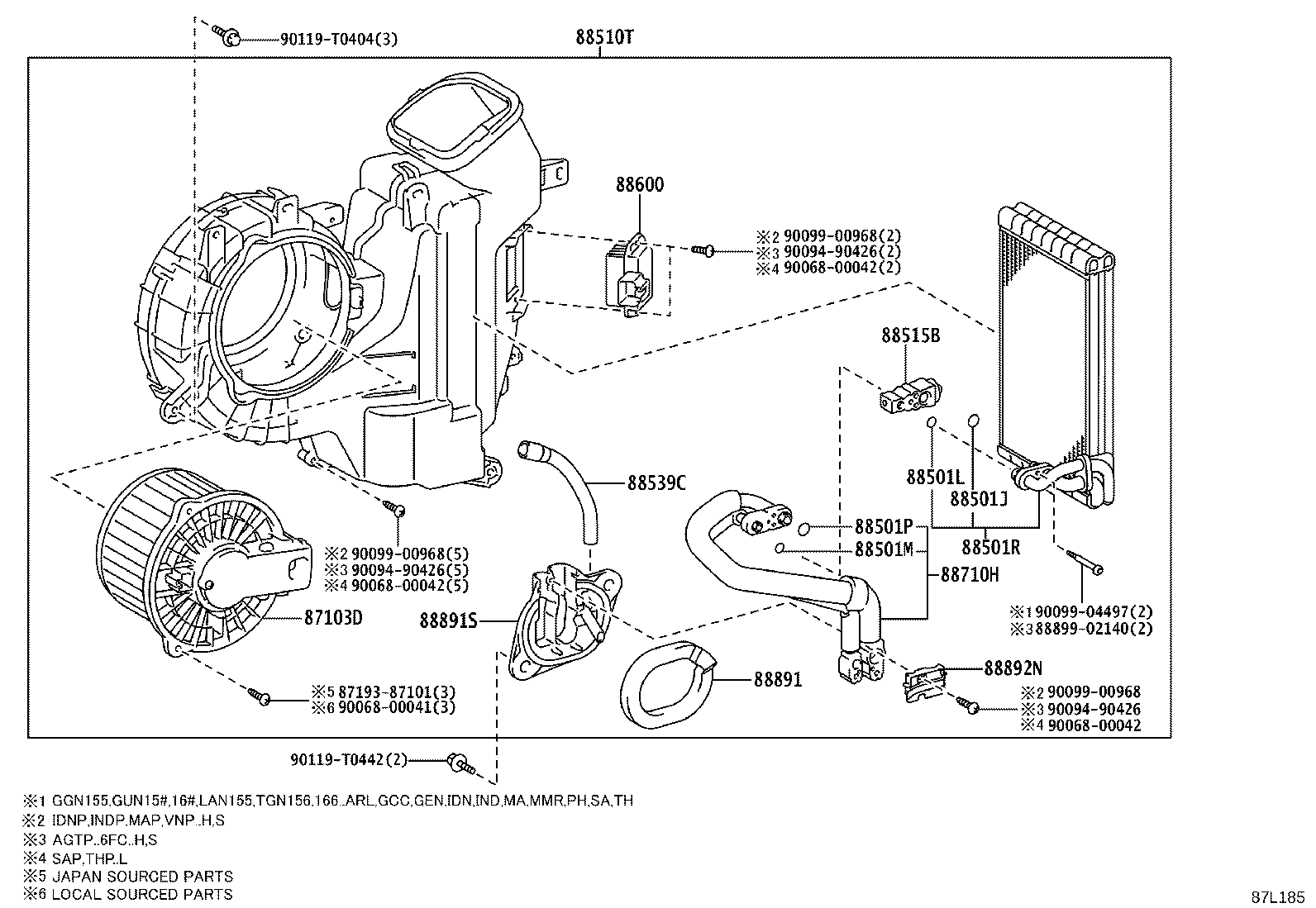

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87103D — Motor Sub-assy, Blower W/Fan(FOR REAR) | ||||
| 87103-0K191 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 87103-0K191 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 87103-0K241 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 87103-0K291 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 87103-0K311 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 87103-0K311 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 87103-0K340 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 87103-0K340 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 87103-0K351 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 87103-0K371 |
Motor Sub-assy, Blower W/Fan(FOR REAR)
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88501J — O-ring, Cooler Evaporator NO.2(SUCTION) | ||||
| 90068-14044 note |
O-ring, Cooler Evaporator NO.2(SUCTION)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90068-14044 note |
O-ring, Cooler Evaporator NO.2(SUCTION)
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.2(SUCTION)
2022-09 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.2(SUCTION)
2022-09 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.2(SUCTION)
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 88501L — O-ring, Cooler Evaporator NO.2(LIQUID) | ||||
| 90068-14043 note |
O-ring, Cooler Evaporator NO.2(LIQUID)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90068-14043 note |
O-ring, Cooler Evaporator NO.2(LIQUID)
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 90099-14119 note |
O-ring, Cooler Evaporator NO.2(LIQUID)
2022-09 → 2023-08
ended
|
GUN15#,165,TGN156,166 IDNP L | — | |
| 90099-14119 note |
O-ring, Cooler Evaporator NO.2(LIQUID)
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 90099-14120 note |
O-ring, Cooler Evaporator NO.2(LIQUID)
2022-09 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 90099-14120 note |
O-ring, Cooler Evaporator NO.2(LIQUID)
2022-09 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90099-14120 note |
O-ring, Cooler Evaporator NO.2(LIQUID)
2022-09 → 2023-08
ended
|
TGN156 IDNP L | — | |
| 90099-14120 note |
O-ring, Cooler Evaporator NO.2(LIQUID)
2022-09 → 2023-08
ended
|
GUN155 IDNP,MAP) IDNP (H,S) +5 | — | |
| 88501M — O-ring, Cooler Evaporator NO.3(LIQUID) | ||||
| 90068-14042 note |
O-ring, Cooler Evaporator NO.3(LIQUID)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90068-14042 note |
O-ring, Cooler Evaporator NO.3(LIQUID)
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 90099-14119 note |
O-ring, Cooler Evaporator NO.3(LIQUID)
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 90099-14119 note |
O-ring, Cooler Evaporator NO.3(LIQUID)
2022-09 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90099-14119 note |
O-ring, Cooler Evaporator NO.3(LIQUID)
2022-09 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88501P — O-ring, Cooler Evaporator NO.3(SUCTION) | ||||
| 90068-14043 note |
O-ring, Cooler Evaporator NO.3(SUCTION)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 90068-14043 note |
O-ring, Cooler Evaporator NO.3(SUCTION)
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.3(SUCTION)
2022-09 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.3(SUCTION)
2022-09 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 90099-14121 note |
O-ring, Cooler Evaporator NO.3(SUCTION)
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 88501R — Evaporator Sub-assy (REAR) | ||||
| 88501-0K260 |
Evaporator Sub-assy (REAR)
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88501-0K270 |
Evaporator Sub-assy (REAR)
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 88501-0K290 |
Evaporator Sub-assy (REAR)
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 88501-0K290 |
Evaporator Sub-assy (REAR)
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 88501-0K350 |
Evaporator Sub-assy (REAR)
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88501-0K370 |
Evaporator Sub-assy (REAR)
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88501-0K440 |
Evaporator Sub-assy (REAR)
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 88501-0K440 |
Evaporator Sub-assy (REAR)
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 88501-0K650 |
Evaporator Sub-assy (REAR)
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 88501-0K650 |
Evaporator Sub-assy (REAR)
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 88510T — Unit Assy, Cooling (REAR) | ||||
| 88500-0K261 |
Unit Assy, Cooling (REAR)
2022-09 → 2023-08
ended
|
GUN15#,165,TGN156,166 IDNP L | — | |
| 88500-0K261 |
Unit Assy, Cooling (REAR)
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 88500-0K281 |
Unit Assy, Cooling (REAR)
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP (H,S) | — | |
| 88500-0K281 note |
Unit Assy, Cooling (REAR)
2022-09 → 2023-08
ended
|
TGN156 IDNP L | — | |
| 88500-0K281 |
Unit Assy, Cooling (REAR)
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 88500-0K301 |
Unit Assy, Cooling (REAR)
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88500-0K311 |
Unit Assy, Cooling (REAR)
2022-08 → 2023-07
ended
|
GUN155,165,TGN156,166 THP L | — | |
| 88500-0K311 |
Unit Assy, Cooling (REAR)
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 88500-0K321 |
Unit Assy, Cooling (REAR)
2022-08 → 2023-07
ended
|
GGN155,GUN156,166 THP;GUN155,165,TGN156 THP (H,S) | — | |
| 88500-0K321 note |
Unit Assy, Cooling (REAR)
2022-08 → 2023-07
ended
|
TGN156 THP L | — | |
| 88500-0K321 |
Unit Assy, Cooling (REAR)
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 88500-0K331 |
Unit Assy, Cooling (REAR)
2022-11 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 88500-0K341 |
Unit Assy, Cooling (REAR)
2022-11 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 88500-0K341 note |
Unit Assy, Cooling (REAR)
2022-11 → 2023-10
ended
|
GUN156 S BZAGT;GUN16#,TGN156,166 AGTP +2 | — | |
| 88500-0K360 |
Unit Assy, Cooling (REAR)
2023-01 → 2024-01
ended
|
GUN155 L SA;GUN165,LAN155 SA | — | |
| 88500-0K360 |
Unit Assy, Cooling (REAR)
2023-01 → 2024-03
ended
|
GUN155 KEN | — | |
| 88500-0K381 |
Unit Assy, Cooling (REAR)
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88500-0K401 |
Unit Assy, Cooling (REAR)
2022-09 → 2023-08
ended
|
GUN155 MA | — | |
| 88500-0K411 |
Unit Assy, Cooling (REAR)
2022-09 → 2023-08
ended
|
GUN156,TGN156 MA | — | |
| 88500-0K440 |
Unit Assy, Cooling (REAR)
2023-01 → 2024-01
ended
|
GUN15#,166,TGN156 S SA | — | |
| 88500-0K440 note |
Unit Assy, Cooling (REAR)
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 88500-0K440 |
Unit Assy, Cooling (REAR)
2023-01 → 2024-03
ended
|
GUN156 KEN | — | |
| 88515B — Valve, Rear Cooling Unit Expansion | ||||
| 88515-0K550 |
Valve, Rear Cooling Unit Expansion
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 88515-0K570 |
Valve, Rear Cooling Unit Expansion
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 88515-0K570 |
Valve, Rear Cooling Unit Expansion
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 88515-0K610 |
Valve, Rear Cooling Unit Expansion
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88515-0K630 |
Valve, Rear Cooling Unit Expansion
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88515-0K640 |
Valve, Rear Cooling Unit Expansion
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 88515-0K640 |
Valve, Rear Cooling Unit Expansion
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 88515-0K650 |
Valve, Rear Cooling Unit Expansion
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88515-0K660 |
Valve, Rear Cooling Unit Expansion
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 88515-0K660 |
Valve, Rear Cooling Unit Expansion
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 88539C — Hose, Cooler Unit Drain, NO.2 | ||||
| 88539-0K450 |
Hose, Cooler Unit Drain, NO.2
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 88539-0K450 |
Hose, Cooler Unit Drain, NO.2
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 88539-0K460 |
Hose, Cooler Unit Drain, NO.2
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88539-0K510 |
Hose, Cooler Unit Drain, NO.2
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 88539-0K510 |
Hose, Cooler Unit Drain, NO.2
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 88539-0K520 |
Hose, Cooler Unit Drain, NO.2
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 88539-0K540 |
Hose, Cooler Unit Drain, NO.2
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 88539-0K540 |
Hose, Cooler Unit Drain, NO.2
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 88539-0K560 |
Hose, Cooler Unit Drain, NO.2
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88539-0K580 |
Hose, Cooler Unit Drain, NO.2
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88600 — Control Assy, Air Conditioner | ||||
| 87165-0K010 |
Control Assy, Air Conditioner
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP (H,S) | — | |
| 87165-0K010 |
Control Assy, Air Conditioner
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 87165-0K010 note |
Control Assy, Air Conditioner
2022-09 → 2023-08
ended
|
TGN156 IDNP L | — | |
| 87165-0K020 note |
Control Assy, Air Conditioner
2022-08 → 2023-07
ended
|
TGN156 THP L | — | |
| 87165-0K020 |
Control Assy, Air Conditioner
2022-08 → 2023-07
ended
|
GGN155,GUN156,166 THP;GUN155,165,TGN156 THP (H,S) | — | |
| 87165-0K020 |
Control Assy, Air Conditioner
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 87165-0K030 |
Control Assy, Air Conditioner
2022-11 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 87165-0K030 note |
Control Assy, Air Conditioner
2022-11 → 2023-10
ended
|
GUN156 S BZAGT;GUN16#,TGN156,166 AGTP +2 | — | |
| 87165-0K050 |
Control Assy, Air Conditioner
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 87165-0K070 |
Control Assy, Air Conditioner
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 87165-0K080 |
Control Assy, Air Conditioner
2022-09 → 2023-08
ended
|
GUN156,TGN156 MA | — | |
| 87165-0K100 |
Control Assy, Air Conditioner
2023-01 → 2024-01
ended
|
GUN15#,166,TGN156 S SA | — | |
| 87165-0K100 note |
Control Assy, Air Conditioner
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 87165-0K100 |
Control Assy, Air Conditioner
2023-01 → 2024-03
ended
|
GUN156 KEN | — | |
| 88710H — Tube & Accessory Assy, Air Conditioner | ||||
| 88710-0KG10 |
Tube & Accessory Assy, Air Conditioner
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 88710-0KG10 |
Tube & Accessory Assy, Air Conditioner
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 88710-0KG20 |
Tube & Accessory Assy, Air Conditioner
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88710-0KM50 |
Tube & Accessory Assy, Air Conditioner
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 88710-0KN30 |
Tube & Accessory Assy, Air Conditioner
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 88710-0KN30 |
Tube & Accessory Assy, Air Conditioner
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 88710-0KQ90 |
Tube & Accessory Assy, Air Conditioner
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88710-0KR10 |
Tube & Accessory Assy, Air Conditioner
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88710-0KY90 |
Tube & Accessory Assy, Air Conditioner
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 88710-0KY90 |
Tube & Accessory Assy, Air Conditioner
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 88891 — Packing (FOR COOLER) | ||||
| 88619-0K130 |
Packing (FOR COOLER)
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 88619-0K130 |
Packing (FOR COOLER)
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 88619-0K140 |
Packing (FOR COOLER)
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 88619-0K150 |
Packing (FOR COOLER)
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88619-0K160 |
Packing (FOR COOLER)
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88891S — Cover, Cooler, NO.1 | ||||
| 88899-0K130 |
Cover, Cooler, NO.1
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 88899-0K130 |
Cover, Cooler, NO.1
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 88899-0K150 |
Cover, Cooler, NO.1
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 88899-0K150 |
Cover, Cooler, NO.1
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 88899-0K170 |
Cover, Cooler, NO.1
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88899-0K190 |
Cover, Cooler, NO.1
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88899-0K260 |
Cover, Cooler, NO.1
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88899-0K280 |
Cover, Cooler, NO.1
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 88899-0K330 |
Cover, Cooler, NO.1
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 88899-0K330 |
Cover, Cooler, NO.1
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 88892N — Cover, Cooler, NO.2 | ||||
| 88899-0K140 |
Cover, Cooler, NO.2
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP | — | |
| 88899-0K140 |
Cover, Cooler, NO.2
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP | — | |
| 88899-0K160 |
Cover, Cooler, NO.2
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 88899-0K160 |
Cover, Cooler, NO.2
2022-08 → 2024-03
ended
|
GGN155,TGN166 EPT | — | |
| 88899-0K180 |
Cover, Cooler, NO.2
2022-11 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88899-0K230 |
Cover, Cooler, NO.2
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88899-0K270 |
Cover, Cooler, NO.2
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88899-0K290 |
Cover, Cooler, NO.2
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 88899-0K340 |
Cover, Cooler, NO.2
2023-01 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 88899-0K340 |
Cover, Cooler, NO.2
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
