Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

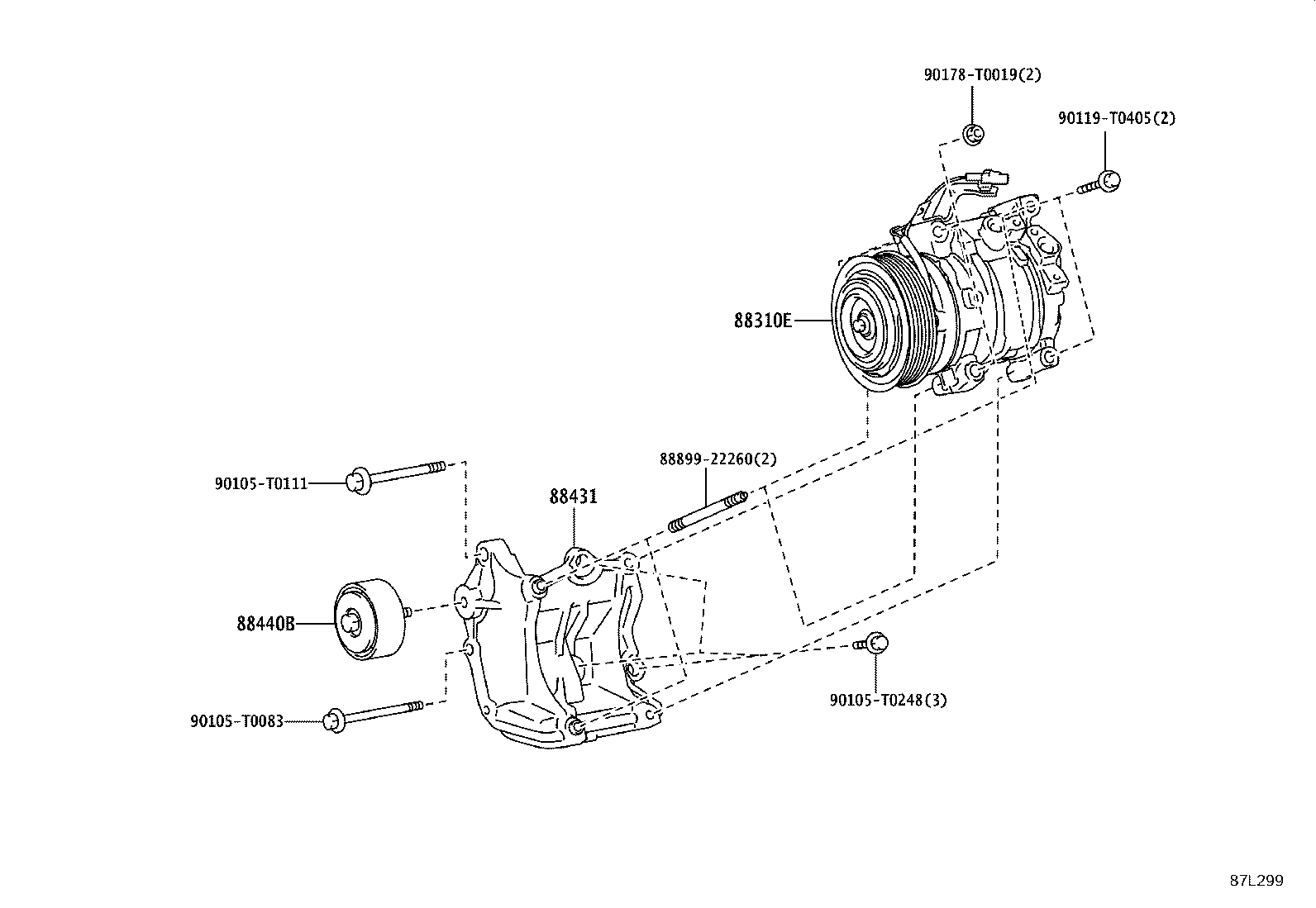

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310E — Compressor, W/Magnet Clutch | ||||
| 88310-0K272 |
Compressor, W/Magnet Clutch
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 88310-0KA40 |
Compressor, W/Magnet Clutch
2023-01 → 2024-01
ended
|
TGN156 SA | — | |
| 88310-0KB70 |
Compressor, W/Magnet Clutch
2023-01 → 2024-01
ended
|
GUN15#,16# SA | — | |
| 88310-0KB70 |
Compressor, W/Magnet Clutch
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 88310-0KD00 |
Compressor, W/Magnet Clutch
2023-02 → —
|
TGN156,166 PKN | — | |
| 88310-0KE00 |
Compressor, W/Magnet Clutch
2023-05 → —
|
GUN156 PKN | — | |
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 88431-0K080 |
Bracket, Compressor Mounting, NO.1
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 88431-0K120 |
Bracket, Compressor Mounting, NO.1
2022-09 → 2023-08
ended
|
GUN15#,16# IDNP,VNP | — | |
| 88431-0K130 |
Bracket, Compressor Mounting, NO.1
2022-10 → 2023-09
ended
|
GUN156,166 IND | — | |
| 88431-0K140 |
Bracket, Compressor Mounting, NO.1
2022-08 → 2023-07
ended
|
GUN15#,16# THP | — | |
| 88431-0K150 |
Bracket, Compressor Mounting, NO.1
2022-11 → 2023-10
ended
|
GUN156,16# AGTP | — | |
| 88431-0K160 |
Bracket, Compressor Mounting, NO.1
2023-01 → 2024-03
ended
|
GUN15# KEN | — | |
| 88431-0K160 |
Bracket, Compressor Mounting, NO.1
2023-01 → 2024-01
ended
|
GUN15#,16# SA | — | |
| 88431-0K180 |
Bracket, Compressor Mounting, NO.1
2022-09 → 2023-08
ended
|
GUN15# MA | — | |
| 88431-0K210 |
Bracket, Compressor Mounting, NO.1
2022-08 → 2023-07
ended
|
TGN156,166 THP | — | |
| 88431-0K210 |
Bracket, Compressor Mounting, NO.1
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 88431-0K210 |
Bracket, Compressor Mounting, NO.1
2022-08 → 2023-09
ended
|
TGN166 IND | — | |
| 88431-0K220 |
Bracket, Compressor Mounting, NO.1
2022-11 → 2023-10
ended
|
TGN156,166 AGTP | — | |
| 88431-0K230 |
Bracket, Compressor Mounting, NO.1
2023-01 → 2024-01
ended
|
TGN156 SA | — | |
| 88431-0K240 |
Bracket, Compressor Mounting, NO.1
2022-09 → 2023-09
ended
|
TGN166 VNP | — | |
| 88431-0K240 |
Bracket, Compressor Mounting, NO.1
2022-09 → 2023-08
ended
|
TGN156,166 IDNP | — | |
| 88431-0K250 |
Bracket, Compressor Mounting, NO.1
2022-09 → 2023-08
ended
|
TGN156 MA | — | |
| 88431-0K270 |
Bracket, Compressor Mounting, NO.1
2023-02 → —
|
TGN156,166 PKN | — | |
| 88431-0K290 |
Bracket, Compressor Mounting, NO.1
2023-05 → —
|
GUN156 PKN | — | |
| 88440B — Pulley Assy, Idle | ||||
| 88440-0K161 |
Pulley Assy, Idle
2022-11 → 2023-10
ended
|
TGN156,166 AGTP | — | |
| 88440-0K261 |
Pulley Assy, Idle
2023-01 → 2024-01
ended
|
TGN156 SA | — | |
| 88440-0K270 |
Pulley Assy, Idle
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 88440-0K381 |
Pulley Assy, Idle
2022-08 → 2023-07
ended
|
TGN156,166 THP | — | |
| 88440-0K381 |
Pulley Assy, Idle
2022-08 → 2023-08
ended
|
TGN156,166 IDNP,MAP | — | |
| 88440-0K381 |
Pulley Assy, Idle
2022-08 → 2023-09
ended
|
TGN166 INDP,VNP | — | |
| 88440-0K381 |
Pulley Assy, Idle
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 88440-0K381 |
Pulley Assy, Idle
2022-08 → —
|
TGN156,166 PKN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
