Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

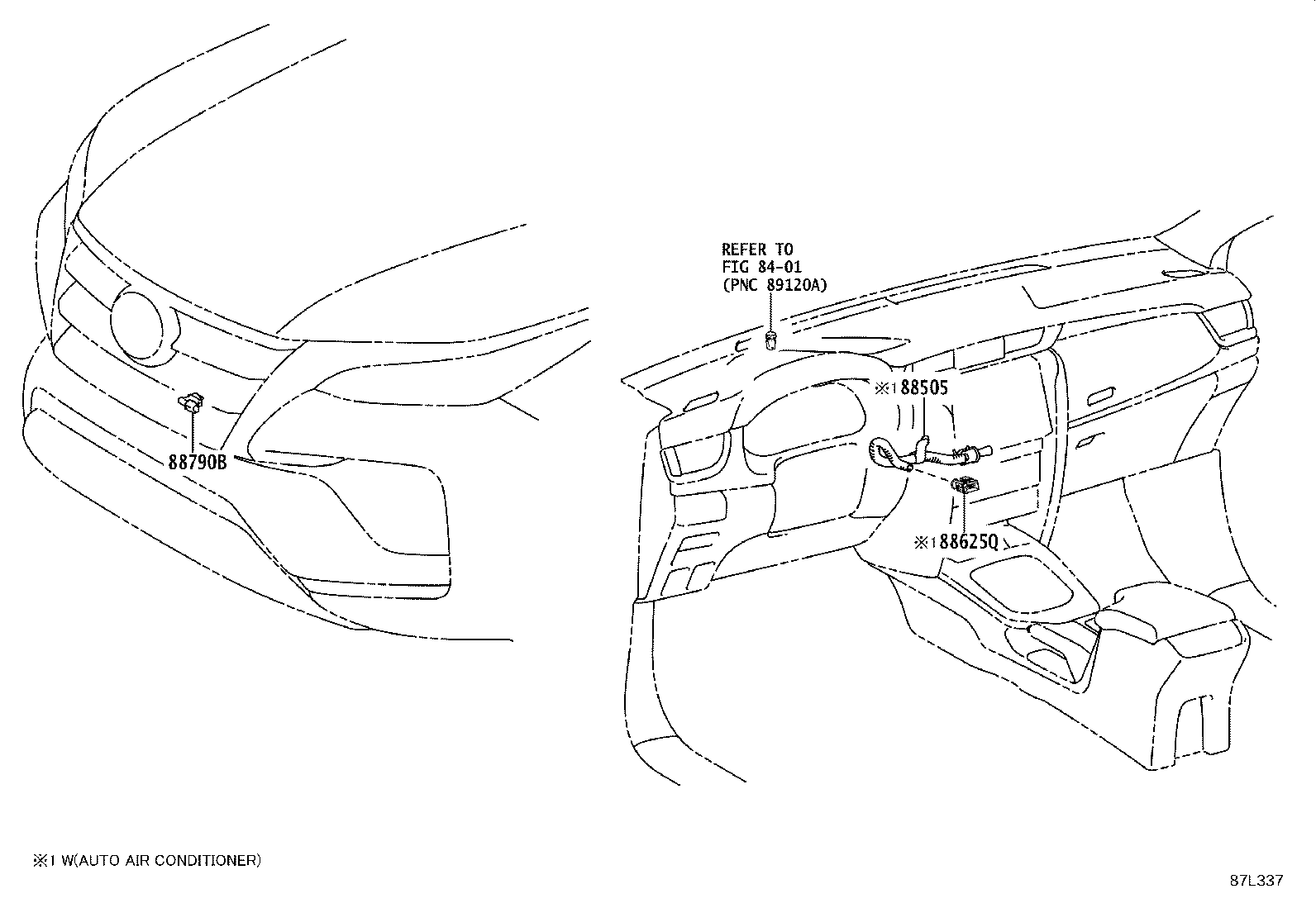

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88505 — Duct Sub-assy,Air Conditioner | ||||
| 88505-0K760 note |
Duct Sub-assy,Air Conditioner
2022-08 → 2023-07
ended
|
TGN156 THP L | — | |
| 88505-0K760 |
Duct Sub-assy,Air Conditioner
2022-08 → 2023-07
ended
|
GGN155,GUN15#,TGN156 LHD THP (H,S) | — | |
| 88505-0K760 |
Duct Sub-assy,Air Conditioner
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 88505-0K770 |
Duct Sub-assy,Air Conditioner
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 88505-0K780 |
Duct Sub-assy,Air Conditioner
2022-11 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 88505-0K780 note |
Duct Sub-assy,Air Conditioner
2022-11 → 2023-10
ended
|
GUN156 S BZAGT;GUN16#,TGN156,166 AGTP +2 | — | |
| 88505-0K790 |
Duct Sub-assy,Air Conditioner
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD SA | — | |
| 88505-0K790 note |
Duct Sub-assy,Air Conditioner
2023-01 → 2024-01
ended
|
LAN155 | — | |
| 88505-0K800 |
Duct Sub-assy,Air Conditioner
2023-01 → 2024-01
ended
|
GUN156,166 RHD SA | — | |
| 88505-0K800 |
Duct Sub-assy,Air Conditioner
2023-01 → 2024-03
ended
|
GUN156 KEN | — | |
| 88505-0K830 |
Duct Sub-assy,Air Conditioner
2022-09 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 LHD IDNP (H,S) | — | |
| 88505-0K830 note |
Duct Sub-assy,Air Conditioner
2022-09 → 2023-08
ended
|
TGN156 IDNP L | — | |
| 88505-0K830 |
Duct Sub-assy,Air Conditioner
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 88505-0K840 |
Duct Sub-assy,Air Conditioner
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD (GEN,IDN) | — | |
| 88505-0K850 |
Duct Sub-assy,Air Conditioner
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 88505-0K860 |
Duct Sub-assy,Air Conditioner
2022-09 → 2023-08
ended
|
GUN156,TGN156 MA | — | |
| 88505-0K870 |
Duct Sub-assy,Air Conditioner
2023-02 → —
|
GUN156,TGN156,166 PKN | — | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-07
ended
|
GGN155,GUN156,166 THP;GUN155,165,TGN156 THP (H,S) | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-07
ended
|
TGN156 THP L | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → —
|
GUN156,TGN156,166 PKN | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 (IDNP,MAP) (H,S) | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-08
ended
|
TGN156 IDNP L | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-10
ended
|
GUN156 S BZAGT;GUN16#,TGN156,166 AGTP +2 | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2024-01
ended
|
GUN15#,166,TGN156 S SA | — | |
| 88625-0K020 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2024-01
ended
|
LAN155 | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → —
|
GUN156,TGN156,166 PKN | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 (INDP,VNP) (H,S) | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2024-01
ended
|
LAN155 | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2024-01
ended
|
GUN15#,166,TGN156 S SA | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-08
ended
|
TGN156 IDNP L | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 (IDNP,MAP) (H,S) | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-07
ended
|
TGN156 THP L | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-07
ended
|
GGN155,GUN156,166 THP;GUN155,165,TGN156 THP (H,S) | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2022-08 → 2023-10
ended
|
GUN156 S BZAGT;GUN16#,TGN156,166 AGTP +2 | — | |
| 88790B — Thermistor Assy | ||||
| 88790-0K010 note |
Thermistor Assy
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 88790-0K010 note |
Thermistor Assy
2022-08 → —
|
GUN156,TGN156,166 PKN | — | |
| 88790-0K010 note |
Thermistor Assy
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 88790-0K010 note |
Thermistor Assy
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 88790-0K010 note |
Thermistor Assy
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88790-0K010 note |
Thermistor Assy
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 88790-0K010 note |
Thermistor Assy
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 88790-28100 note |
Thermistor Assy
2022-08 → 2023-09
ended
|
GUN156,16#,TGN166 INDP,VNP | — | |
| 88790-28100 note |
Thermistor Assy
2022-08 → 2023-08
ended
|
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP | — | |
| 88790-28100 note |
Thermistor Assy
2022-08 → 2023-10
ended
|
GGN155,GUN156,16#,TGN156,166 AGTP | — | |
| 88790-28100 note |
Thermistor Assy
2022-08 → 2024-01
ended
|
GUN15#,16#,LAN155,TGN156 SA | — | |
| 88790-28100 note |
Thermistor Assy
2022-08 → 2023-07
ended
|
GGN155,GUN15#,16#,TGN156,166 THP | — | |
| 88790-28100 note |
Thermistor Assy
2022-08 → 2024-03
ended
|
GGN155,GUN15#,TGN166 EPT,KEN | — | |
| 88790-28100 note |
Thermistor Assy
2022-08 → —
|
GUN156,TGN156,166 PKN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
