Toyota Fortuner (SUV)
2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General
Supported model
Data version 2024-11

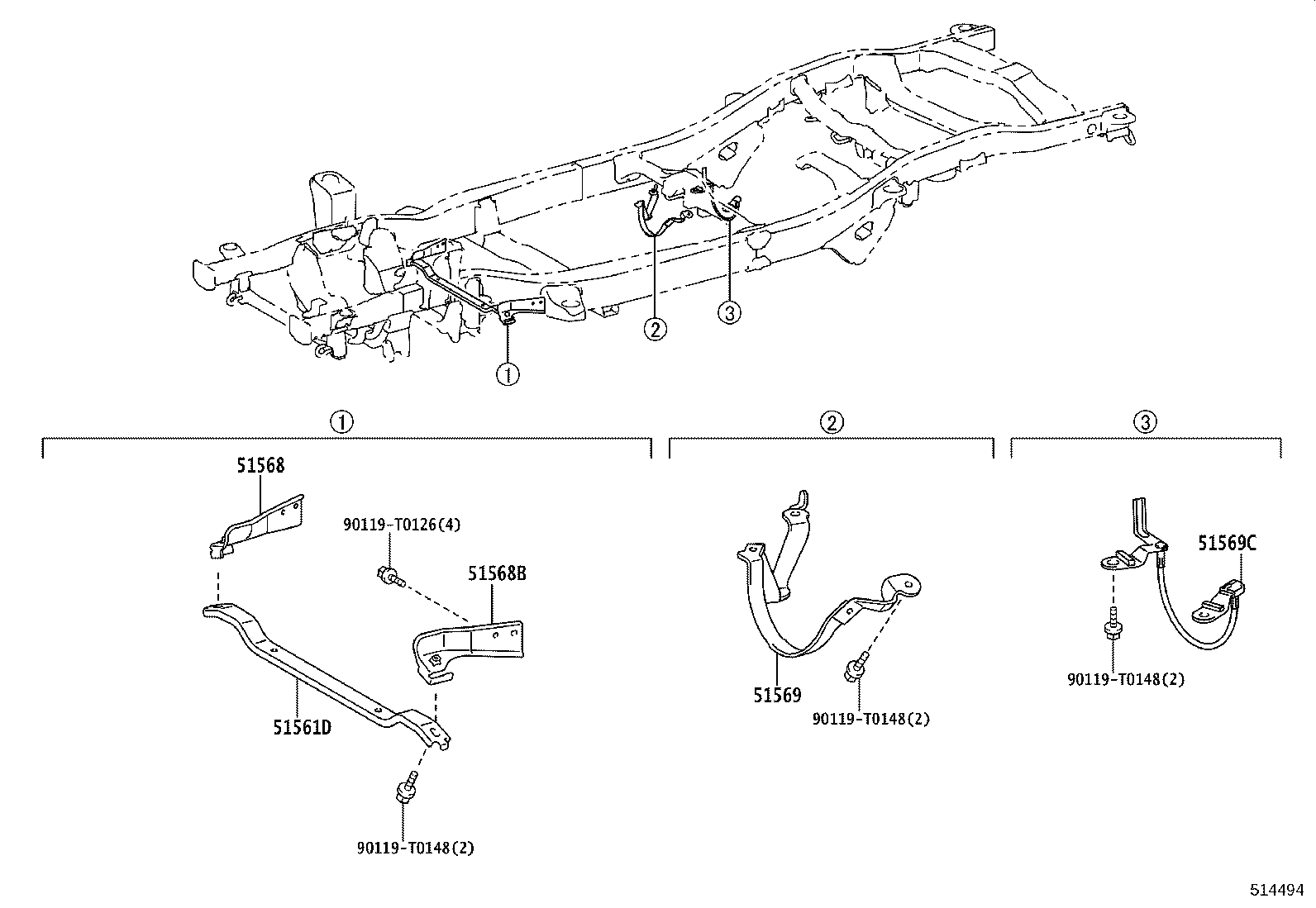

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51561D — Guard, Propeller Shaft | ||||
| 51569-KK010 |
Guard, Propeller Shaft
2023-08 → 2024-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51569-KK010 |
Guard, Propeller Shaft
2023-08 → 2024-08
ended
|
GUN156 CAMP | — | |
| 51569-KK070 note |
Guard, Propeller Shaft
2023-08 → 2024-07
ended
|
GUN155 THP GEN | — | |
| 51569-KK070 |
Guard, Propeller Shaft
2023-09 → —
|
GGN155,GUN156,TGN156 EPT,PKN | — | |
| 51569-KK070 |
Guard, Propeller Shaft
2023-09 → 2024-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 51569-KK070 |
Guard, Propeller Shaft
2023-09 → 2024-09
ended
|
GUN156 INDP,VNP | — | |
| 51569-KK080 |
Guard, Propeller Shaft
2024-02 → 2024-10
ended
|
GUN15#,TGN156 SAP | — | |
| 51569-KK080 |
Guard, Propeller Shaft
2024-02 → 2024-12
ended
|
GUN15# KEN | — | |
| 51569-KK090 |
Guard, Propeller Shaft
2023-11 → 2024-10
ended
|
GGN155,GUN156,TGN156 AGTP | — | |
| 51568 — Bracket, Propeller Shaft Guard | ||||
| 51568-KK020 |
Bracket, Propeller Shaft Guard
2023-08 → 2024-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51568-KK020 |
Bracket, Propeller Shaft Guard
2023-08 → 2024-08
ended
|
GUN156 CAMP | — | |
| 51568-KK020 |
Bracket, Propeller Shaft Guard
2023-08 → 2024-12
ended
|
GUN15# KEN | — | |
| 51568-KK020 |
Bracket, Propeller Shaft Guard
2023-08 → 2024-10
ended
|
GUN15#,TGN156 SAP | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2023-09 → 2024-10
ended
|
GGN155,GUN156,TGN156 AGTP | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2023-09 → —
|
GGN155,GUN156,TGN156 EPT,PKN | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2023-09 → 2024-09
ended
|
GUN156 INDP,VNP | — | |
| 51568-KK060 |
Bracket, Propeller Shaft Guard
2023-09 → 2024-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 51568-KK060 note |
Bracket, Propeller Shaft Guard
2023-08 → 2024-07
ended
|
GUN155 THP GEN | — | |
| 51568B — Bracket, Propeller Shaft Guard | ||||
| 51568-KK030 |
Bracket, Propeller Shaft Guard
2023-08 → 2024-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51568-KK030 |
Bracket, Propeller Shaft Guard
2023-08 → 2024-08
ended
|
GUN156 CAMP | — | |
| 51568-KK030 |
Bracket, Propeller Shaft Guard
2023-08 → 2024-12
ended
|
GUN15# KEN | — | |
| 51568-KK030 |
Bracket, Propeller Shaft Guard
2023-08 → 2024-10
ended
|
GUN15#,TGN156 SAP | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2023-09 → —
|
GGN155,GUN156,TGN156 EPT,PKN | — | |
| 51568-KK070 note |
Bracket, Propeller Shaft Guard
2023-11 → 2024-10
ended
|
GUN156 H LA | — | |
| 51568-KK070 note |
Bracket, Propeller Shaft Guard
2023-11 → 2024-10
ended
|
GUN156 6FC LA | — | |
| 51568-KK070 note |
Bracket, Propeller Shaft Guard
2023-11 → 2024-10
ended
|
GUN156 H LA | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2023-09 → 2024-10
ended
|
GUN156 BZAGT;GUN156 6F LA;GGN155,TGN156 +1 | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2023-09 → 2024-09
ended
|
GUN156 VNP | — | |
| 51568-KK070 |
Bracket, Propeller Shaft Guard
2023-09 → 2024-08
ended
|
GGN155,GUN15#,TGN156 IDNP,MAP | — | |
| 51568-KK090 |
Bracket, Propeller Shaft Guard
2023-10 → 2024-09
ended
|
GUN156,166 IND | — | |
| 51568-KK090 note |
Bracket, Propeller Shaft Guard
2023-11 → 2024-10
ended
|
GUN156 6F LA | — | |
| 51568-KK090 note |
Bracket, Propeller Shaft Guard
2023-08 → 2024-07
ended
|
GUN155,165 THP GEN | — | |
| 51568-KK090 |
Bracket, Propeller Shaft Guard
2023-10 → 2024-10
ended
|
GUN156,165 6FC LA | — | |
| 51569 — Guard, Propeller Shaft | ||||
| 51569-KK020 |
Guard, Propeller Shaft
2023-08 → 2024-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2023-08 → 2024-08
ended
|
GGN155,GUN15#,TGN156 CAMP,IDNP,MAP | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2023-08 → —
|
GGN155,GUN156,TGN156 EPT,PKN | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2023-08 → 2024-09
ended
|
GUN156 INDP,VNP | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2023-08 → 2024-12
ended
|
GUN15# KEN | — | |
| 51569-KK020 |
Guard, Propeller Shaft
2023-08 → 2024-10
ended
|
GGN155,GUN15#,TGN156 AGTP,SAP | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2023-08 → 2024-10
ended
|
GUN16#,TGN166 LA,SA | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2023-08 → —
|
TGN166 EPT,PKN | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2023-08 → 2024-09
ended
|
GUN16#,TGN166 INDP,VNP | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2023-08 → 2024-08
ended
|
GUN16#,TGN166 IDNP | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2023-08 → 2024-07
ended
|
GUN16#,TGN166 THP | — | |
| 51569C — Guard, Propeller Shaft | ||||
| 51569-0K020 |
Guard, Propeller Shaft
2023-08 → 2024-07
ended
|
GGN155,GUN15#,TGN156 THP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2023-08 → 2024-08
ended
|
GGN155,GUN15#,TGN156 CAMP,IDNP,MAP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2023-08 → 2024-09
ended
|
GUN156 INDP,VNP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2023-08 → 2024-10
ended
|
GGN155,GUN15#,TGN156 AGTP,SAP | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2023-08 → 2024-12
ended
|
GUN15# KEN | — | |
| 51569-0K020 |
Guard, Propeller Shaft
2023-08 → —
|
GGN155,GUN156,TGN156 EPT,PKN | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2023-08 → 2024-07
ended
|
GUN16#,TGN166 THP | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2023-08 → 2024-08
ended
|
GUN16#,TGN166 IDNP | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2023-08 → 2024-09
ended
|
GUN16#,TGN166 INDP,VNP | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2023-08 → 2024-10
ended
|
GUN16#,TGN166 LA,SA | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2023-08 → —
|
TGN166 EPT,PKN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
