Toyota Fortuner (SUV)

2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

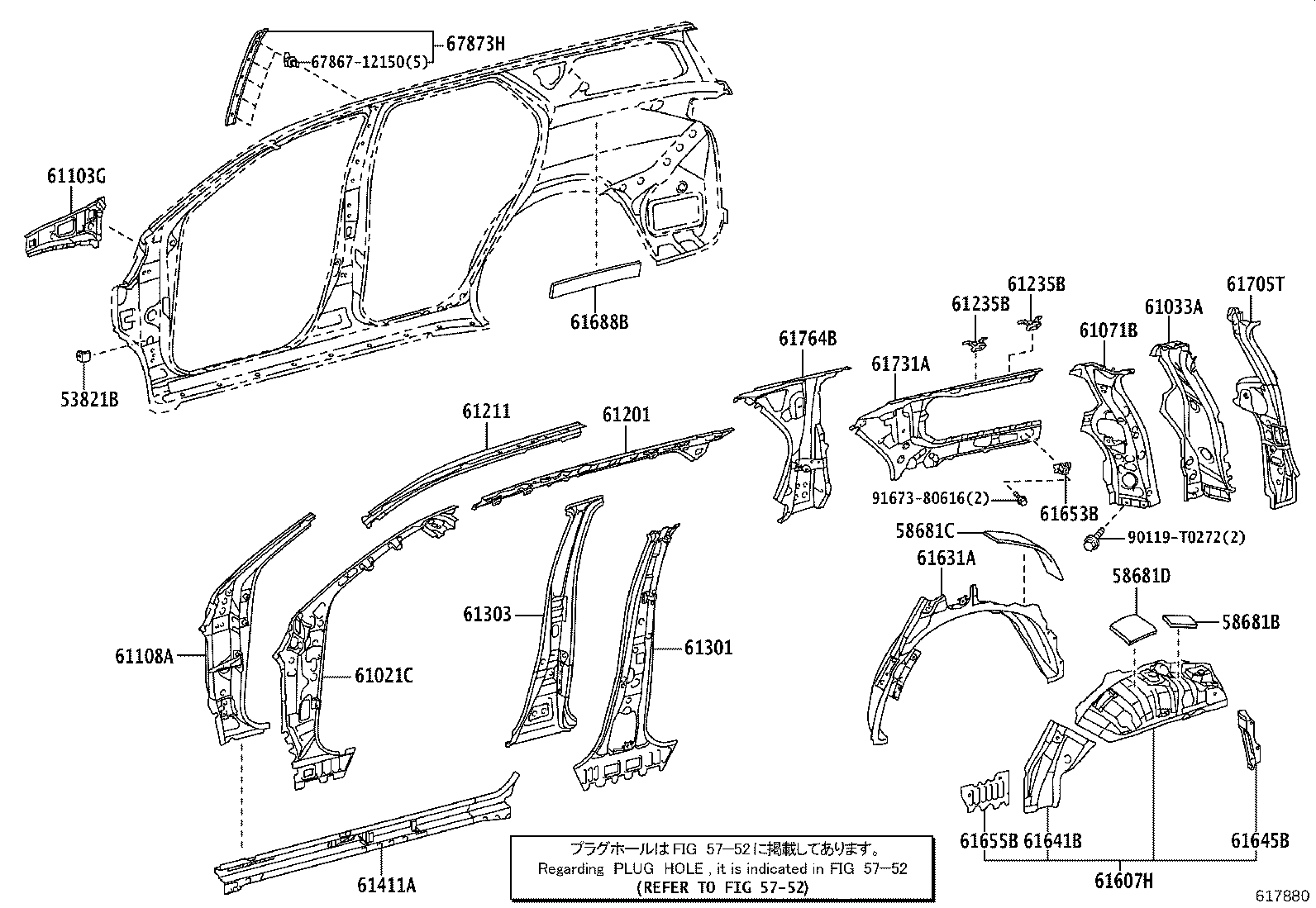

Exploded illustration 617880 5752 — not listed in this catalogue 53821B — BRACKET, FRONT FENDER, REAR RH (6 parts) 58681C — SHEET, QUARTER WHEEL HOUSE INNER SILENCER, NO.1 RH (8 parts) 58681D — SHEET, REAR WHEEL HOUSE SILENCER, NO.1 (8 parts) 58681B — SHEET, REAR WHEEL HOUSE SILENCER, NO.2 (8 parts) 61021C — PILLAR SUB-ASSY, FRONT BODY, RH (8 parts) 61033A — REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE (6 parts) 61071B — PANEL SUB-ASSY, ROOF SIDE, INNER REAR RH (7 parts) 61103G — GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH (6 parts) 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (7 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (5 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (6 parts) 61235B — BRACKET, ASSIST GRIP (10 parts) 61235B — BRACKET, ASSIST GRIP (10 parts) 61301 — PILLAR SUB-ASSY, CENTER BODY, RH (7 parts) 61303 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH (6 parts) 61411A — REINFORCEMENT, ROCKER PANEL, NO.1 RH (6 parts) 61607H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH (13 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (5 parts) 61641B — GUSSET, QUARTER WHEEL HOUSE, RH (5 parts) 61645B — GUSSET, QUARTER WHEEL HOUSE, REAR RH (10 parts) 61655B — GUSSET, QUARTER WHEEL HOUSE, INNER RH (5 parts) 61688B — LINING, QUARTER PANEL REINFORCEMENT, RH (7 parts) 61705T — FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH (6 parts) 61731A — PANEL, SIDE WINDOW, INNER RH (6 parts) 61764B — REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH (6 parts) 67873H — WEATHERSTRIP, CENTER DOOR, UPPER NO.1 (9 parts) 6786712150 — not listed in this catalogue 90119T0272 — not listed in this catalogue 61653B — BRACKET, DECK SIDE TRIM (1 parts) 9167380616 — not listed in this catalogue
617880 · 27 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
177 parts on this figure
Part number Description Fitment Price
53821B — Bracket, Front Fender, Rear RH
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → 2024-12 ended
GUN15# KEN —
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
53257-35030 Bracket, Front Fender, Rear RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58681B — Sheet, Rear Wheel House Silencer, NO.2
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → 2024-09 ended
GUN156,165,TGN166 VNP —
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
58681-0K090 Sheet, Rear Wheel House Silencer, NO.2
2024-02 → 2024-12 ended
GUN15# KEN —
58681-0K090 Sheet, Rear Wheel House Silencer, NO.2
2024-02 → 2024-10 ended
GUN15#,16#,TGN156 SAP —
58681-0K130 Sheet, Rear Wheel House Silencer, NO.2
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
58681C — Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
58683-0K020 Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58683-0K020 Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
58683-0K020 Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
2023-08 → 2024-09 ended
GUN156,165,TGN166 VNP —
58683-0K020 Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
58683-0K020 Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
58683-0K030 Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
2024-02 → 2024-10 ended
GUN15#,16#,TGN156 SAP —
58683-0K030 Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
2024-02 → 2024-12 ended
GUN15# KEN —
58683-0K050 Sheet, Quarter Wheel House Inner Silencer, NO.1 RH
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
58681D — Sheet, Rear Wheel House Silencer, NO.1
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → 2024-09 ended
GUN156,165,TGN166 VNP —
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58681-0K080 Sheet, Rear Wheel House Silencer, NO.1
2024-02 → 2024-10 ended
GUN15#,16#,TGN156 SAP —
58681-0K080 Sheet, Rear Wheel House Silencer, NO.1
2024-02 → 2024-12 ended
GUN15# KEN —
58681-0K120 Sheet, Rear Wheel House Silencer, NO.1
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
61021C — Pillar Sub-assy, Front Body, RH
61021-KK020 Pillar Sub-assy, Front Body, RH
2023-11 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-12 ended
GUN15# KEN —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 SAP —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-09 ended
GUN156,165,TGN166 VNP —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61021-KK030 Pillar Sub-assy, Front Body, RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61021-KK050 Pillar Sub-assy, Front Body, RH
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
61033A — Reinforce Sub-assy, Back Door Opening Side
61033-KK010 Reinforce Sub-assy, Back Door Opening Side
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61033-KK010 Reinforce Sub-assy, Back Door Opening Side
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61033-KK010 Reinforce Sub-assy, Back Door Opening Side
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61033-KK010 Reinforce Sub-assy, Back Door Opening Side
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61033-KK010 Reinforce Sub-assy, Back Door Opening Side
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61743-KK010 note Reinforce Sub-assy, Back Door Opening Side
2023-11 → 2024-10 ended
GUN156 BZAGT —
61071B — Panel Sub-assy, Roof Side, Inner Rear RH
61071-KK010 Panel Sub-assy, Roof Side, Inner Rear RH
2023-11 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61071-KK020 Panel Sub-assy, Roof Side, Inner Rear RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61071-KK020 Panel Sub-assy, Roof Side, Inner Rear RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61071-KK020 Panel Sub-assy, Roof Side, Inner Rear RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61071-KK020 Panel Sub-assy, Roof Side, Inner Rear RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61071-KK020 Panel Sub-assy, Roof Side, Inner Rear RH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 KENP,SAP —
61735-KK010 note Panel Sub-assy, Roof Side, Inner Rear RH
2023-11 → 2024-10 ended
GUN156 BZAGT —
61103G — Gusset Sub-assy, Front Body Pillar, Lower RH
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-12 ended
GUN15# KEN —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61103-KK010 Gusset Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 SAP —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → 2024-12 ended
GUN15# KEN —
61108-KK900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61108-KK901 Reinforce Sub-assy, Front Body Pillar, Lower RH
2023-11 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61201 — Rail Sub-assy, Roof Side, RH
61201-KK020 Rail Sub-assy, Roof Side, RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61201-KK020 Rail Sub-assy, Roof Side, RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61201-KK020 Rail Sub-assy, Roof Side, RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61201-KK020 Rail Sub-assy, Roof Side, RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61201-KK020 Rail Sub-assy, Roof Side, RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61211 — Rail, Roof Side, Outer RH
61211-KK010 Rail, Roof Side, Outer RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61211-KK010 Rail, Roof Side, Outer RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61211-KK010 Rail, Roof Side, Outer RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61211-KK010 Rail, Roof Side, Outer RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61211-KK010 Rail, Roof Side, Outer RH
2023-08 → 2024-12 ended
GUN15# KEN —
61211-KK010 Rail, Roof Side, Outer RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61235B — Bracket, Assist Grip
61235-KK010 note Bracket, Assist Grip
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61235-KK010 note Bracket, Assist Grip
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61235-KK010 note Bracket, Assist Grip
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61235-KK010 note Bracket, Assist Grip
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61235-KK010 note Bracket, Assist Grip
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61236-KK010 note Bracket, Assist Grip
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61236-KK010 note Bracket, Assist Grip
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61236-KK010 note Bracket, Assist Grip
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61236-KK010 note Bracket, Assist Grip
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61236-KK010 note Bracket, Assist Grip
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61301 — Pillar Sub-assy, Center Body, RH
61301-KK020 Pillar Sub-assy, Center Body, RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61301-KK020 Pillar Sub-assy, Center Body, RH
2023-08 → 2024-08 ended
GUN156 CAMP —
61301-KK020 Pillar Sub-assy, Center Body, RH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 KENP,SAP —
61301-KK030 Pillar Sub-assy, Center Body, RH
2023-09 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61301-KK030 Pillar Sub-assy, Center Body, RH
2023-09 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61301-KK030 Pillar Sub-assy, Center Body, RH
2023-09 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
61301-KK030 Pillar Sub-assy, Center Body, RH
2023-09 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61303 — Reinforce Sub-assy, Center Body Pillar, Upper RH
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2023-08 → 2024-12 ended
GUN15# KEN —
61303-KK010 Reinforce Sub-assy, Center Body Pillar, Upper RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61411A — Reinforcement, Rocker Panel, NO.1 RH
61401-KK903 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61401-KK903 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61401-KK903 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-12 ended
GUN15# KEN —
61401-KK903 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61401-KK903 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61401-KK903 Reinforcement, Rocker Panel, NO.1 RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61607H — Panel Sub-assy, Quarter Wheel House, Inner RH
61607-KK040 note Panel Sub-assy, Quarter Wheel House, Inner RH
2024-02 → 2024-08 ended
GUN155,TGN156 IDNP SA —
61607-KK040 note Panel Sub-assy, Quarter Wheel House, Inner RH
2024-02 → 2024-10 ended
GUN15#,TGN156 LHD SAP —
61607-KK040 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-10 ended
GUN156 (H,L) RHD (KEN,SA);GGN155,GUN16#,TGN166 +2 —
61607-KK040 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61607-KK040 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-07 ended
GUN156,16# THP;GUN155 THP (GEN,TH);GGN155,GUN155 +3 —
61607-KK040 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-08 ended
GUN155 (IDNP,MAP) IDNP (GEN,IDN,MA,PH,VN) +4 —
61607-KK050 note Panel Sub-assy, Quarter Wheel House, Inner RH
2023-11 → 2024-10 ended
GUN156 BZAGT —
61607-KK070 note Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-08 ended
GUN16#,TGN166 IDN,PH;GGN155,GUN15# IDNP H +1 —
61607-KK070 note Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-07 ended
GGN155,GUN156 THP H GCC —
61607-KK070 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-10 ended
GUN15#,TGN156 LHD SAP —
61607-KK070 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-07 ended
GGN155,GUN155,TGN156,166 THP (L,S) GCC —
61607-KK070 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61607-KK070 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-08 → 2024-08 ended
GGN155,GUN15#,TGN156,166 IDNP (L,S) (GCC,SA) —
61631A — Panel, Quarter Wheel House, Outer RH
61605-KK020 Panel, Quarter Wheel House, Outer RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61605-KK020 Panel, Quarter Wheel House, Outer RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61605-KK020 Panel, Quarter Wheel House, Outer RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61605-KK020 Panel, Quarter Wheel House, Outer RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61605-KK020 Panel, Quarter Wheel House, Outer RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61641B — Gusset, Quarter Wheel House, RH
61641-KK010 Gusset, Quarter Wheel House, RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61641-KK010 Gusset, Quarter Wheel House, RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61641-KK010 Gusset, Quarter Wheel House, RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61641-KK010 Gusset, Quarter Wheel House, RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61641-KK010 Gusset, Quarter Wheel House, RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61645B — Gusset, Quarter Wheel House, Rear RH
61645-0K030 note Gusset, Quarter Wheel House, Rear RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61645-0K030 note Gusset, Quarter Wheel House, Rear RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61645-0K030 note Gusset, Quarter Wheel House, Rear RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61645-0K030 note Gusset, Quarter Wheel House, Rear RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61645-0K030 note Gusset, Quarter Wheel House, Rear RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61645-KK020 note Gusset, Quarter Wheel House, Rear RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61645-KK020 note Gusset, Quarter Wheel House, Rear RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61645-KK020 note Gusset, Quarter Wheel House, Rear RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61645-KK020 note Gusset, Quarter Wheel House, Rear RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61645-KK020 note Gusset, Quarter Wheel House, Rear RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61653B — Bracket, Deck Side Trim
61653-0K040 note Bracket, Deck Side Trim
2023-11 → 2024-10 ended
GUN156 BZAGT —
61655B — Gusset, Quarter Wheel House, Inner RH
61655-KK010 Gusset, Quarter Wheel House, Inner RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61655-KK010 Gusset, Quarter Wheel House, Inner RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61655-KK010 Gusset, Quarter Wheel House, Inner RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61655-KK010 Gusset, Quarter Wheel House, Inner RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61655-KK010 Gusset, Quarter Wheel House, Inner RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61688B — Lining, Quarter Panel Reinforcement, RH
61689-0K010 Lining, Quarter Panel Reinforcement, RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61689-0K010 Lining, Quarter Panel Reinforcement, RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61689-0K010 Lining, Quarter Panel Reinforcement, RH
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61689-0K010 Lining, Quarter Panel Reinforcement, RH
2023-08 → 2024-08 ended
GUN15#,TGN156 CAMP,MAP —
61689-0K030 Lining, Quarter Panel Reinforcement, RH
2023-09 → 2024-09 ended
GUN156,165,TGN166 VNP —
61689-0K030 Lining, Quarter Panel Reinforcement, RH
2023-09 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
61689-0K040 Lining, Quarter Panel Reinforcement, RH
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
61705T — Frame Sub-assy, Back Door Opening Side, RH
61705-KK010 Frame Sub-assy, Back Door Opening Side, RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61705-KK010 Frame Sub-assy, Back Door Opening Side, RH
2023-08 → 2024-12 ended
GUN15# KEN —
61705-KK010 Frame Sub-assy, Back Door Opening Side, RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61705-KK010 Frame Sub-assy, Back Door Opening Side, RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61705-KK010 Frame Sub-assy, Back Door Opening Side, RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61705-KK010 Frame Sub-assy, Back Door Opening Side, RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61731A — Panel, Side Window, Inner RH
61731-KK010 Panel, Side Window, Inner RH
2023-11 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61731-KK020 Panel, Side Window, Inner RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61731-KK020 Panel, Side Window, Inner RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61731-KK020 Panel, Side Window, Inner RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61731-KK020 Panel, Side Window, Inner RH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 KENP,SAP —
61731-KK020 Panel, Side Window, Inner RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61764B — Reinforcement, Seat Belt Anchor, NO.2 RH
61077-KK900 Reinforcement, Seat Belt Anchor, NO.2 RH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61077-KK900 Reinforcement, Seat Belt Anchor, NO.2 RH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61077-KK900 Reinforcement, Seat Belt Anchor, NO.2 RH
2023-08 → 2024-12 ended
GUN15# KEN —
61077-KK900 Reinforcement, Seat Belt Anchor, NO.2 RH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61077-KK900 Reinforcement, Seat Belt Anchor, NO.2 RH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61077-KK900 Reinforcement, Seat Belt Anchor, NO.2 RH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
67873H — Weatherstrip, Center Door, Upper NO.1
67873-0K041 Weatherstrip, Center Door, Upper NO.1
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
67873-0K041 Weatherstrip, Center Door, Upper NO.1
2023-08 → 2024-08 ended
GUN156 CAMP —
67873-0K041 Weatherstrip, Center Door, Upper NO.1
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
67873-0K041 Weatherstrip, Center Door, Upper NO.1
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
67873-0K051 Weatherstrip, Center Door, Upper NO.1
2024-02 → 2024-10 ended
GUN15#,16#,TGN156 KENP,SAP —
67873-0K061 Weatherstrip, Center Door, Upper NO.1
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
67873-0K071 Weatherstrip, Center Door, Upper NO.1
2023-09 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
67873-0K071 Weatherstrip, Center Door, Upper NO.1
2023-09 → 2024-09 ended
GUN156,165,TGN166 VNP —
67873-0K081 Weatherstrip, Center Door, Upper NO.1
2023-09 → 2024-08 ended
GUN15#,TGN156 MA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
