Toyota Fortuner (SUV)

2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

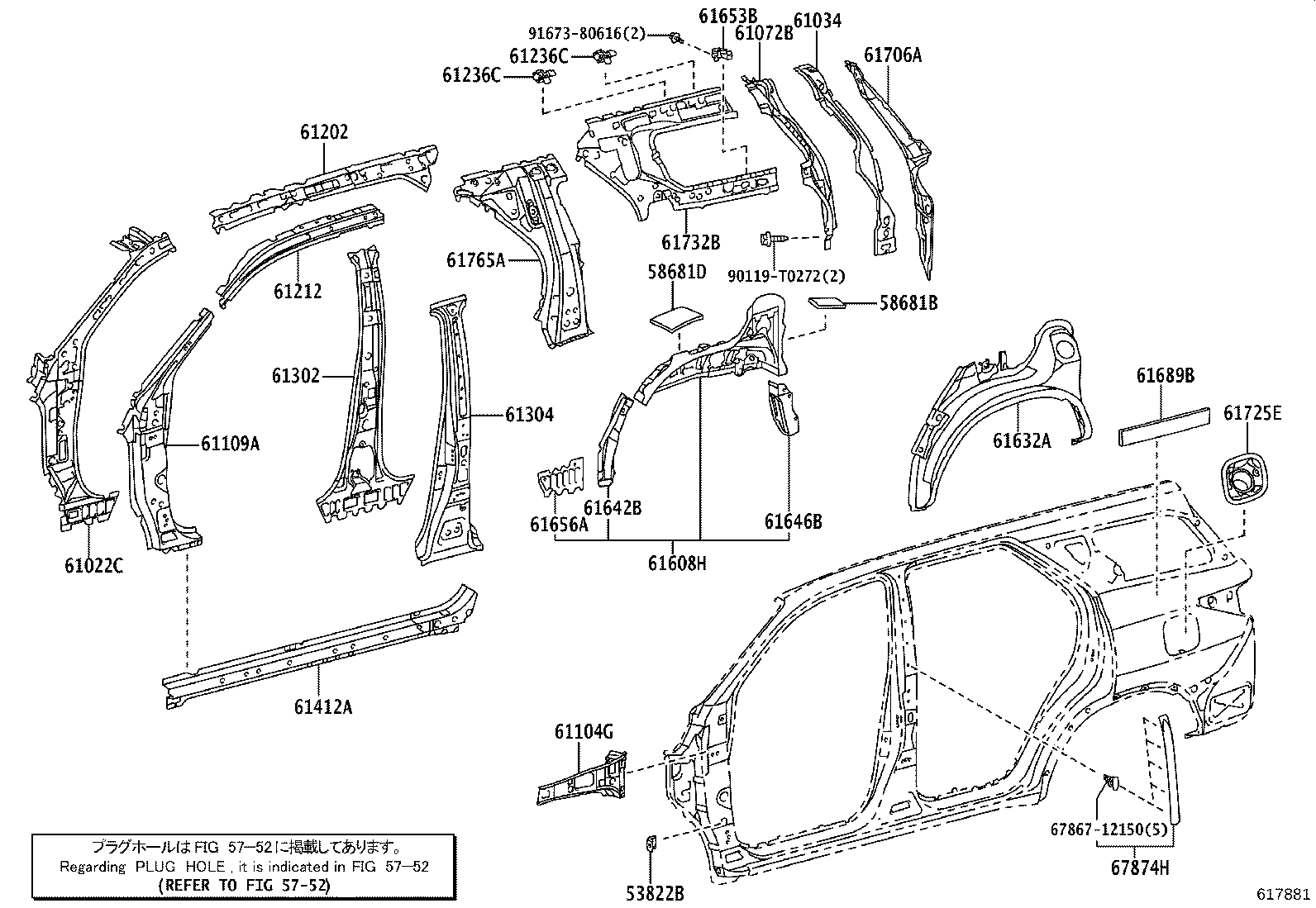

Exploded illustration 617881 53822B — BRACKET, FRONT FENDER, REAR LH (6 parts) 58681D — SHEET, REAR WHEEL HOUSE SILENCER, NO.1 (8 parts) 58681B — SHEET, REAR WHEEL HOUSE SILENCER, NO.2 (8 parts) 61022C — PILLAR SUB-ASSY, FRONT BODY, LH (8 parts) 61034 — REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH (6 parts) 61072B — PANEL SUB-ASSY, ROOF SIDE, INNER REAR LH (7 parts) 61104G — GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH (6 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (7 parts) 61202 — RAIL SUB-ASSY, ROOF SIDE, LH (5 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (6 parts) 61236C — BRACKET, ASSIST GRIP (10 parts) 61236C — BRACKET, ASSIST GRIP (10 parts) 61302 — PILLAR SUB-ASSY, CENTER BODY, LH (7 parts) 61304 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH (6 parts) 61412A — REINFORCEMENT, ROCKER PANEL, NO.1 LH (6 parts) 61608H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH (13 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (5 parts) 61642B — GUSSET, QUARTER WHEEL HOUSE, LH (5 parts) 61646B — GUSSET, QUARTER WHEEL HOUSE, REAR LH (10 parts) 61656A — GUSSET, QUARTER WHEEL HOUSE, INNER LH (5 parts) 61689B — LINING, QUARTER PANEL REINFORCEMENT, LH (7 parts) 61706A — FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH (6 parts) 61725E — BOX, FUEL INLET (6 parts) 61732B — PANEL, ROOF SIDE, INNER LH (6 parts) 61765A — REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH (6 parts) 67874H — WEATHERSTRIP, CENTER DOOR, UPPER NO.2 (9 parts) 6786712150 — not listed in this catalogue 90119T0272 — not listed in this catalogue 5752 — not listed in this catalogue 61653B — BRACKET, DECK SIDE TRIM (1 parts) 9167380616 — not listed in this catalogue
617881 · 27 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
175 parts on this figure
Part number Description Fitment Price
53822B — Bracket, Front Fender, Rear LH
53257-35030 Bracket, Front Fender, Rear LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
53257-35030 Bracket, Front Fender, Rear LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
53257-35030 Bracket, Front Fender, Rear LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
53257-35030 Bracket, Front Fender, Rear LH
2023-08 → 2024-12 ended
GUN15# KEN —
53257-35030 Bracket, Front Fender, Rear LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
53257-35030 Bracket, Front Fender, Rear LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
58681B — Sheet, Rear Wheel House Silencer, NO.2
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
58681-0K070 Sheet, Rear Wheel House Silencer, NO.2
2023-08 → 2024-09 ended
GUN156,165,TGN166 VNP —
58681-0K090 Sheet, Rear Wheel House Silencer, NO.2
2024-02 → 2024-10 ended
GUN15#,16#,TGN156 SAP —
58681-0K090 Sheet, Rear Wheel House Silencer, NO.2
2024-02 → 2024-12 ended
GUN15# KEN —
58681-0K130 Sheet, Rear Wheel House Silencer, NO.2
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
58681D — Sheet, Rear Wheel House Silencer, NO.1
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → 2024-09 ended
GUN156,165,TGN166 VNP —
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
58681-0K060 Sheet, Rear Wheel House Silencer, NO.1
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
58681-0K080 Sheet, Rear Wheel House Silencer, NO.1
2024-02 → 2024-10 ended
GUN15#,16#,TGN156 SAP —
58681-0K080 Sheet, Rear Wheel House Silencer, NO.1
2024-02 → 2024-12 ended
GUN15# KEN —
58681-0K120 Sheet, Rear Wheel House Silencer, NO.1
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
61022C — Pillar Sub-assy, Front Body, LH
61022-KK020 Pillar Sub-assy, Front Body, LH
2023-11 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61022-KK030 Pillar Sub-assy, Front Body, LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61022-KK030 Pillar Sub-assy, Front Body, LH
2023-08 → 2024-12 ended
GUN15# KEN —
61022-KK030 Pillar Sub-assy, Front Body, LH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 SAP —
61022-KK030 Pillar Sub-assy, Front Body, LH
2023-08 → 2024-09 ended
GUN156,165,TGN166 VNP —
61022-KK030 Pillar Sub-assy, Front Body, LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61022-KK030 Pillar Sub-assy, Front Body, LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61022-KK050 Pillar Sub-assy, Front Body, LH
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
61034 — Reinforce Sub-assy, Back Door Opening Side, LH
61034-KK010 Reinforce Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61034-KK010 Reinforce Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61034-KK010 Reinforce Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61034-KK010 Reinforce Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61034-KK010 Reinforce Sub-assy, Back Door Opening Side, LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61744-KK010 note Reinforce Sub-assy, Back Door Opening Side, LH
2023-11 → 2024-10 ended
GUN156 BZAGT —
61072B — Panel Sub-assy, Roof Side, Inner Rear LH
61072-KK010 Panel Sub-assy, Roof Side, Inner Rear LH
2023-11 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61072-KK020 Panel Sub-assy, Roof Side, Inner Rear LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61072-KK020 Panel Sub-assy, Roof Side, Inner Rear LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61072-KK020 Panel Sub-assy, Roof Side, Inner Rear LH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 KENP,SAP —
61072-KK020 Panel Sub-assy, Roof Side, Inner Rear LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61072-KK020 Panel Sub-assy, Roof Side, Inner Rear LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61736-KK010 note Panel Sub-assy, Roof Side, Inner Rear LH
2023-11 → 2024-10 ended
GUN156 BZAGT —
61104G — Gusset Sub-assy, Front Body Pillar, Lower LH
61104-KK010 Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61104-KK010 Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-12 ended
GUN15# KEN —
61104-KK010 Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61104-KK010 Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61104-KK010 Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61104-KK010 Gusset Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61109-KK900 Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61109-KK900 Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-12 ended
GUN15# KEN —
61109-KK900 Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61109-KK900 Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-09 ended
GUN156,165,TGN166 VNP —
61109-KK900 Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61109-KK900 Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61109-KK901 Reinforce Sub-assy, Front Body Pillar, Lower LH
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
61202 — Rail Sub-assy, Roof Side, LH
61202-KK020 Rail Sub-assy, Roof Side, LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61202-KK020 Rail Sub-assy, Roof Side, LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61202-KK020 Rail Sub-assy, Roof Side, LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61202-KK020 Rail Sub-assy, Roof Side, LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61202-KK020 Rail Sub-assy, Roof Side, LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61212 — Rail, Roof Side, Outer LH
61212-KK010 Rail, Roof Side, Outer LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61212-KK010 Rail, Roof Side, Outer LH
2023-08 → 2024-12 ended
GUN15# KEN —
61212-KK010 Rail, Roof Side, Outer LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61212-KK010 Rail, Roof Side, Outer LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61212-KK010 Rail, Roof Side, Outer LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61212-KK010 Rail, Roof Side, Outer LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61236C — Bracket, Assist Grip
61235-KK010 note Bracket, Assist Grip
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61235-KK010 note Bracket, Assist Grip
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61235-KK010 note Bracket, Assist Grip
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61235-KK010 note Bracket, Assist Grip
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61235-KK010 note Bracket, Assist Grip
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61236-KK010 note Bracket, Assist Grip
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61236-KK010 note Bracket, Assist Grip
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61236-KK010 note Bracket, Assist Grip
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61236-KK010 note Bracket, Assist Grip
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61236-KK010 note Bracket, Assist Grip
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61302 — Pillar Sub-assy, Center Body, LH
61302-KK020 Pillar Sub-assy, Center Body, LH
2023-08 → 2024-08 ended
GUN156 CAMP —
61302-KK020 Pillar Sub-assy, Center Body, LH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 KENP,SAP —
61302-KK020 Pillar Sub-assy, Center Body, LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61302-KK030 Pillar Sub-assy, Center Body, LH
2023-09 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP,MAP —
61302-KK030 Pillar Sub-assy, Center Body, LH
2023-09 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61302-KK030 Pillar Sub-assy, Center Body, LH
2023-09 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61302-KK030 Pillar Sub-assy, Center Body, LH
2023-09 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61304 — Reinforce Sub-assy, Center Body Pillar, Upper LH
61304-KK010 Reinforce Sub-assy, Center Body Pillar, Upper LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61304-KK010 Reinforce Sub-assy, Center Body Pillar, Upper LH
2023-08 → 2024-12 ended
GUN15# KEN —
61304-KK010 Reinforce Sub-assy, Center Body Pillar, Upper LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61304-KK010 Reinforce Sub-assy, Center Body Pillar, Upper LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61304-KK010 Reinforce Sub-assy, Center Body Pillar, Upper LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61304-KK010 Reinforce Sub-assy, Center Body Pillar, Upper LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61412A — Reinforcement, Rocker Panel, NO.1 LH
61402-KK903 Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61402-KK903 Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61402-KK903 Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61402-KK903 Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61402-KK903 Reinforcement, Rocker Panel, NO.1 LH
2023-08 → 2024-12 ended
GUN15# KEN —
61402-KK903 Reinforcement, Rocker Panel, NO.1 LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61608H — Panel Sub-assy, Quarter Wheel House, Inner LH
61608-KK040 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-08 ended
GUN155 (IDNP,MAP) IDNP (GEN,IDN,MA,PH,VN) +4 —
61608-KK040 note Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → 2024-10 ended
GUN15#,TGN156 LHD SAP —
61608-KK040 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-10 ended
GUN156 (H,L) RHD (KEN,SA);GGN155,GUN16#,TGN166 +2 —
61608-KK040 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61608-KK040 note Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → 2024-08 ended
GUN155,TGN156 IDNP SA —
61608-KK040 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-07 ended
GUN156,16# THP;GUN155 THP (GEN,TH);GGN155,GUN155 +3 —
61608-KK050 note Panel Sub-assy, Quarter Wheel House, Inner LH
2023-11 → 2024-10 ended
GUN156 BZAGT —
61608-KK070 note Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-08 ended
GUN16#,TGN166 IDN,PH;GGN155,GUN15# IDNP H +1 —
61608-KK070 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-08 ended
GGN155,GUN15#,TGN156,166 IDNP (L,S) (GCC,SA) —
61608-KK070 note Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-07 ended
GGN155,GUN156 THP H GCC —
61608-KK070 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-10 ended
GUN15#,TGN156 LHD SAP —
61608-KK070 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → 2024-07 ended
GGN155,GUN155,TGN156,166 THP (L,S) GCC —
61608-KK070 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61632A — Panel, Quarter Wheel House, Outer LH
61606-KK020 Panel, Quarter Wheel House, Outer LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61606-KK020 Panel, Quarter Wheel House, Outer LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61606-KK020 Panel, Quarter Wheel House, Outer LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61606-KK020 Panel, Quarter Wheel House, Outer LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61606-KK020 Panel, Quarter Wheel House, Outer LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61642B — Gusset, Quarter Wheel House, LH
61642-KK010 Gusset, Quarter Wheel House, LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61642-KK010 Gusset, Quarter Wheel House, LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61642-KK010 Gusset, Quarter Wheel House, LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61642-KK010 Gusset, Quarter Wheel House, LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61642-KK010 Gusset, Quarter Wheel House, LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61646B — Gusset, Quarter Wheel House, Rear LH
61646-0K030 note Gusset, Quarter Wheel House, Rear LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61646-0K030 note Gusset, Quarter Wheel House, Rear LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61646-0K030 note Gusset, Quarter Wheel House, Rear LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61646-0K030 note Gusset, Quarter Wheel House, Rear LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61646-0K030 note Gusset, Quarter Wheel House, Rear LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61646-KK020 note Gusset, Quarter Wheel House, Rear LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61646-KK020 note Gusset, Quarter Wheel House, Rear LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61646-KK020 note Gusset, Quarter Wheel House, Rear LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61646-KK020 note Gusset, Quarter Wheel House, Rear LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61646-KK020 note Gusset, Quarter Wheel House, Rear LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61653B — Bracket, Deck Side Trim
61653-0K040 note Bracket, Deck Side Trim
2023-11 → 2024-10 ended
GUN156 BZAGT —
61656A — Gusset, Quarter Wheel House, Inner LH
61656-KK010 Gusset, Quarter Wheel House, Inner LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,KENP,SAP —
61656-KK010 Gusset, Quarter Wheel House, Inner LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61656-KK010 Gusset, Quarter Wheel House, Inner LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61656-KK010 Gusset, Quarter Wheel House, Inner LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61656-KK010 Gusset, Quarter Wheel House, Inner LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61689B — Lining, Quarter Panel Reinforcement, LH
61689-0K010 Lining, Quarter Panel Reinforcement, LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61689-0K010 Lining, Quarter Panel Reinforcement, LH
2023-08 → 2024-08 ended
GUN15#,TGN156 CAMP,MAP —
61689-0K010 Lining, Quarter Panel Reinforcement, LH
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61689-0K010 Lining, Quarter Panel Reinforcement, LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61689-0K030 Lining, Quarter Panel Reinforcement, LH
2023-09 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
61689-0K030 Lining, Quarter Panel Reinforcement, LH
2023-09 → 2024-09 ended
GUN156,165,TGN166 VNP —
61689-0K040 Lining, Quarter Panel Reinforcement, LH
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
61706A — Frame Sub-assy, Back Door Opening Side, LH
61706-KK011 Frame Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61706-KK011 Frame Sub-assy, Back Door Opening Side, LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61706-KK011 Frame Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-12 ended
GUN15# KEN —
61706-KK011 Frame Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61706-KK011 Frame Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61706-KK011 Frame Sub-assy, Back Door Opening Side, LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61725E — Box, Fuel Inlet
61725-KK080 Box, Fuel Inlet
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61725-KK080 Box, Fuel Inlet
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61725-KK080 Box, Fuel Inlet
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61725-KK080 Box, Fuel Inlet
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61725-KK080 Box, Fuel Inlet
2023-08 → 2024-12 ended
GUN15# KEN —
61725-KK080 Box, Fuel Inlet
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61732B — Panel, Roof Side, Inner LH
61732-KK010 Panel, Roof Side, Inner LH
2023-11 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
61732-KK020 Panel, Roof Side, Inner LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61732-KK020 Panel, Roof Side, Inner LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
61732-KK020 Panel, Roof Side, Inner LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61732-KK020 Panel, Roof Side, Inner LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61732-KK020 Panel, Roof Side, Inner LH
2023-08 → 2024-10 ended
GUN15#,16#,TGN156 KENP,SAP —
61765A — Reinforcement, Seat Belt Anchor, NO.2 LH
61078-KK900 Reinforcement, Seat Belt Anchor, NO.2 LH
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
61078-KK900 Reinforcement, Seat Belt Anchor, NO.2 LH
2023-08 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 CAMP,IDNP,MAP —
61078-KK900 Reinforcement, Seat Belt Anchor, NO.2 LH
2023-08 → 2024-09 ended
GUN156,16#,TGN166 INDP,VNP —
61078-KK900 Reinforcement, Seat Belt Anchor, NO.2 LH
2023-08 → 2024-10 ended
GGN155,GUN15#,16#,TGN156,166 AGTP,SAP —
61078-KK900 Reinforcement, Seat Belt Anchor, NO.2 LH
2023-08 → 2024-12 ended
GUN15# KEN —
61078-KK900 Reinforcement, Seat Belt Anchor, NO.2 LH
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
67874H — Weatherstrip, Center Door, Upper NO.2
67874-0K041 Weatherstrip, Center Door, Upper NO.2
2023-08 → —
GGN155,GUN156,TGN156,166 EPT,PKN —
67874-0K041 Weatherstrip, Center Door, Upper NO.2
2023-08 → 2024-10 ended
GGN155,GUN156,165,TGN156,166 AGTP —
67874-0K041 Weatherstrip, Center Door, Upper NO.2
2023-08 → 2024-08 ended
GUN156 CAMP —
67874-0K041 Weatherstrip, Center Door, Upper NO.2
2023-08 → 2024-07 ended
GGN155,GUN15#,16#,TGN156,166 THP —
67874-0K051 Weatherstrip, Center Door, Upper NO.2
2024-02 → 2024-10 ended
GUN15#,16#,TGN156 KENP,SAP —
67874-0K061 Weatherstrip, Center Door, Upper NO.2
2023-10 → 2024-09 ended
GUN156,166,TGN166 IND —
67874-0K071 Weatherstrip, Center Door, Upper NO.2
2023-09 → 2024-08 ended
GGN155,GUN15#,16#,TGN156,166 IDNP —
67874-0K071 Weatherstrip, Center Door, Upper NO.2
2023-09 → 2024-09 ended
GUN156,165,TGN166 VNP —
67874-0K081 Weatherstrip, Center Door, Upper NO.2
2023-09 → 2024-08 ended
GUN15#,TGN156 MA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
