Toyota Fortuner (SUV)
2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General
Supported model
Data version 2024-11

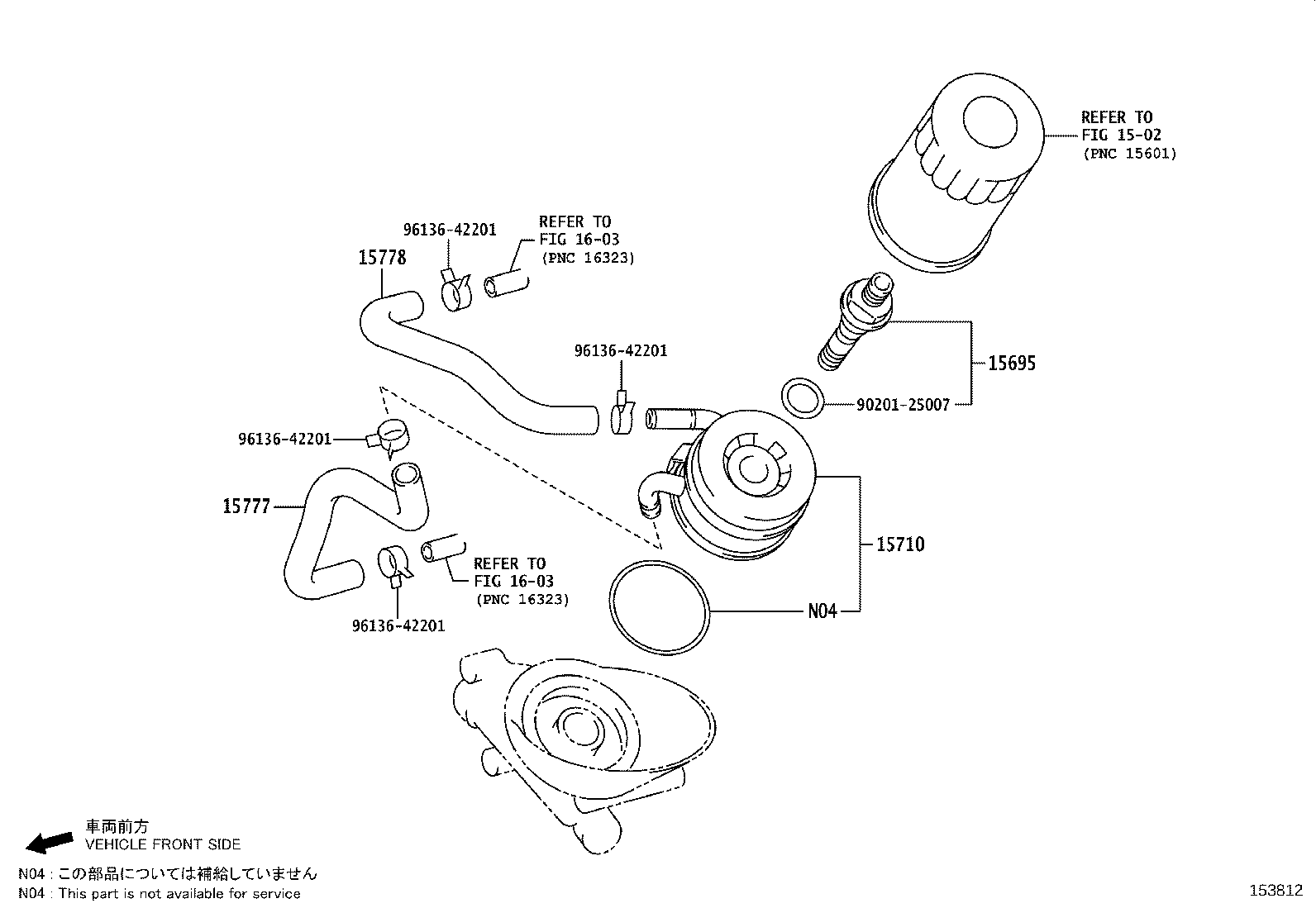

Engine Oil Cooler
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15071 | Cooler Set, Engine Oil |
| 15695 | Bolt, Oil Cooler Union |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15723 | Ring, O |
| 15777 | Hose, Oil Cooler |
| 15777E | Union |
| 15778 | Hose, Oil Cooler, NO.2 |
| 16281H | Hose, Water By-pass, NO.4 |
| 16345A | Gasket, Water Outlet Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
