Toyota Fortuner (SUV)
2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General
Supported model
Data version 2024-11
Starter
18 part groups · 9 illustrations
Part groups

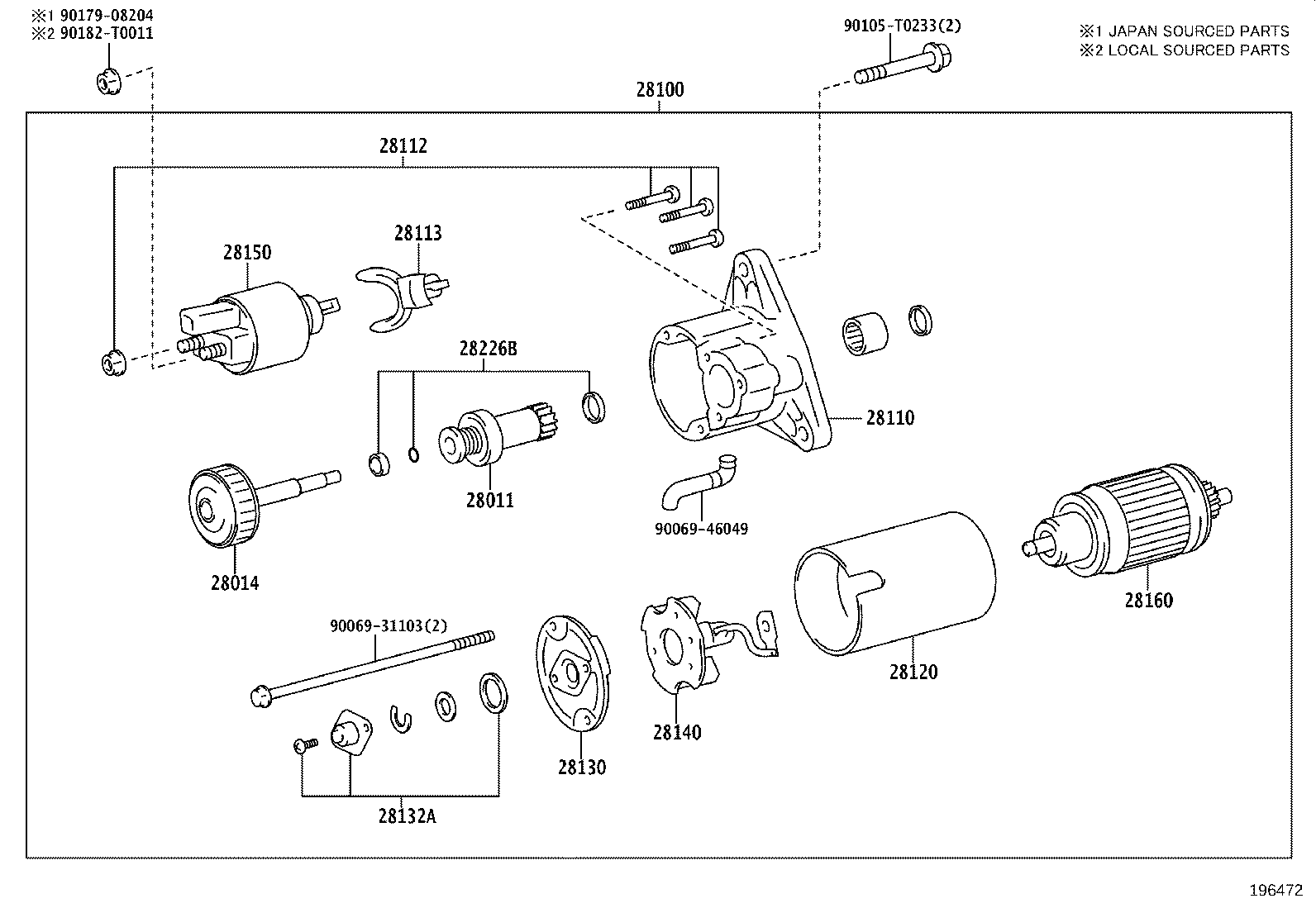

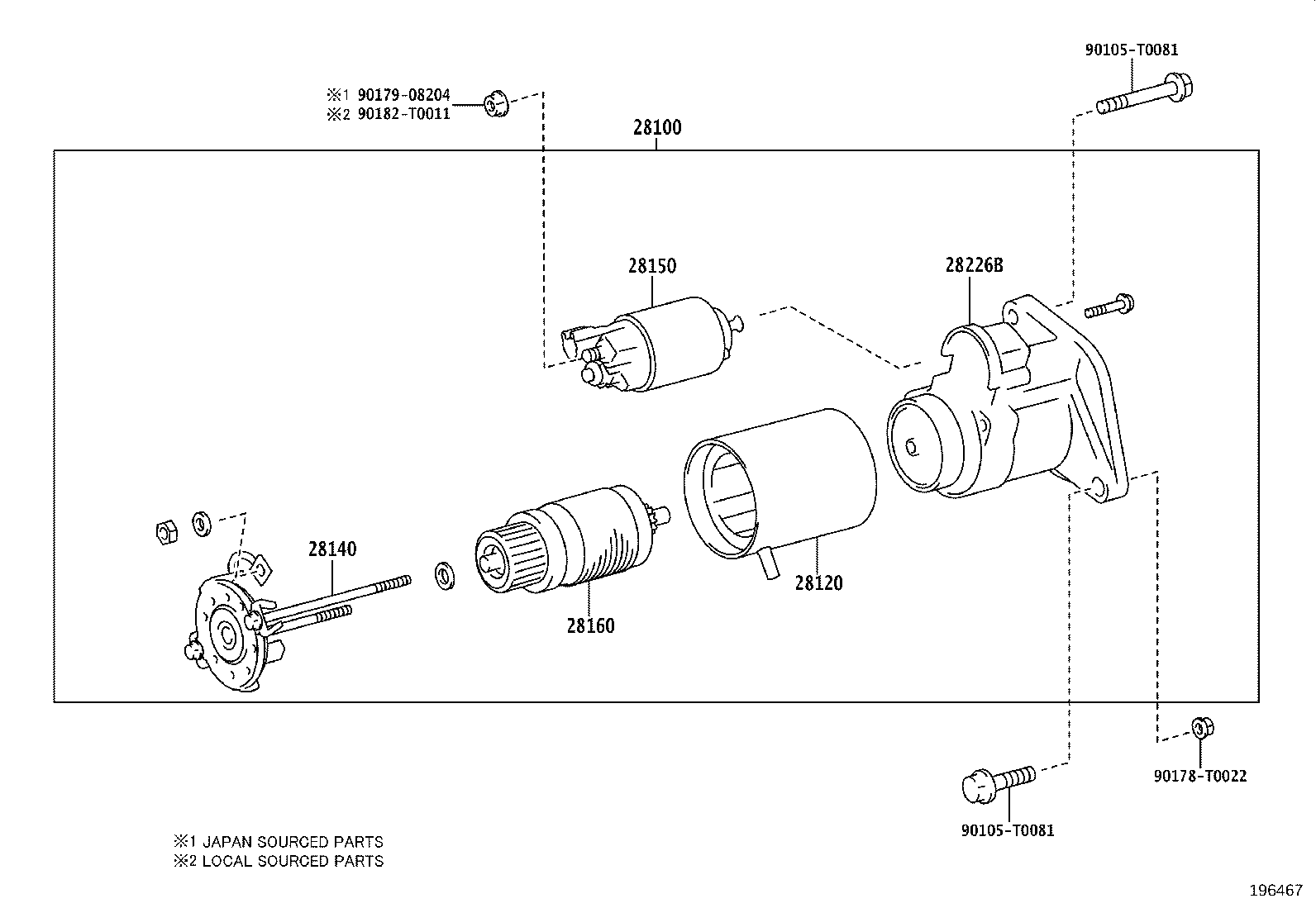

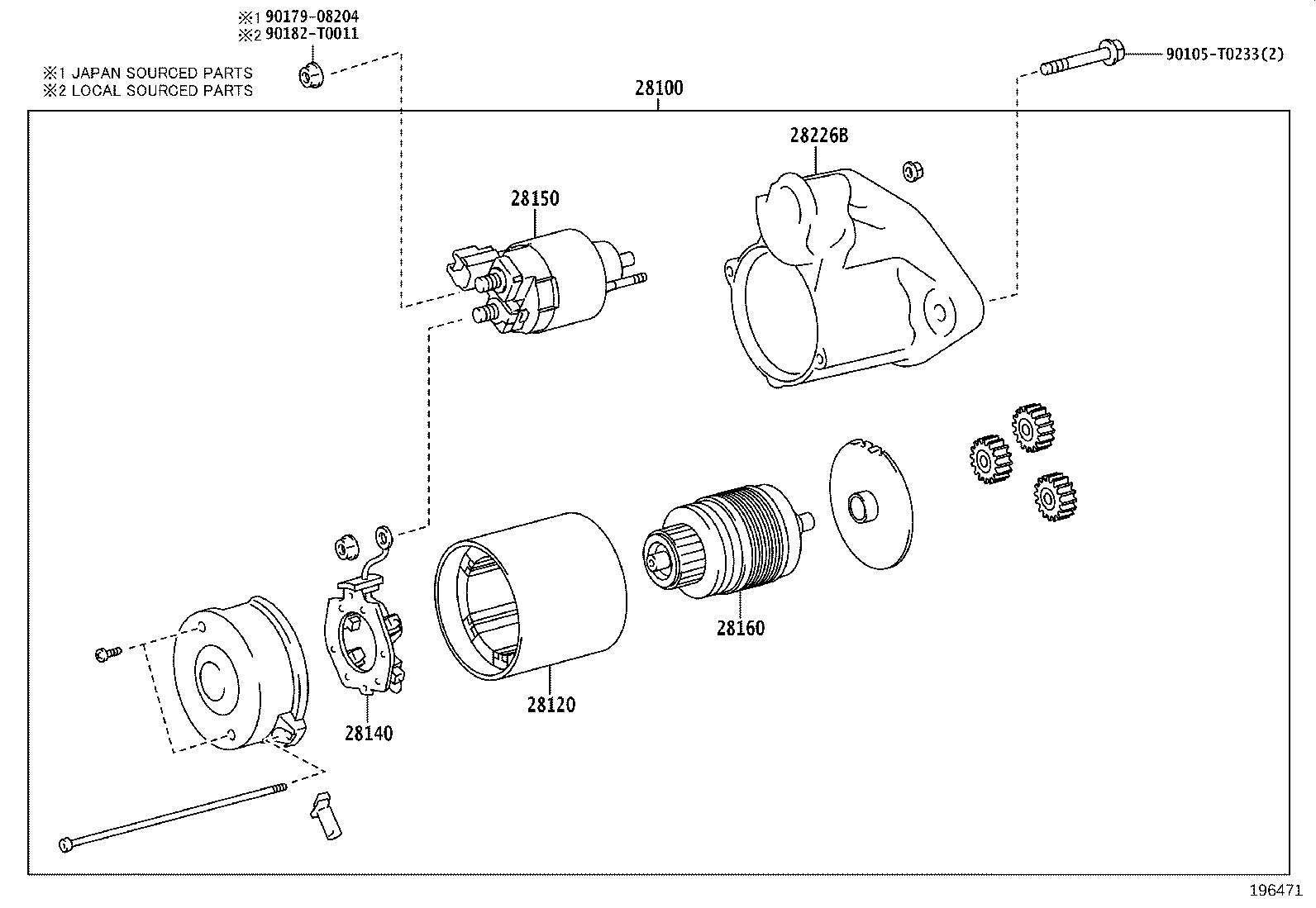

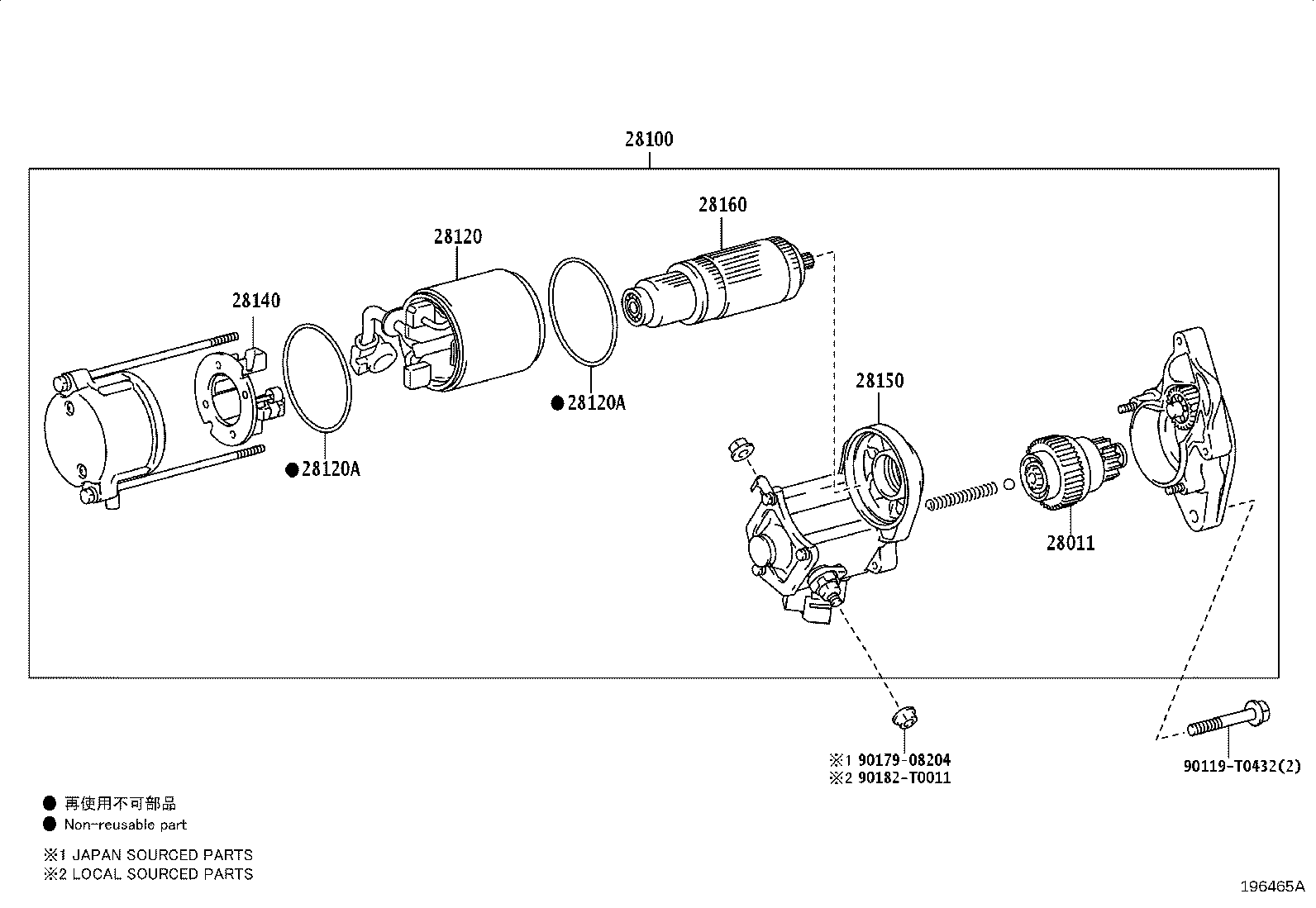

| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28014 | Shaft Sub-assy, Planet Carrier |

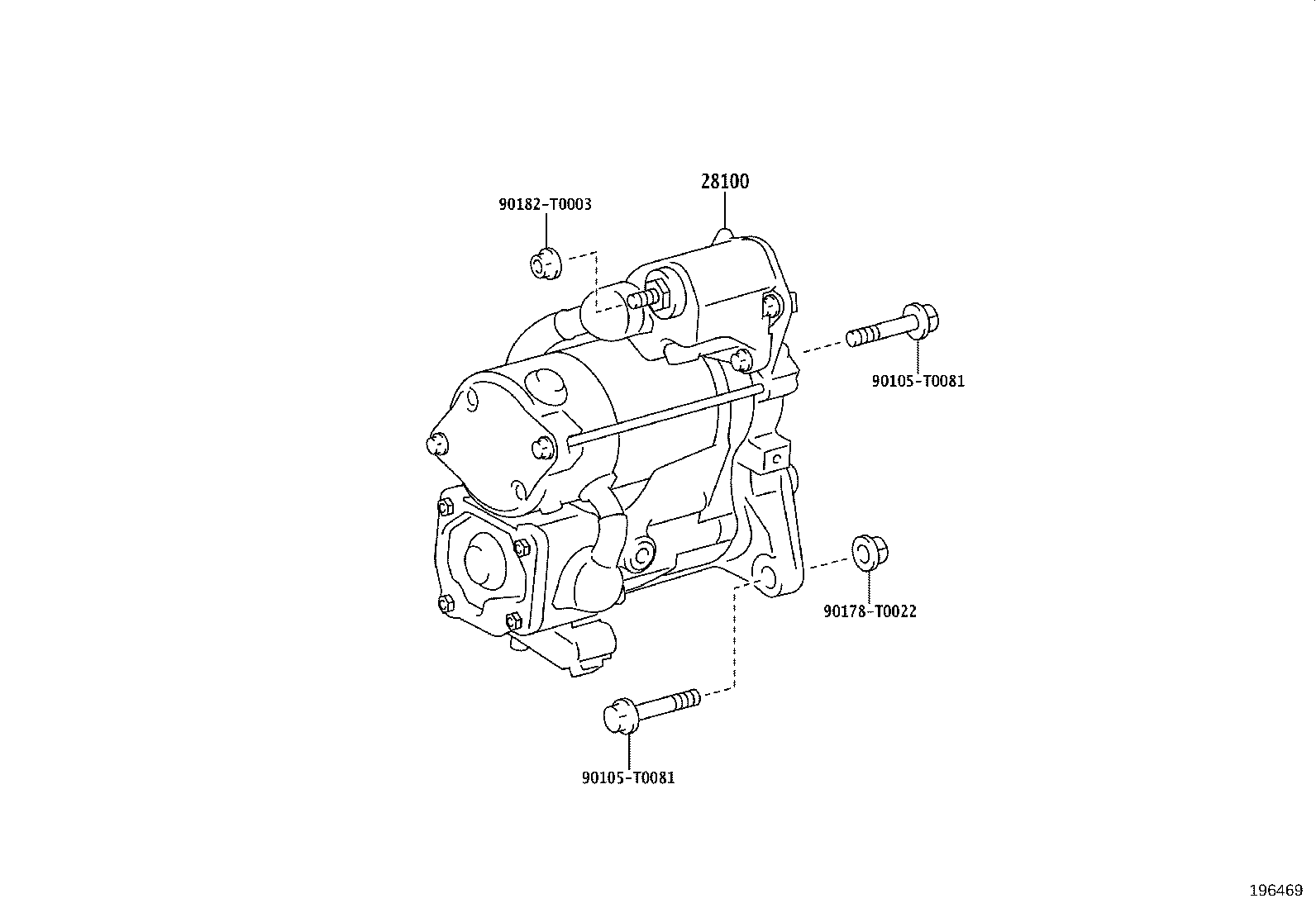

| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28112 | Bolt, Housing Set |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28130 | Frame Assy, Starter Commutator End |
| 28132A | Cover, Starter Commutator End Frame |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28226B | Starter Kit, Repair Service |

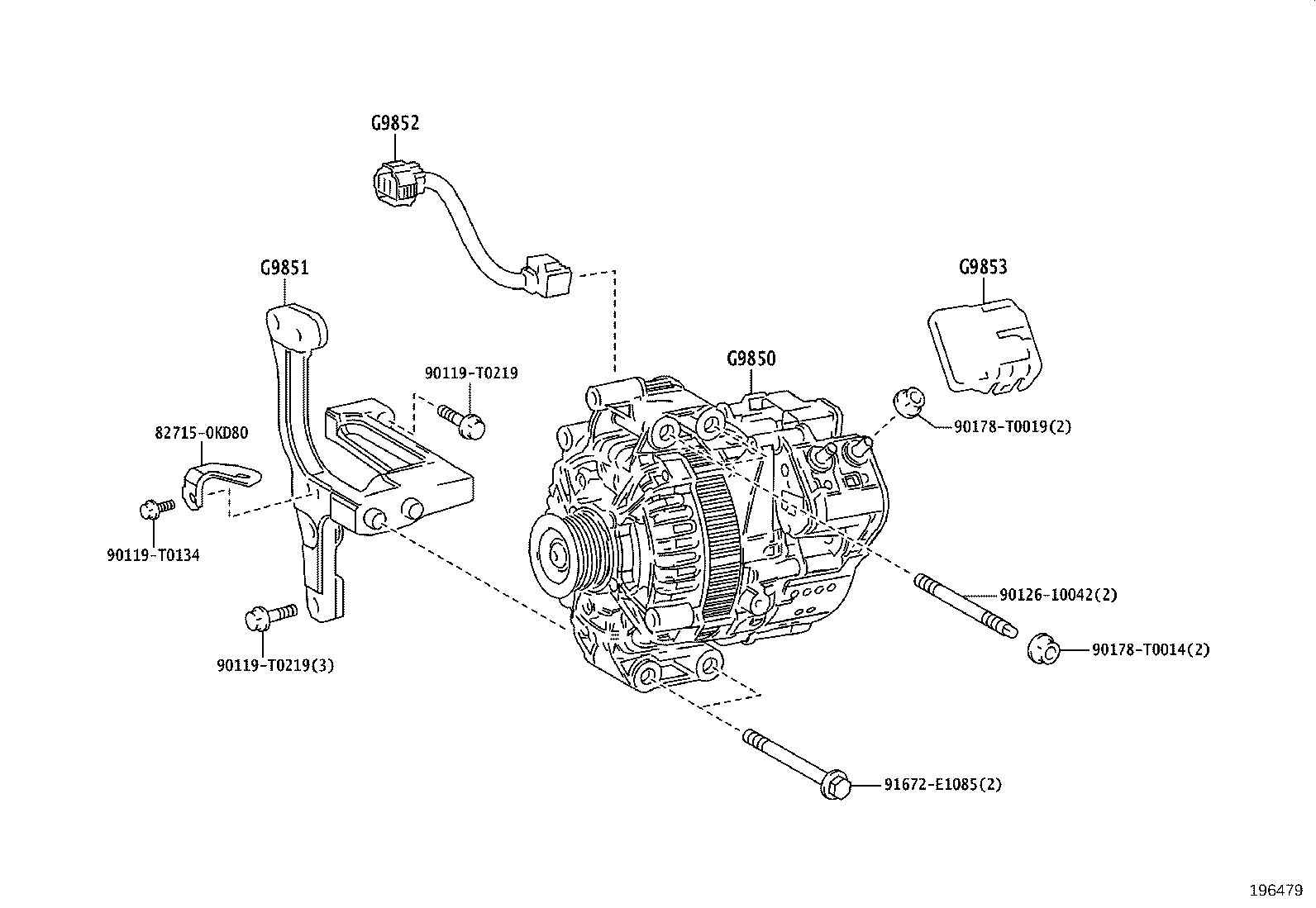

| G9850 | Motor Assy, 48V Control Starter Generator |
| G9851 | Bracket, 48V Control Starter Generator |
| G9852 | Wire, 48V Control Starter Generator |
| G9853 | Cover, 48V Control Starter Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
