Toyota Fortuner (SUV)

2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 6 illustrations

Illustrations

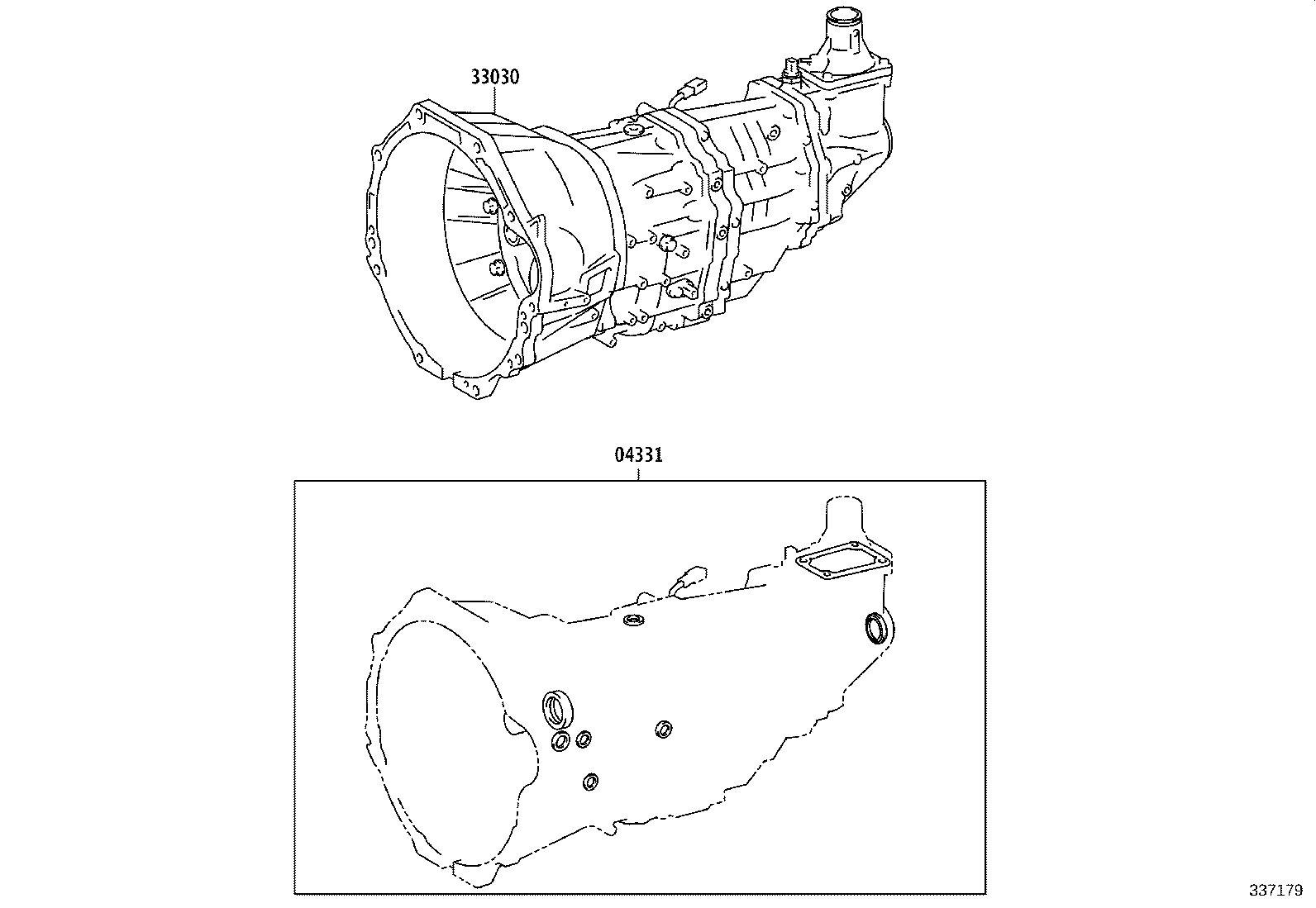

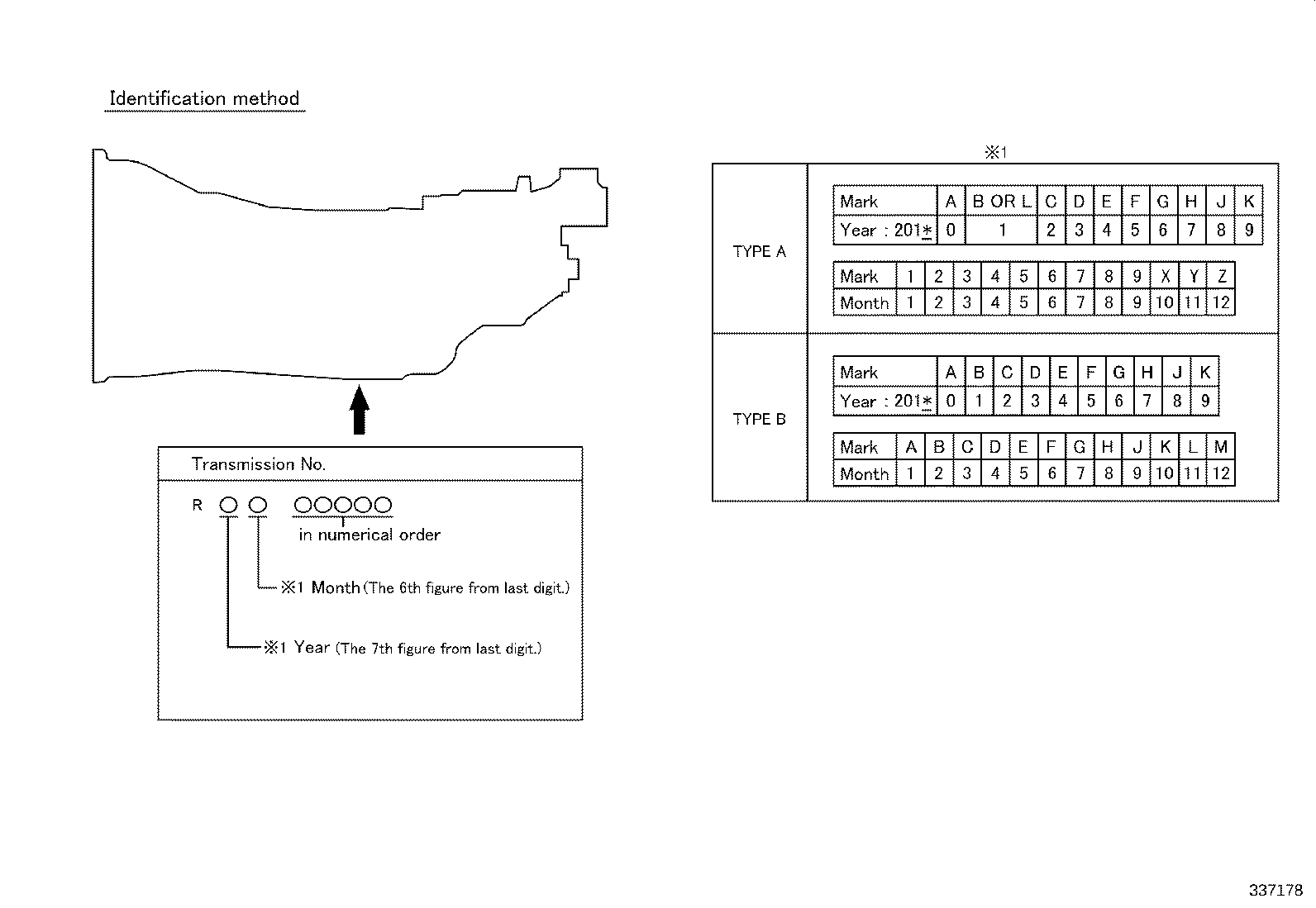

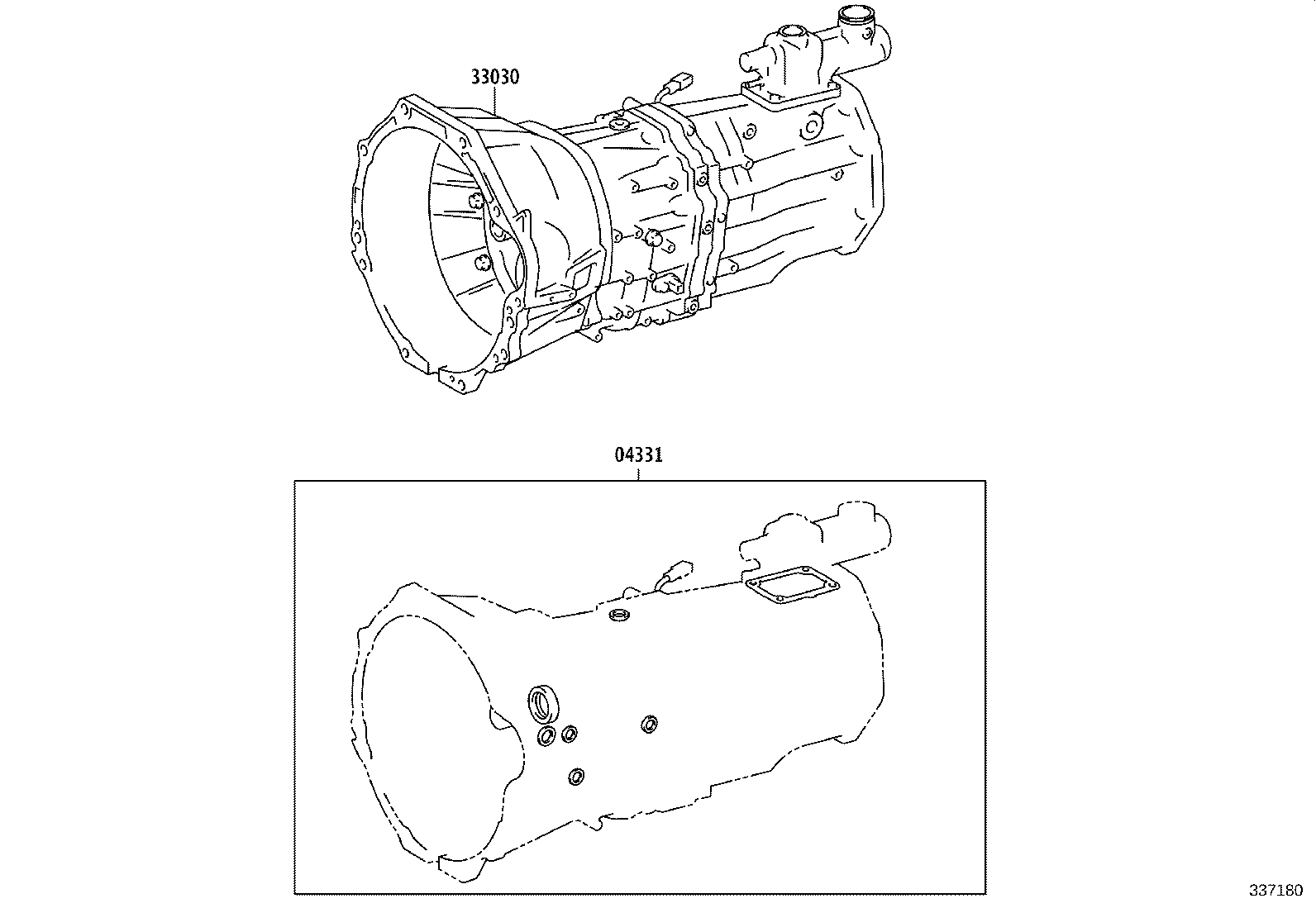

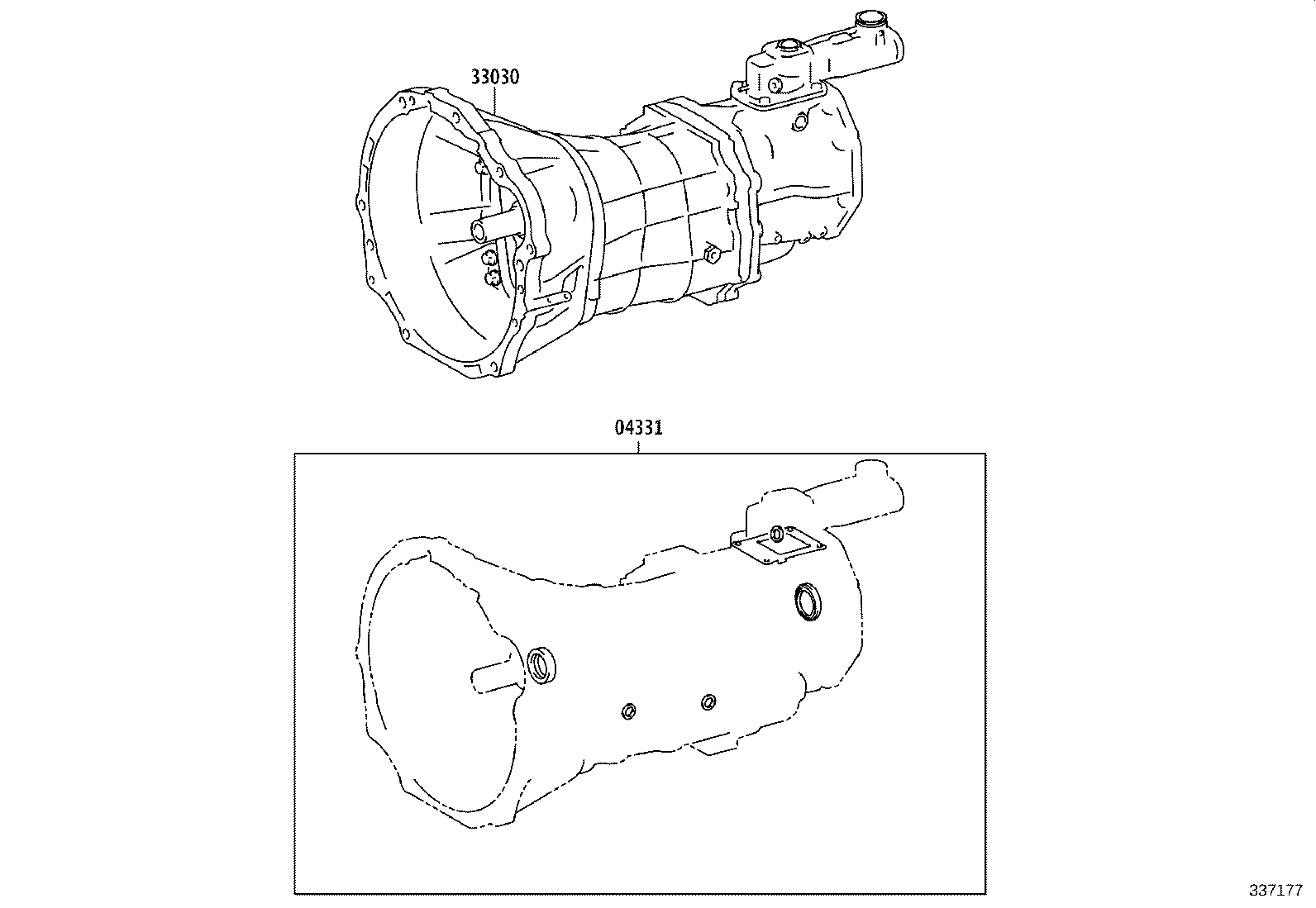

Figure 337176 337176 2023-10 → — Figure 337177 337177 2023-09 → — Figure 337178 337178 2023-09 → — Figure 337179 337179 2023-09 → — Figure 337180 337180 2023-09 → — Figure 337181 337181 2023-09 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
