Toyota Fortuner (SUV)

2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

8 part groups · 6 illustrations

Illustrations

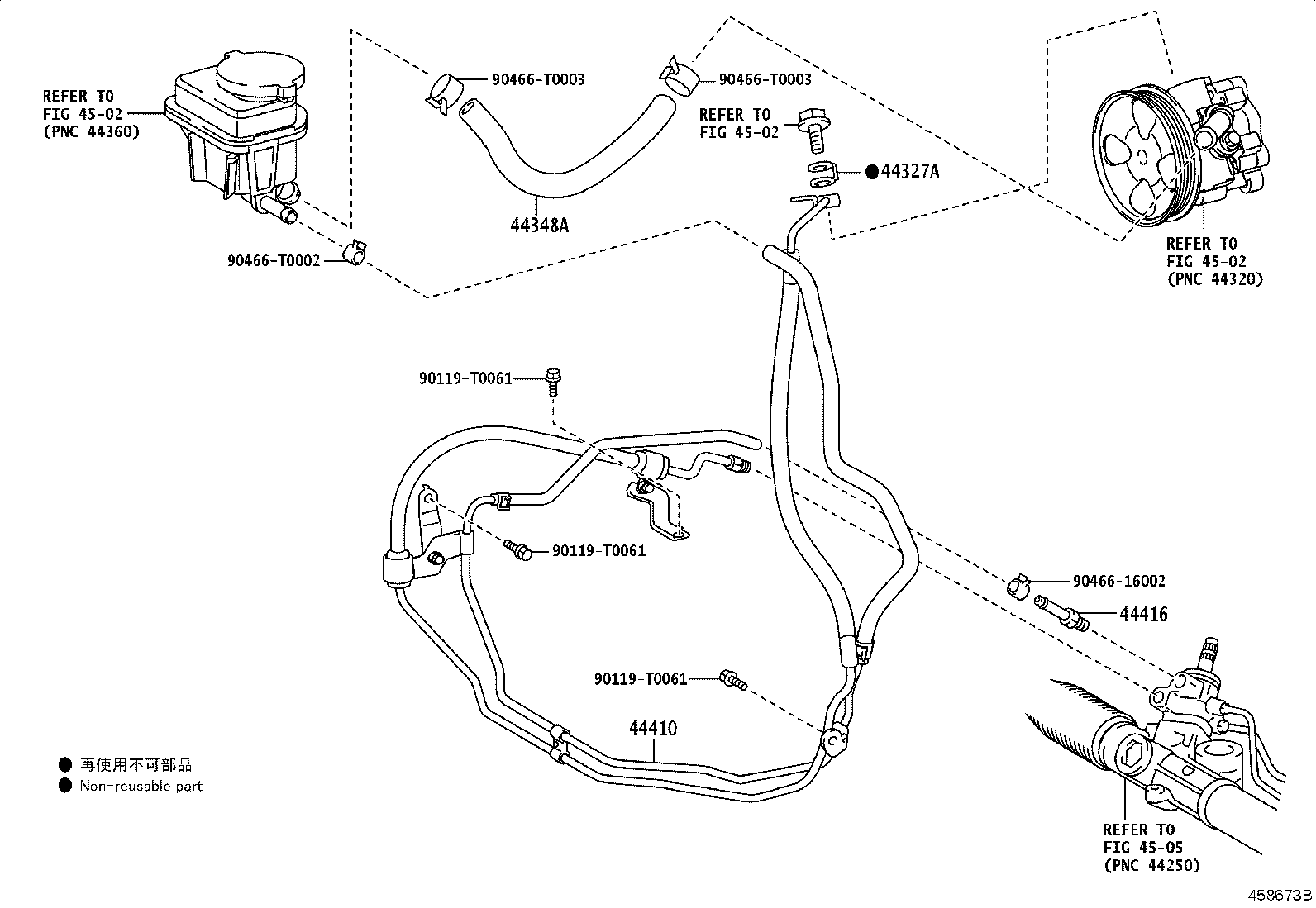

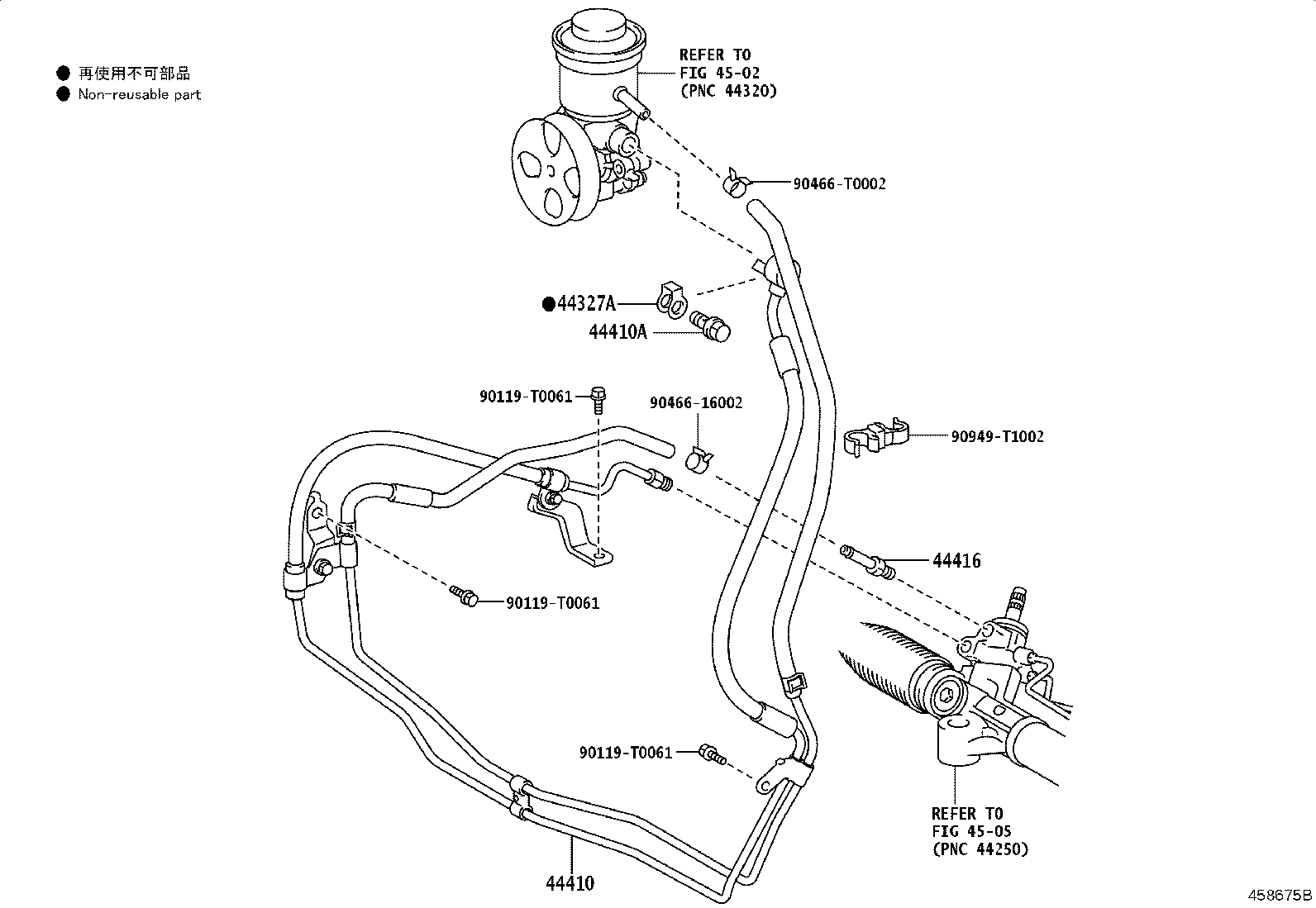

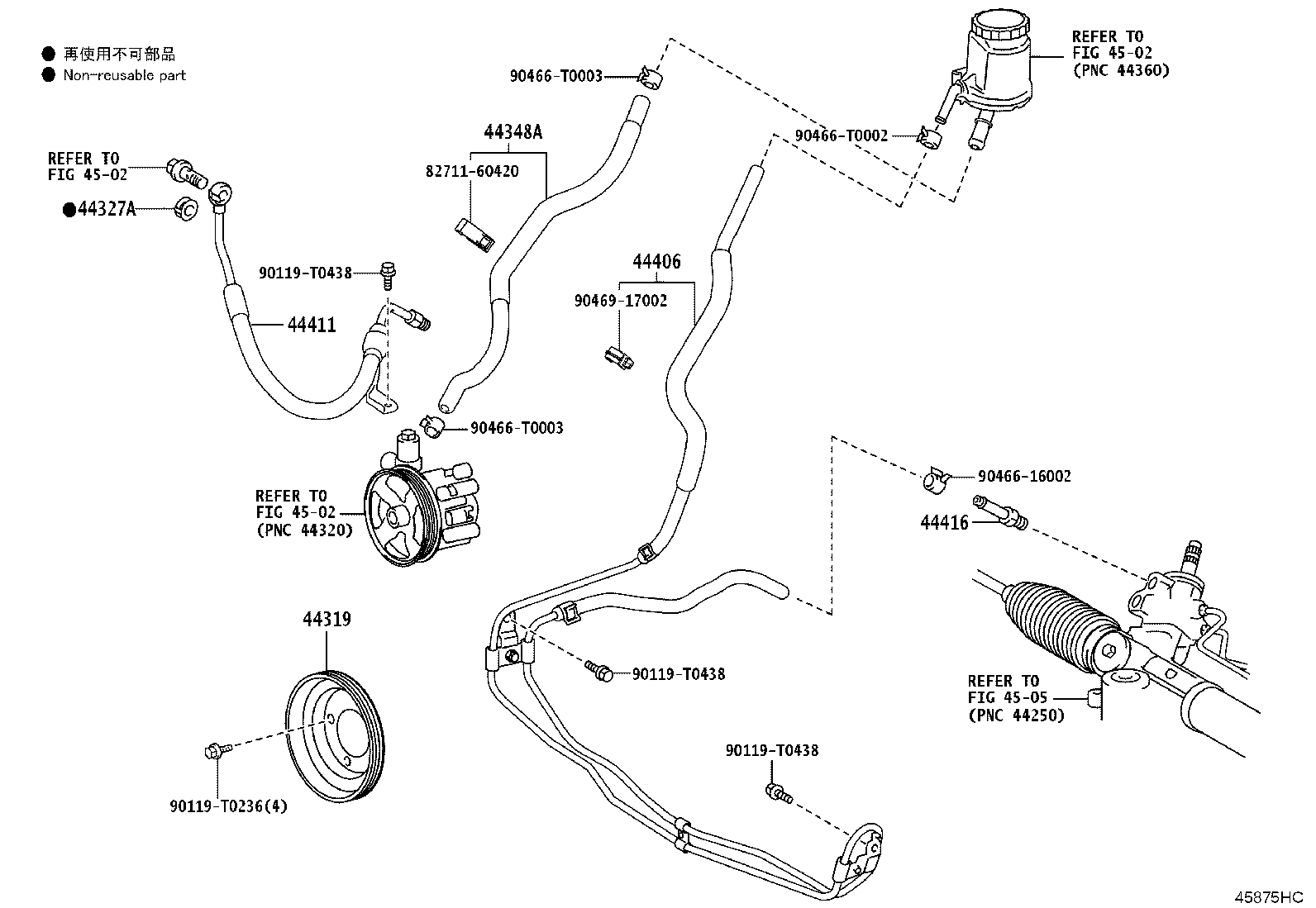

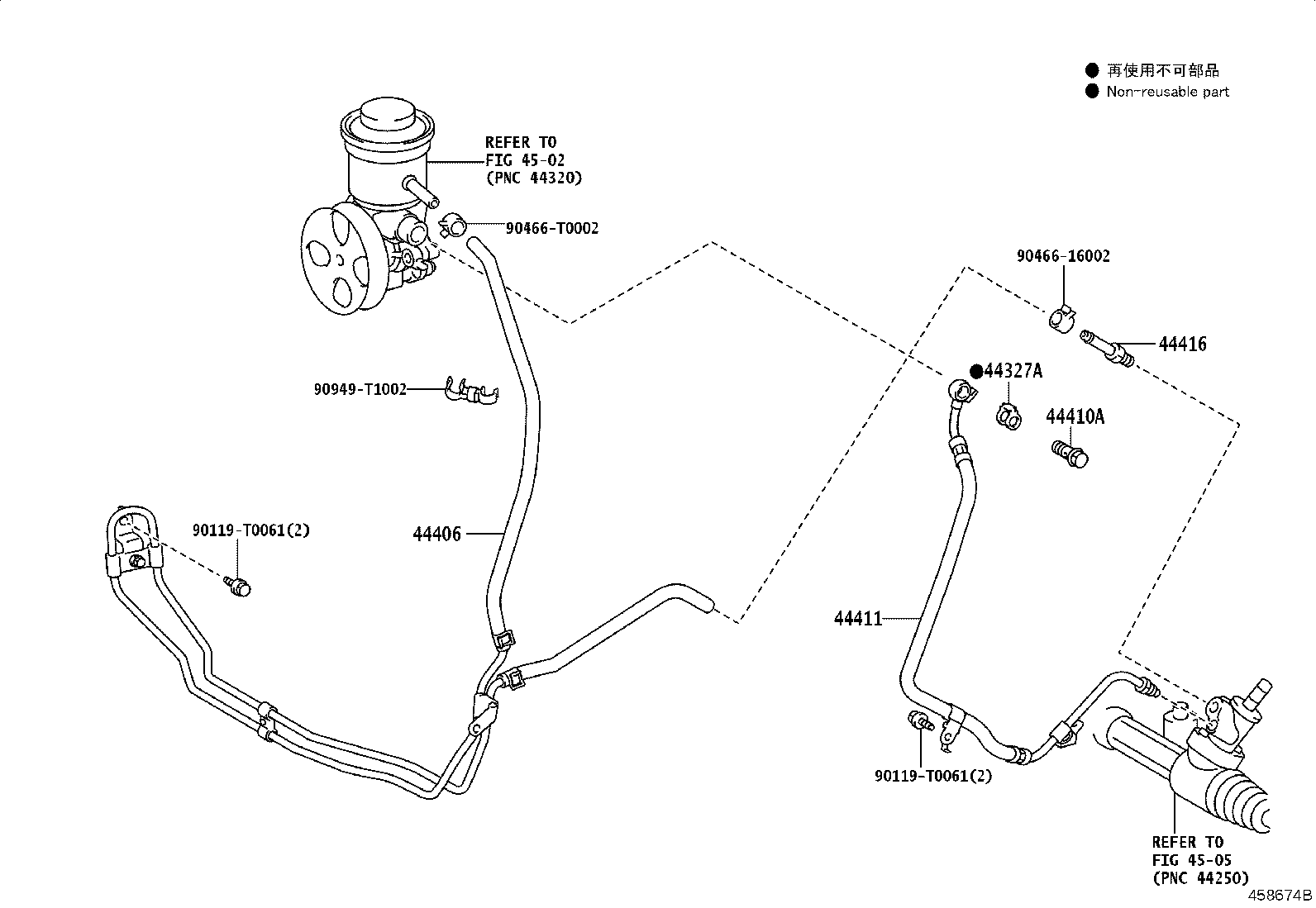

Figure 458671B 458671B 2023-08 → — Figure 458672B 458672B 2023-08 → — Figure 458673B 458673B 2023-08 → — Figure 458674B 458674B 2023-08 → — Figure 458675B 458675B 2023-08 → — Figure 45875HC 45875HC 2024-02 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
