Toyota Fortuner (SUV)
2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General
Supported model
Data version 2024-11

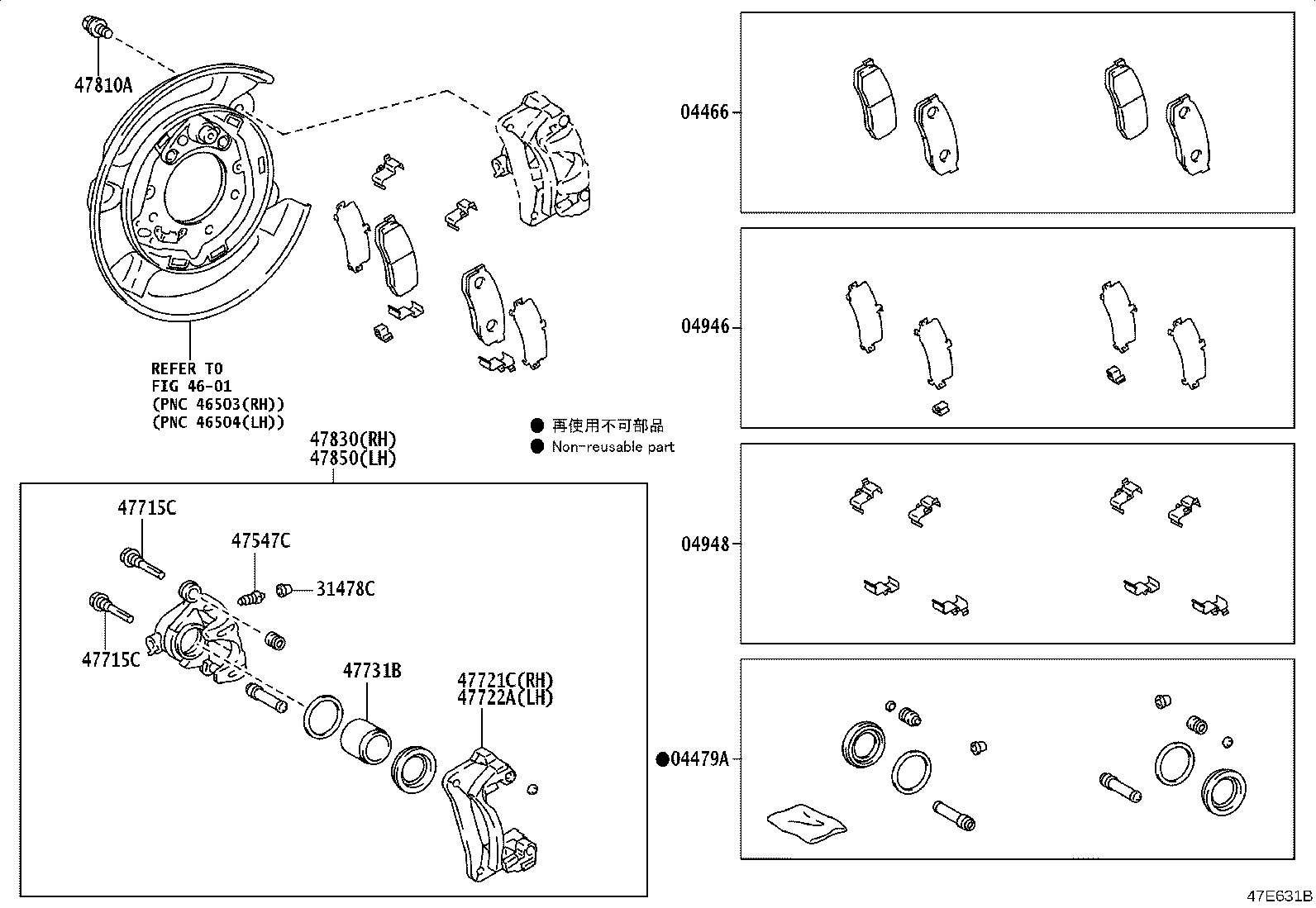

Rear Disc Brake Caliper & Dust Cover
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04479A | Cylinder Kit, Disc Brake, Rear |
| 04946 | Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 04951A | Bush Kit, Disc Brake, Rear |
| 04952A | Pin Kit, Rear Disc Brake Cylinder Slide |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47715C | Pin, Cylinder Slide(FOR REAR DISC BRAKE) |
| 47715E | Bolt(FOR REAR DISC BRAKE CYLINDER SLIDE) |
| 4771AB | Ornament, Brake Caliper Mark, RH |
| 4771AC | Ornament, Brake Caliper Mark, LH |
| 47721C | Mounting, Rear Disc Brake Cylinder, RH |
| 47722A | Mounting, Rear Disc Brake Cylinder, LH |
| 47731B | Piston, Rear Disc Brake |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
| 47814 | Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) |
| 47815 | Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE) |
| 47830 | Cylinder Assy, Disc Brake, Rear RH |
| 47850 | Cylinder Assy, Disc Brake, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
