Toyota Fortuner (SUV)
2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General
Supported model
Data version 2024-11

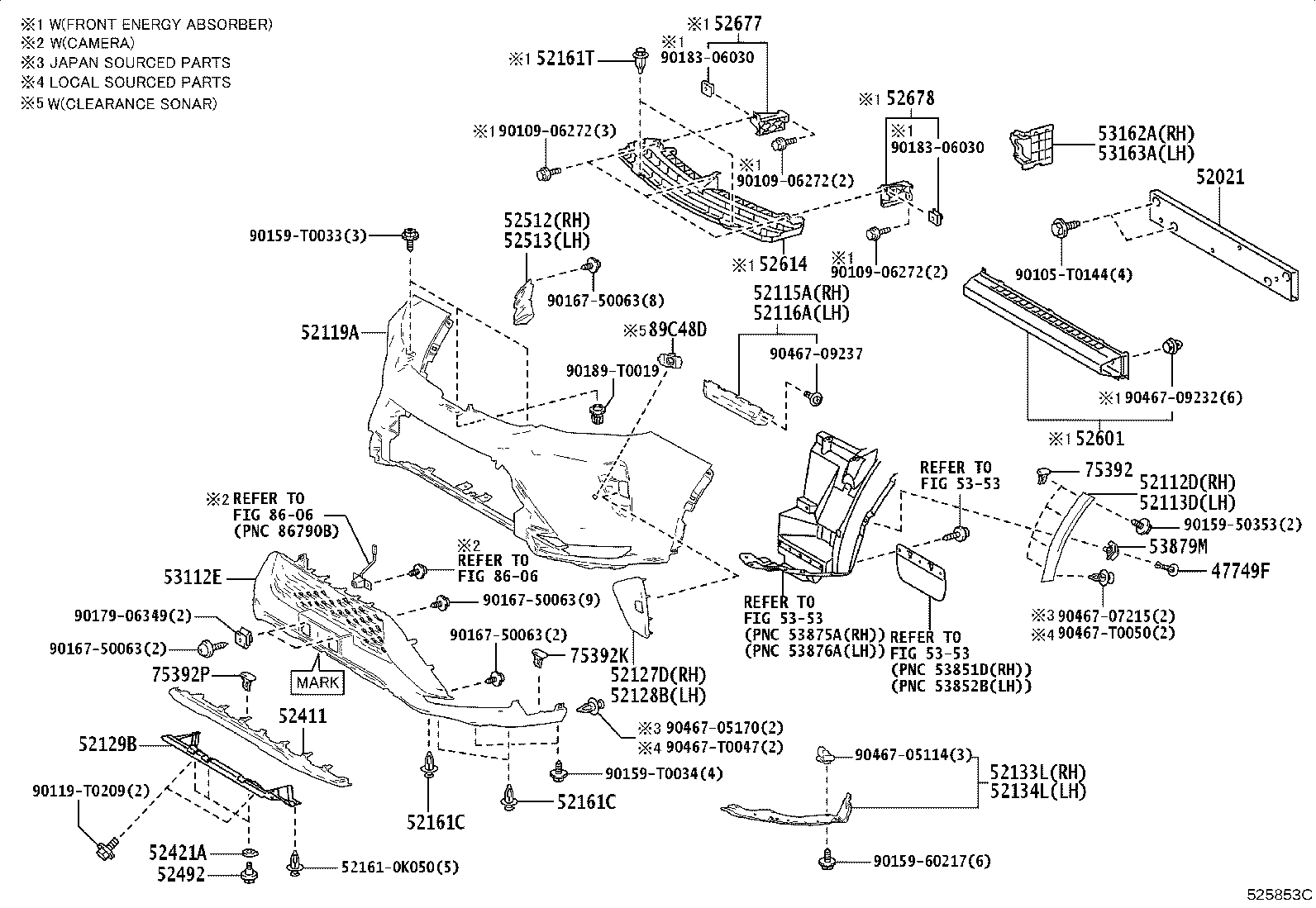

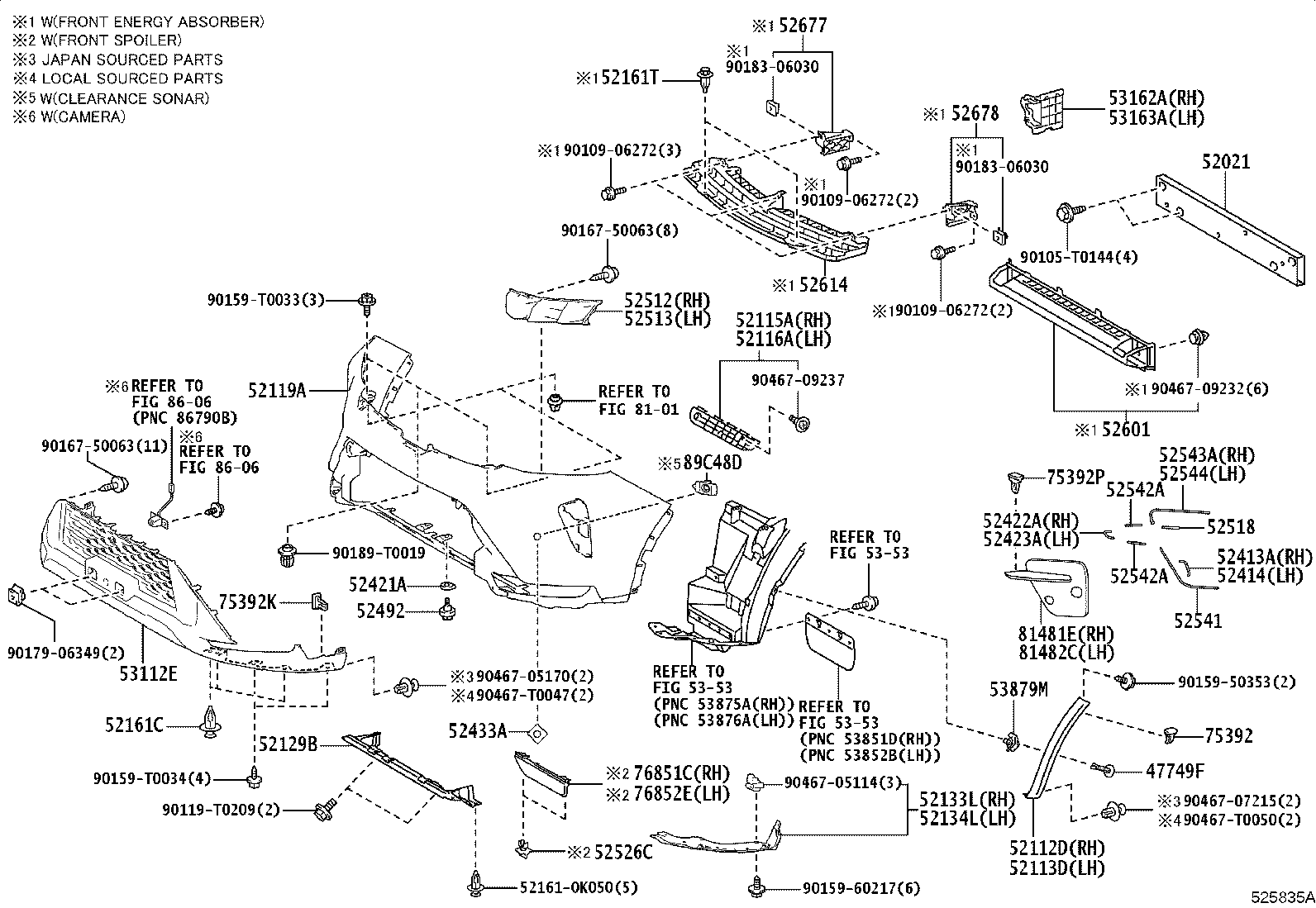

Front Bumper & Bumper Stay
48 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52133L | Extension, Front Bumper, NO.2 RH |
| 52134L | Extension, Front Bumper, NO.2 LH |
| 52161C | Piece, Front Bumper |
| 52161T | Piece, Front Bumper |
| 52411 | Guard, Front Bumper |
| 52413A | Pad, Front Bumper Guard, RH |
| 52414 | Pad, Front Bumper Guard, LH |
| 52421A | Pad, Front Bumper |
| 52422A | Pad, Front Bumper, RH |
| 52423A | Pad, Front Bumper, LH |
| 52433A | Plug, Front Bumper Cover Hole |
| 52492 | Bolt, Bumper Pad, NO.2 |
| 52512 | Filler, Front Bumper, RH |
| 52513 | Filler, Front Bumper, LH |
| 52518 | Pad, Front Bumper Filler |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52526C | Retainer, Front Bumper, Lower |
| 52541 | Protector, Front Bumper |
| 52542A | Protector, Front Bumper, NO.2 |
| 52543A | Seal, Front Bumper Side |
| 52544 | Seal, Front Bumper Side, LH |
| 52601 | Absorber Sub-assy, Front Bumper Energy |
| 52614 | Absorber, Front Bumper Energy, NO.2 |
| 52677 | Support, Front Bumper Side, NO.2, RH |
| 52678 | Support, Front Bumper Side, NO.2, LH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53162A | Deflector, Front Bumper Stone, RH |
| 53163A | Deflector, Front Bumper Stone, LH |
| 53879M | Retainer, Front Fender Liner |
| 75392 | Retainer, Outside Moulding |
| 75392K | Retainer, Outside Moulding, NO.2 |
| 75392P | Retainer, Outside Moulding, NO.3 |
| 76851C | Front Spoiler |
| 76852E | Spoiler, Front, LH |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
