Toyota Fortuner (SUV)
2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General
Supported model
Data version 2024-11

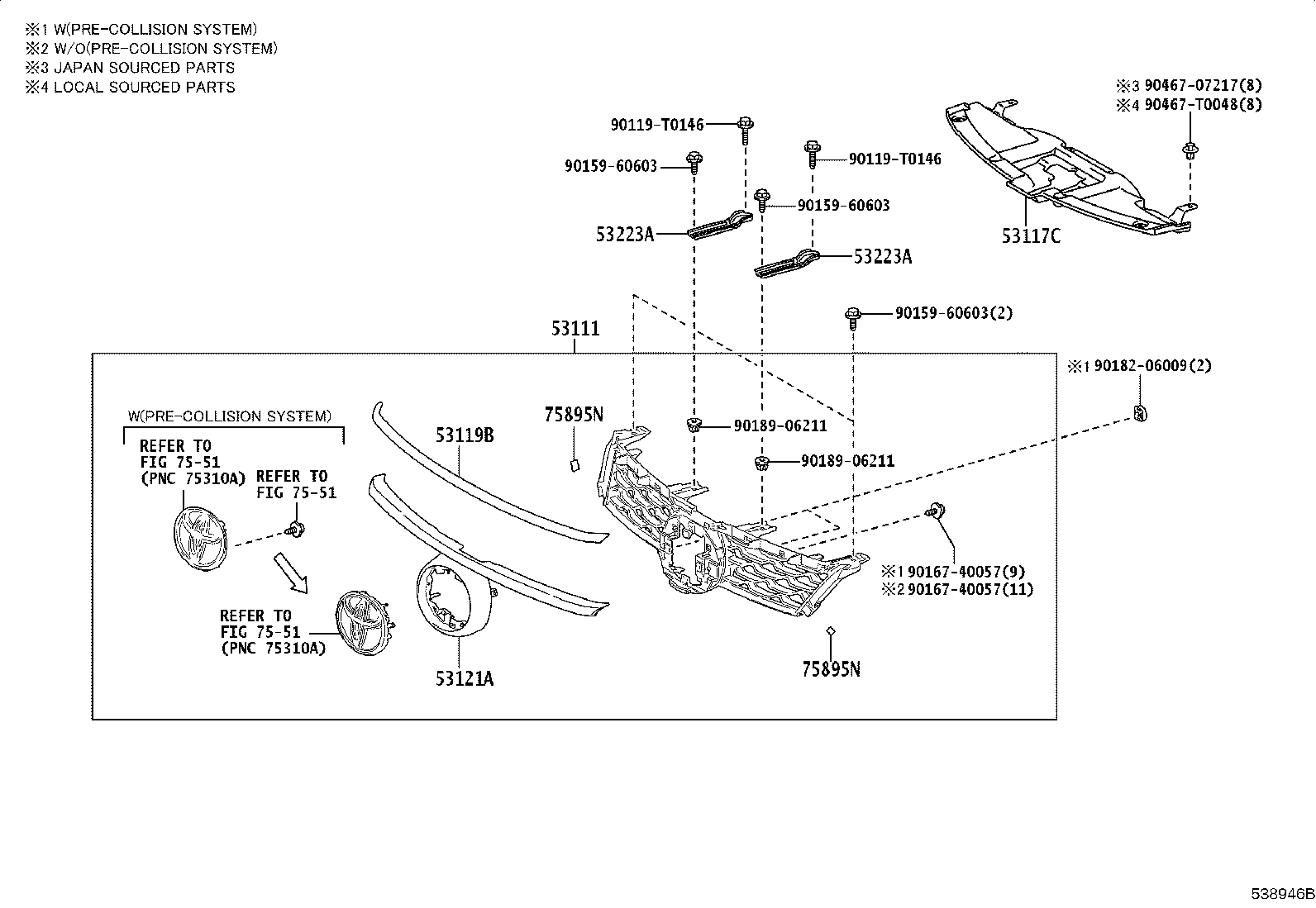

Radiator Grille
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53111F | Moulding, Radiator Grille, Center |
| 53117C | Retainer, Radiator Grille, NO.1 |
| 53119B | Protector, Radiator Grille |
| 53121A | Moulding, Radiator Grille |
| 53121B | Moulding, Radiator Grille, Upper |
| 53121F | Moulding, Radiator Grille, Upper RH |
| 53122A | Moulding, Radiator Grille, Lower |
| 53124C | Moulding, Radiator Grille, Upper LH |
| 53126C | Moulding, Radiator Grille, NO.6 |
| 53129B | Moulding, Radiator Grille, NO.9 |
| 53223A | Bracket, Radiator Grille Mounting |
| 75895N | Tape, Moulding, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
