Toyota Fortuner (SUV)
2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General
Supported model
Data version 2024-11
Battery & Battery Cable
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

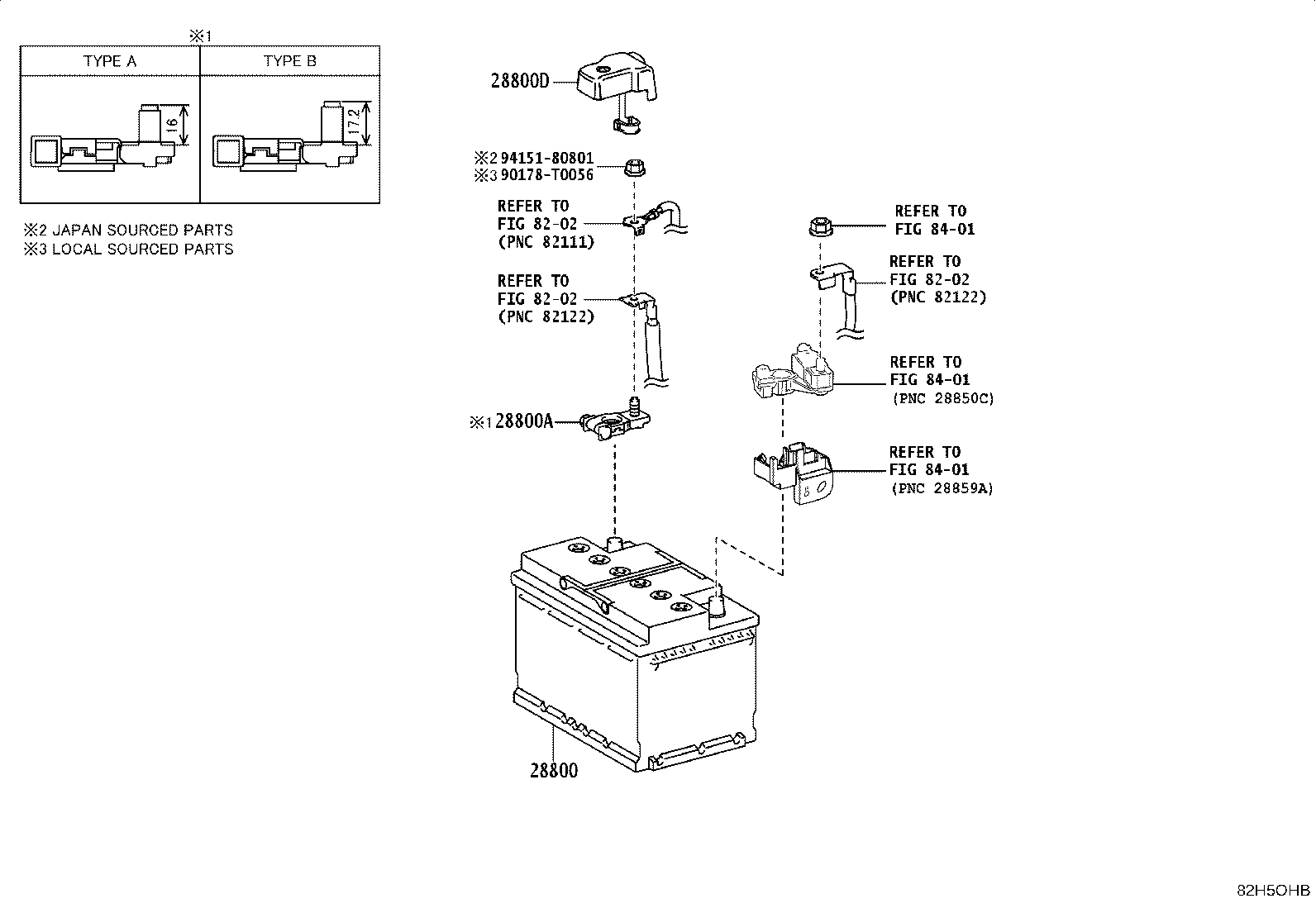

| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28898 | Plate, Battery |
| 28899 | Insulator, Battery |

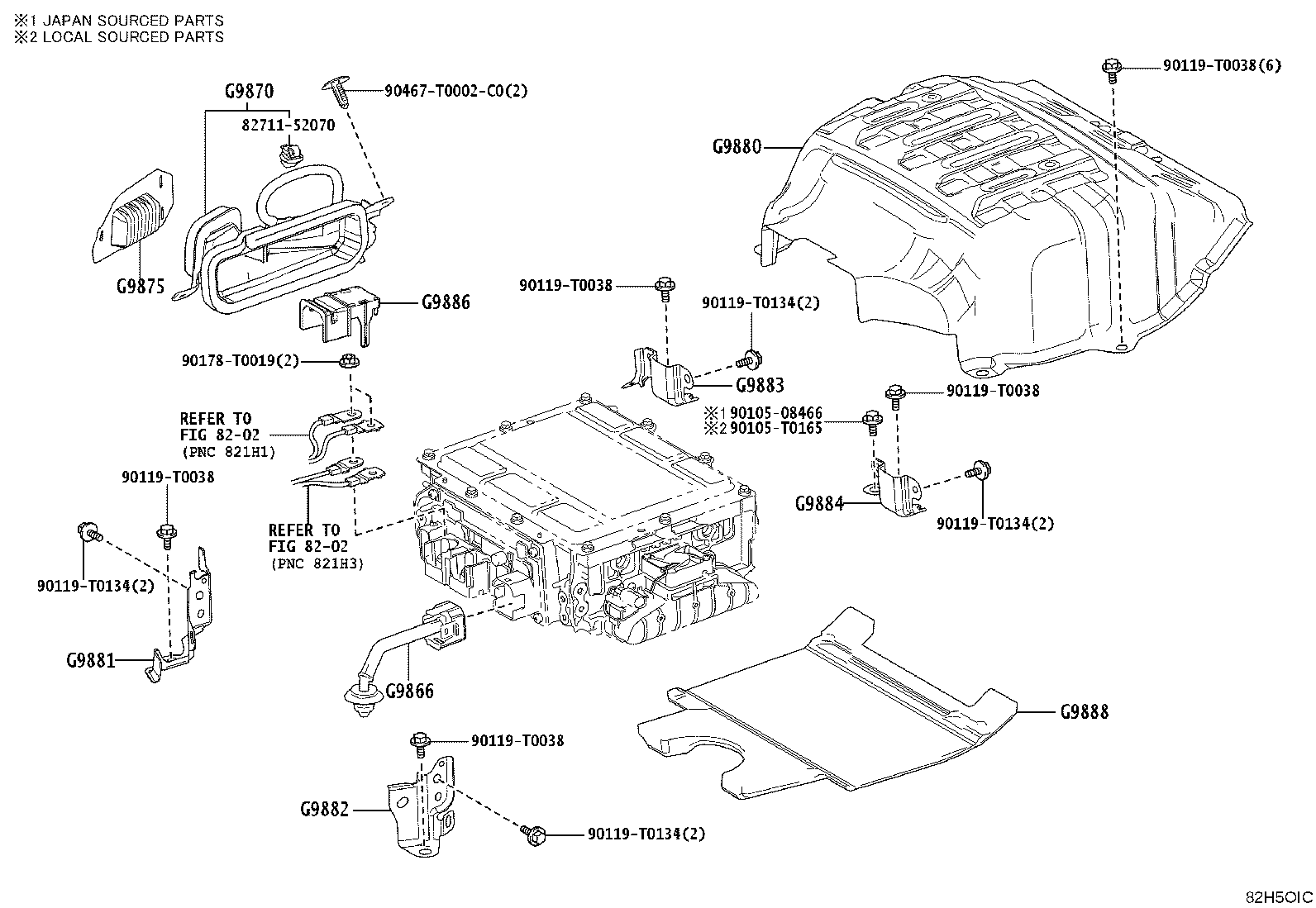

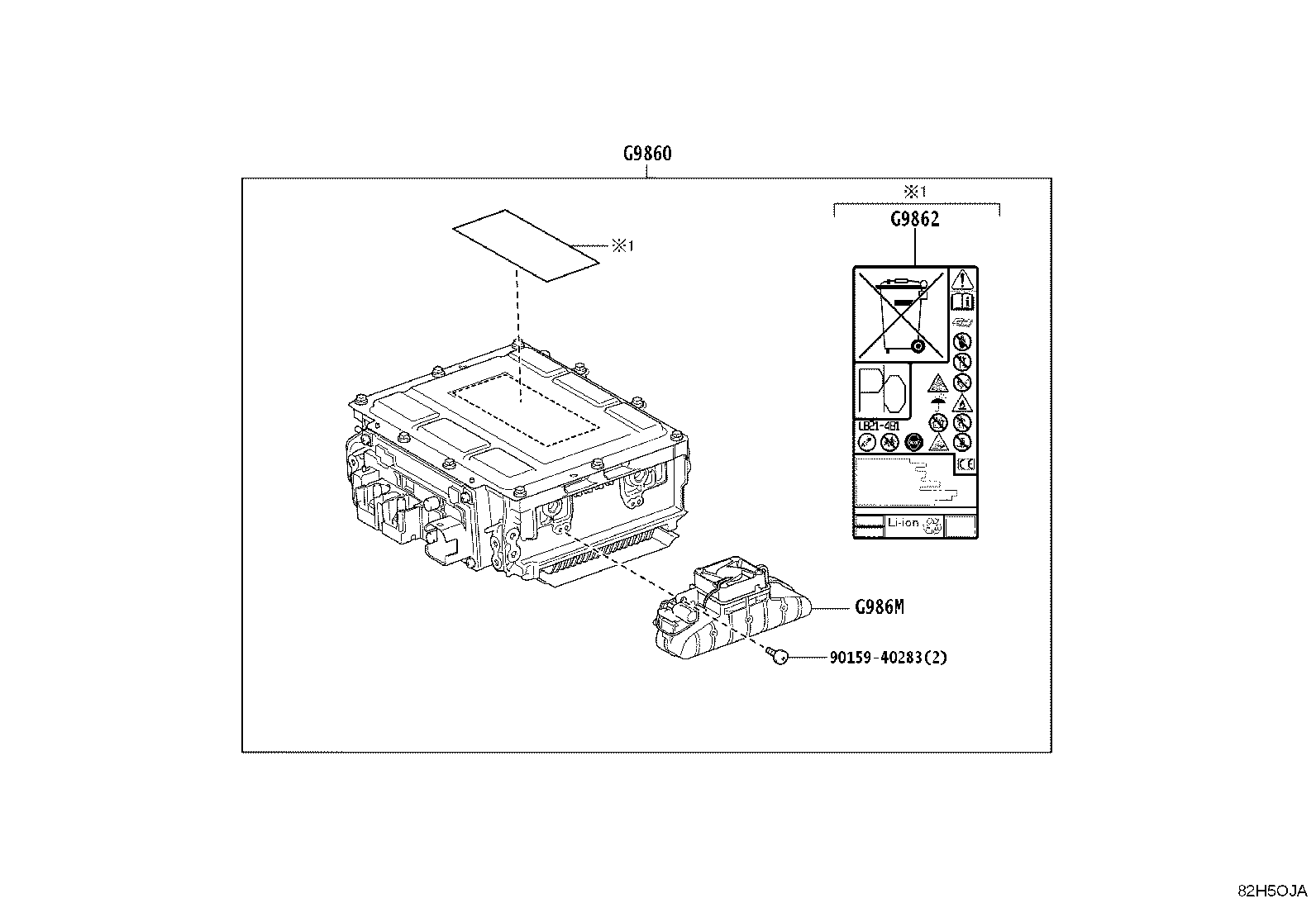

| G9860 | Battery Assy, 48V |
| G9862 | Label, 48V Battery Caution |
| G9866 | Hose, 48V Battery |
| G986M | Module, 48V Battery Fan |
| G9870 | Duct Assy, 48V Battery Intake, NO.1 |
| G9875 | Filter, 48V Battery Intake, NO.1 |
| G9880 | Protector Assy, 48V Battery |
| G9881 | Bracket, 48V Battery, NO.1 |
| G9882 | Bracket, 48V Battery, NO.2 |
| G9883 | Bracket, 48V Battery, NO.3 |
| G9884 | Bracket, 48V Battery, NO.4 |
| G9886 | Cover, 48V Battery Terminal |
| G9888 | Insulator, 48V Battery Heat, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
