Toyota Fortuner (SUV)

2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

8 part groups · 5 illustrations

Illustrations

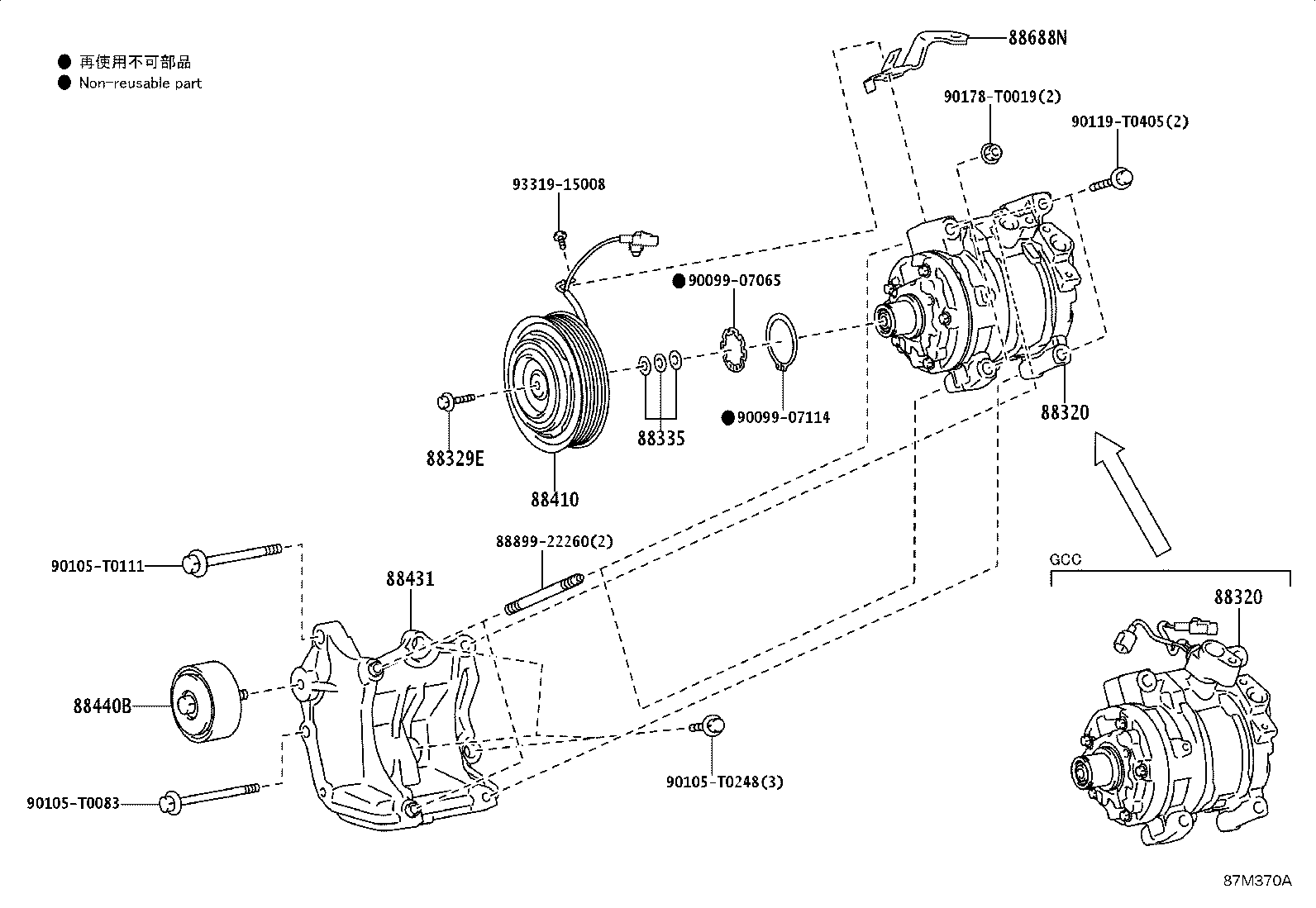

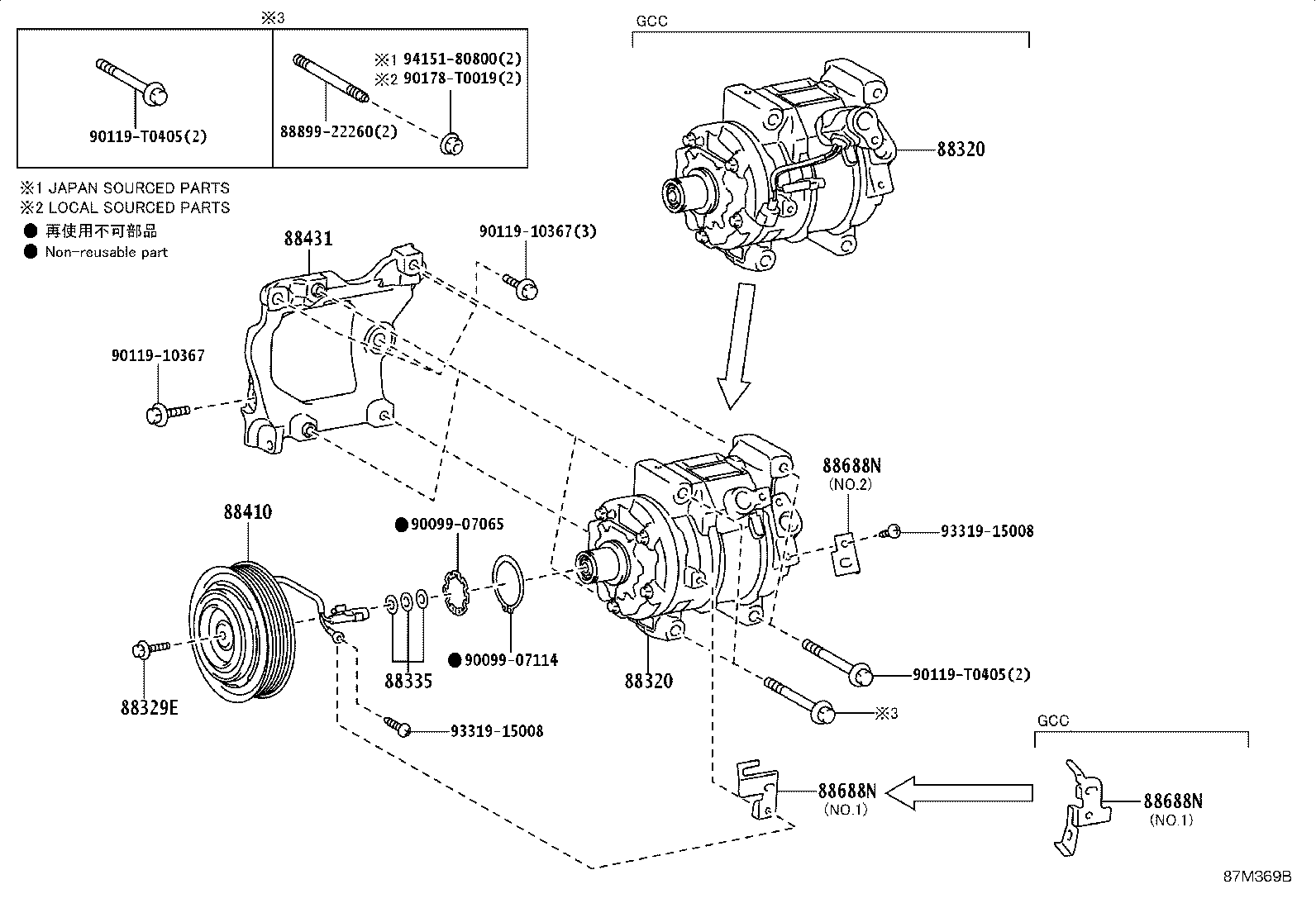

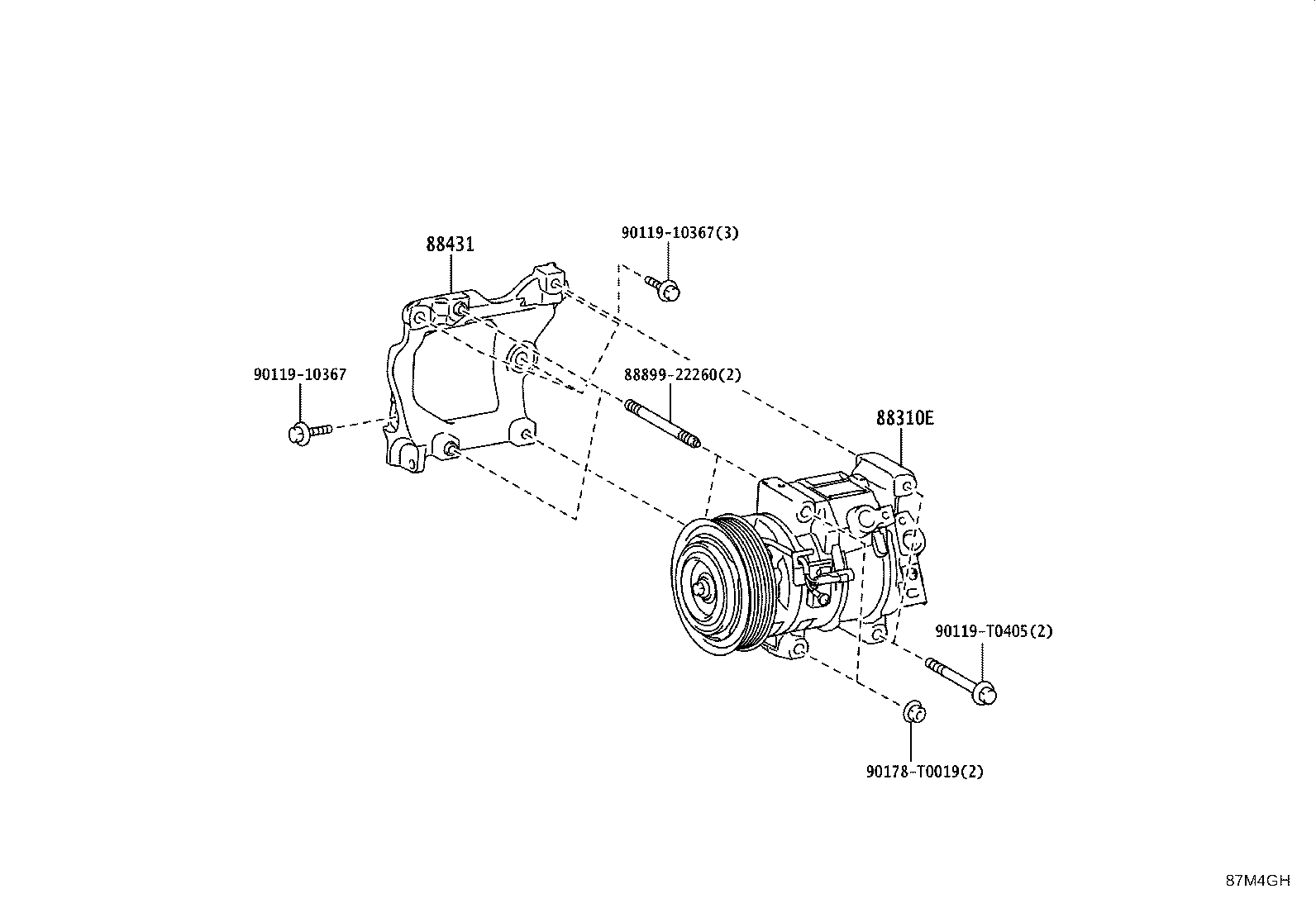

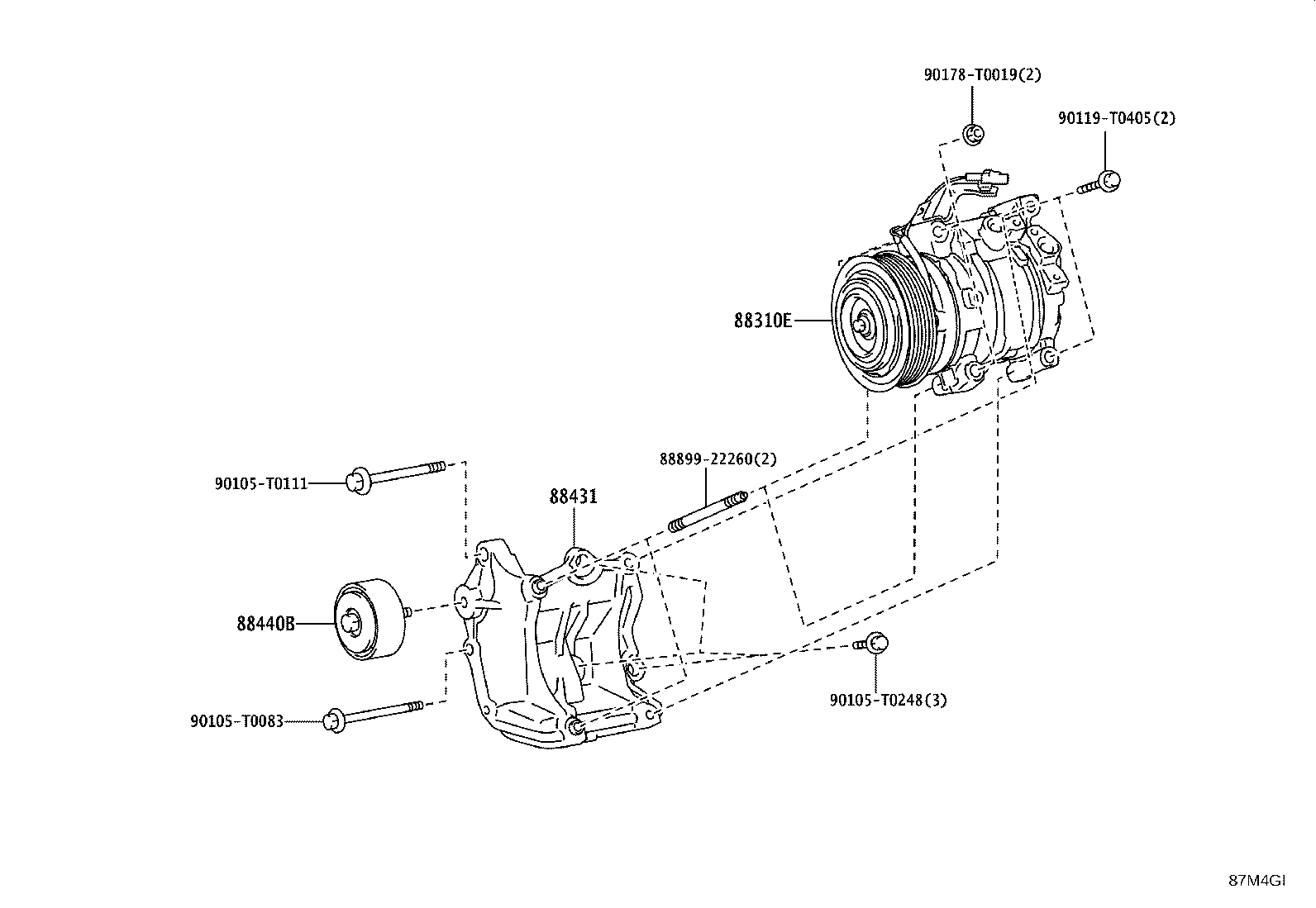

Figure 87M368C 87M368C 2023-08 → — Figure 87M369B 87M369B 2023-08 → — Figure 87M370A 87M370A 2023-08 → — Figure 87M4GH 87M4GH 2024-02 → — Figure 87M4GI 87M4GI 2024-02 → —

Part groups

PNCDescription
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88335 Gasket Kit, Overhaul
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
