Toyota Fortuner (SUV)

2024-08 → present · chassis GGN155,GUN15#,16#,TGN156,166 · catalogue 6713G0 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 6 illustrations

Illustrations

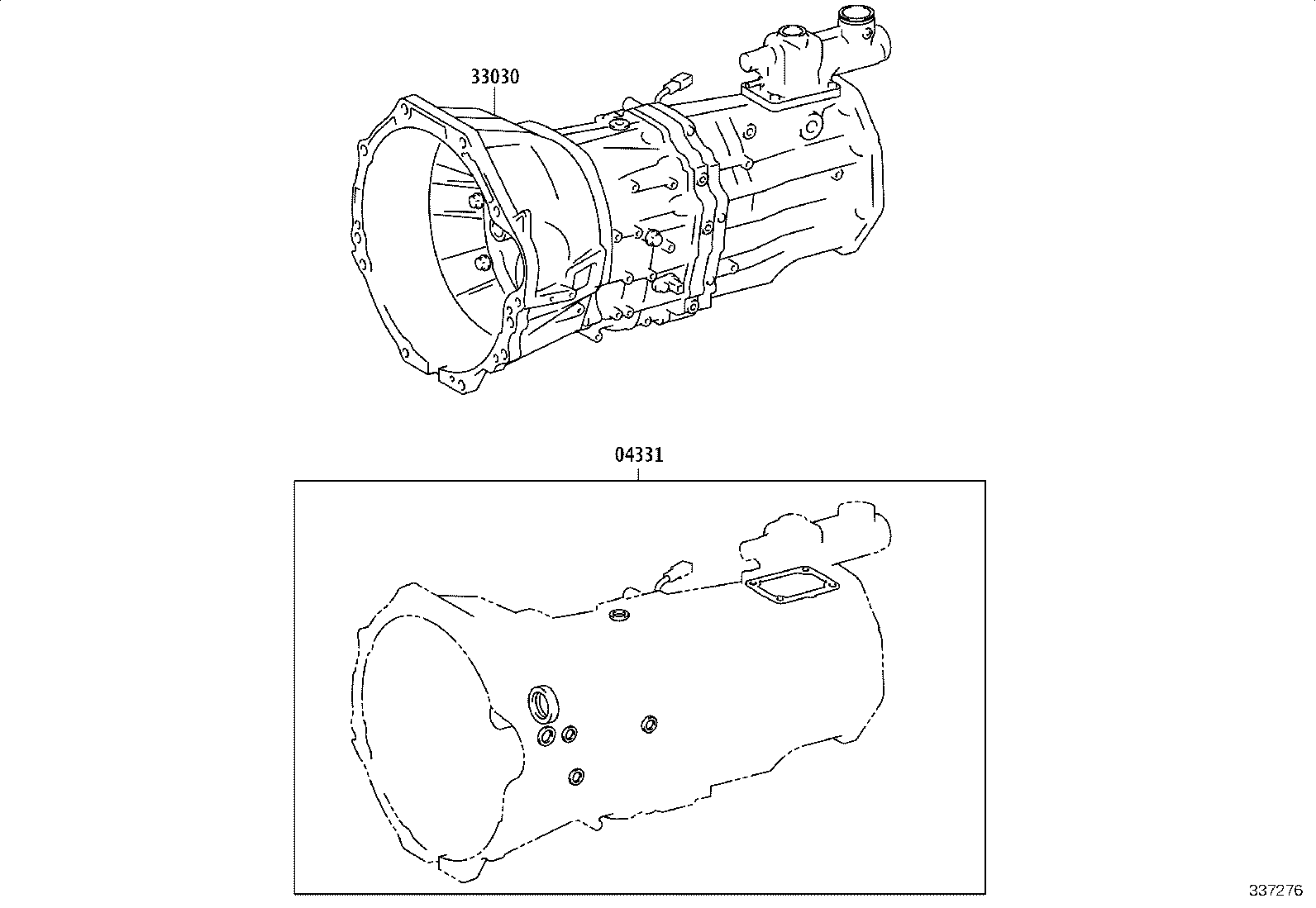

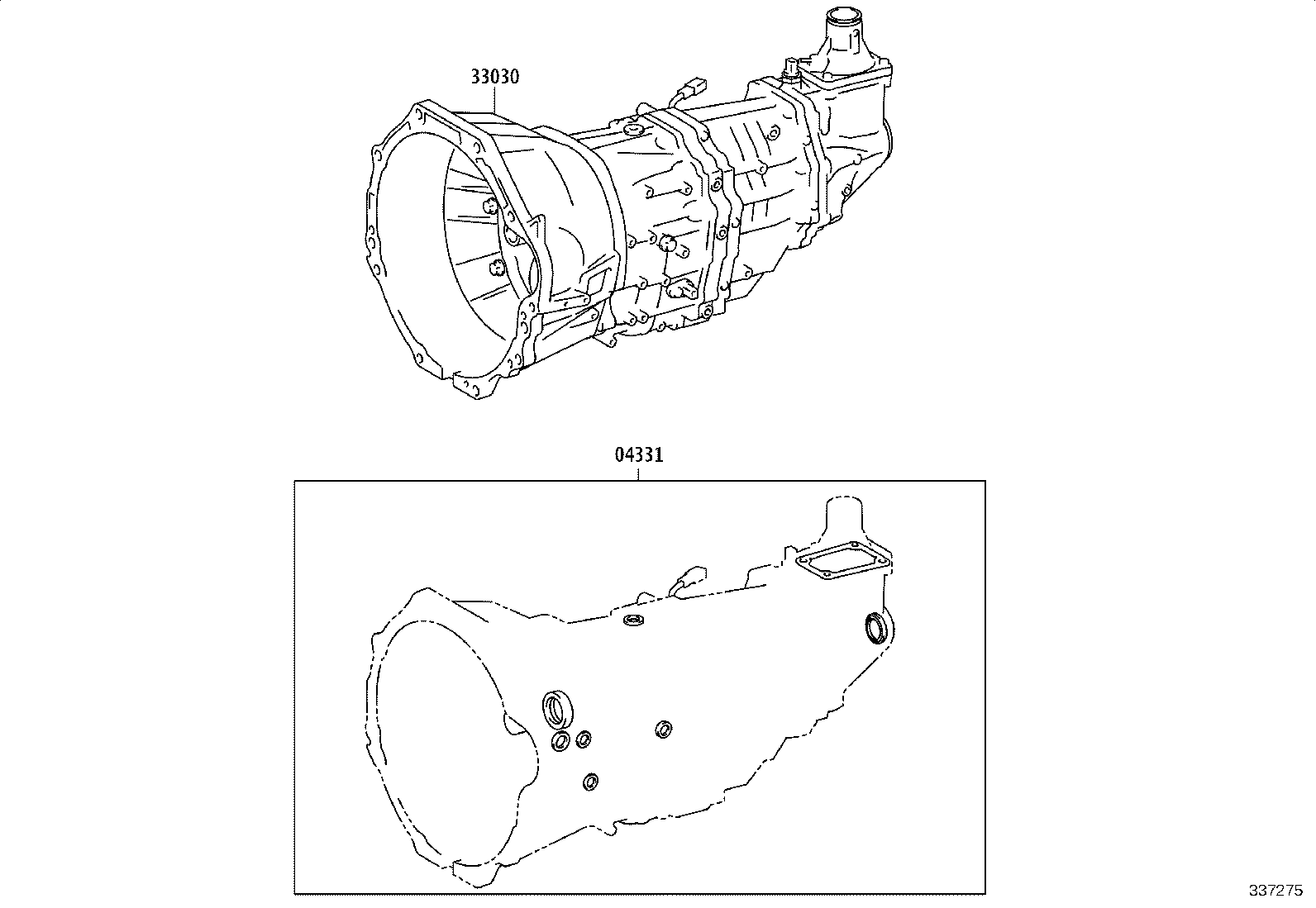

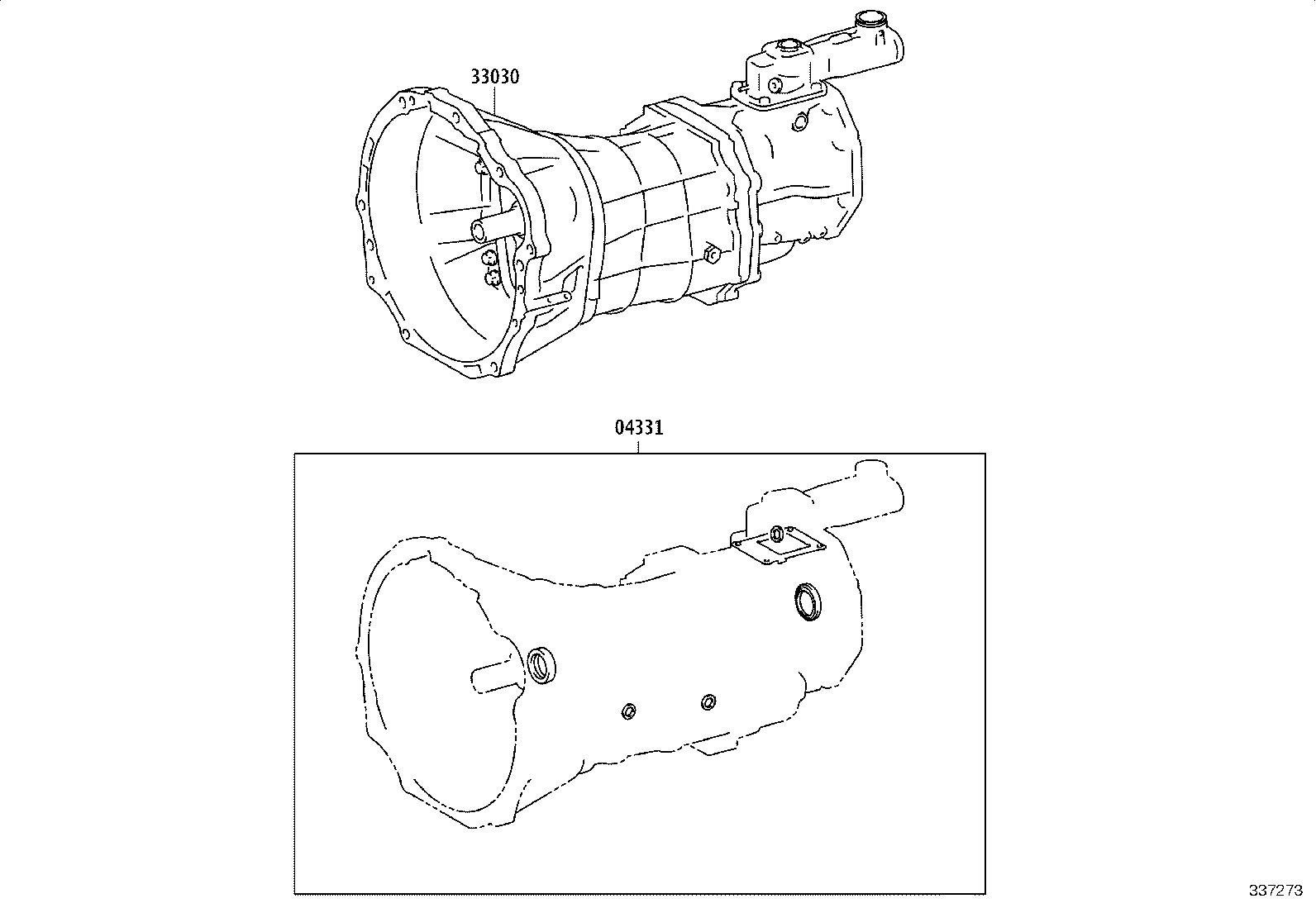

Figure 337272 337272 2024-10 → — Figure 337273 337273 2024-09 → — Figure 337274 337274 2024-09 → — Figure 337275 337275 2024-09 → — Figure 337276 337276 2024-09 → — Figure 337277 337277 2024-09 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
