Toyota Fortuner (SUV)

2024-08 → present · chassis GGN155,GUN15#,16#,TGN156,166 · catalogue 6713G0 · General

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 4 illustrations

Illustrations

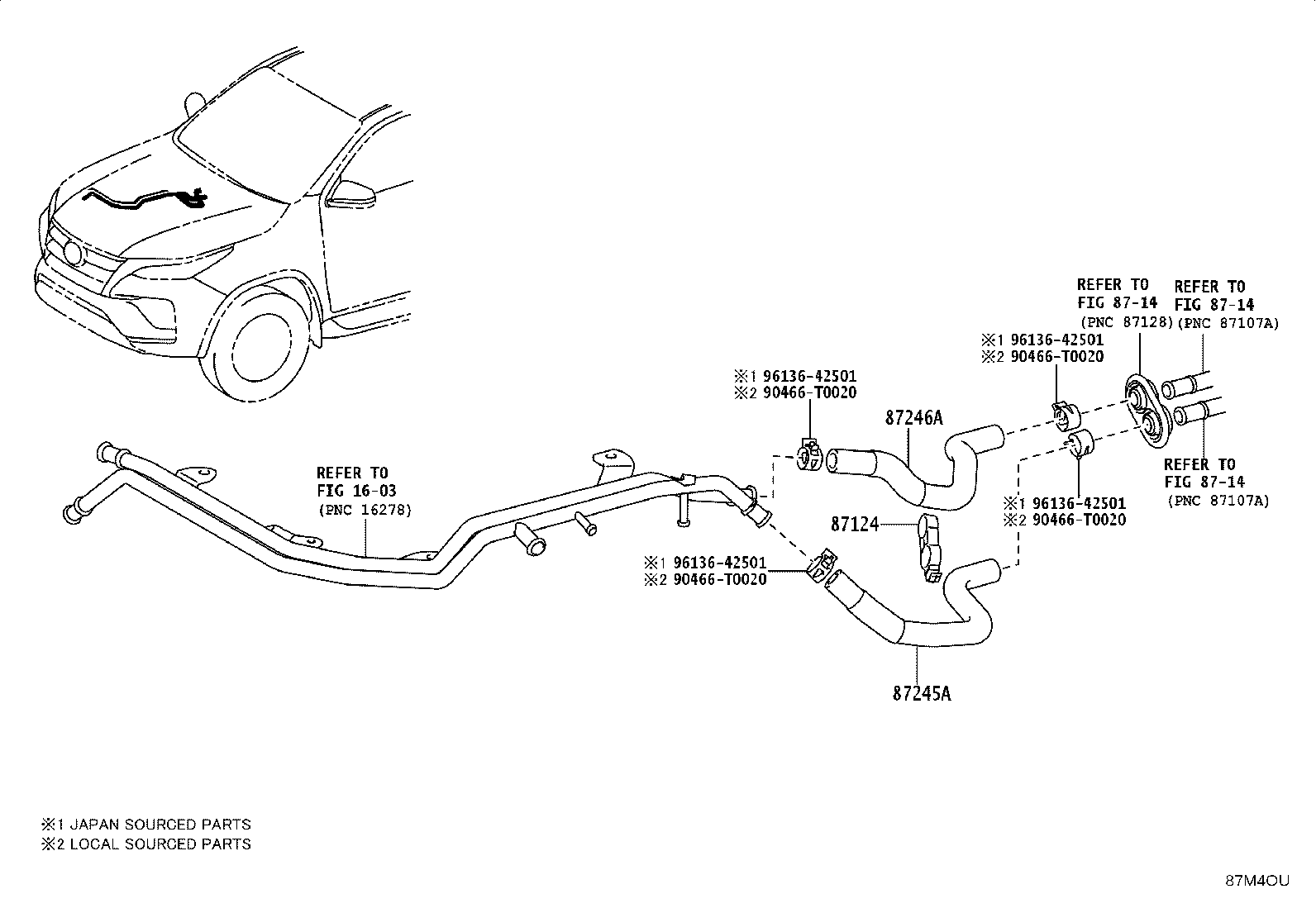

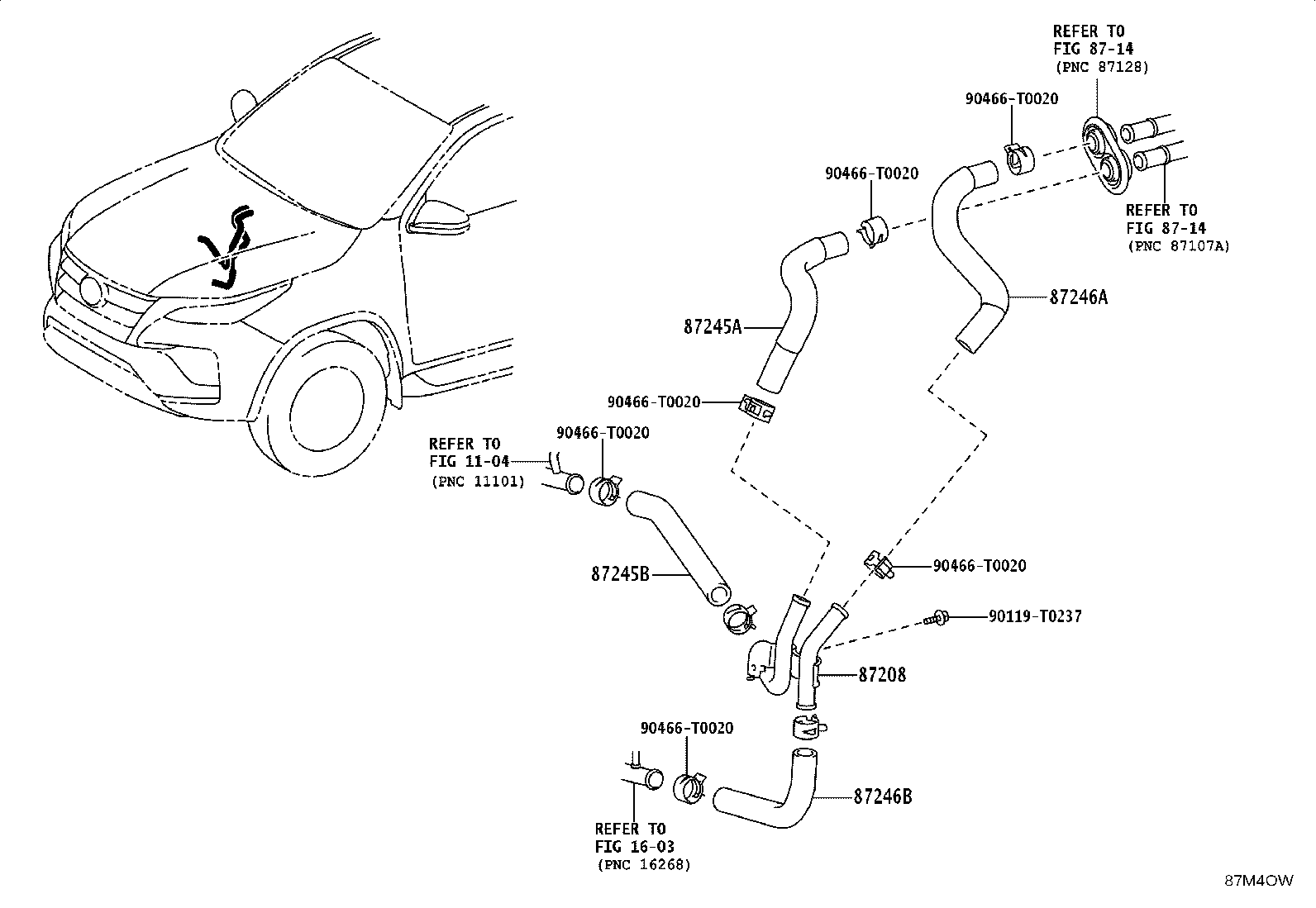

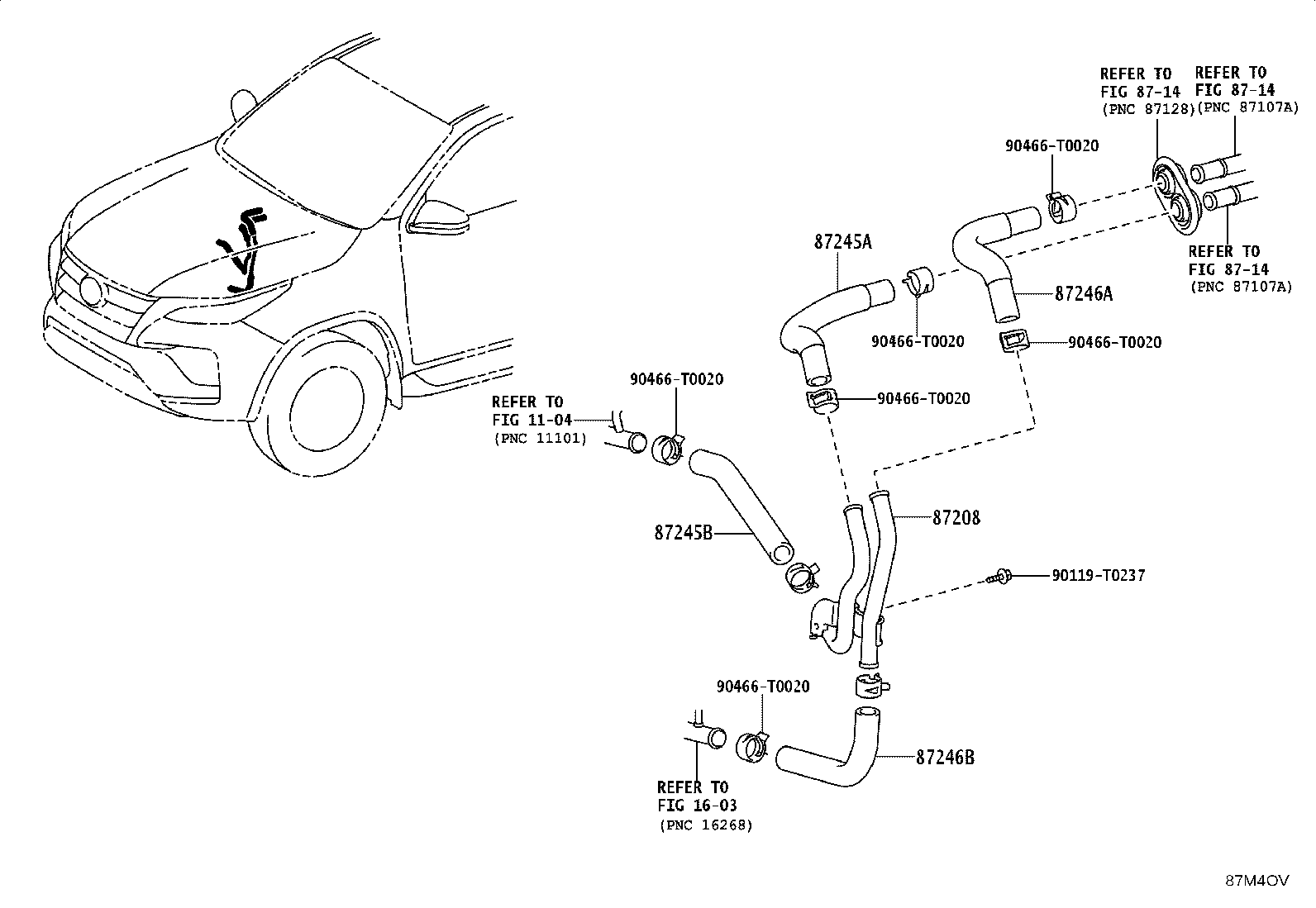

Figure 87M4OT 87M4OT 2024-08 → — Figure 87M4OU 87M4OU 2024-08 → — Figure 87M4OV 87M4OV 2024-08 → — Figure 87M4OW 87M4OW 2024-08 → —

Part groups

PNCDescription
87124 Clamp, Heater
87208 Pipe Sub-assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
