Toyota Hilux 2WD

1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

11 part groups · 7 illustrations

Illustrations

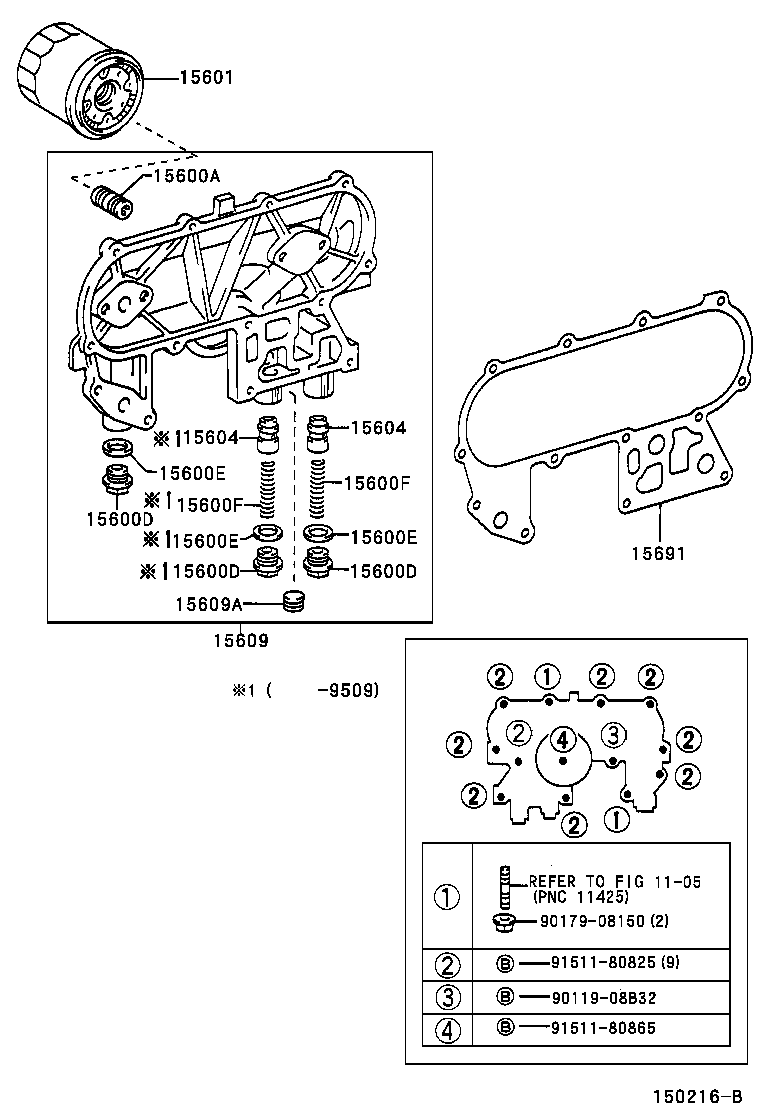

Figure 150147B 150147B 1988-08 → 1995-09 Figure 150147B 150147B 1995-09 → 1997-08 Figure 150147B 150147B 1995-09 → 1999-09 Figure 150216B 150216B 1997-03 → — Figure MA6093A MA6093A 1988-08 → — Figure 150482 150482 2001-05 → — Figure MA6182A MA6182A 1988-08 → —

Part groups

PNCDescription
15194A Ring, O
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609A Plug, Taper Screw(FOR OIL FILTER BRACKET)
15690B Valve Assy, Oil Cooler Relief
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
