Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · General
Discontinued model
Data version 2005-07

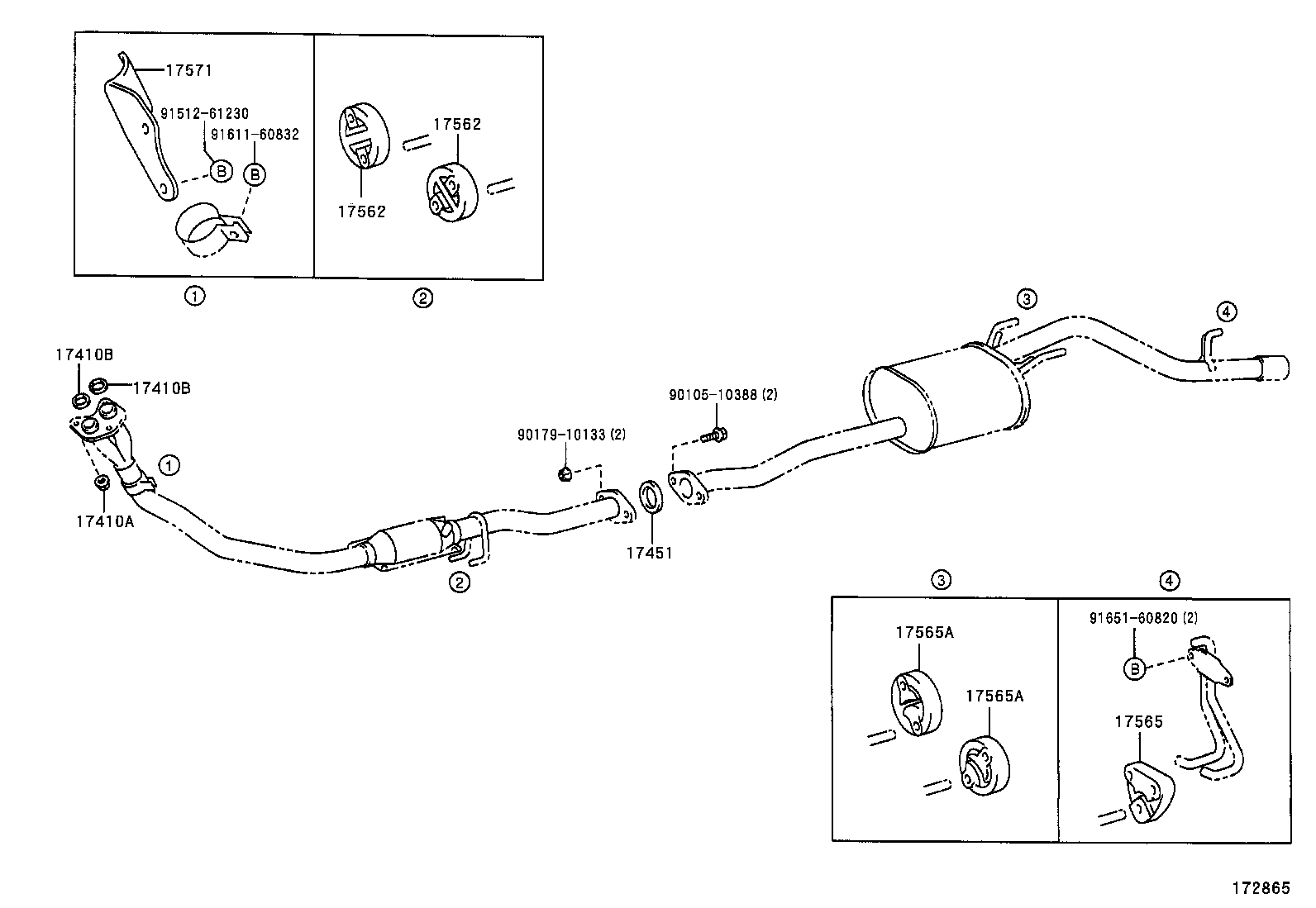

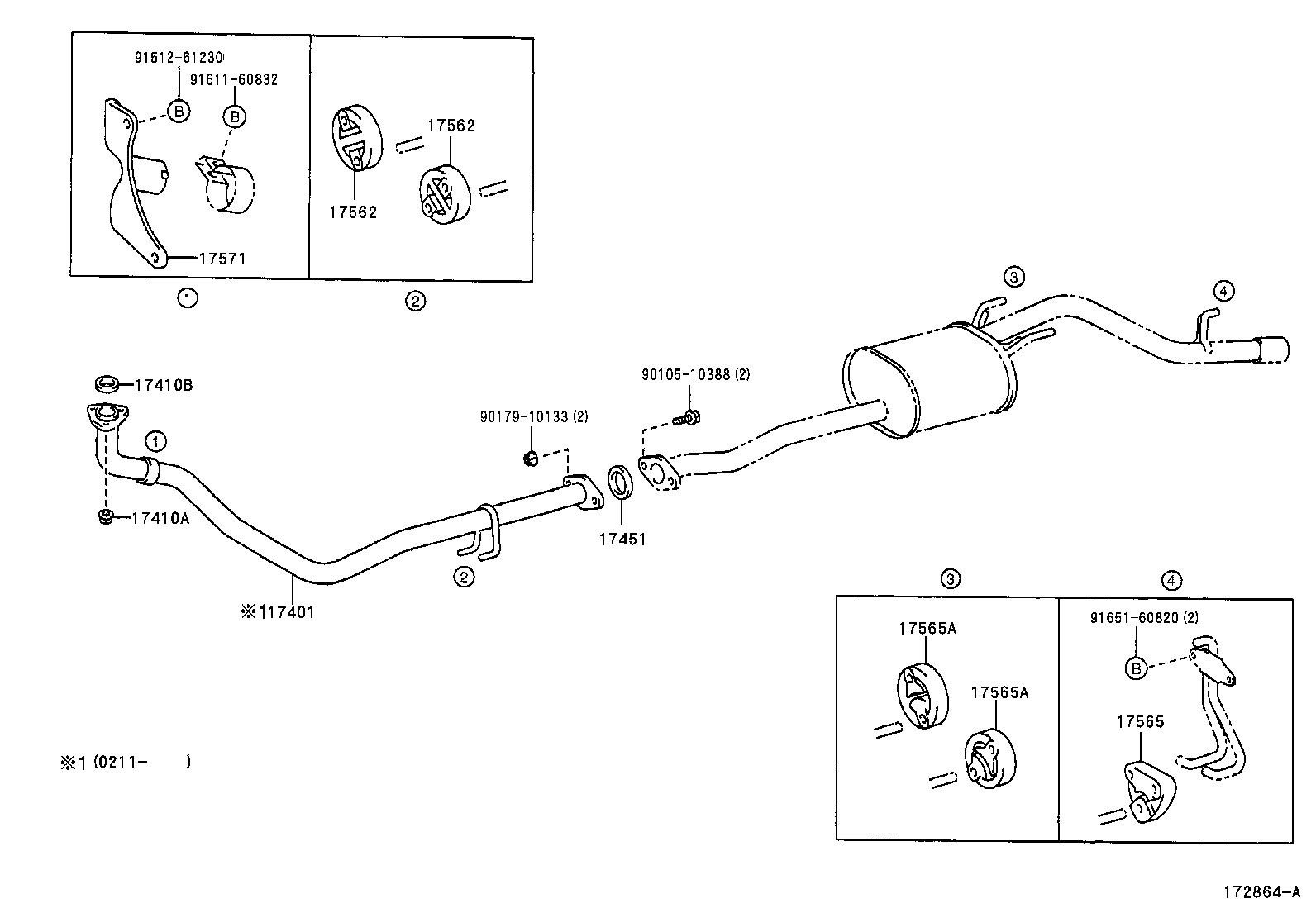

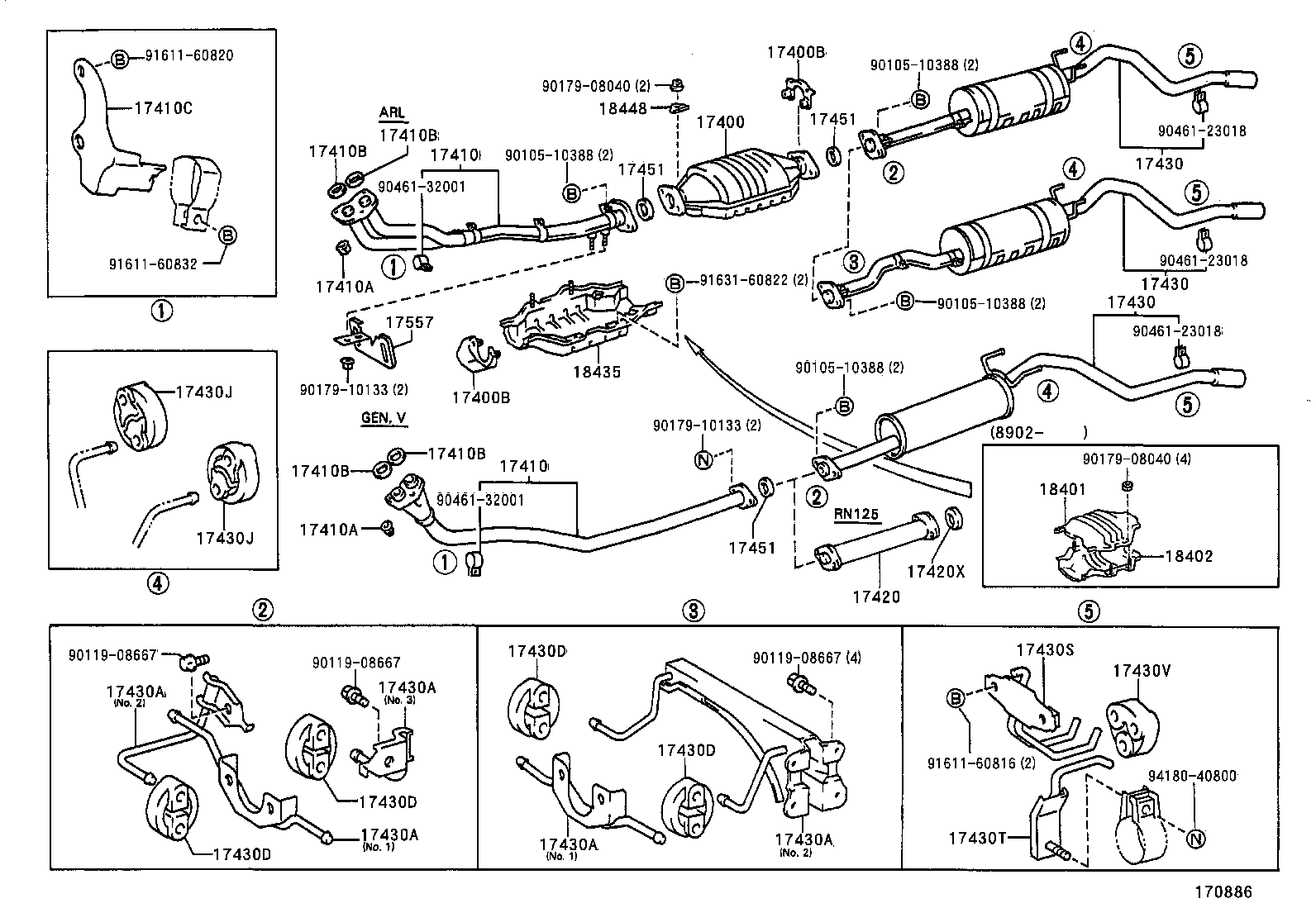

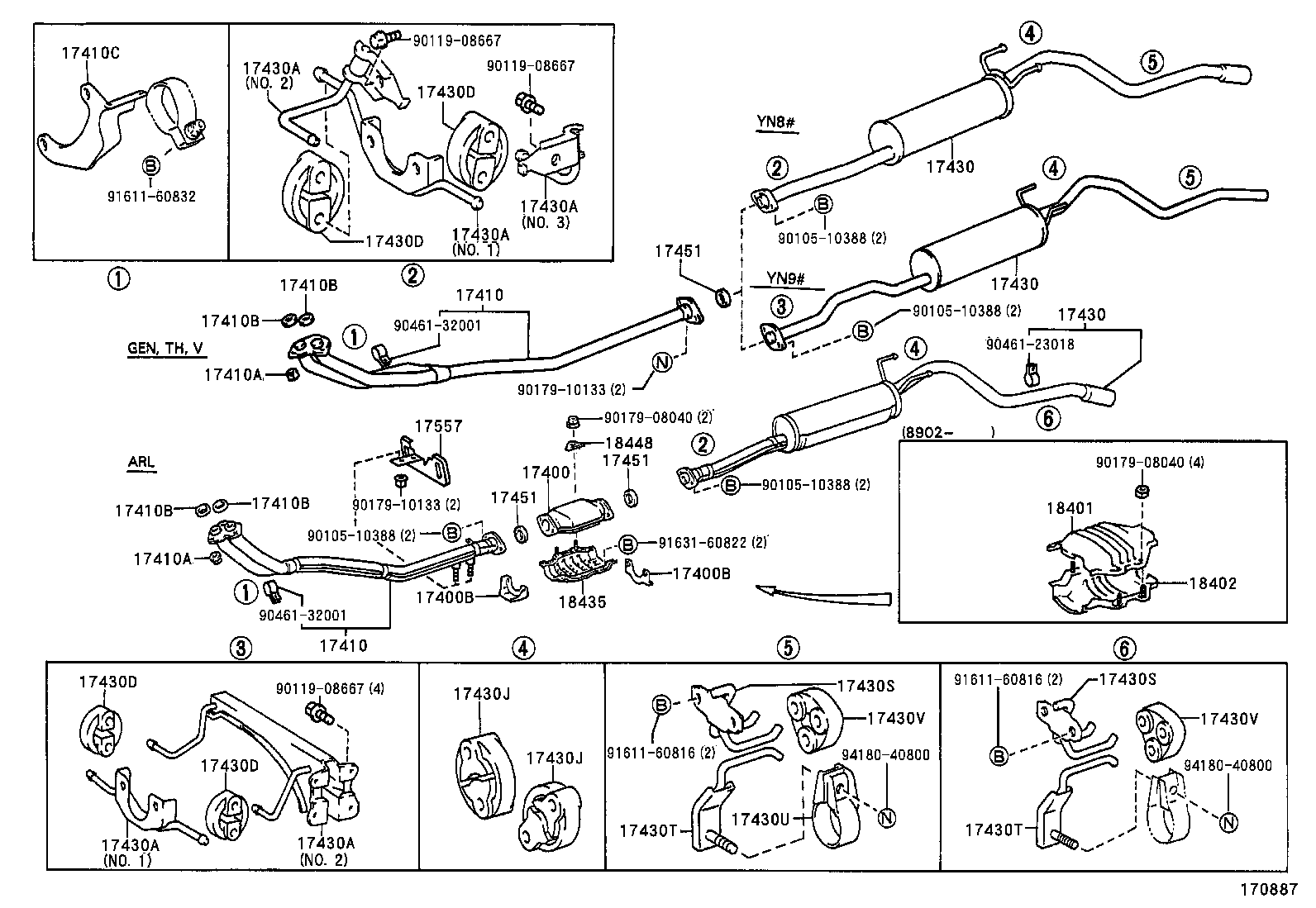

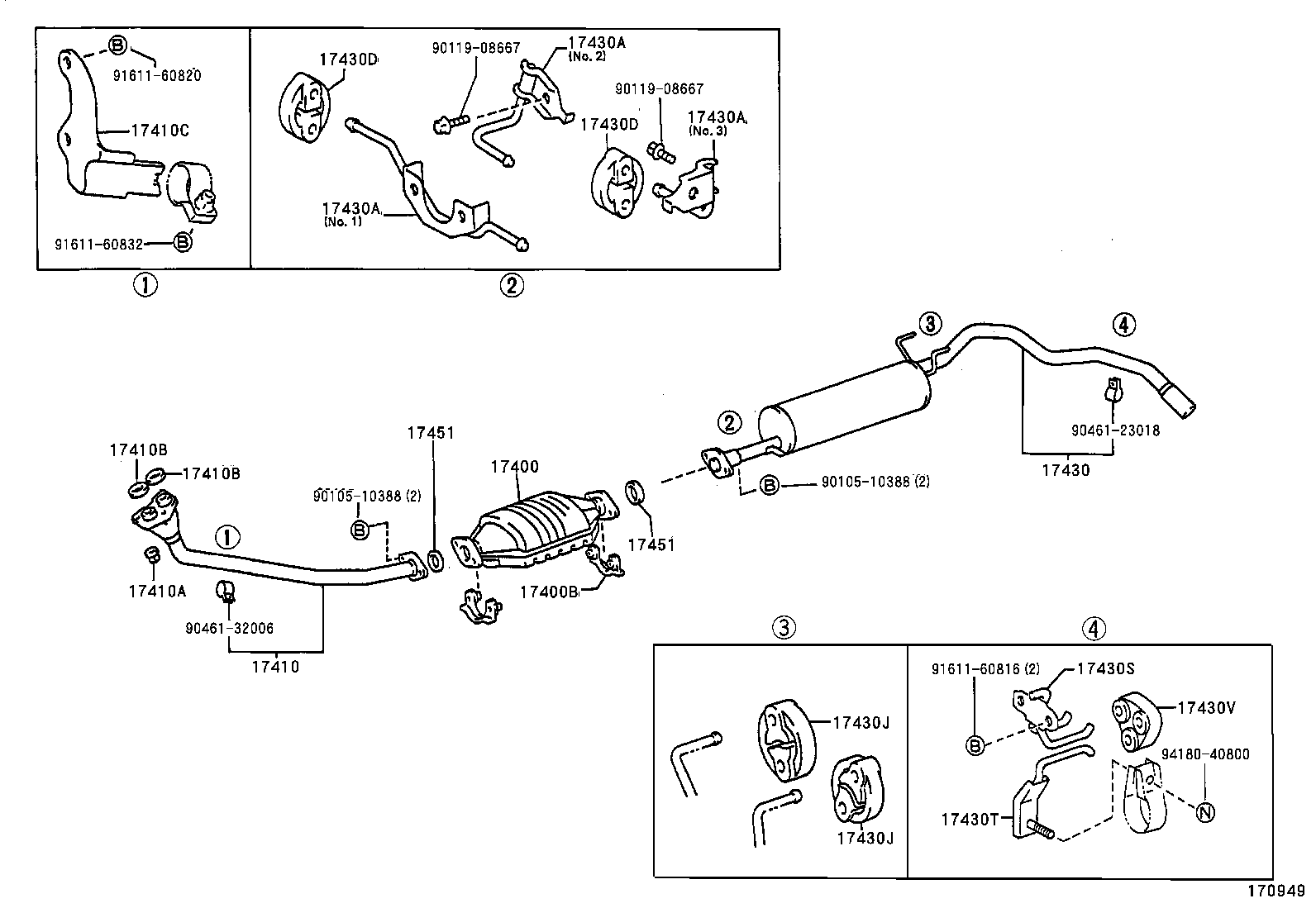

Exhaust Pipe
28 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400B | Retainer, Exhaust Pipe |
| 17401 | Pipe Sub-assy, Exhaust, Front |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17410V | Bracket, Exhaust Pipe Front (FOR REAR) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430A | Bracket, Exhaust Tailpipe(FOR FRONT) |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17430J | Bolt OR Ring, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17430U | Clamp NO.1, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17557 | Insulator, Exhaust Pipe Heat, NO.7 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 18401 | Insulator Sub-assy, Catalytic Converter, Upper |
| 18402 | Insulator Sub-assy, Catalytic Converter, Lwr |
| 18435 | Protector, Catalytic Converter |
| 18448 | Bracket, Converter Protector, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
