Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · General
Discontinued model
Data version 2005-07

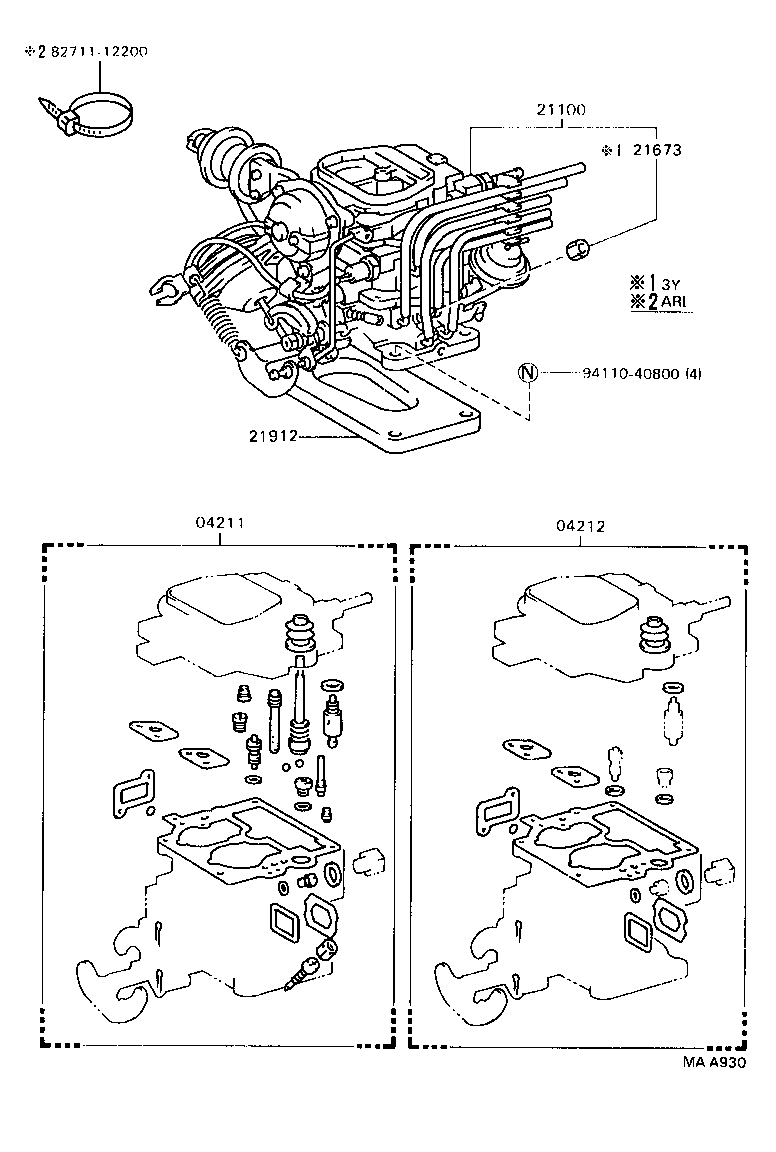

Carburetor Assembly
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04211 | Carburetor Kit |
| 04212 | Gasket Kit, Carburetor |
| 21100 | Carburetor Assy |
| 21673 | Cap, Idle Limit |
| 21911 | Gasket, Carburetor |
| 21912 | Insulator, Carburetor Heat |
| 21980 | Heater Assy, Cold Mixture |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
