Toyota Hilux 2WD
1988-08 → 2004-12 · chassis LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90 · catalogue 672350 · General
Discontinued model
Data version 2005-07
Body Stripe
35 part groups · 15 illustrations
Illustrations
Part groups

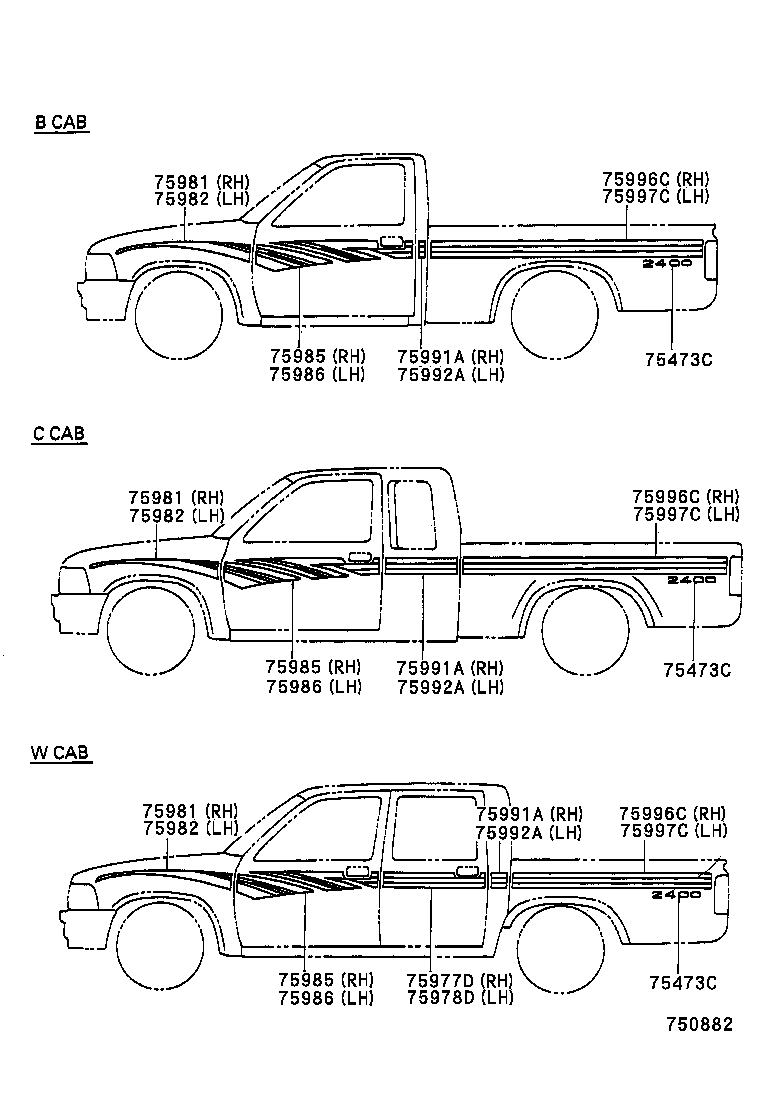

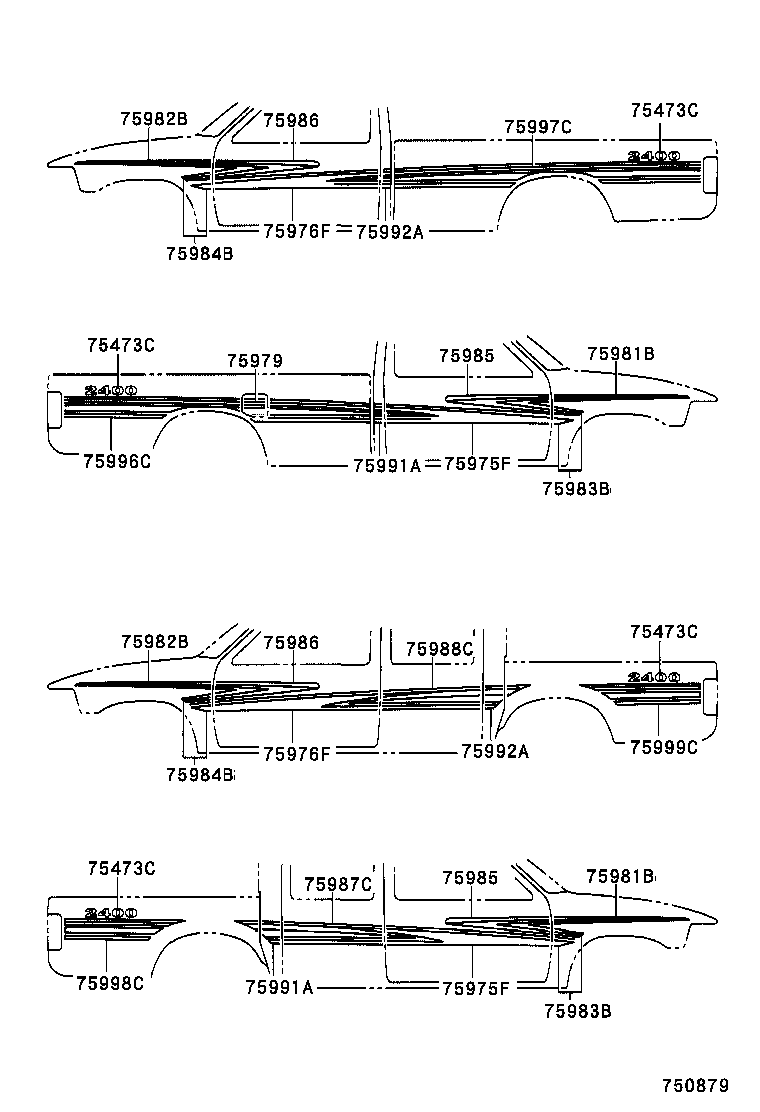

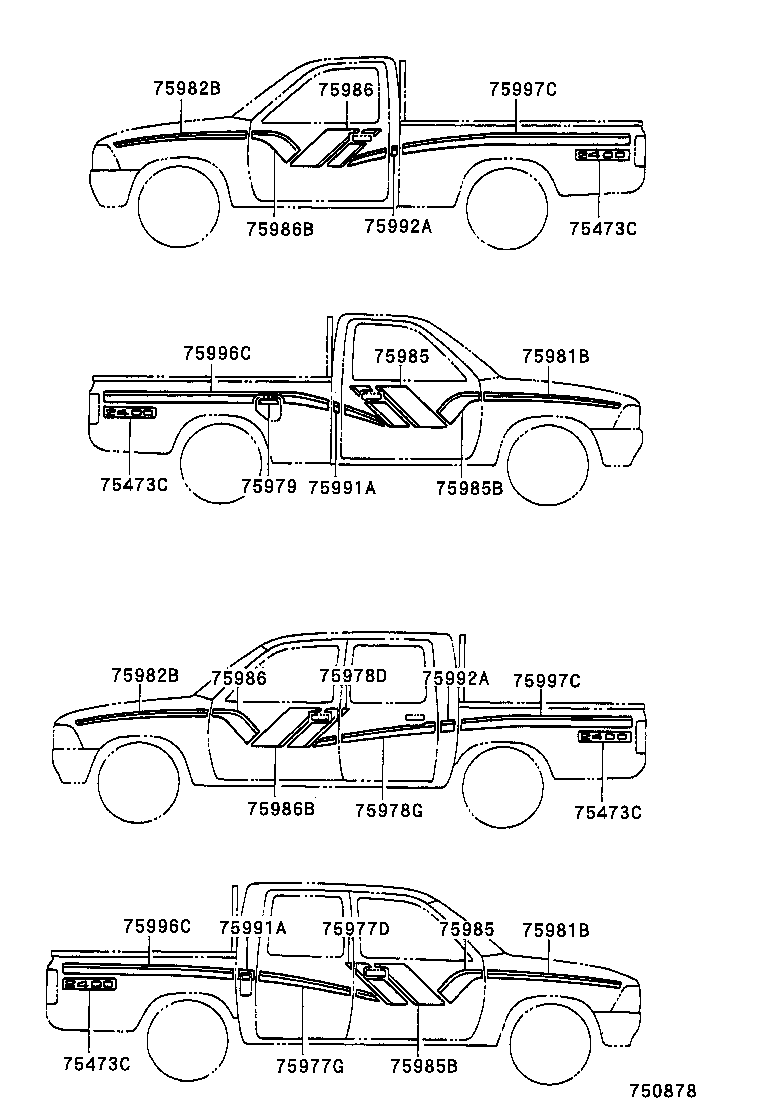

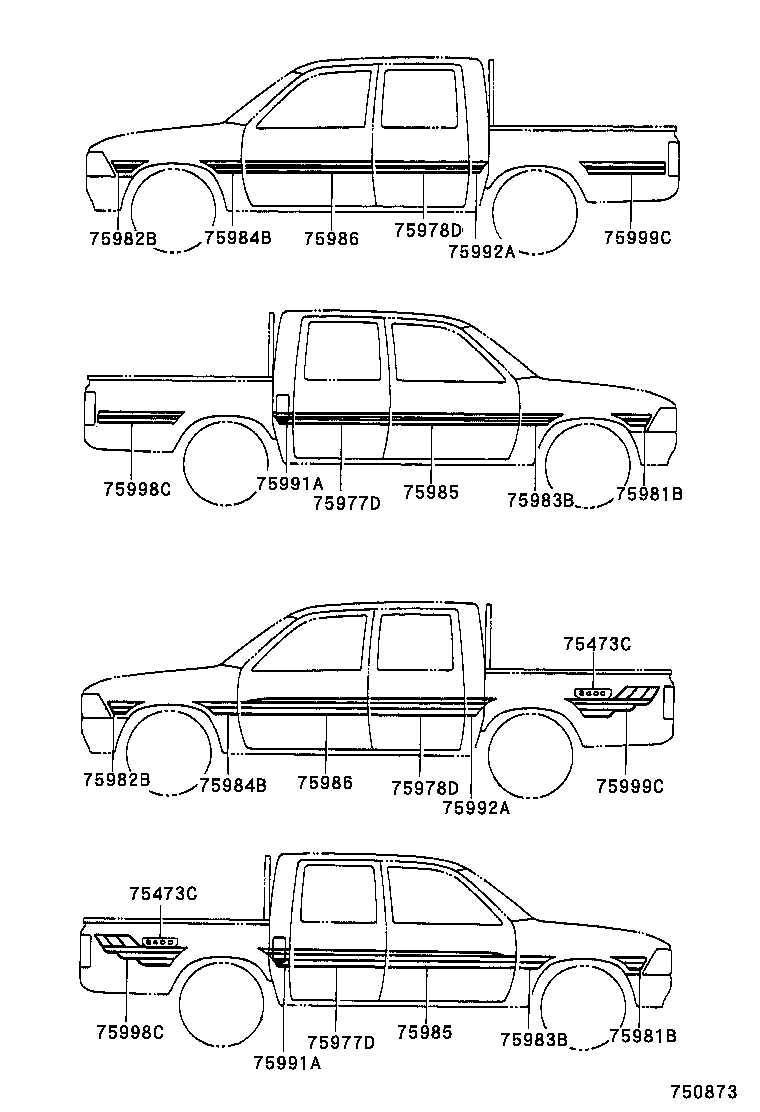

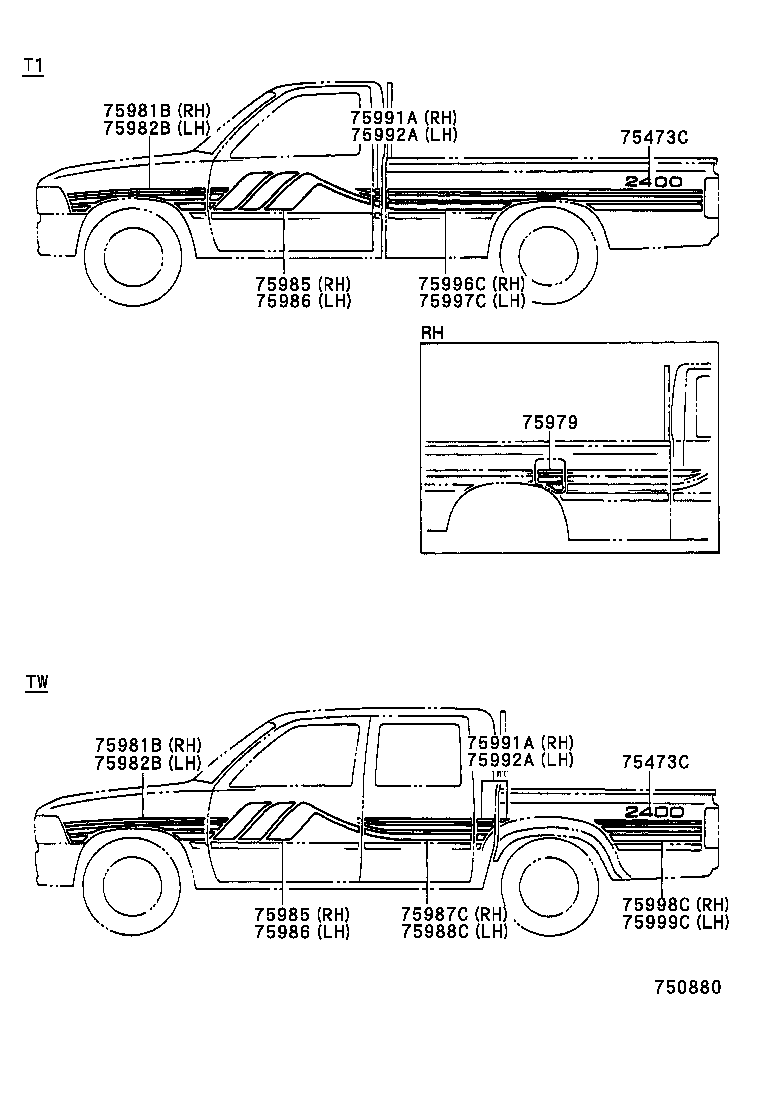

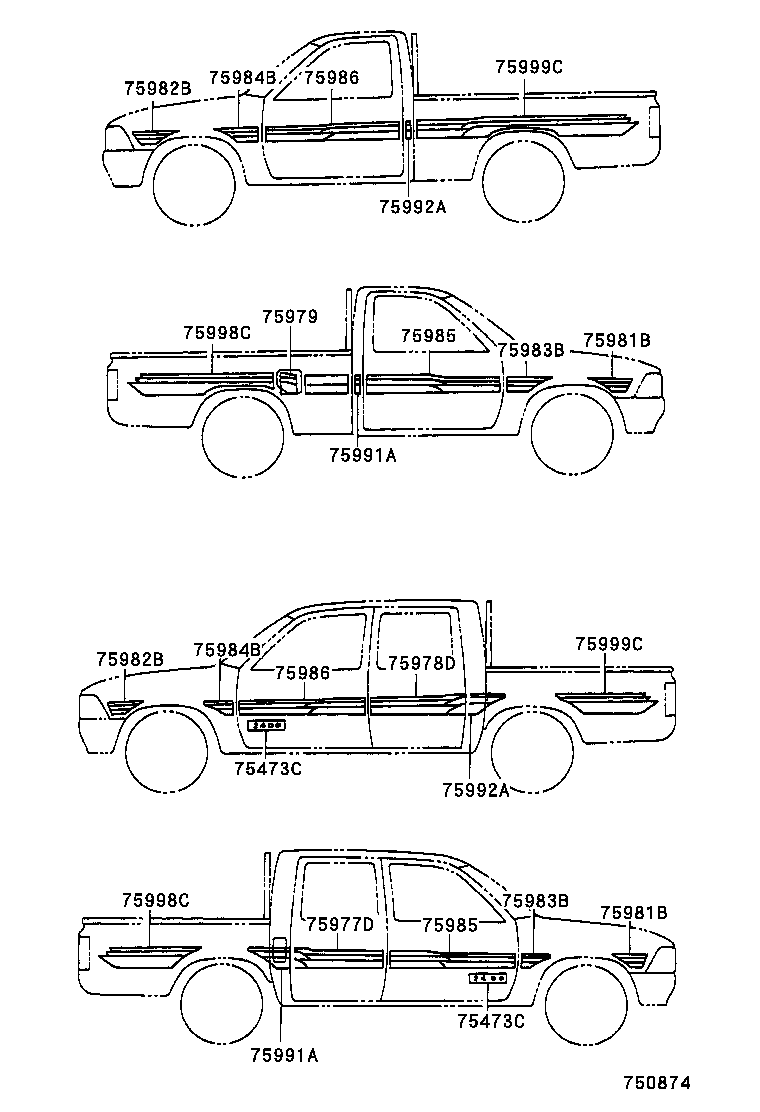

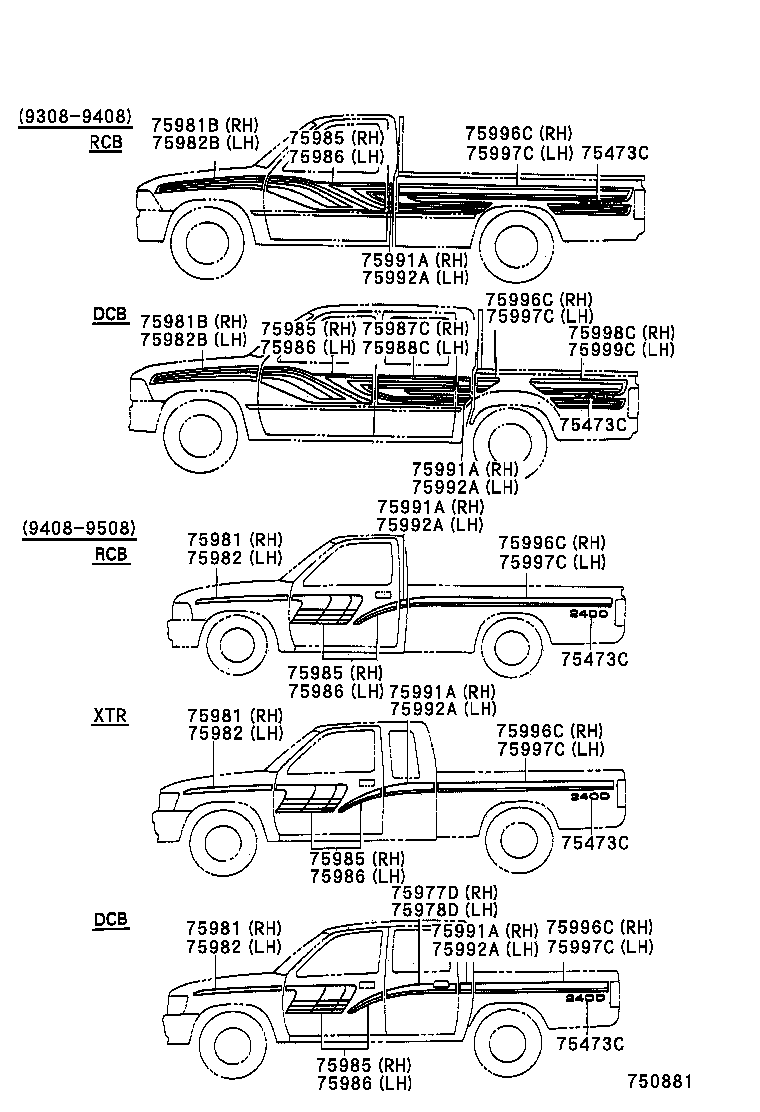

| PNC | Description |
|---|---|
| 75323A | Mark, Front Door |
| 75379 | Mark, Side Panel |
| 75459 | Mark, Tail Gate |
| 75473C | Plate, Body Side Name |
| 75975D | Stripe, Front Door Outside, Front RH |
| 75975F | Stripe, Front Door Outside, Lower RH |
| 75976D | Stripe, Front Door Outside, Front LH |
| 75976F | Stripe, Front Door Outside, Lower LH |
| 75977D | Stripe, Rear Door, RH |
| 75977G | Stripe, Rear Door, RH |
| 75978D | Stripe, Rear Door, LH |
| 75978G | Stripe, Rear Door, LH |
| 75979 | Stripe, Fuel Filler Opening Lid |
| 75981 | Stripe, Front Fender, RH NO.1 |
| 75981B | Stripe, Fender, RH |
| 75982 | Stripe, Front Fender, LH NO.1 |
| 75982B | Stripe, Fender, LH |
| 75983B | Stripe, Front Fender, Rear RH |
| 75984B | Stripe, Front Fender, Rear LH |
| 75985 | Stripe, Front Door, RH |
| 75985B | Stripe, Front Door, NO.3 RH |
| 75986 | Stripe, Front Door, LH |
| 75986B | Stripe, Front Door, NO.3 LH |
| 75987C | Stripe, Rear Door, Outside, RH |
| 75988B | Stripe, Rear Deck, Front RH |
| 75988C | Stripe, Rear Door, Outside LH |
| 75989 | Stripe, Rear Deck, Front LH |
| 75991A | Stripe, Quarter, RH |
| 75992A | Stripe, Quarter, LH |
| 75993A | Stripe, Quarter, Rear RH |
| 75994B | Strip, Quarter, Rear LH |
| 75996C | Stripe, Rear Body, RH |
| 75997C | Stripe, Rear Body, LH |
| 75998C | Stripe, Rear Deck, Rear RH |
| 75999C | Stripe, Rear Deck, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
