Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 7 illustrations

Illustrations

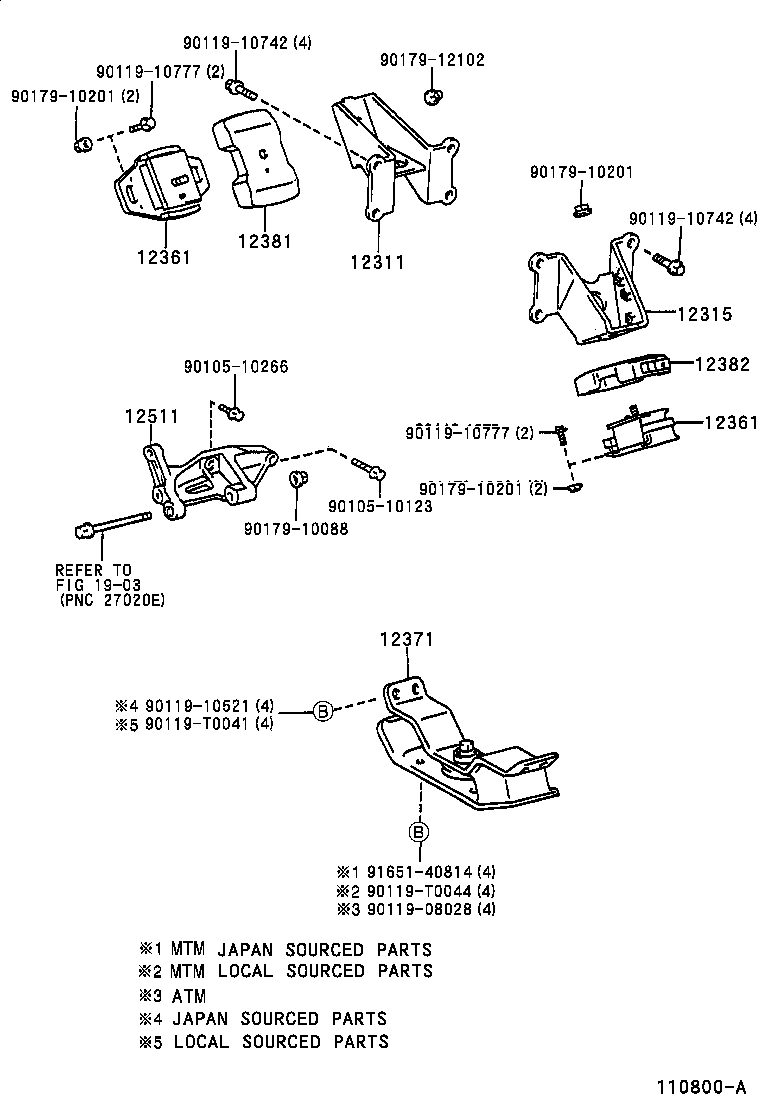

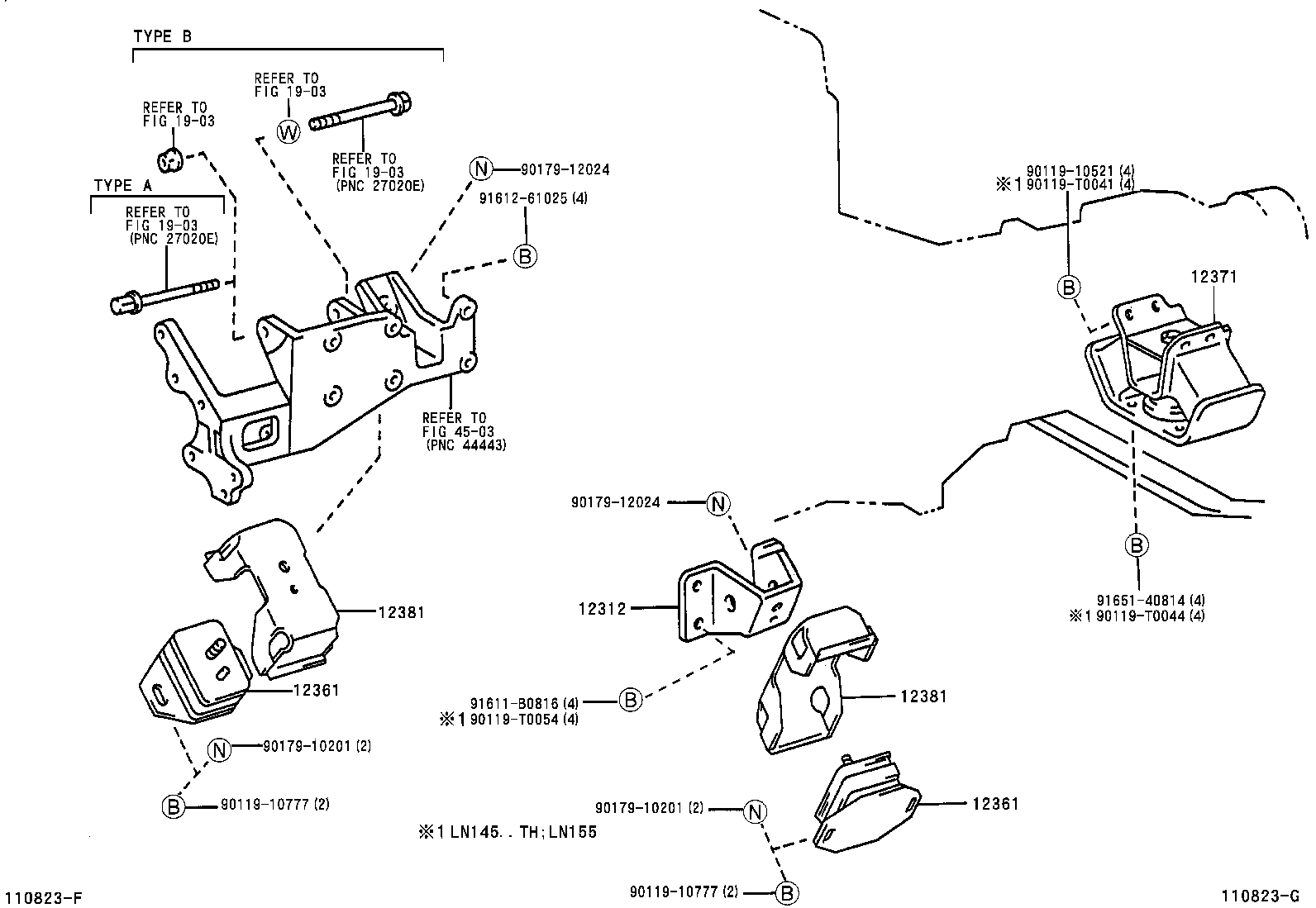

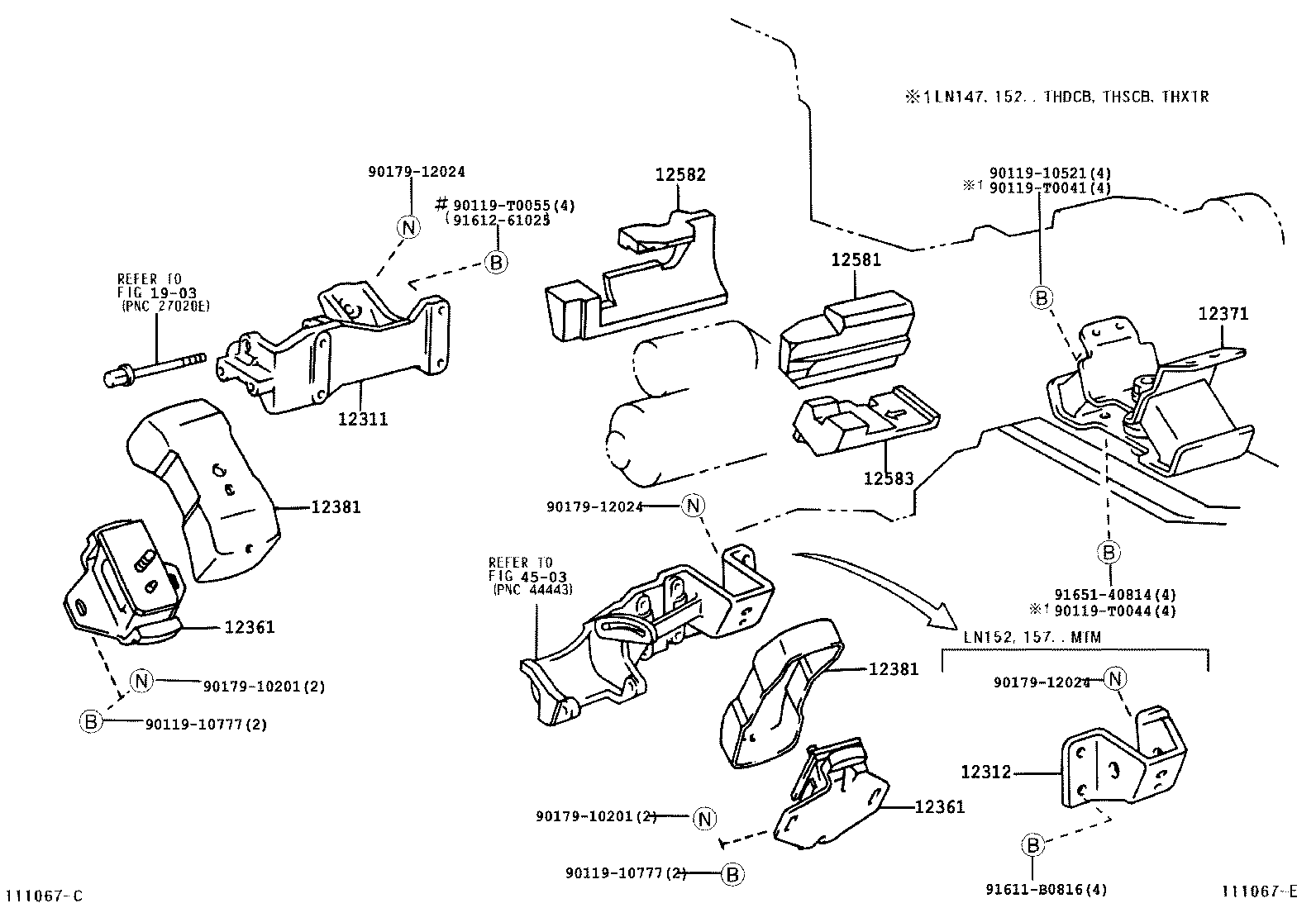

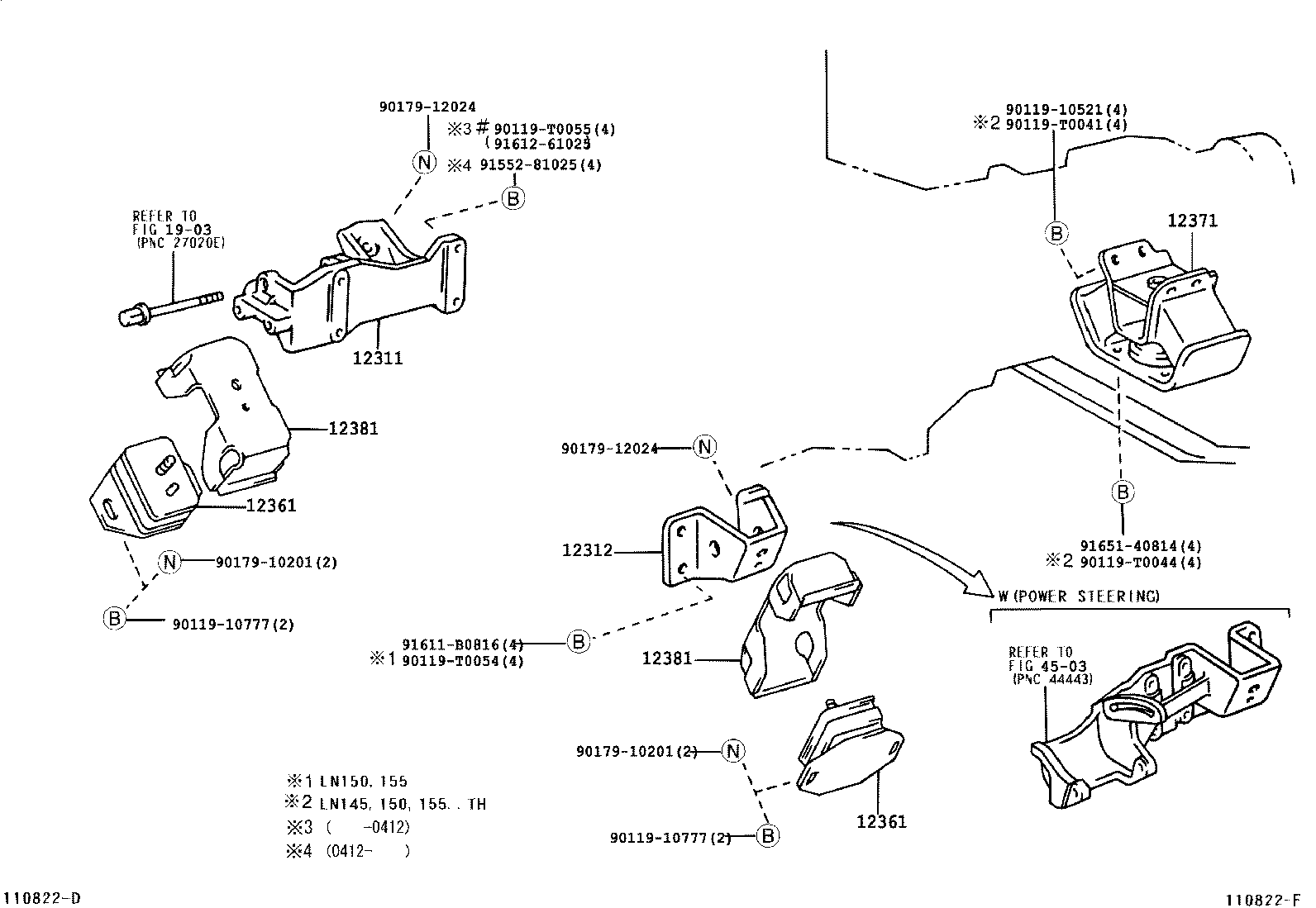

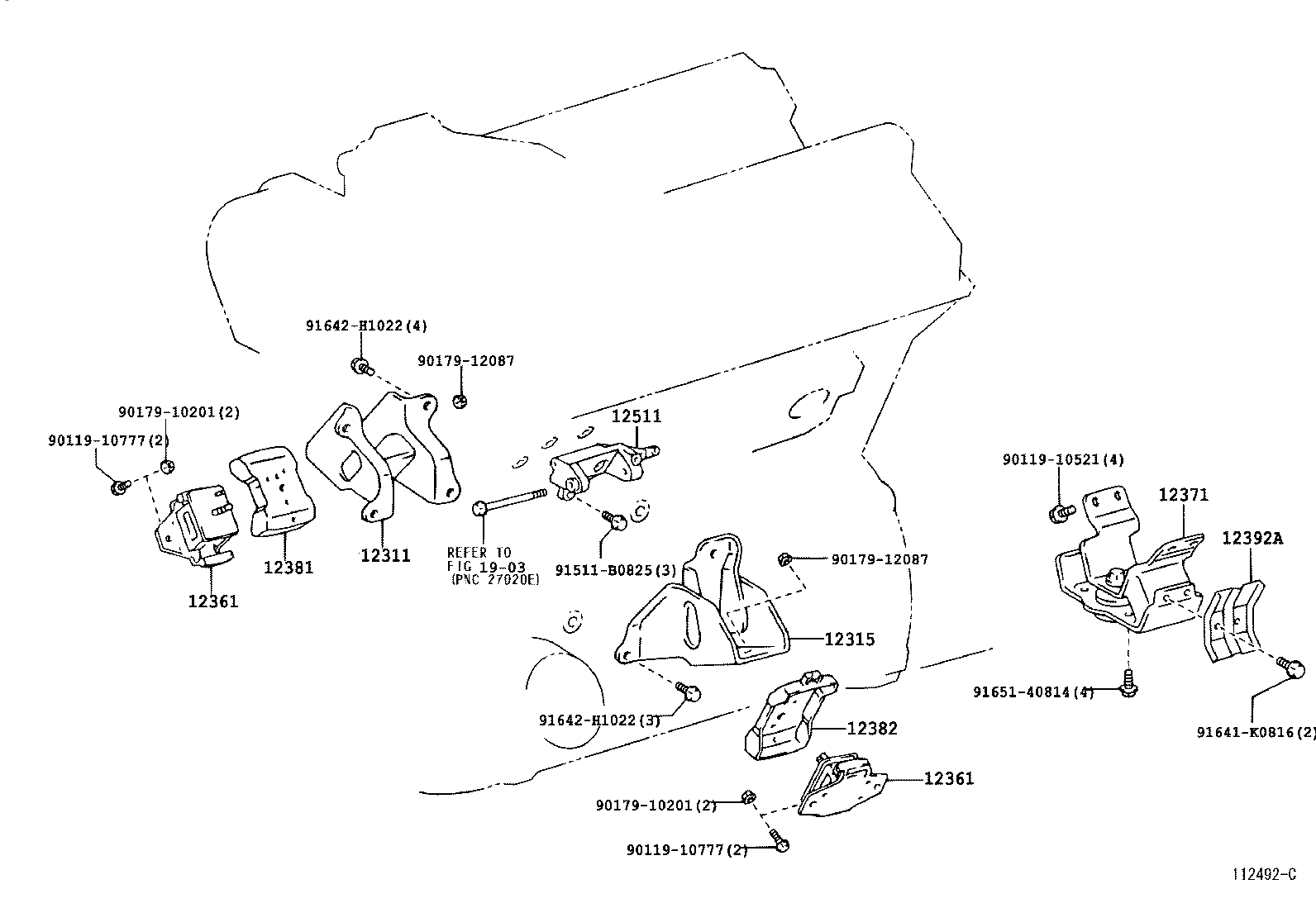

Figure 111488L 111488L 1999-09 → — Figure 110822F 110822F 1997-08 → — Figure 110823G 110823G 1997-08 → — Figure 111067E 111067E 1997-08 → — Figure 110800A 110800A 1997-08 → — Figure 112492C 112492C 2002-08 → 2005-02 Figure 111177 111177 1998-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12312 Bracket, Engine Mounting, Front NO.2
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12392A Insulator, Engine Mounting Heat, Rear
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12581 Insulator, Cylinder Block, NO.1
12582 Insulator, Cylinder Block, NO.2
12583 Insulator, Cylinder Block, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
