Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

91 part groups · 39 illustrations

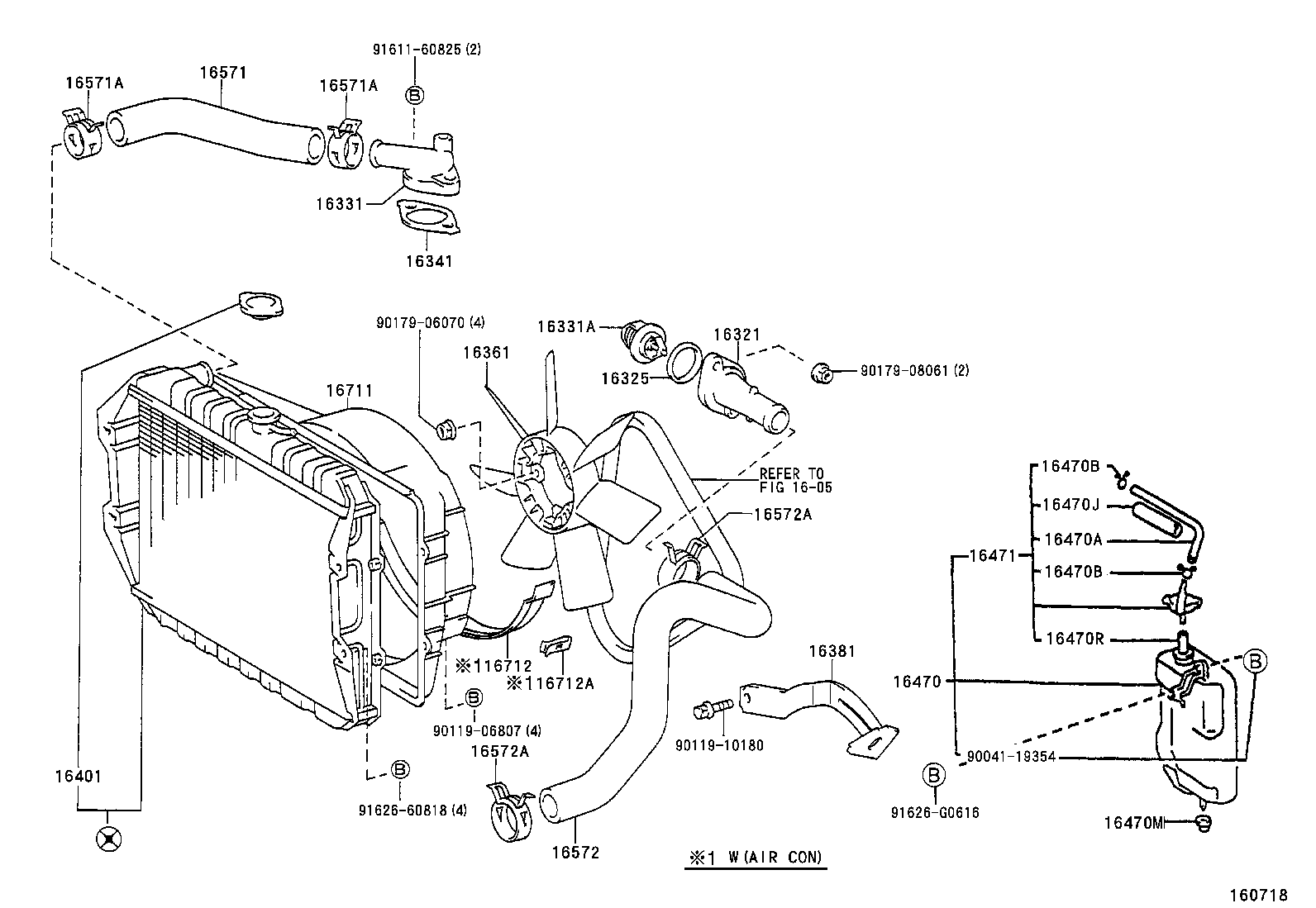

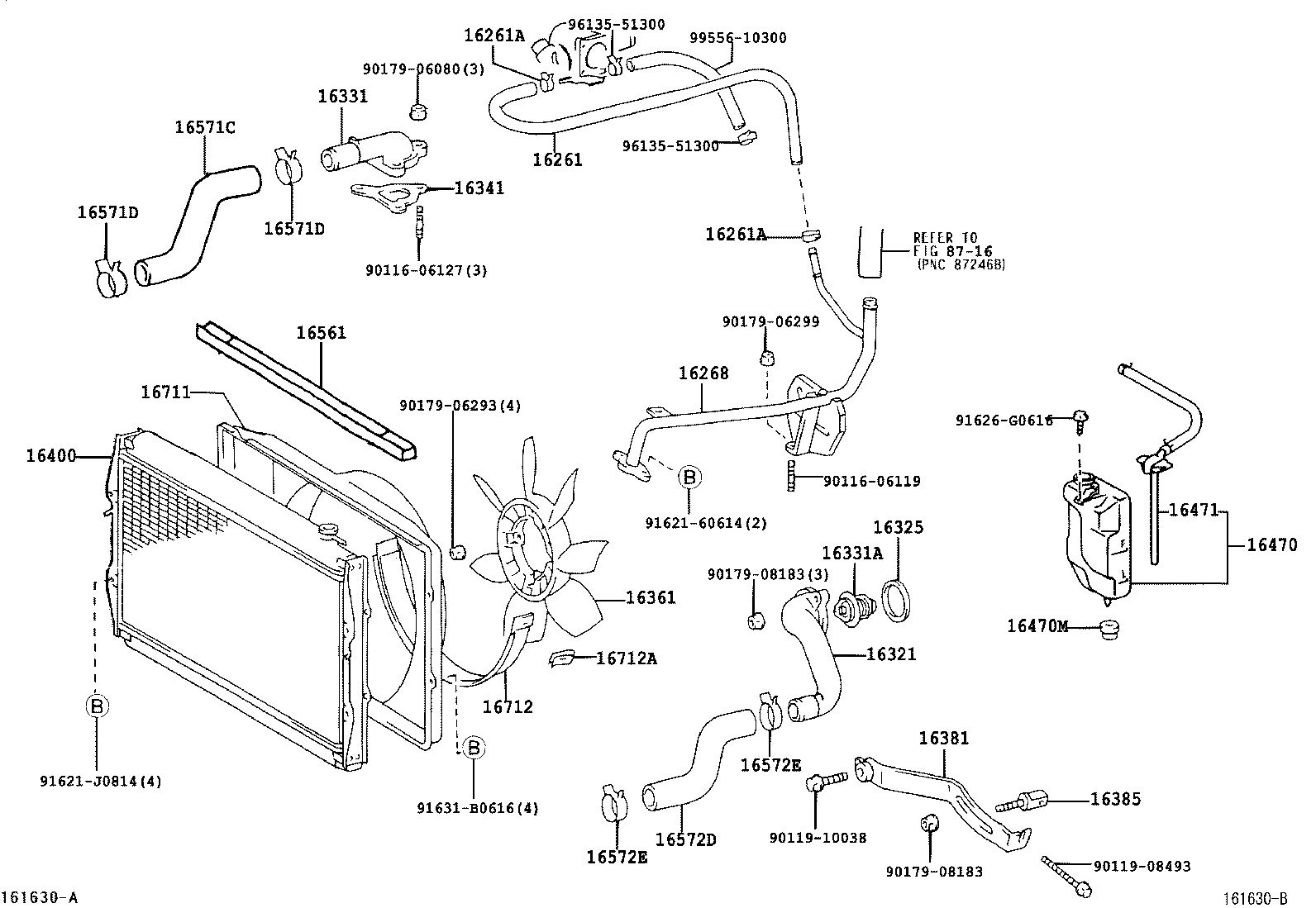

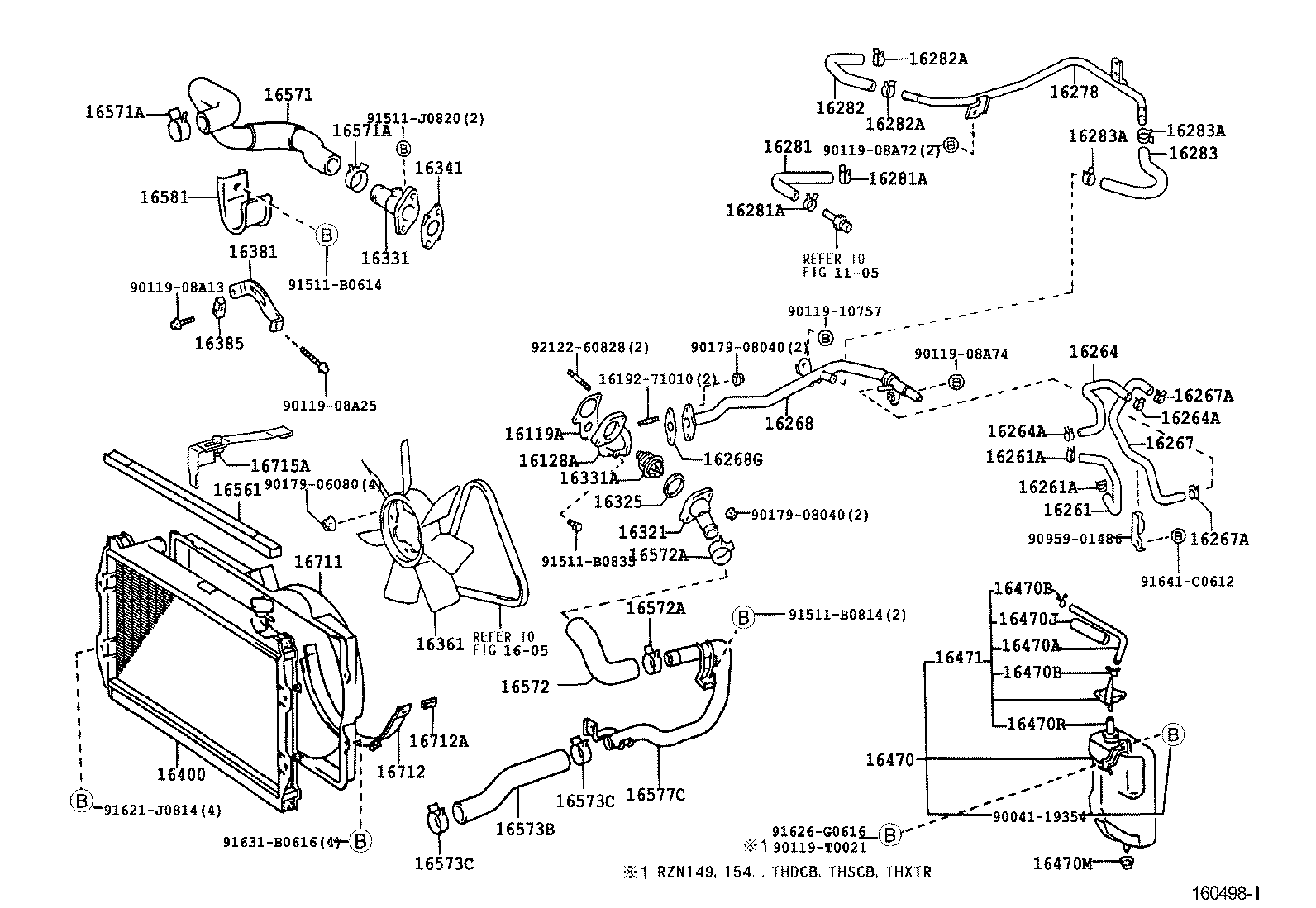

Illustrations

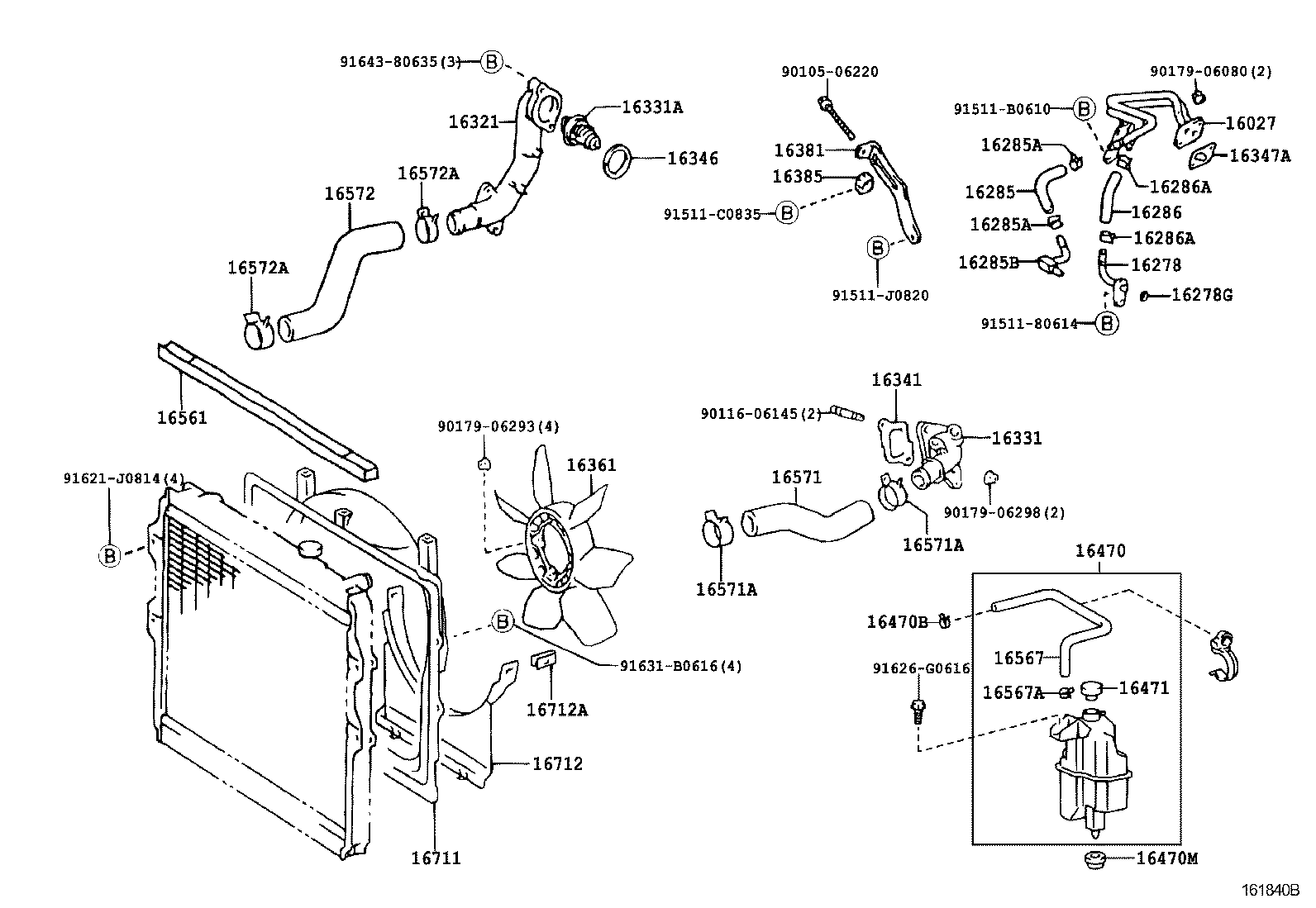

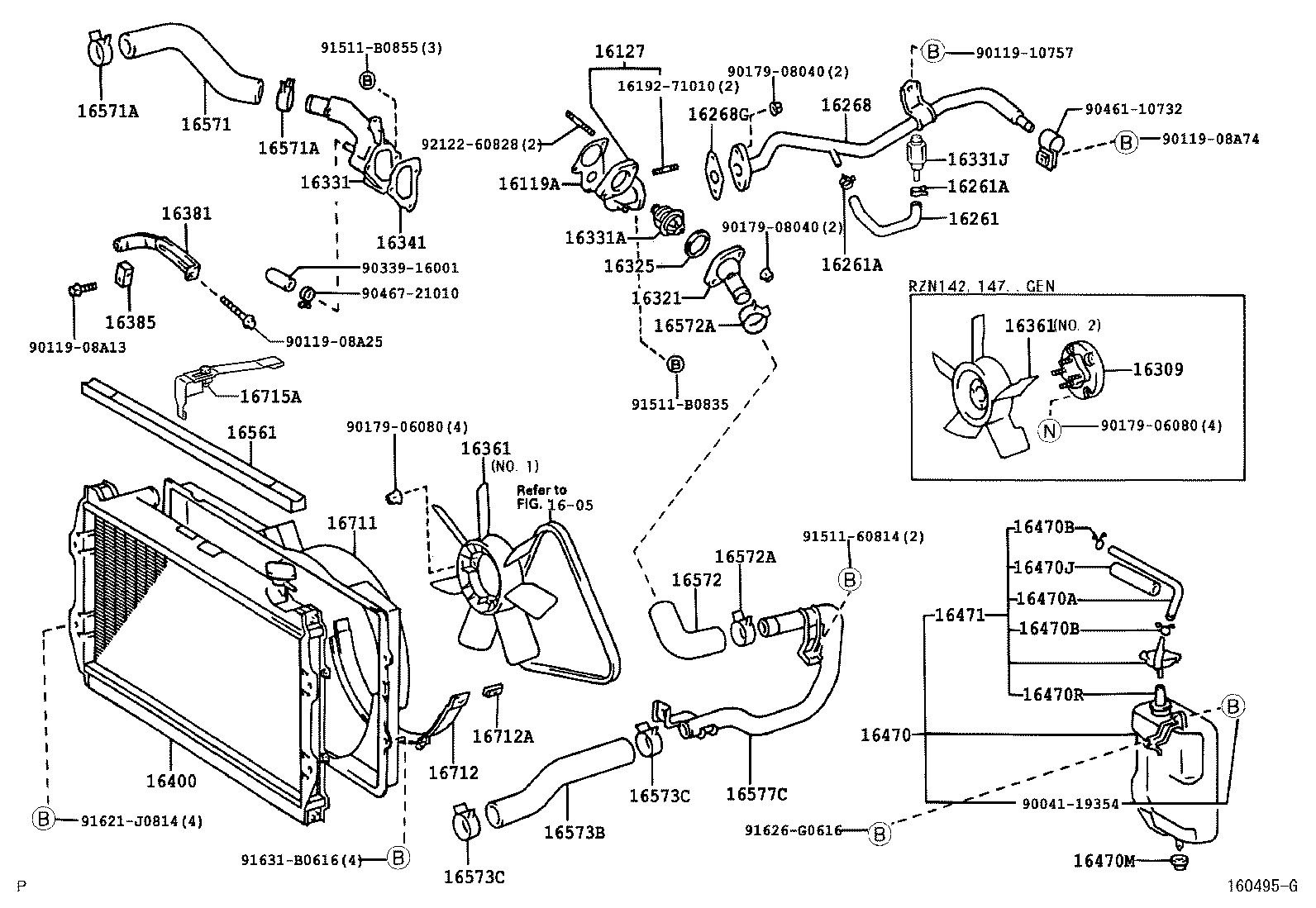

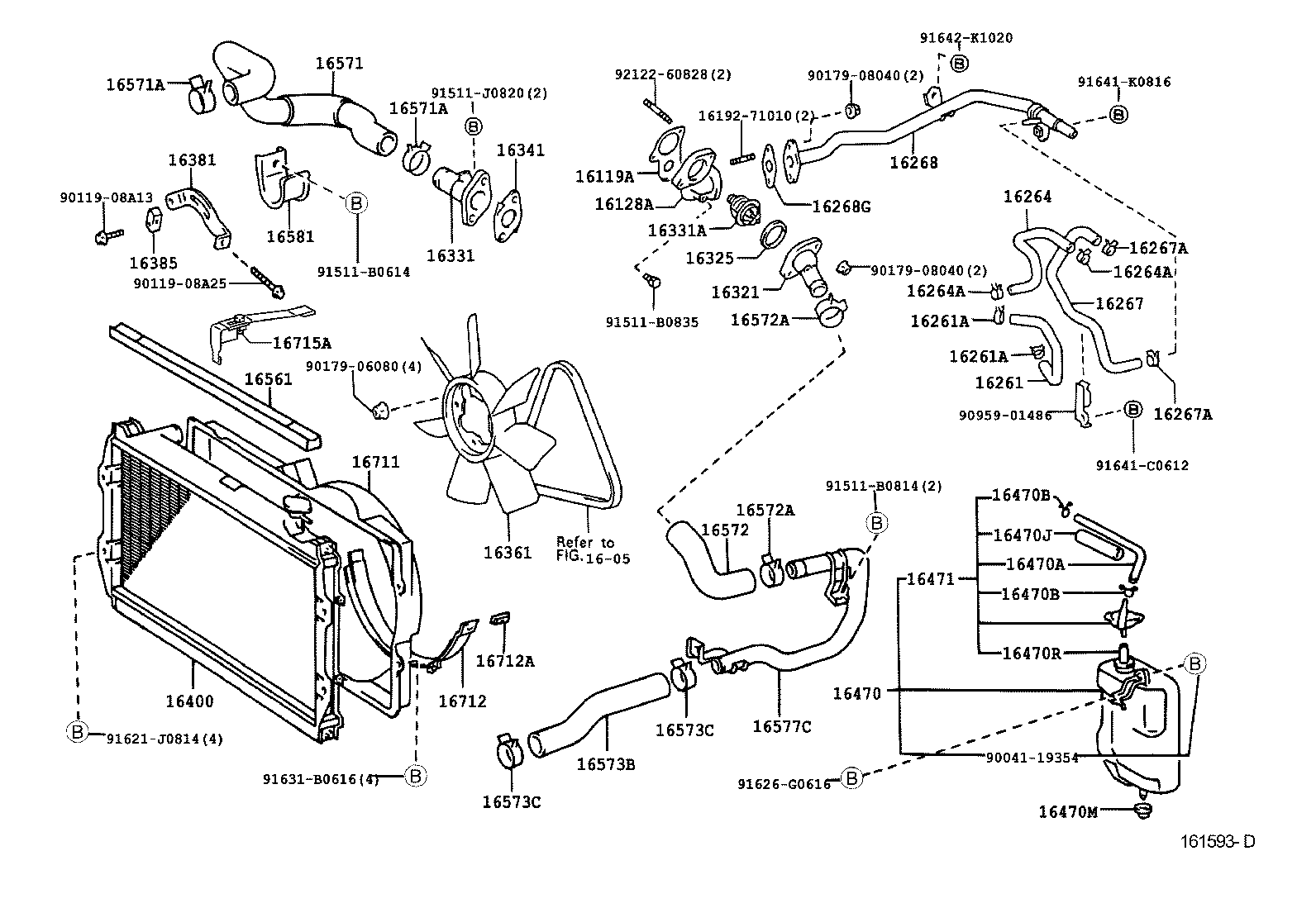

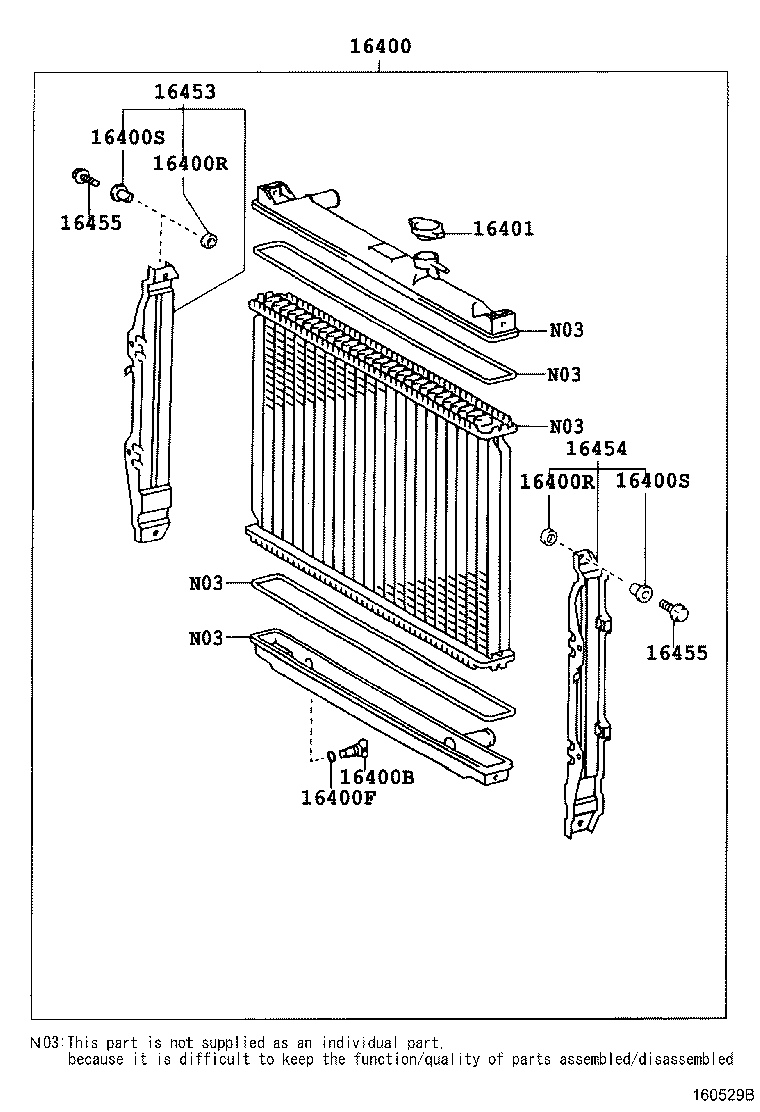

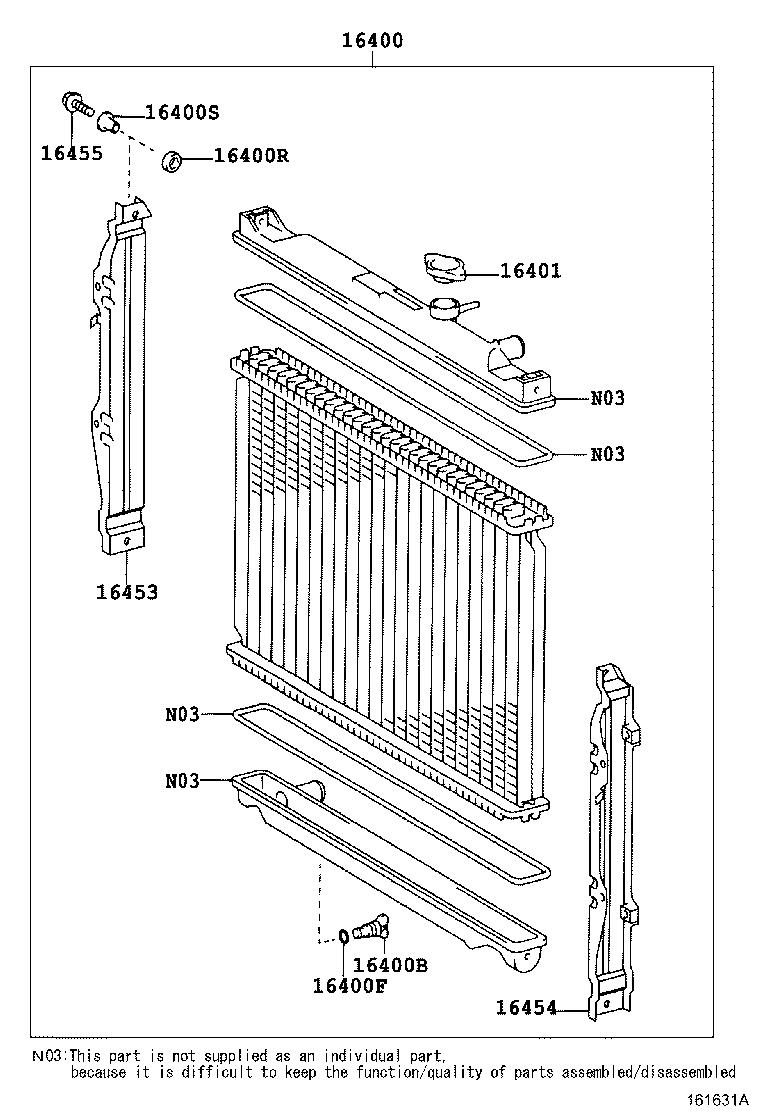

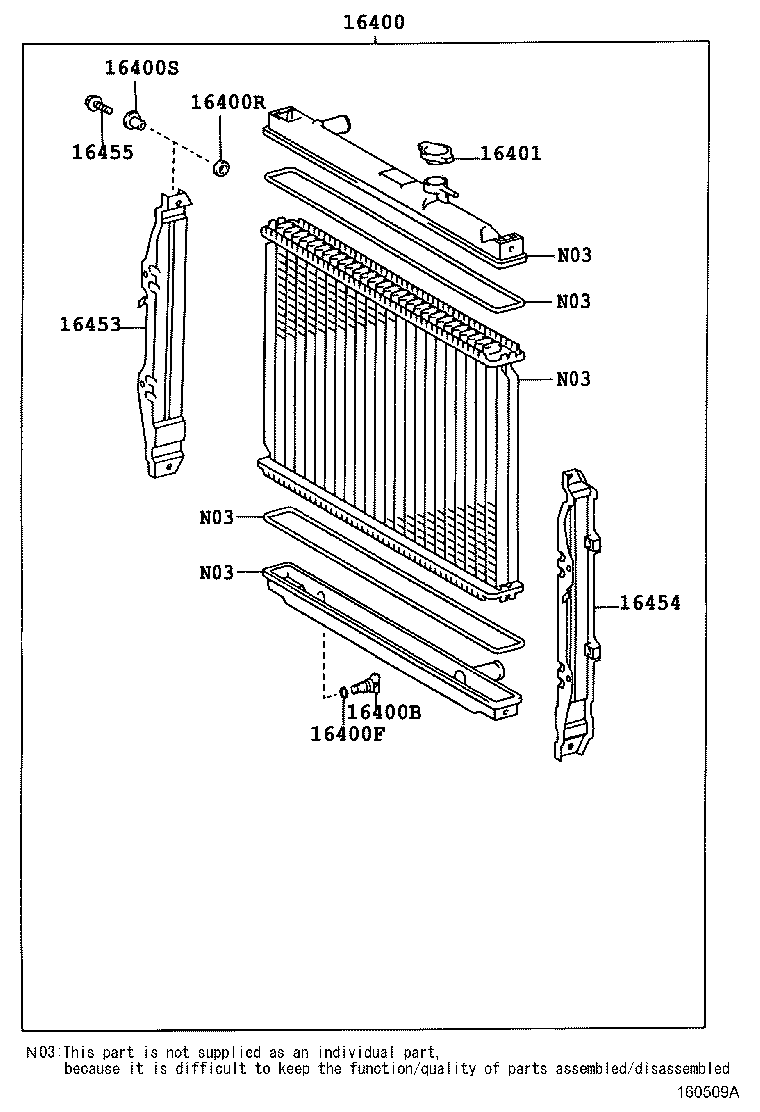

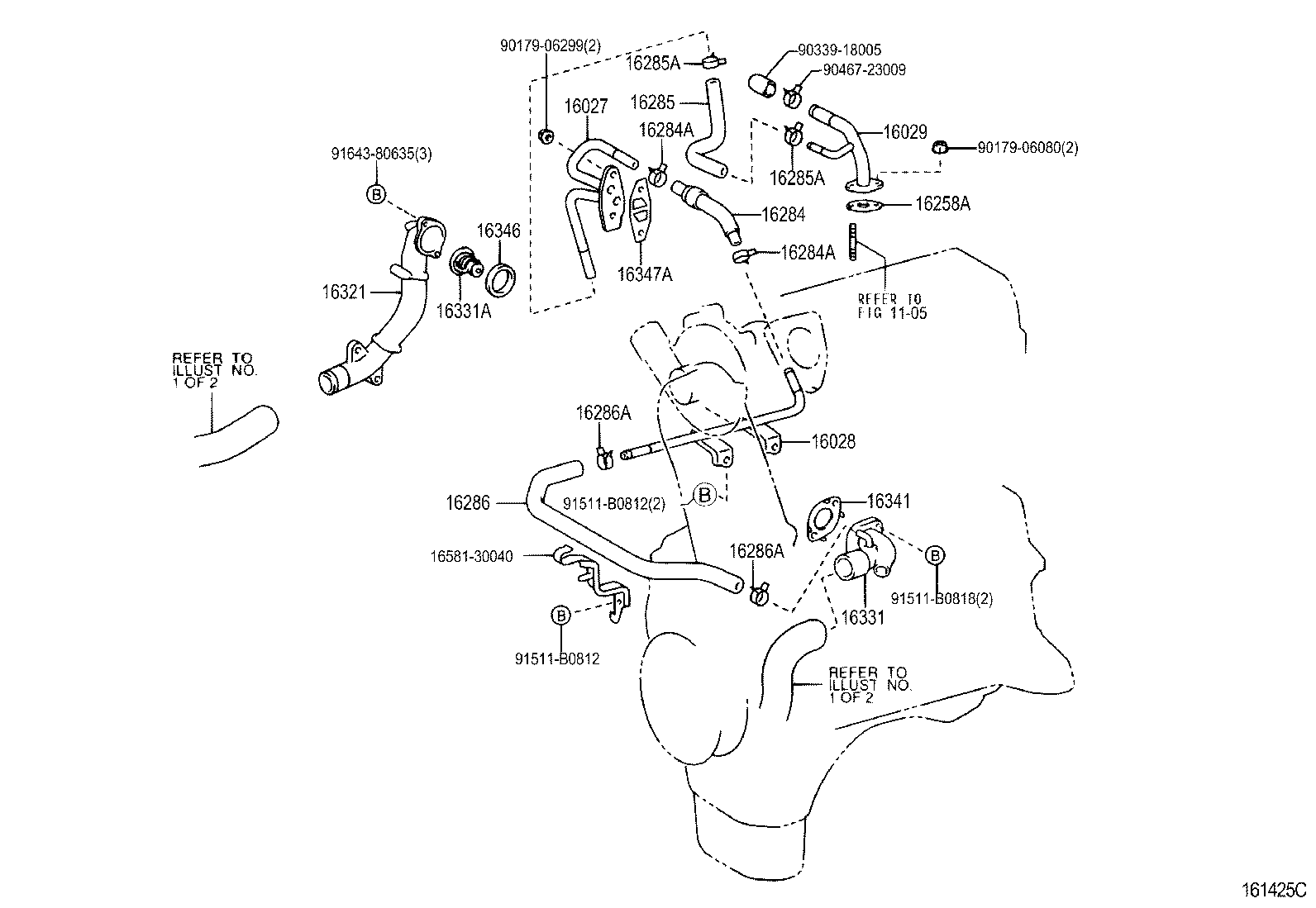

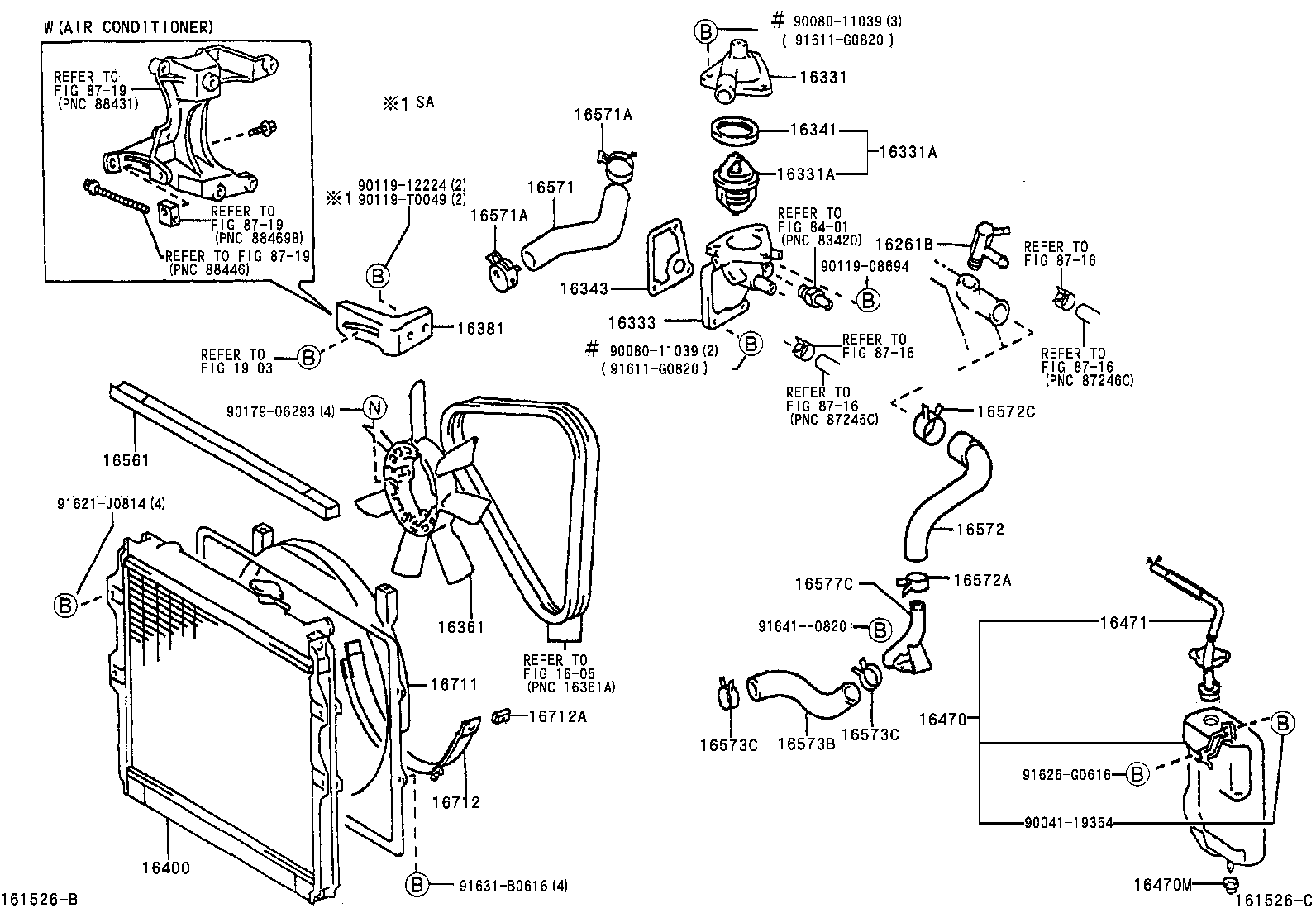

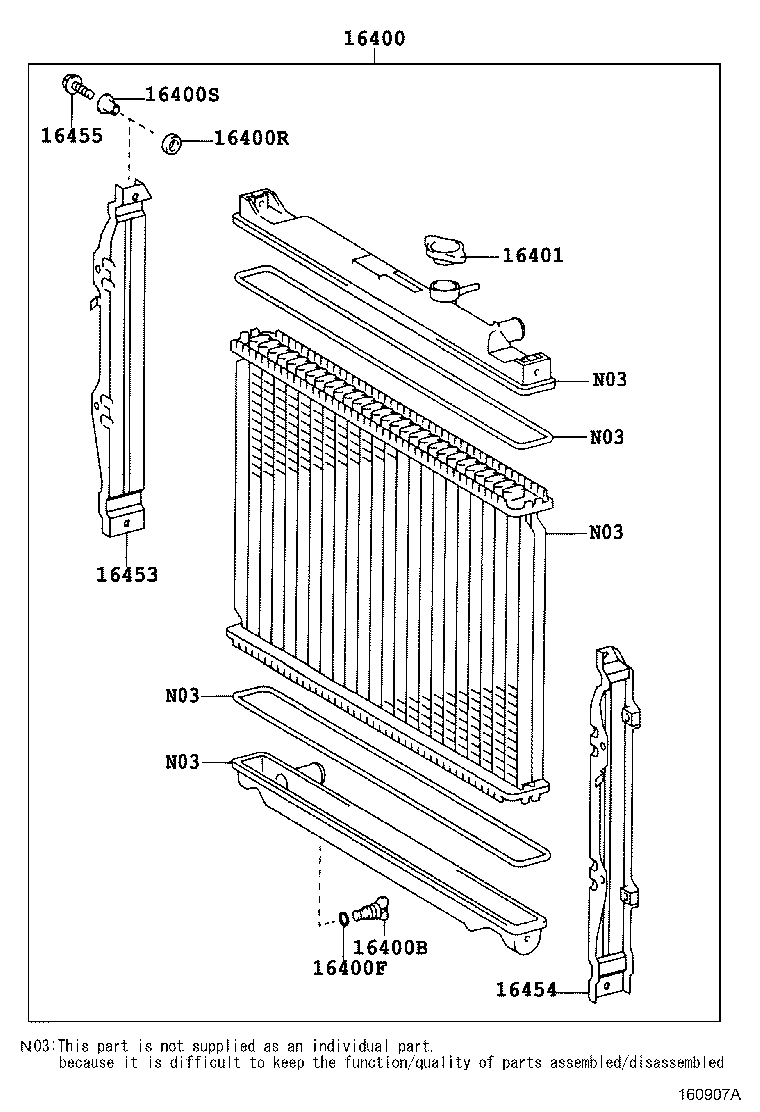

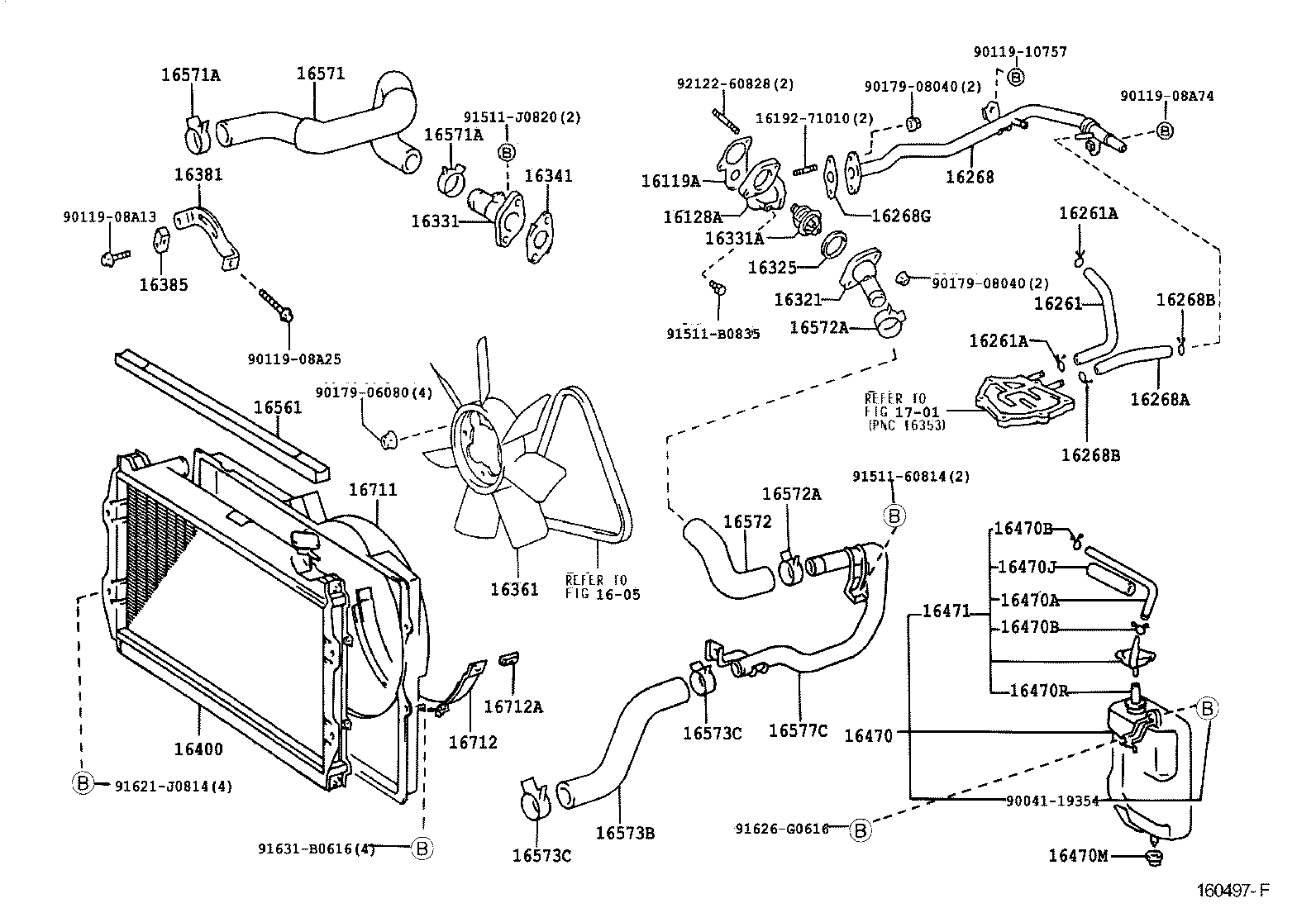

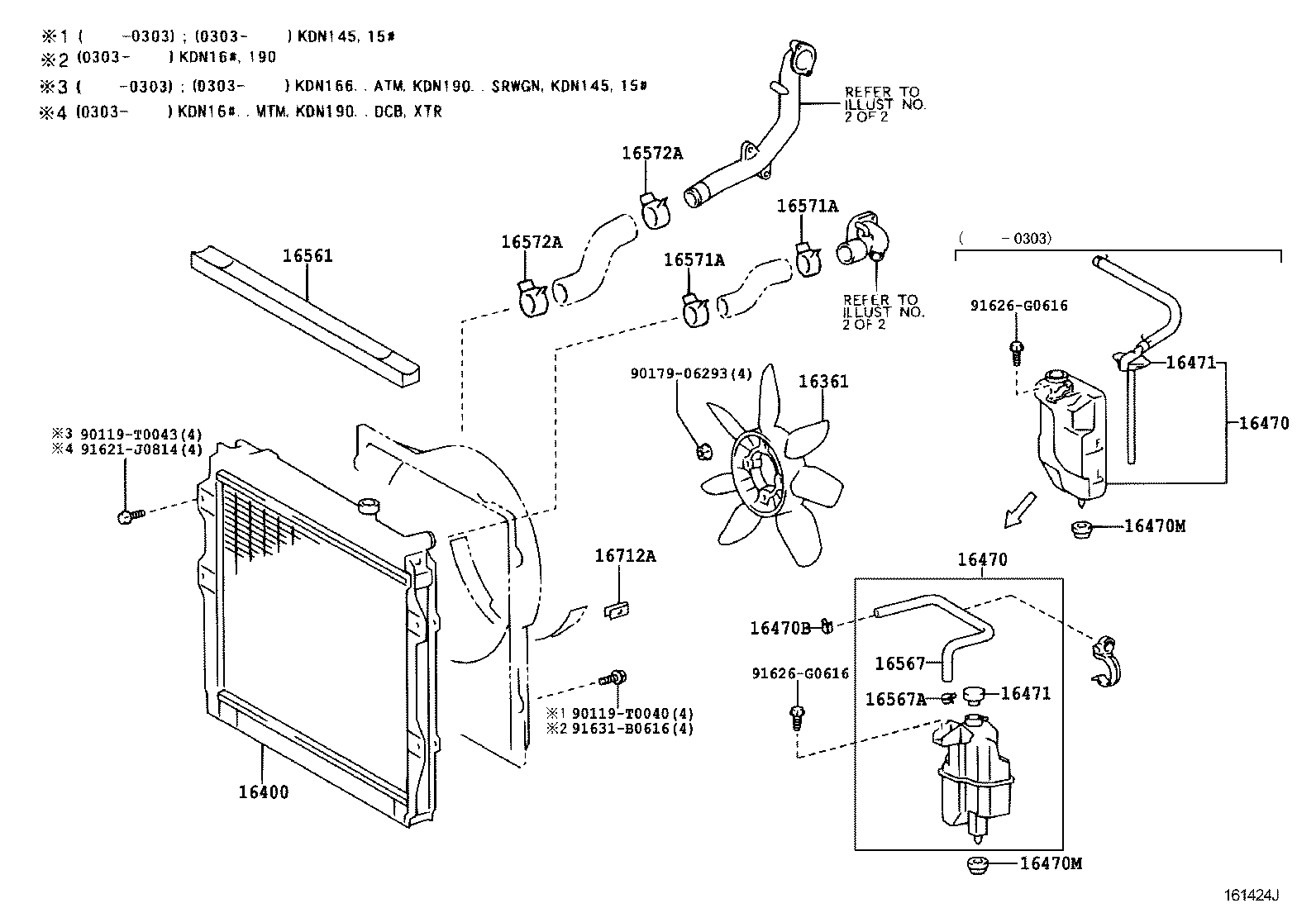

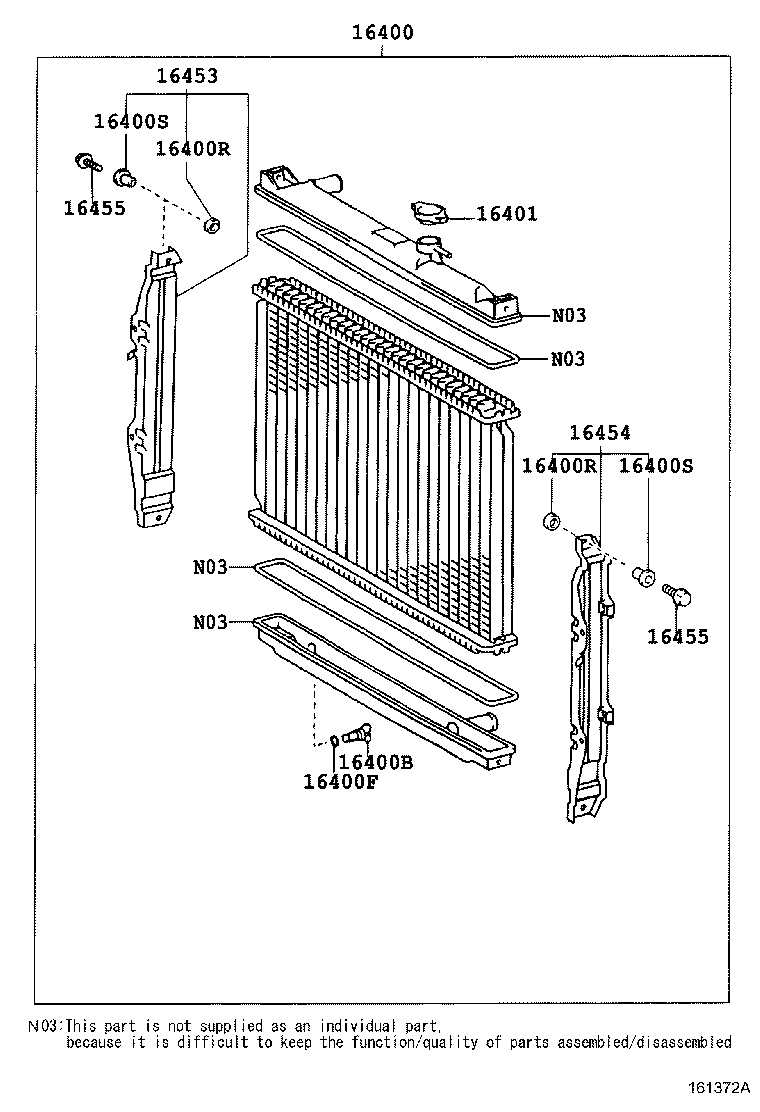

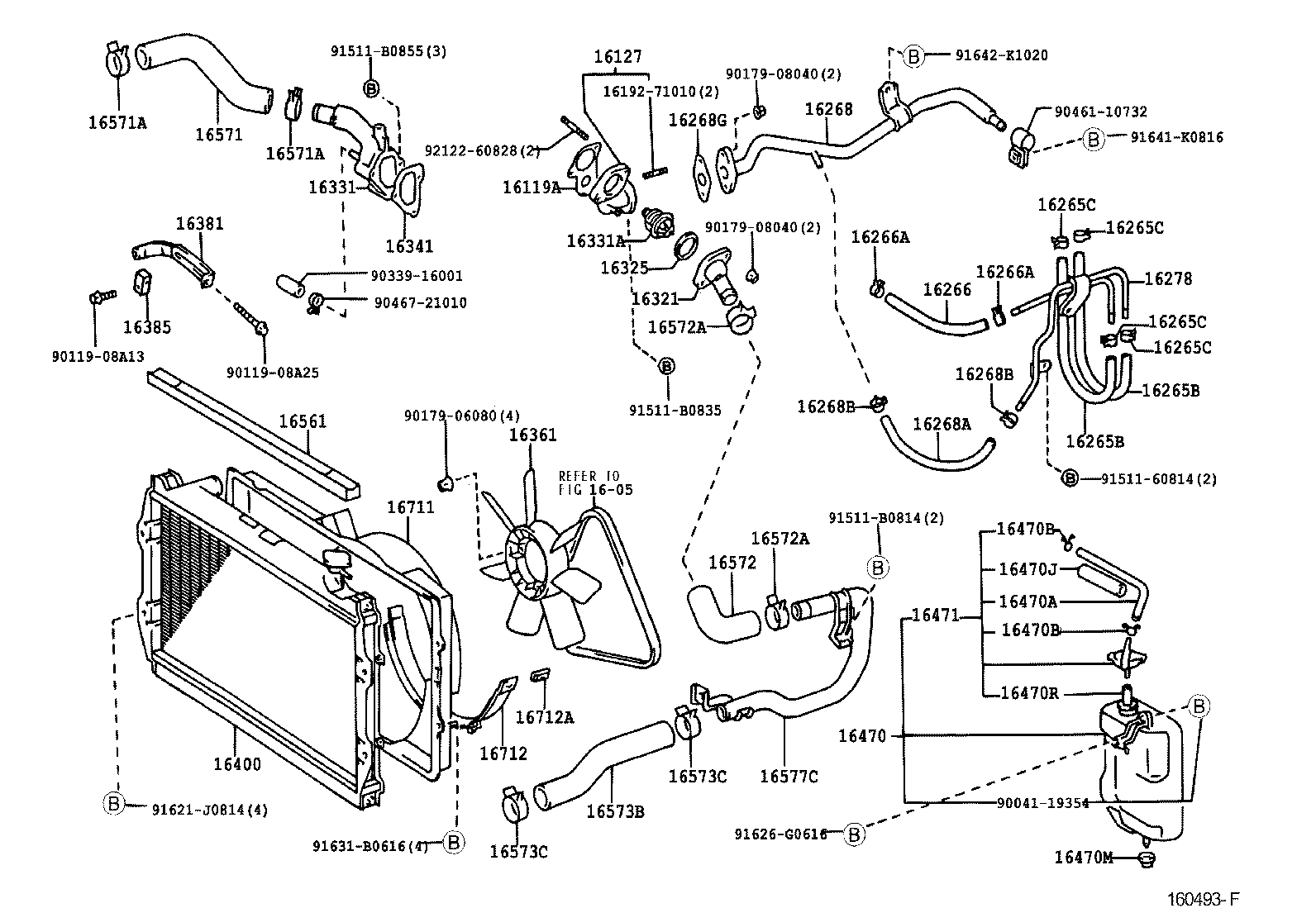

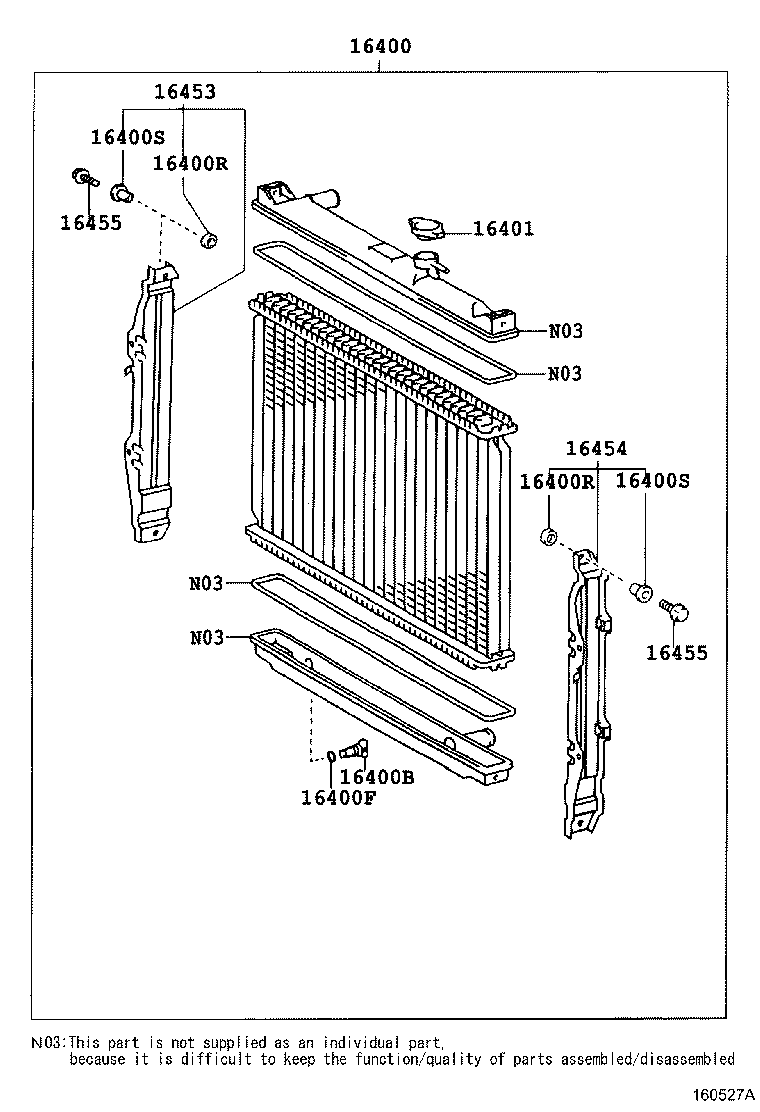

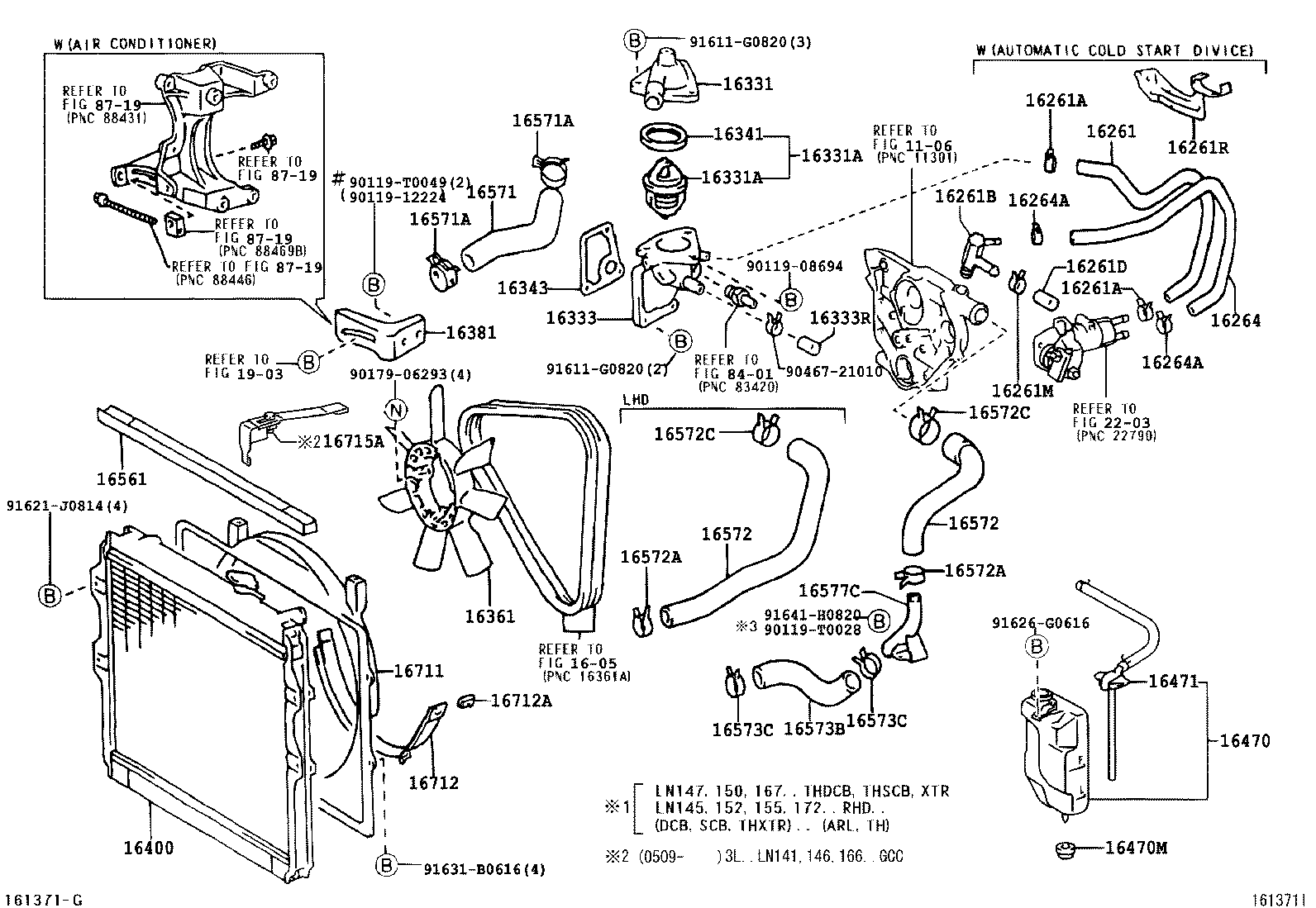

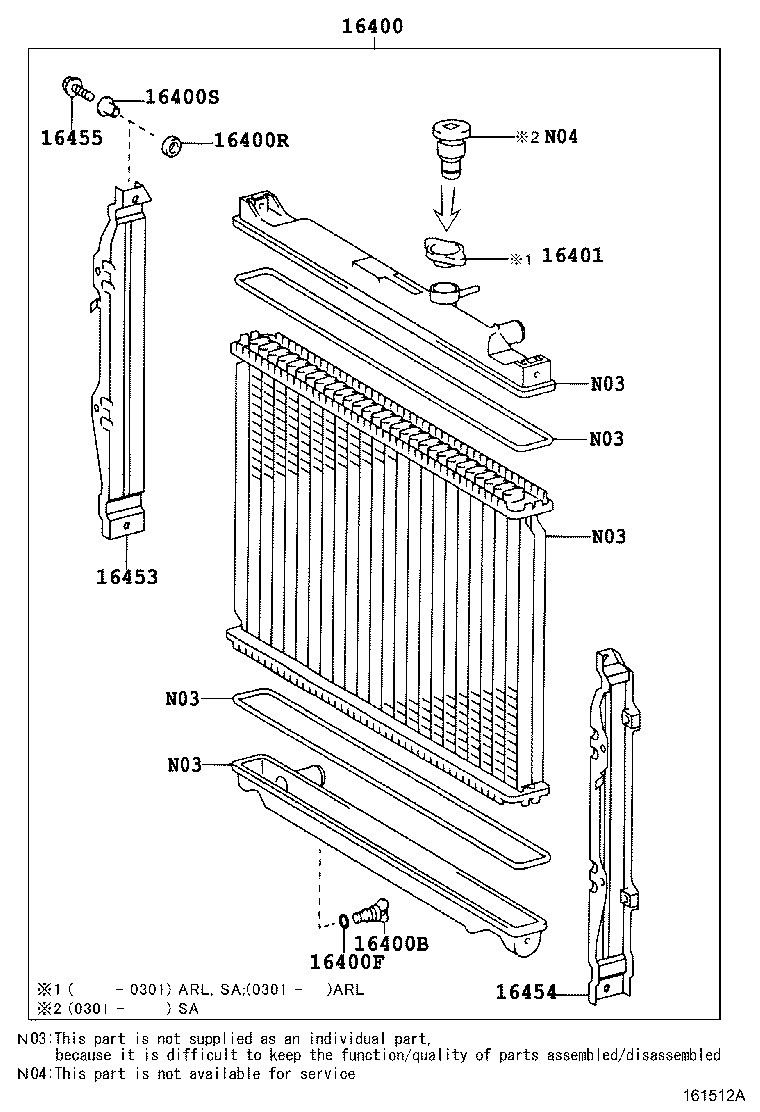

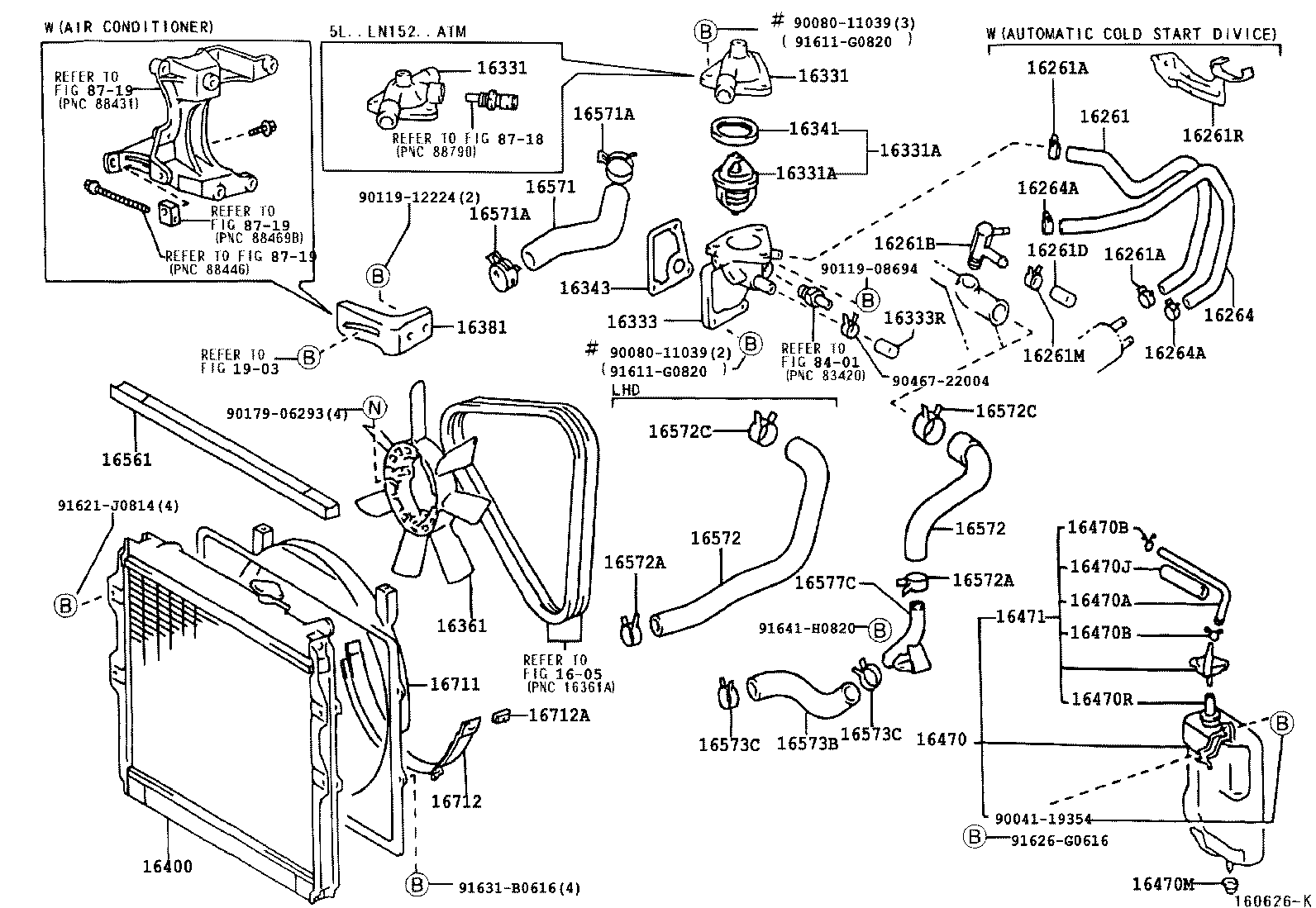

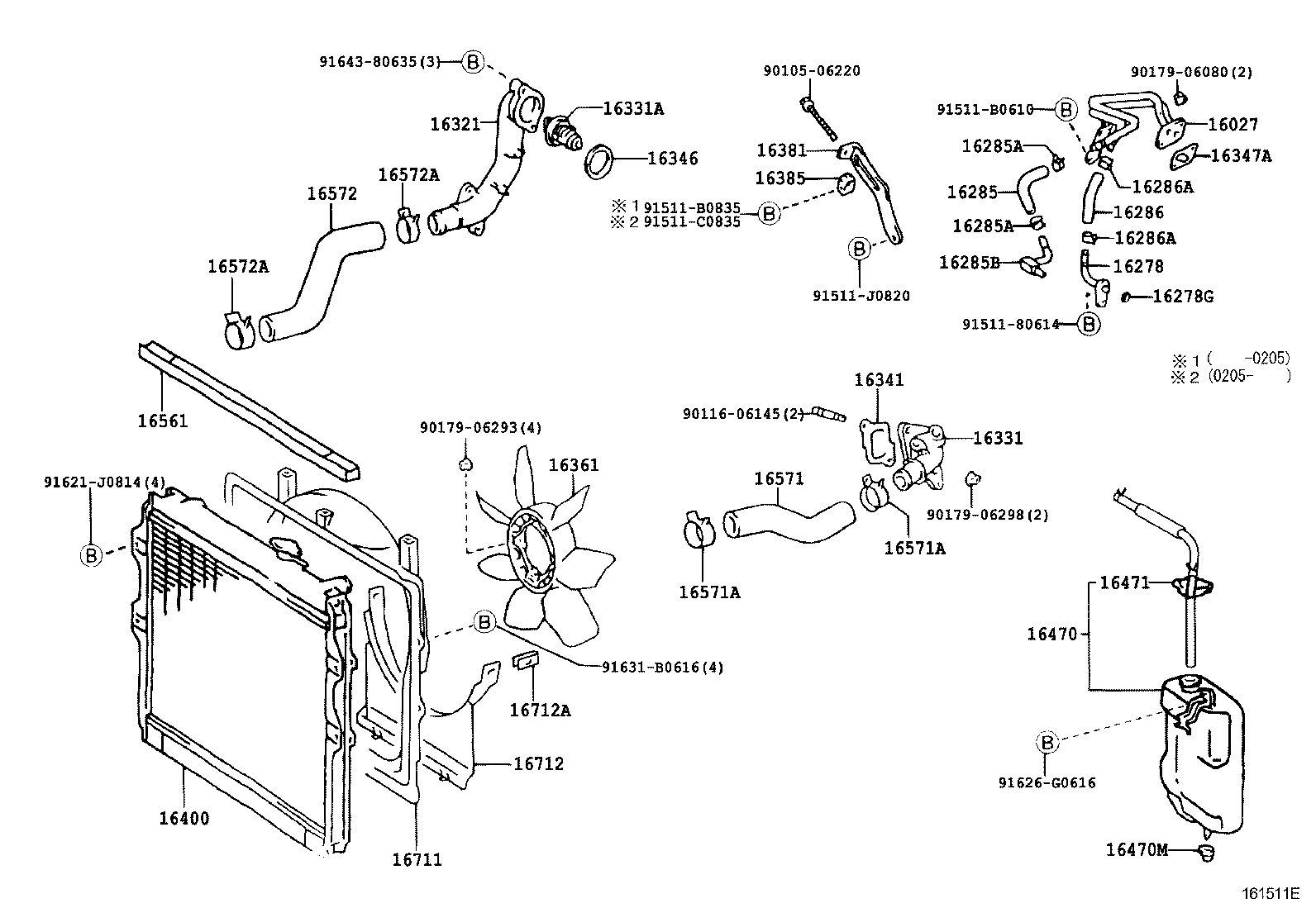

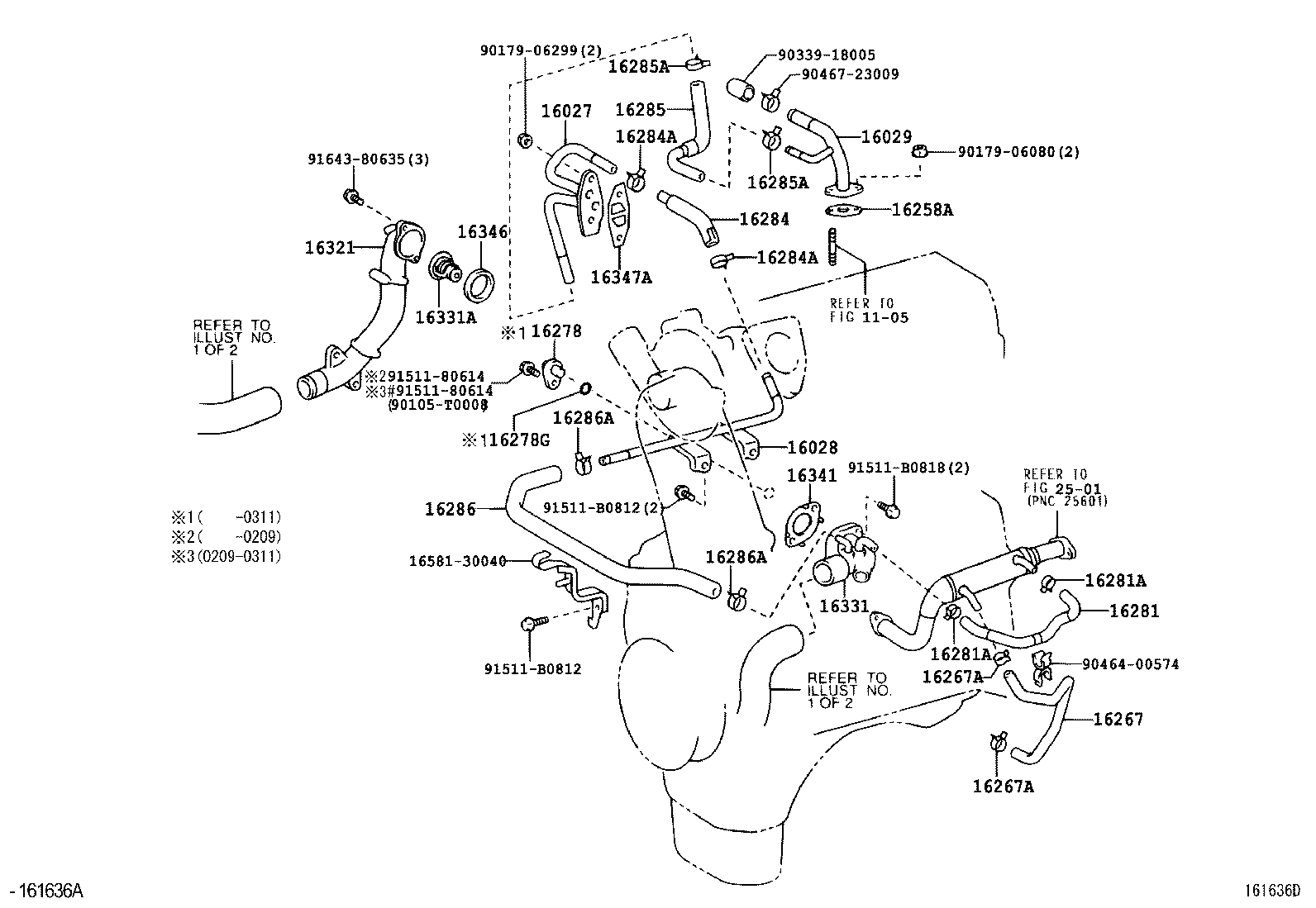

Figure 160902D 160902D 1999-09 → 2001-09 Figure 160902D 160902D 1999-09 → 2002-03 Figure 160907A 160907A 1999-09 → 2001-09 Figure 160907A 160907A 1999-09 → 2002-03 Figure 161511E 161511E 2001-09 → — Figure 161511E 161511E 2002-03 → 2003-02 Figure 161840B 161840B 2003-02 → — Figure 161512B 161512B 2001-09 → — Figure 161512B 161512B 2002-03 → — Figure 161424J 161424J 2001-10 → — Figure 161425C 161425C 2001-10 → — Figure 161636D 161636D 2002-08 → — Figure 160626K 160626K 1997-08 → 2001-08 Figure 160626K 160626K 2001-08 → 2001-09 Figure 160626K 160626K 2001-08 → 2002-03 Figure 160626K 160626K 2001-09 → 2002-03 Figure 161526C 161526C 2002-03 → — Figure 161371I 161371I 2001-08 → 2001-09 Figure 161371I 161371I 2001-08 → — Figure 161371I 161371I 2001-09 → — Figure 161371I 161371I 2001-09 → — Figure 160529B 160529B 1997-08 → 2001-08 Figure 160529B 160529B 2001-08 → 2001-09 Figure 160529B 160529B 2001-08 → 2002-03 Figure 160529B 160529B 2001-09 → 2002-03 Figure 161527A 161527A 2002-03 → — Figure 161372A 161372A 2001-08 → 2001-09 Figure 161372A 161372A 2001-08 → — Figure 161372A 161372A 2001-09 → — Figure 161372A 161372A 2001-09 → — Figure 160495G 160495G 1997-08 → — Figure 160493F 160493F 1997-08 → — Figure 161593D 161593D 1997-08 → — Figure 160497F 160497F 1997-08 → — Figure 160498I 160498I 1997-08 → — Figure 160509A 160509A 1997-08 → — Figure 161630B 161630B 2002-08 → — Figure 161631A 161631A 2002-08 → — Figure 160718 160718 1998-08 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16029 Pipe Sub-assy, Turbo Water, NO.3
16119A Gasket, Thermostat Guide
16127 Plate, Water Pump Thermostat Guide
16128A Plate, Water Pump Thermostat Guide
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261D Plug, W/O Heater
16261M Clip, W/O Heater Plug
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16265B Hose, Intake Manifold Water, NO.1
16265C Clamp OR Clip(FOR INTAKE MANIFOLD WATER HOSE NO.1)
16266 Hose, Intake Manifold Water, NO.2
16266A Clamp OR Clip(FOR INTAKE MANIFOLD WATER HOSE, NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268A Hose(FOR WATER BY-PASS PIPE)
16268B Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278G Ring, O(FOR WATER BY-PASS NO.2 PIPE)
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16285B Union(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16309 Shaft Sub-assy, Fan Drive
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16331J Thermostat, Manifold
16333 Housing, Water Outlet
16333R Plug(FOR WATER OUTLET HOUSING)
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470J Hose, NO.3(FOR RADIATOR RESERVE TANK)
16470M Grommet
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16561 Seal, Radiator TO Support, NO.1
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
16712A Clip
16715A Bracket, Fan Shroud, NO.2
