Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 10 illustrations

Illustrations

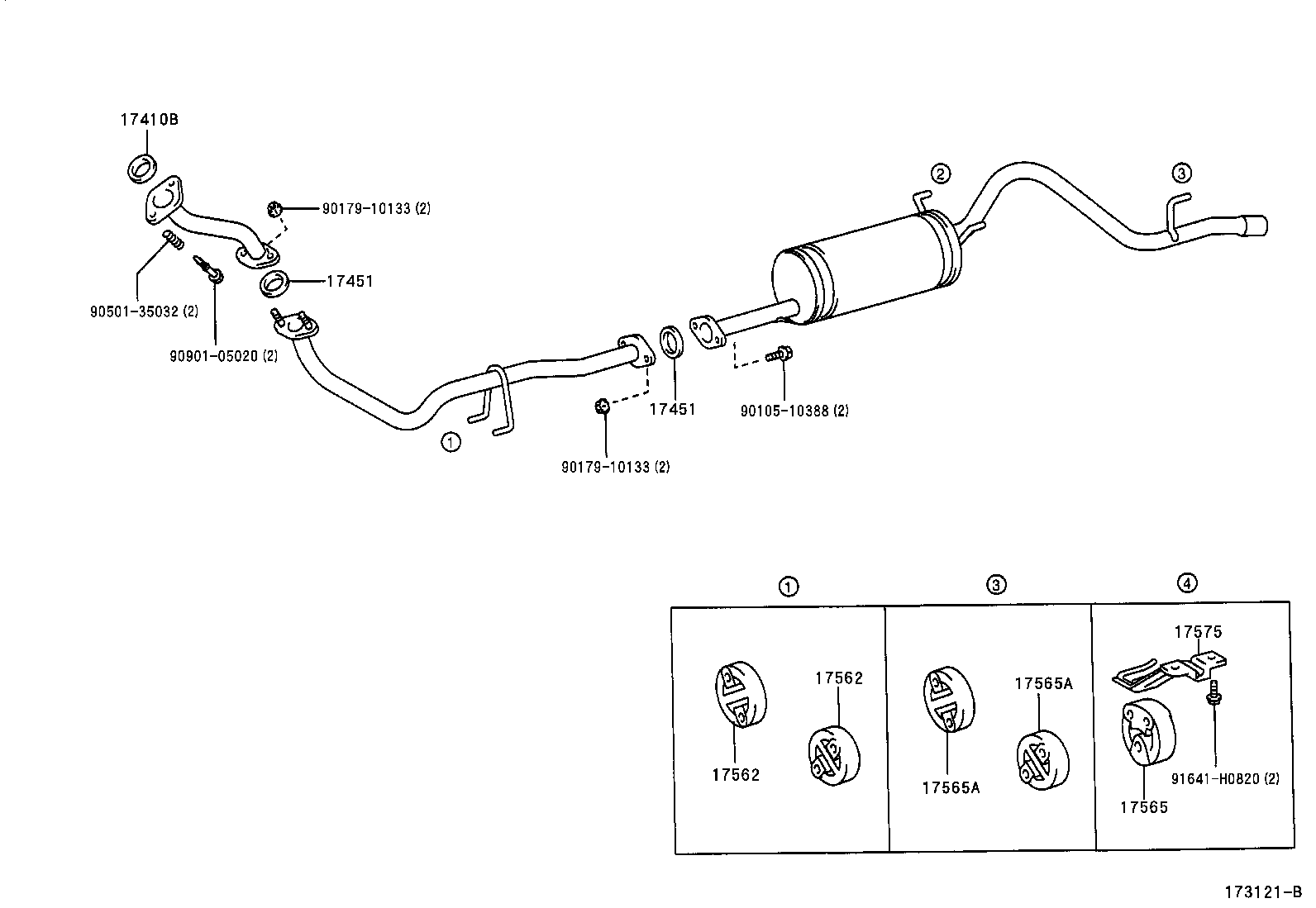

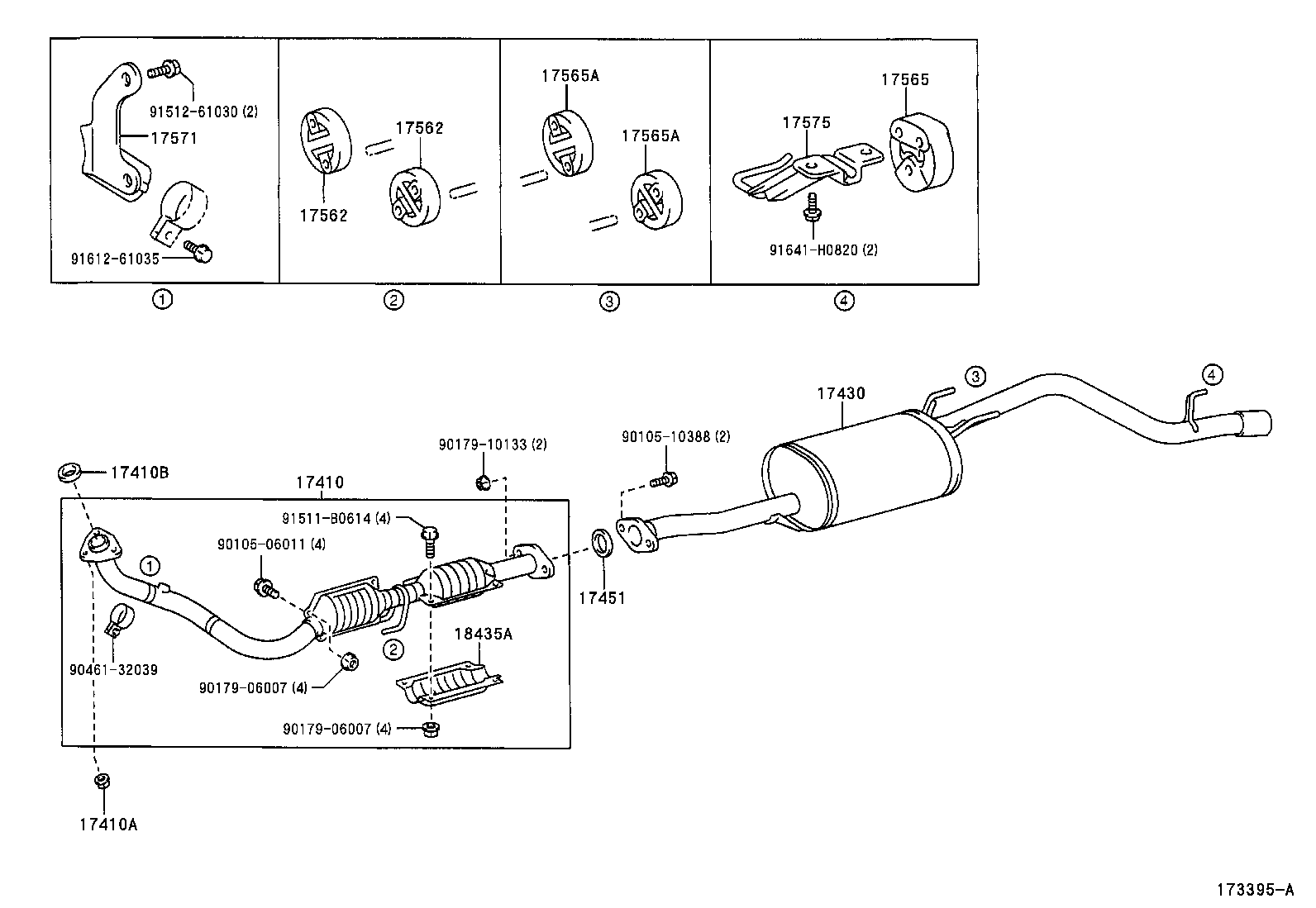

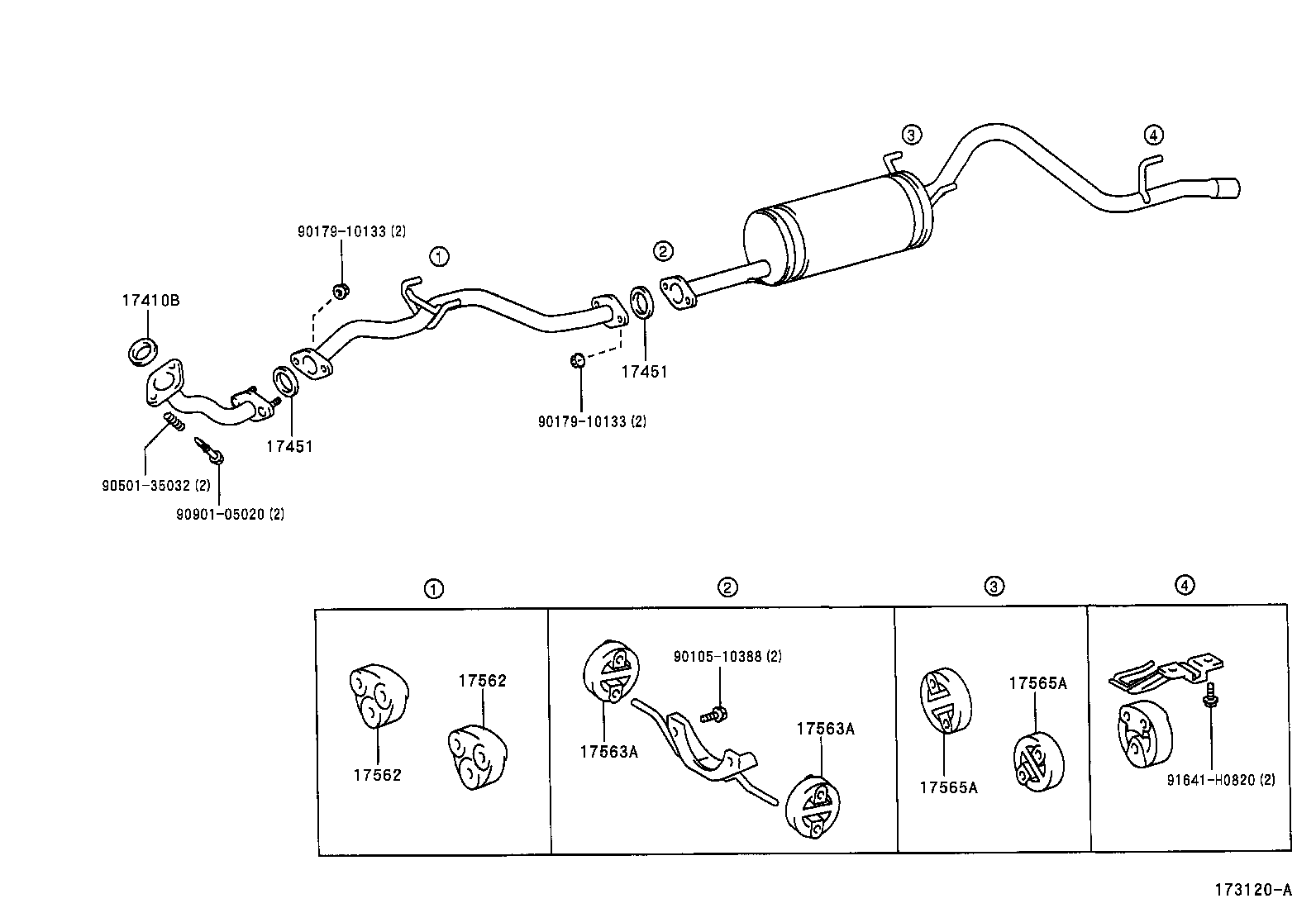

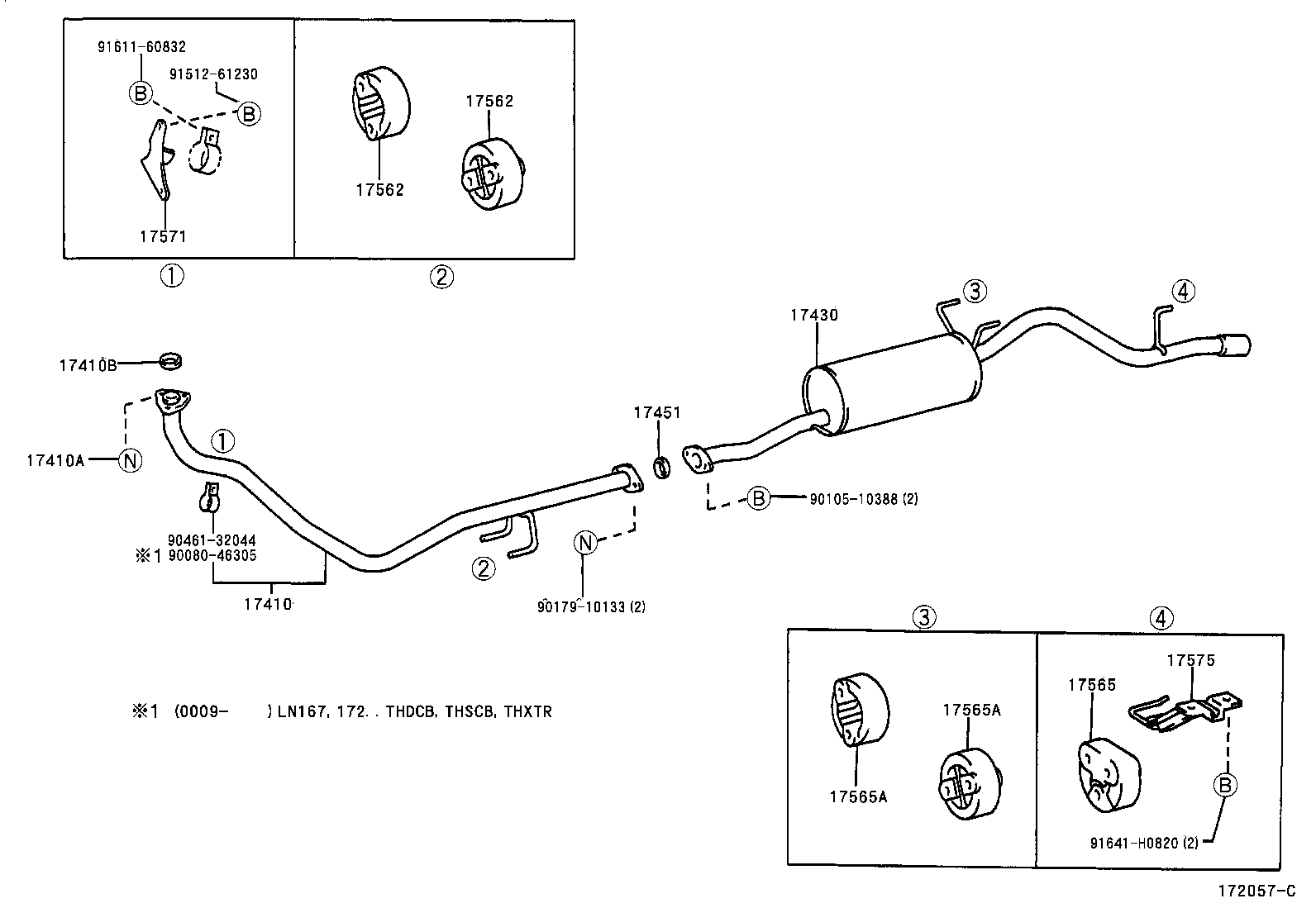

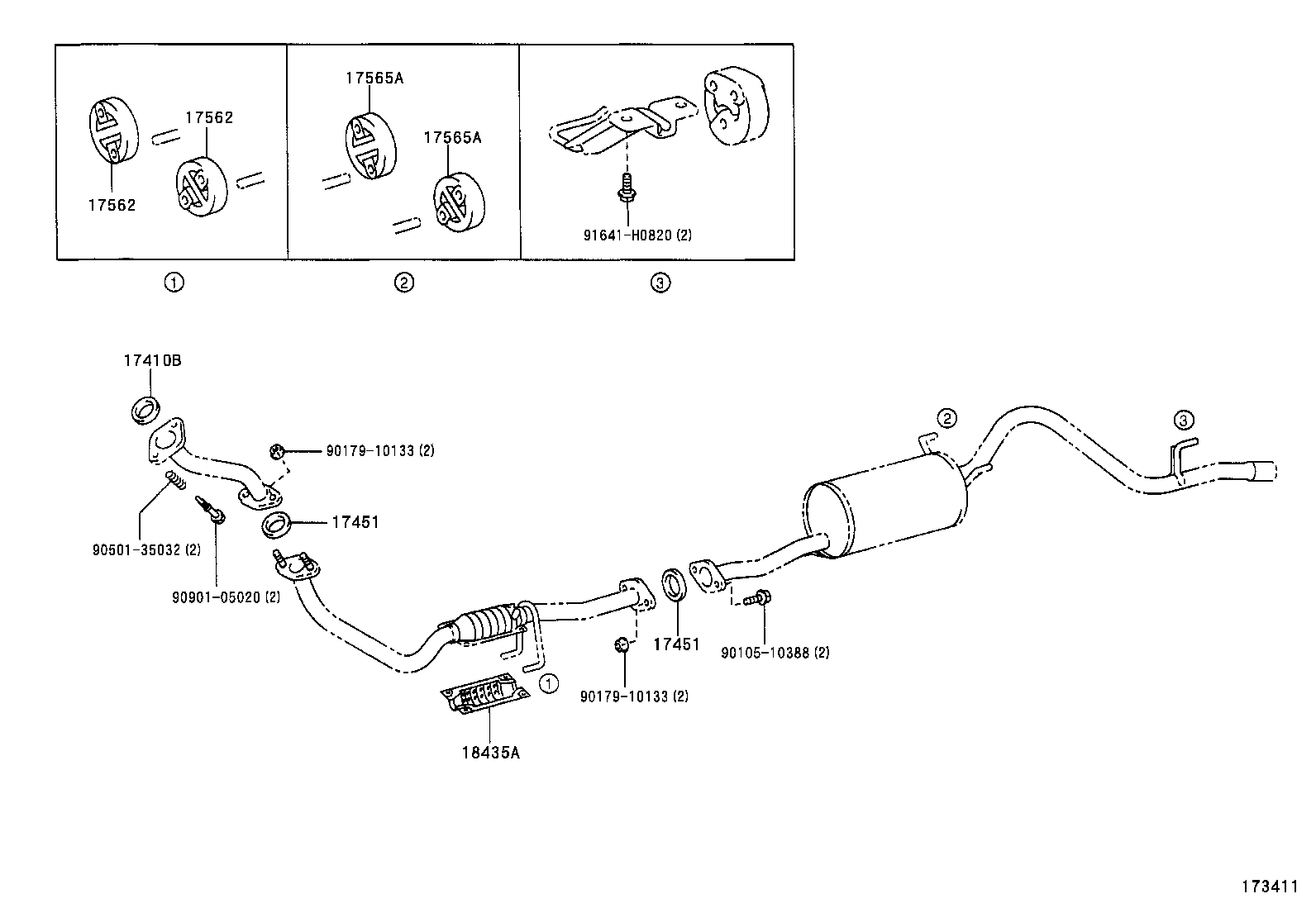

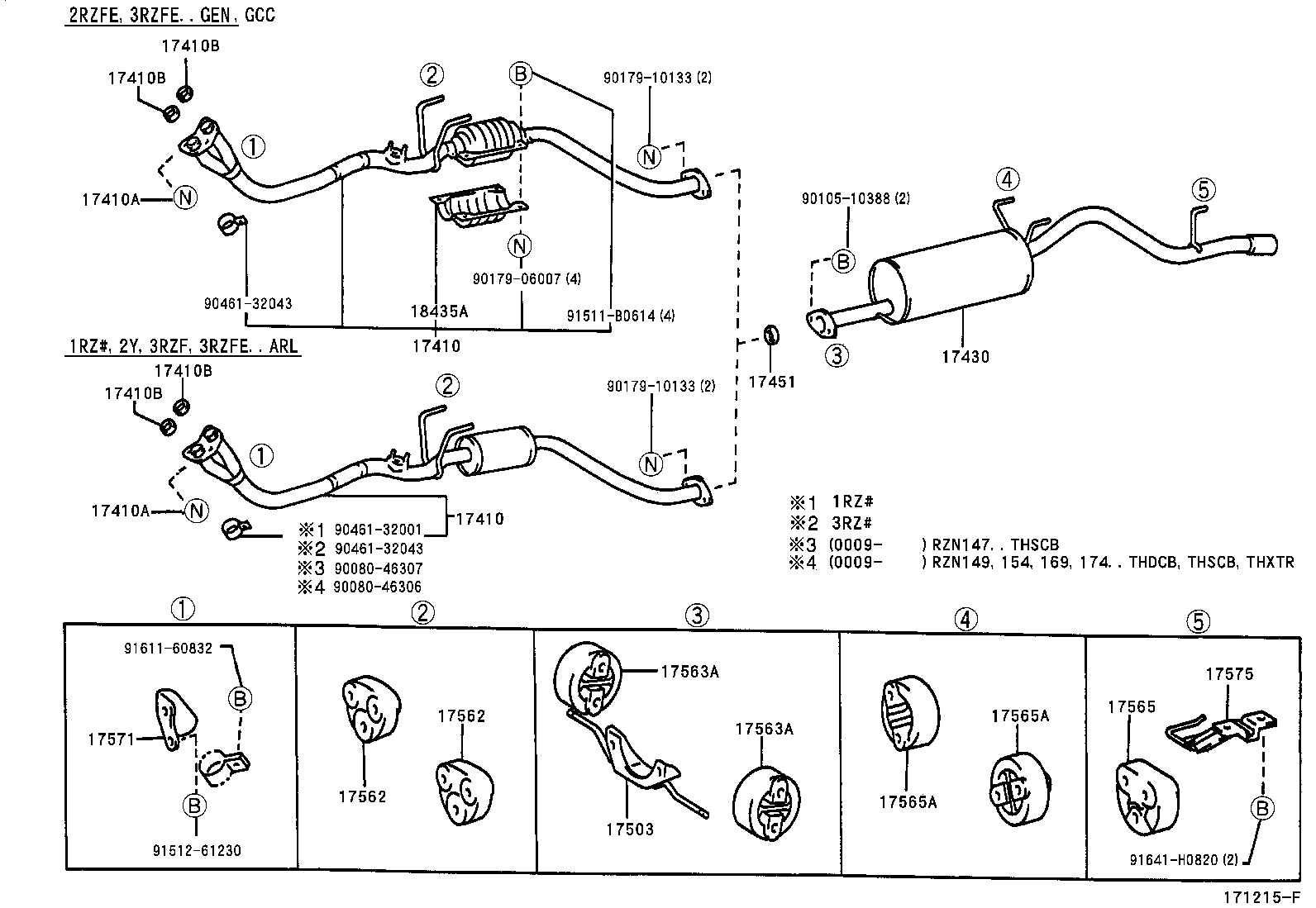

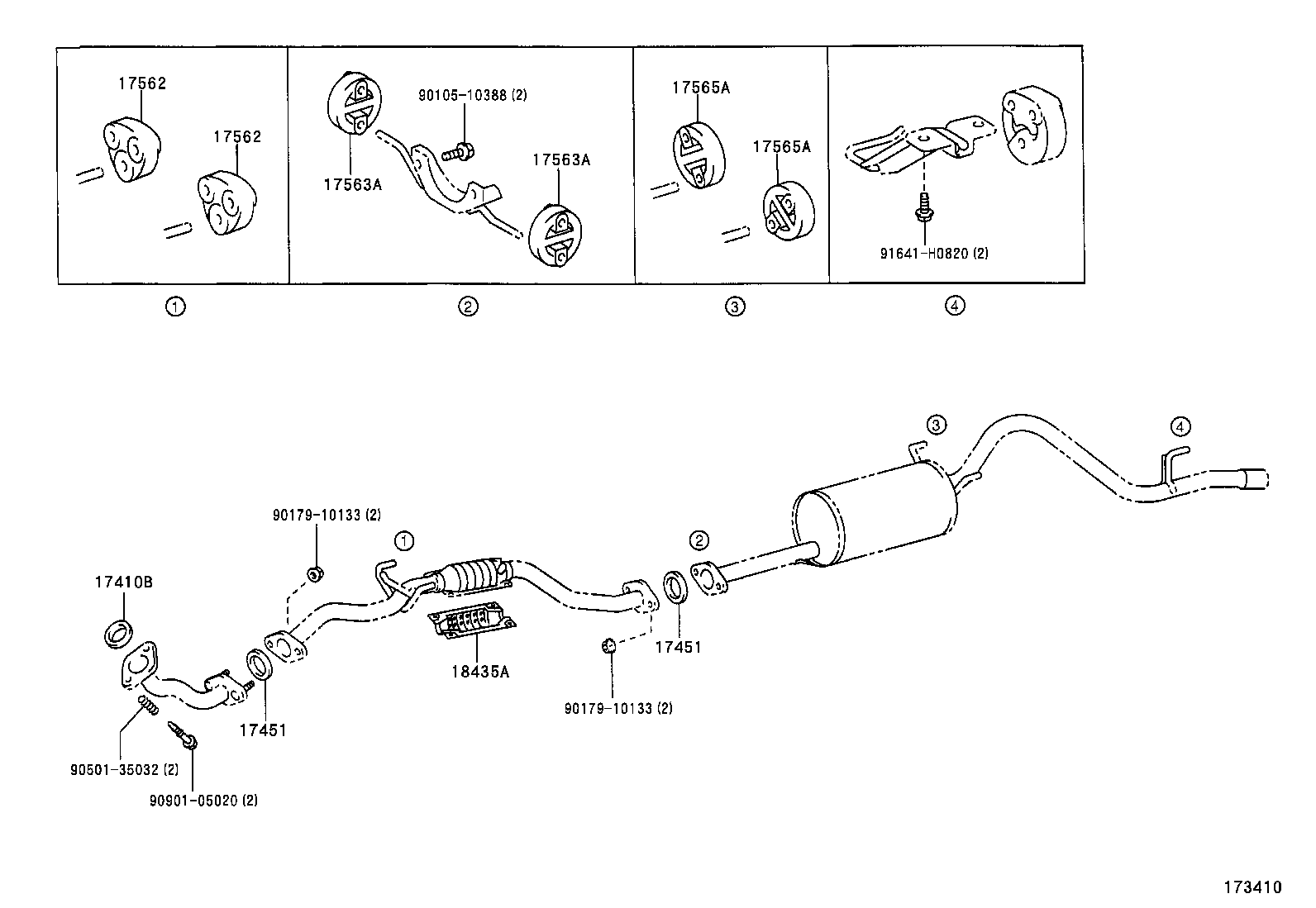

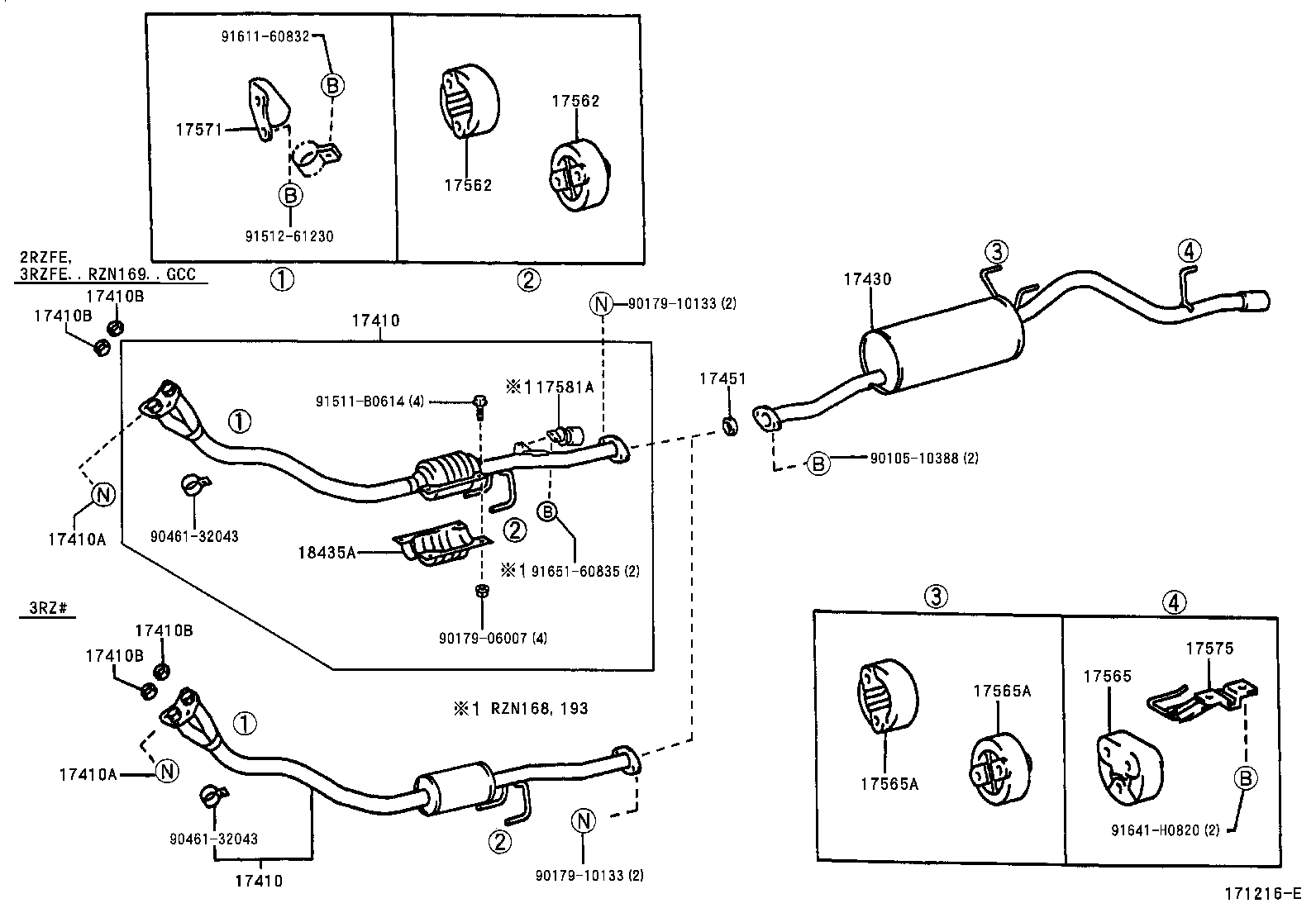

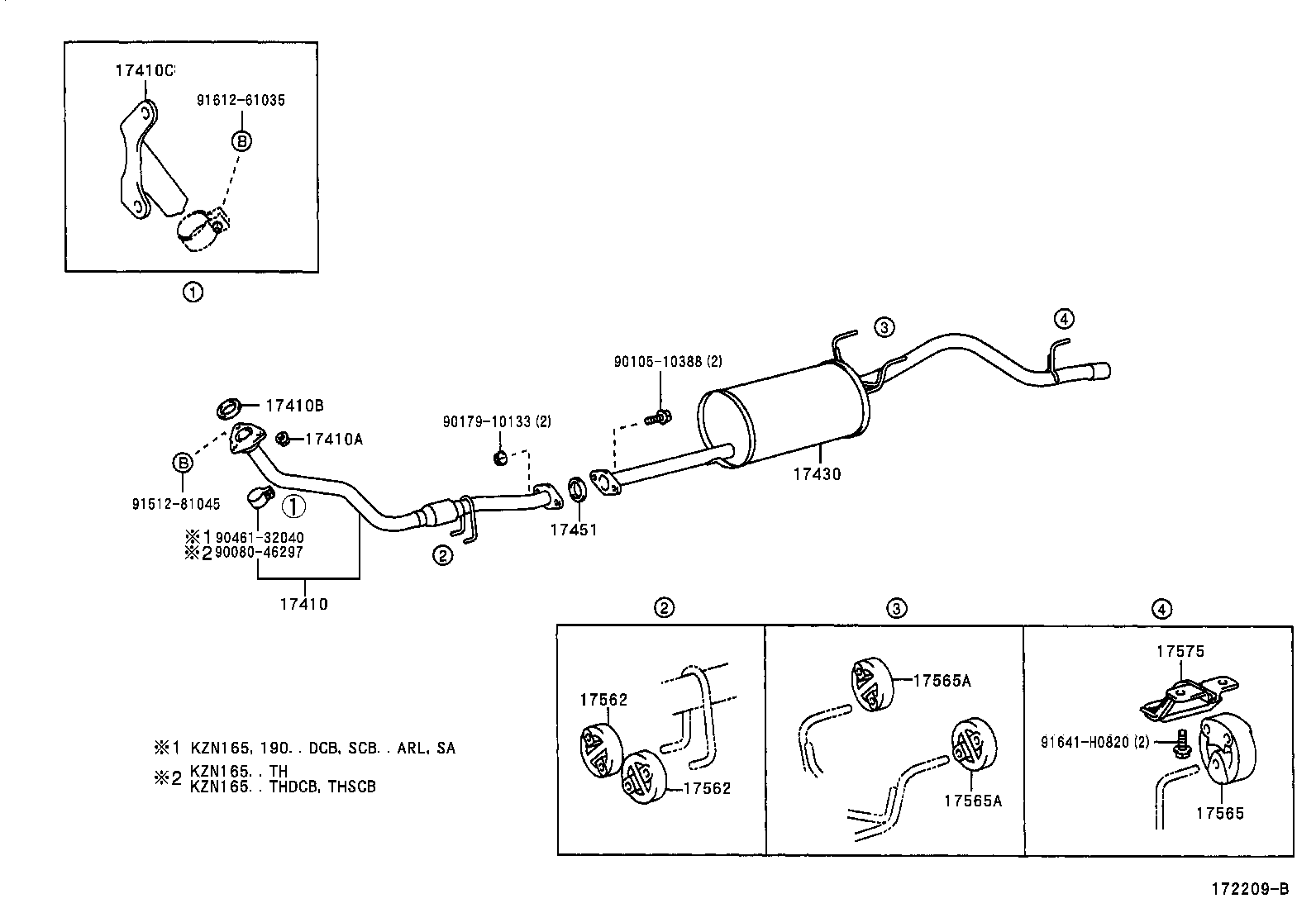

Figure 171256C 171256C 1997-08 → — Figure 172057C 172057C 1997-08 → — Figure 171215F 171215F 1997-08 → — Figure 171216E 171216E 1997-08 → — Figure 172209B 172209B 1999-09 → — Figure 173120A 173120A 2001-10 → — Figure 173121B 173121B 2001-10 → — Figure 173410 173410 2002-08 → — Figure 173411 173411 2002-08 → — Figure 173395A 173395A 2002-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17575 Bracket, Exhaust Pipe Support, NO.5
17581A Damper, Exhaust Pipe
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
