Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

59 part groups · 32 illustrations

Illustrations

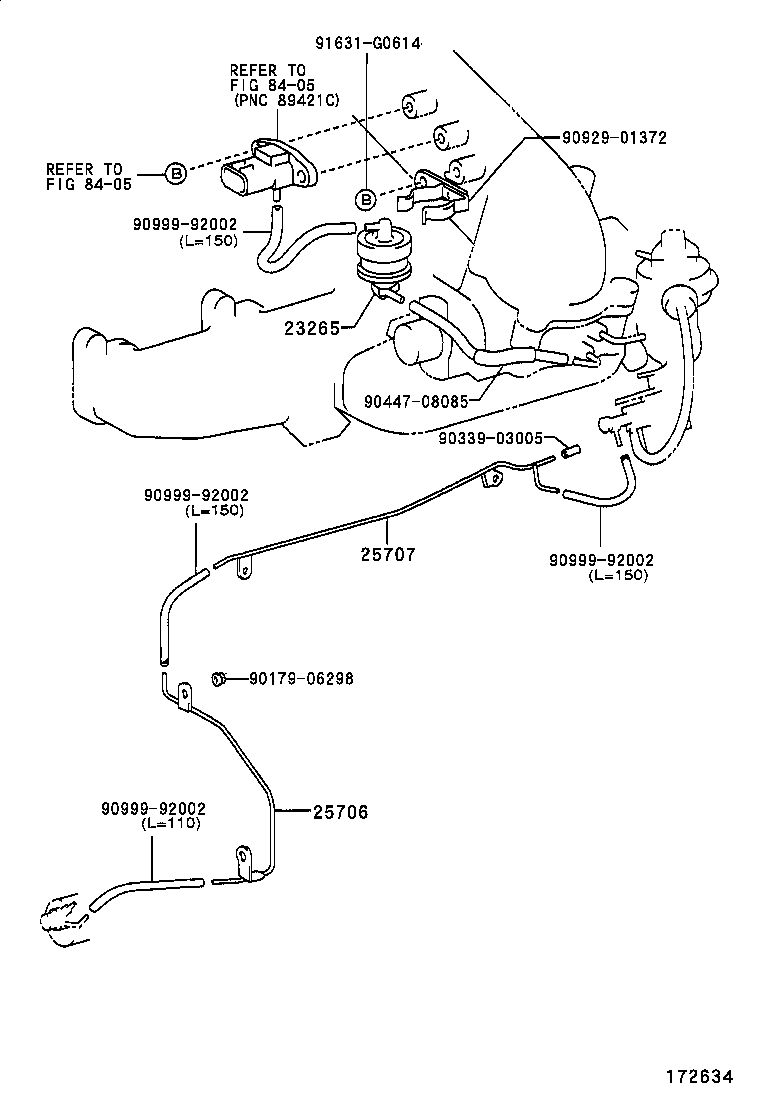

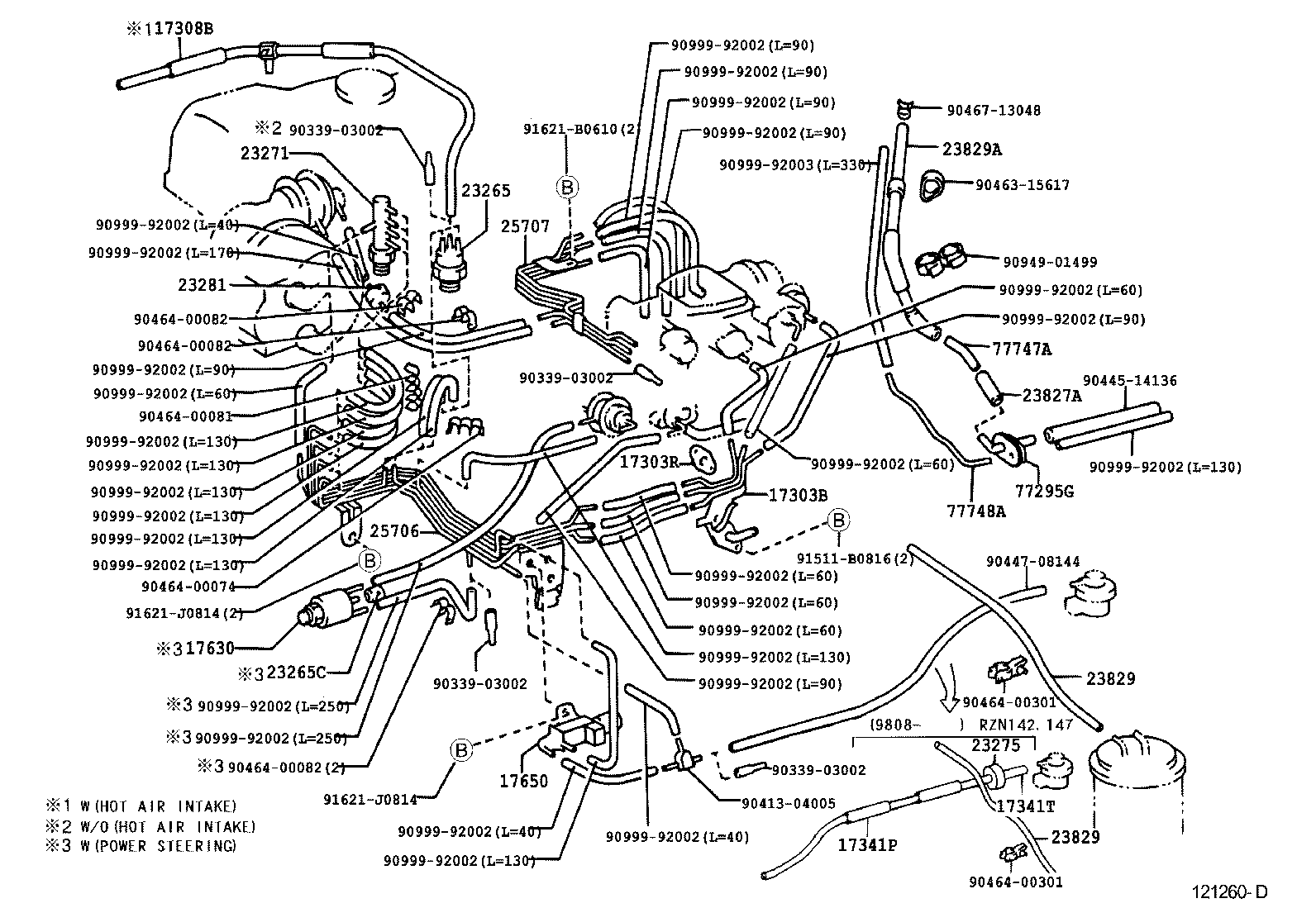

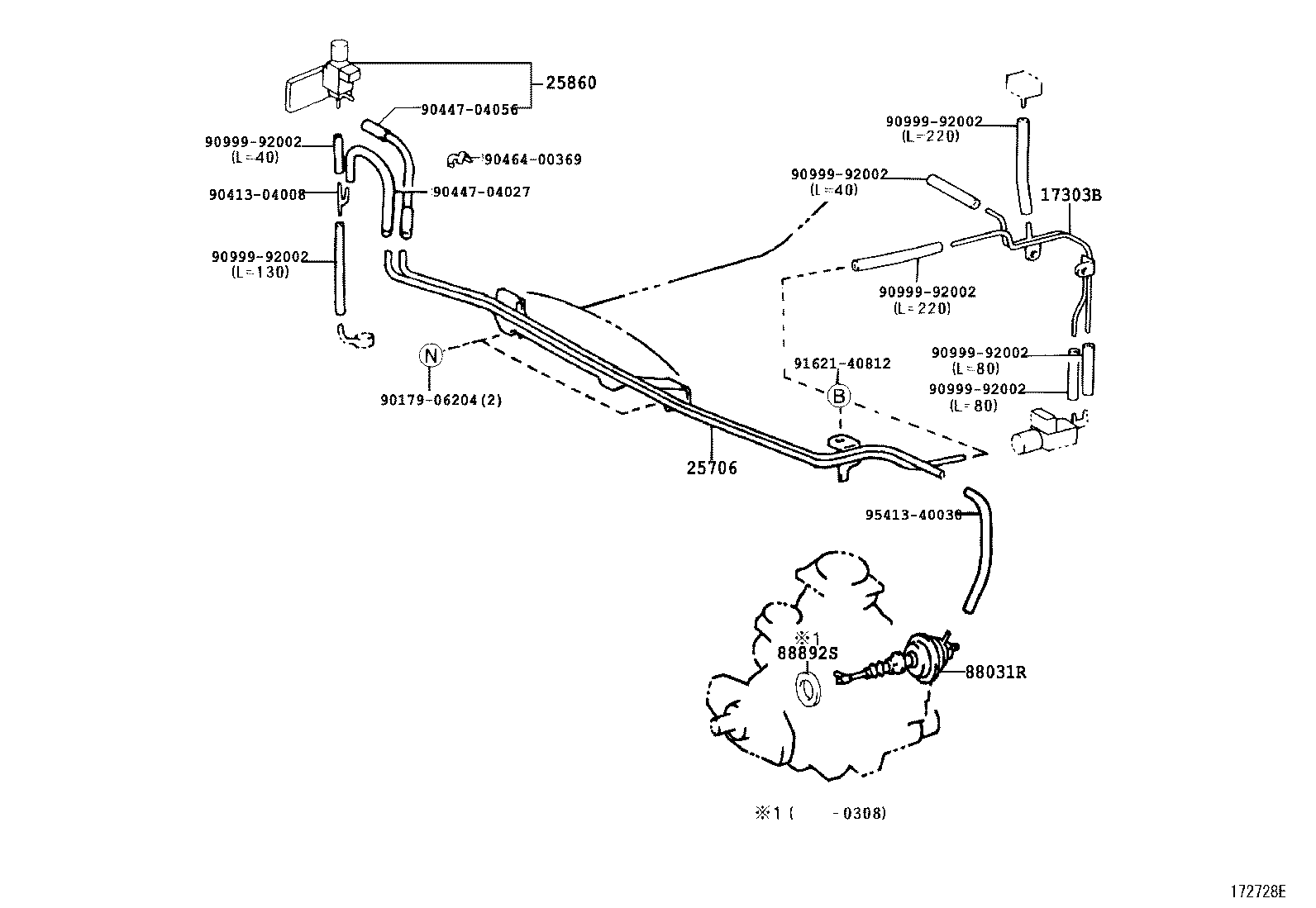

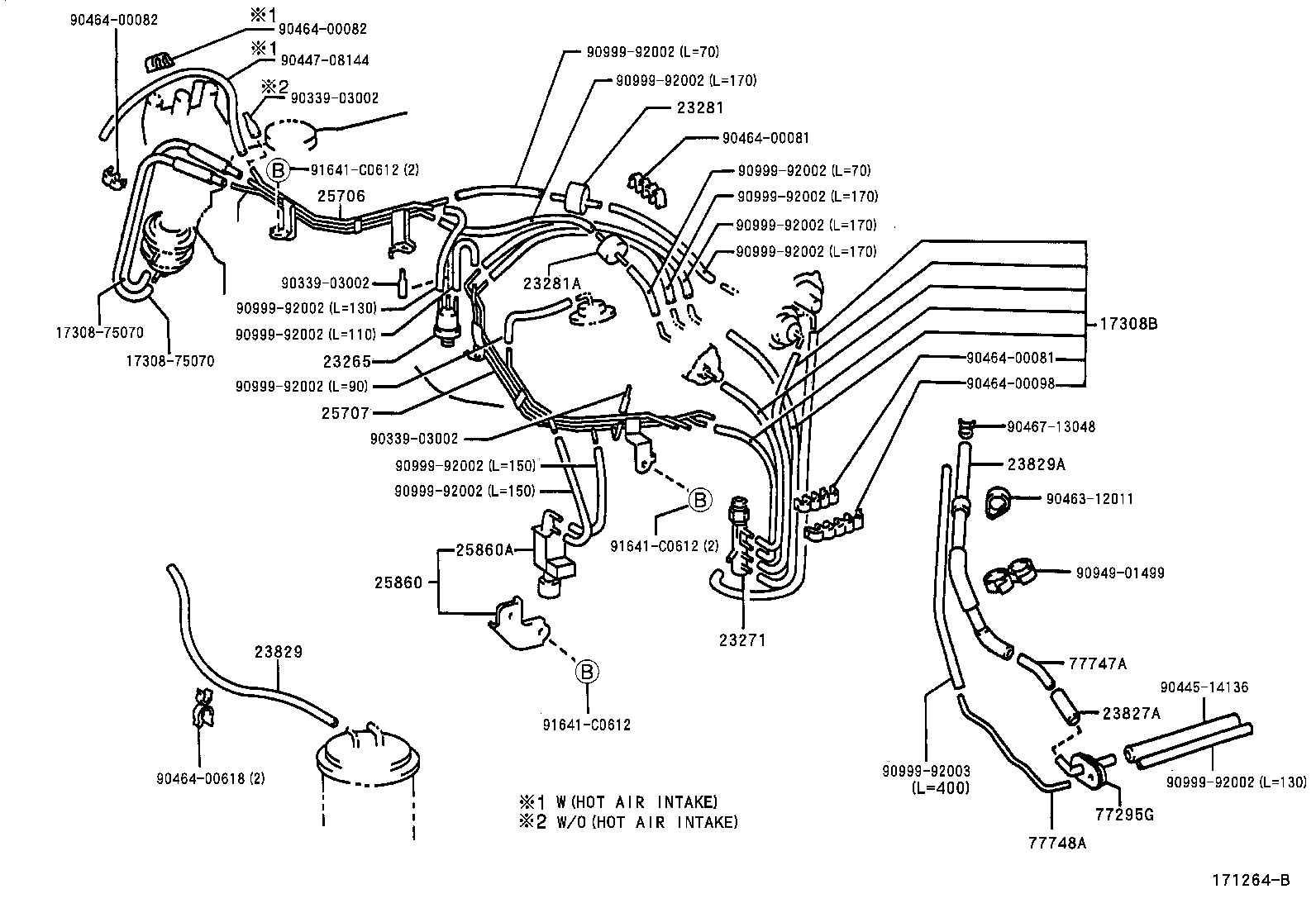

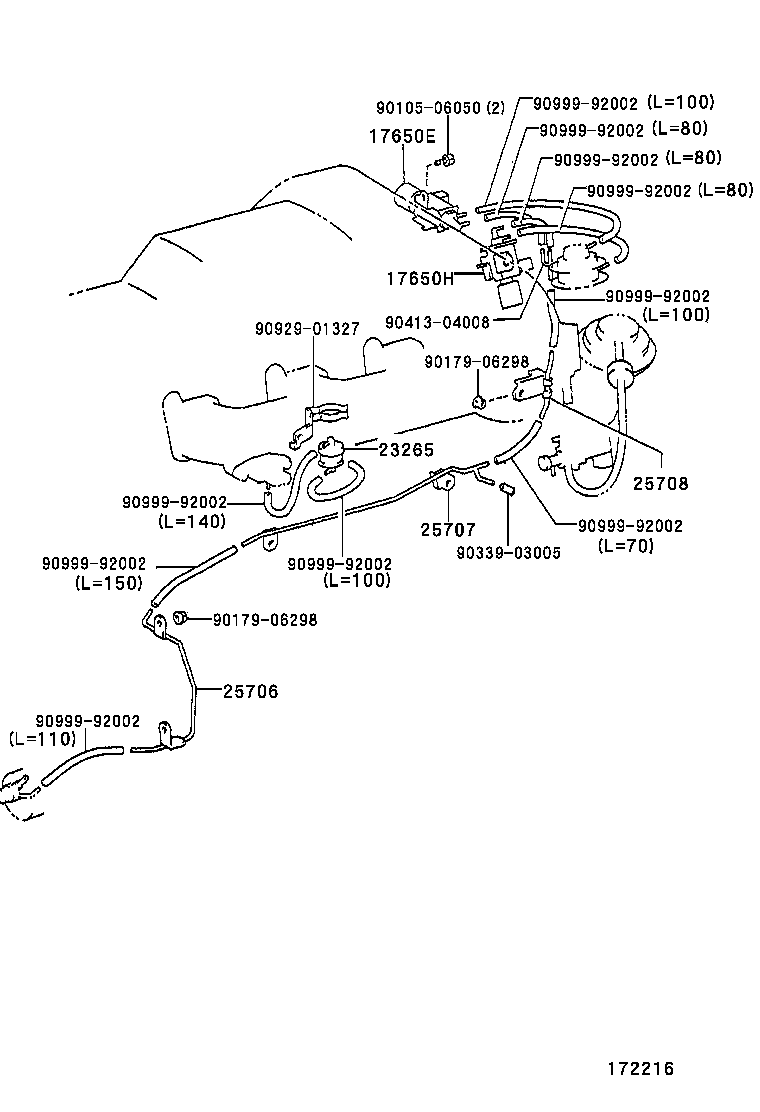

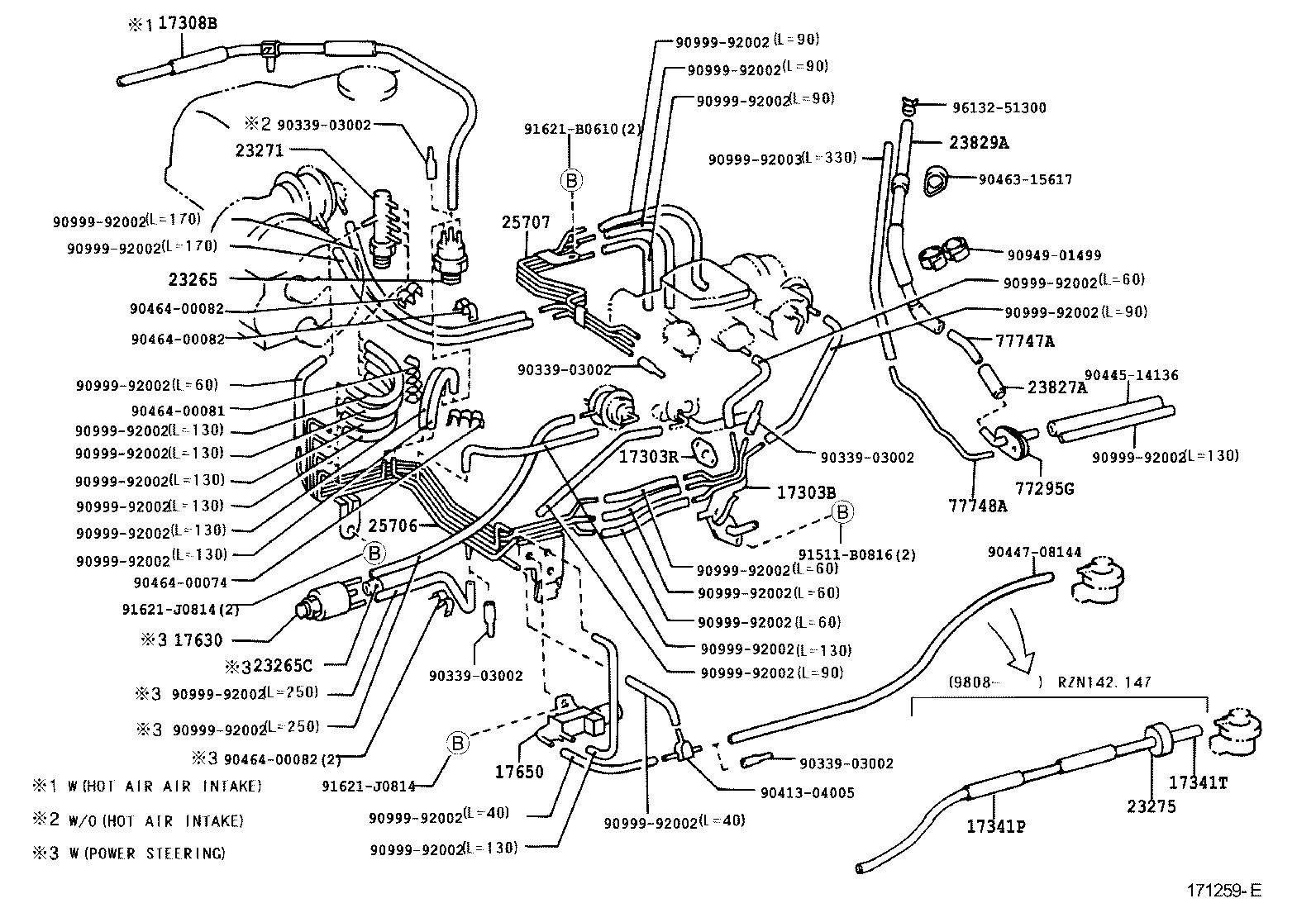

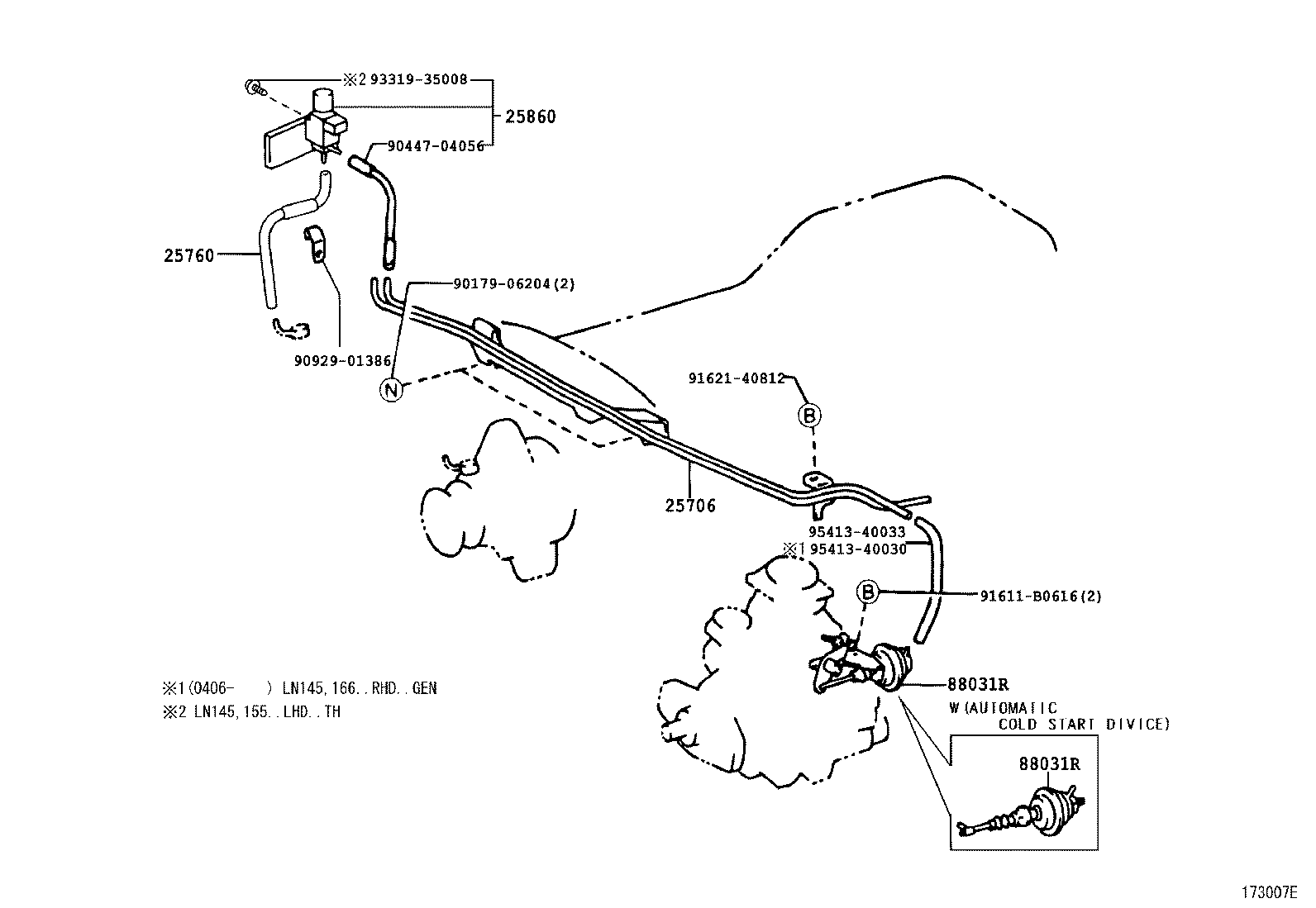

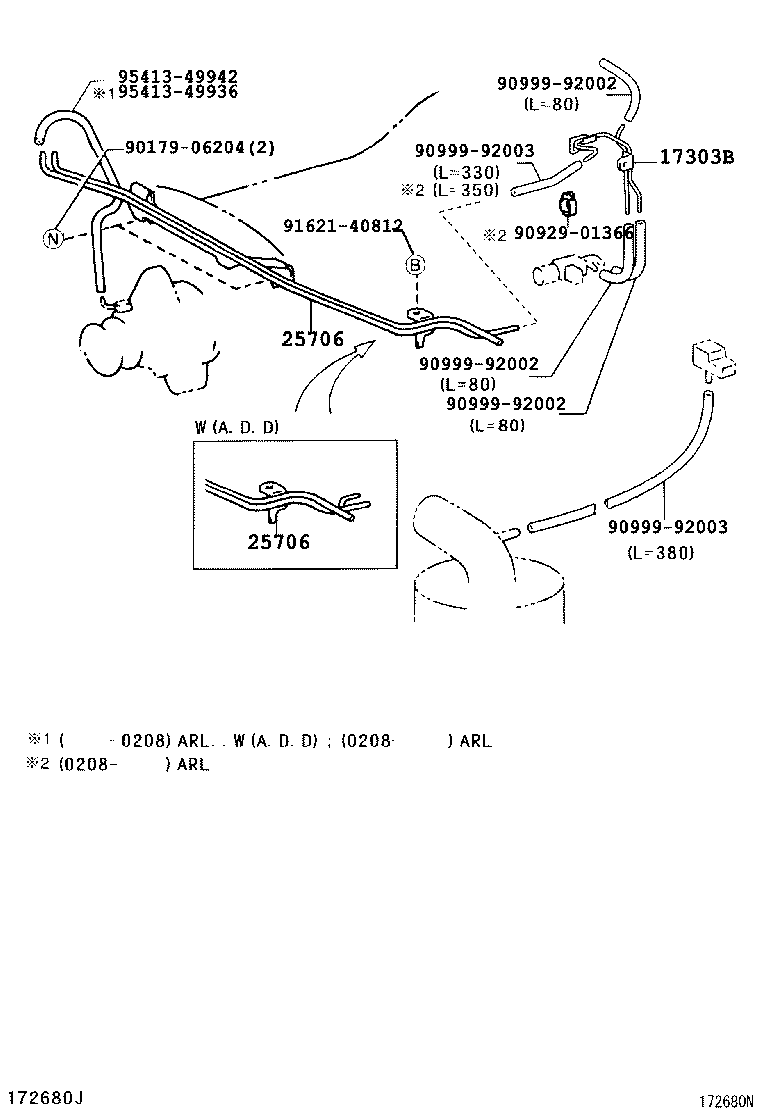

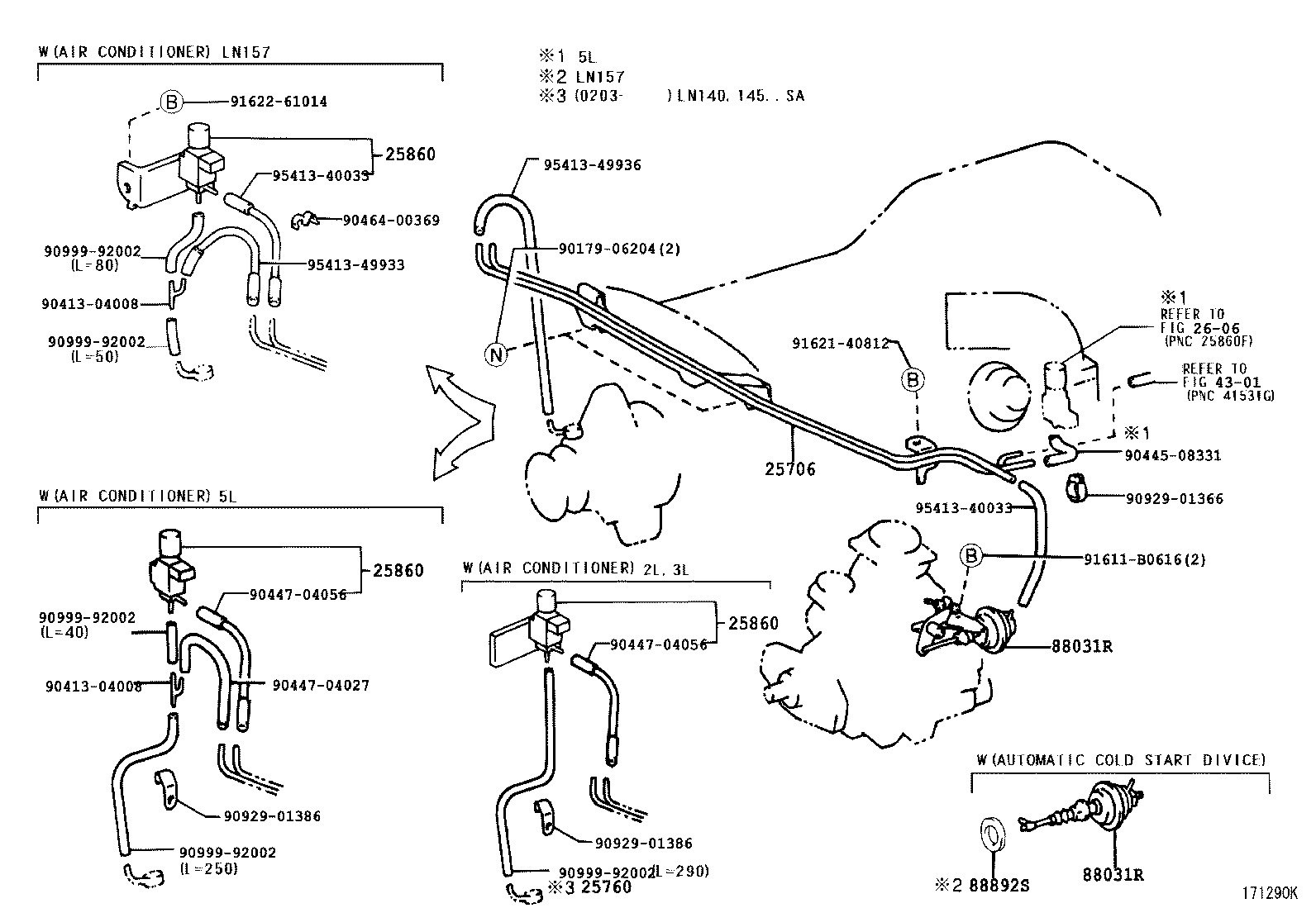

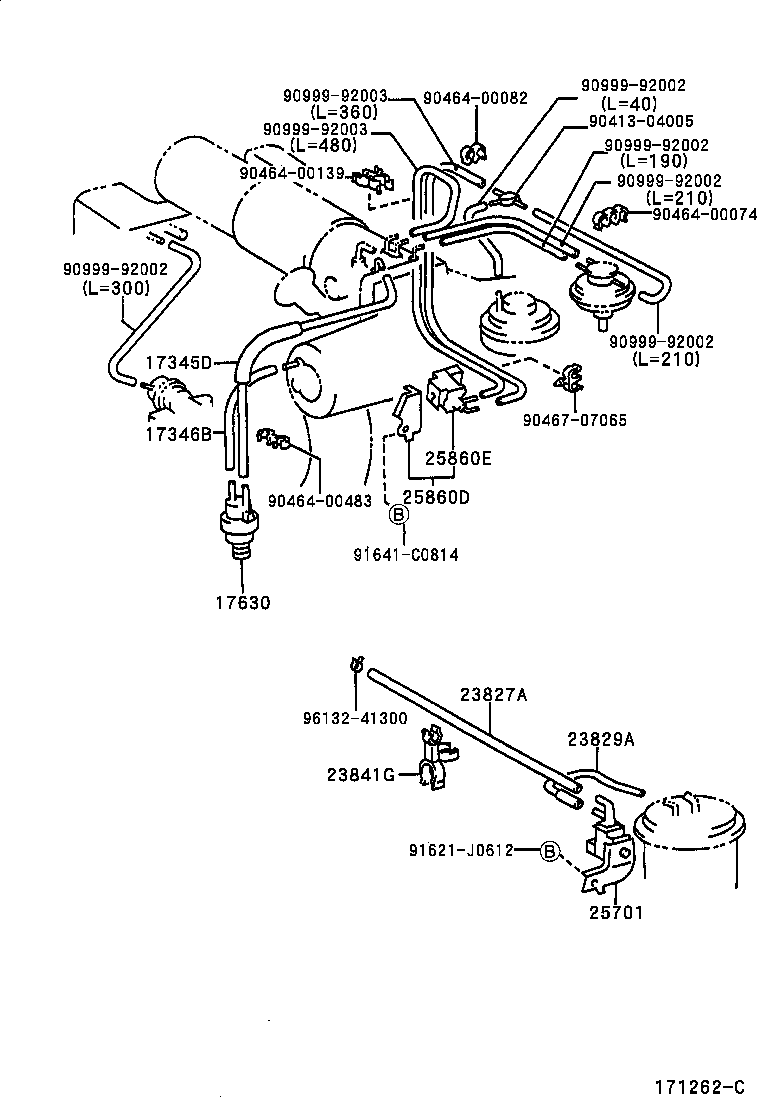

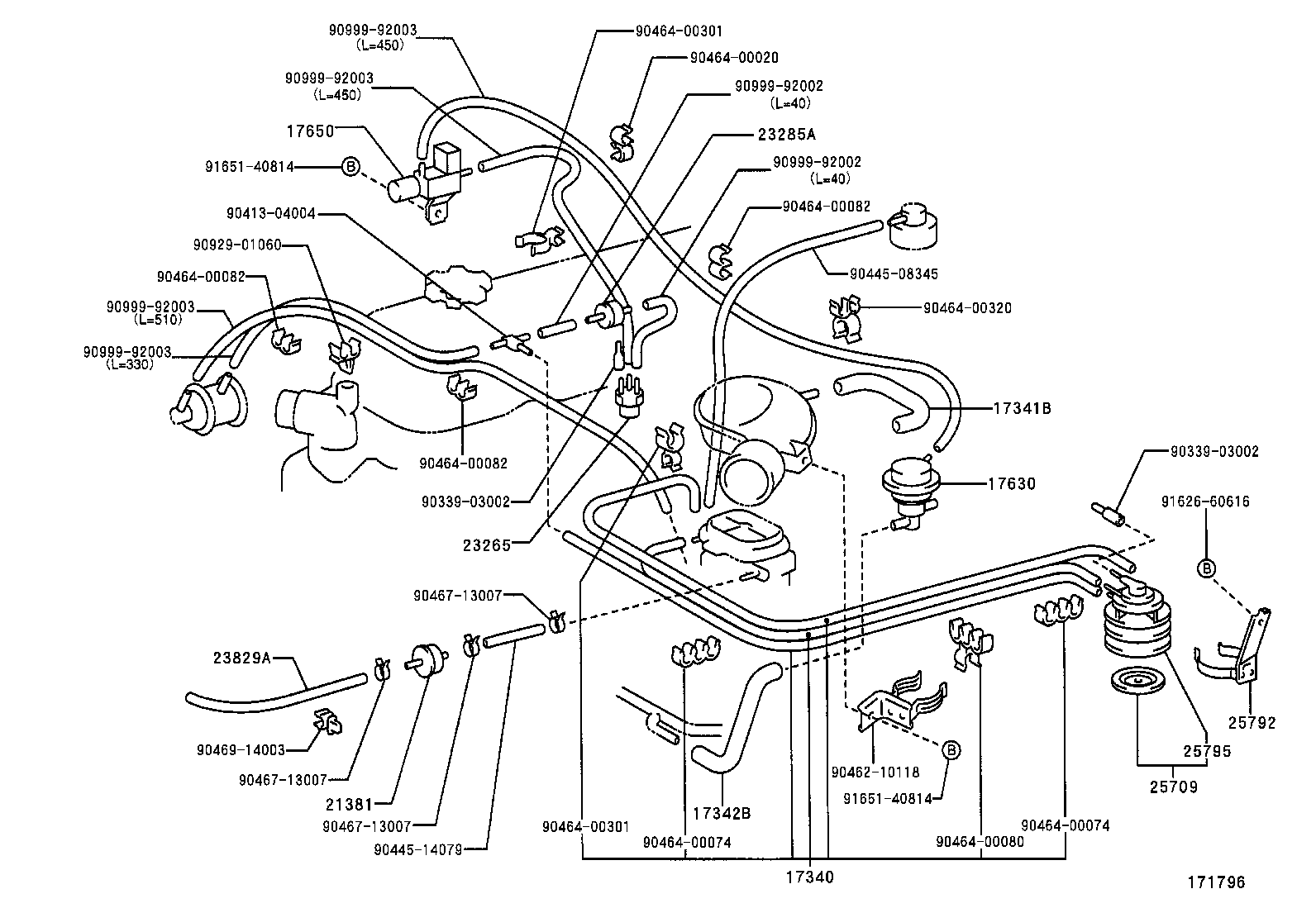

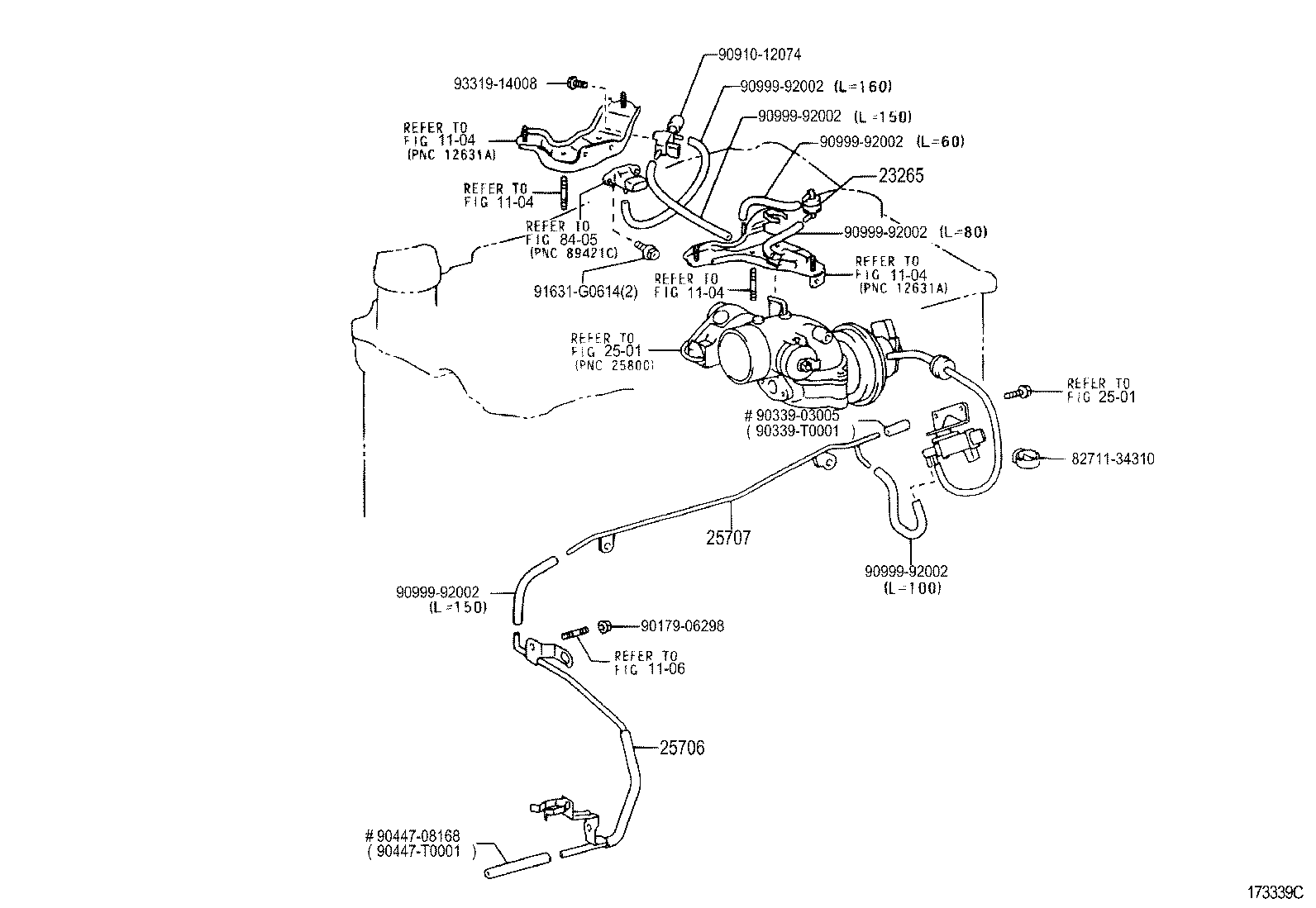

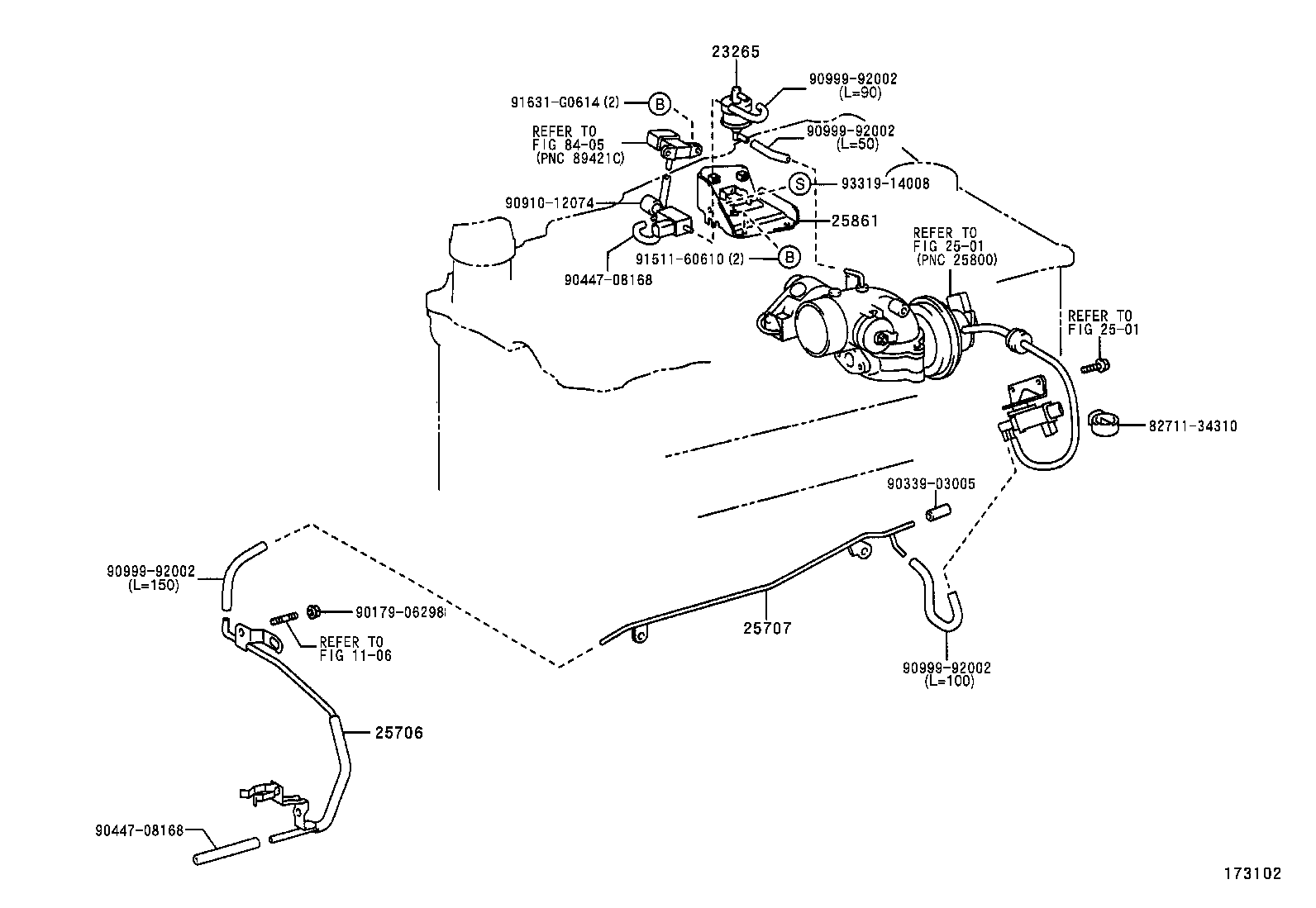

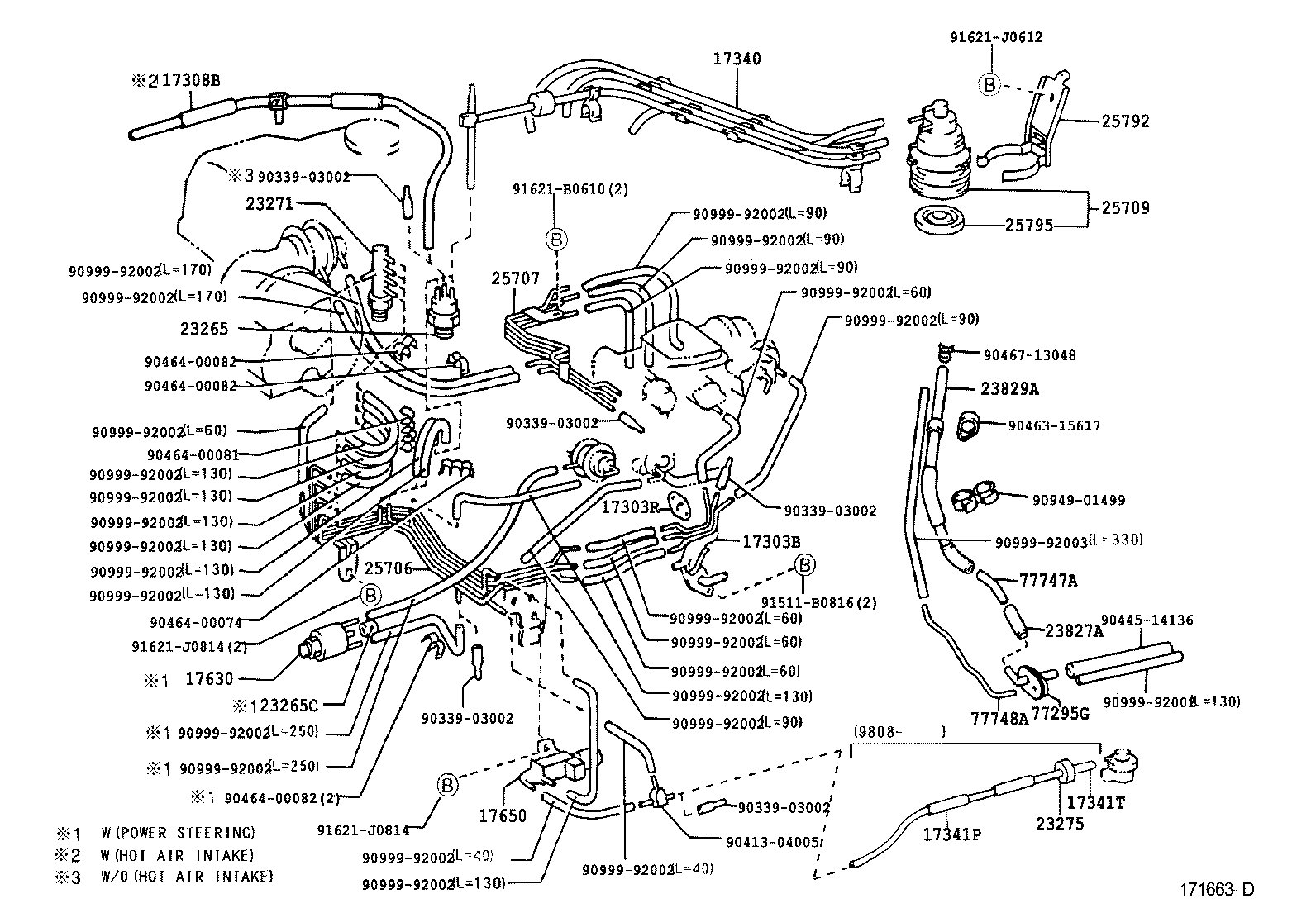

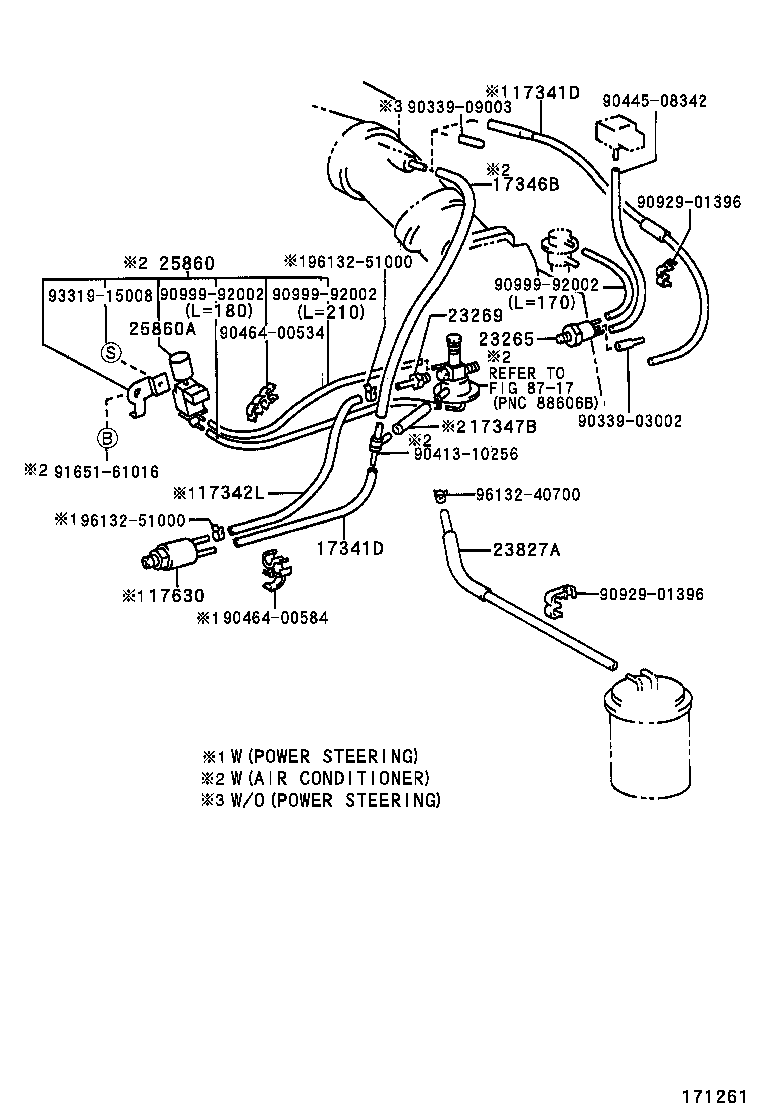

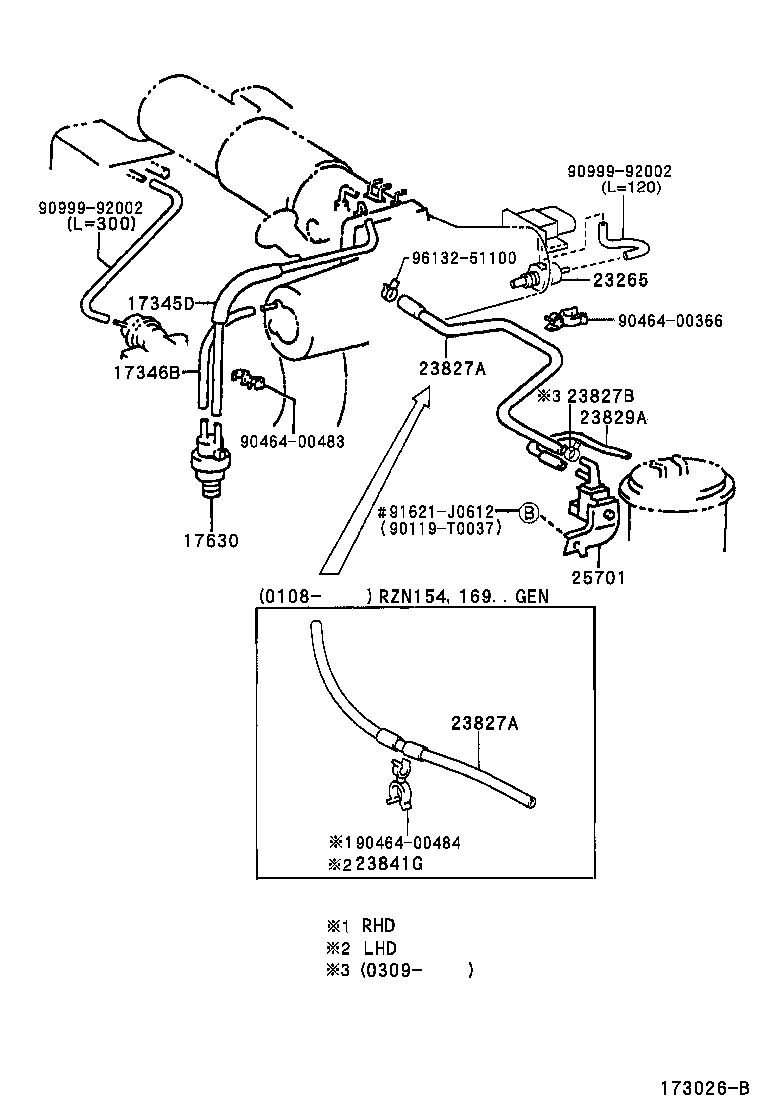

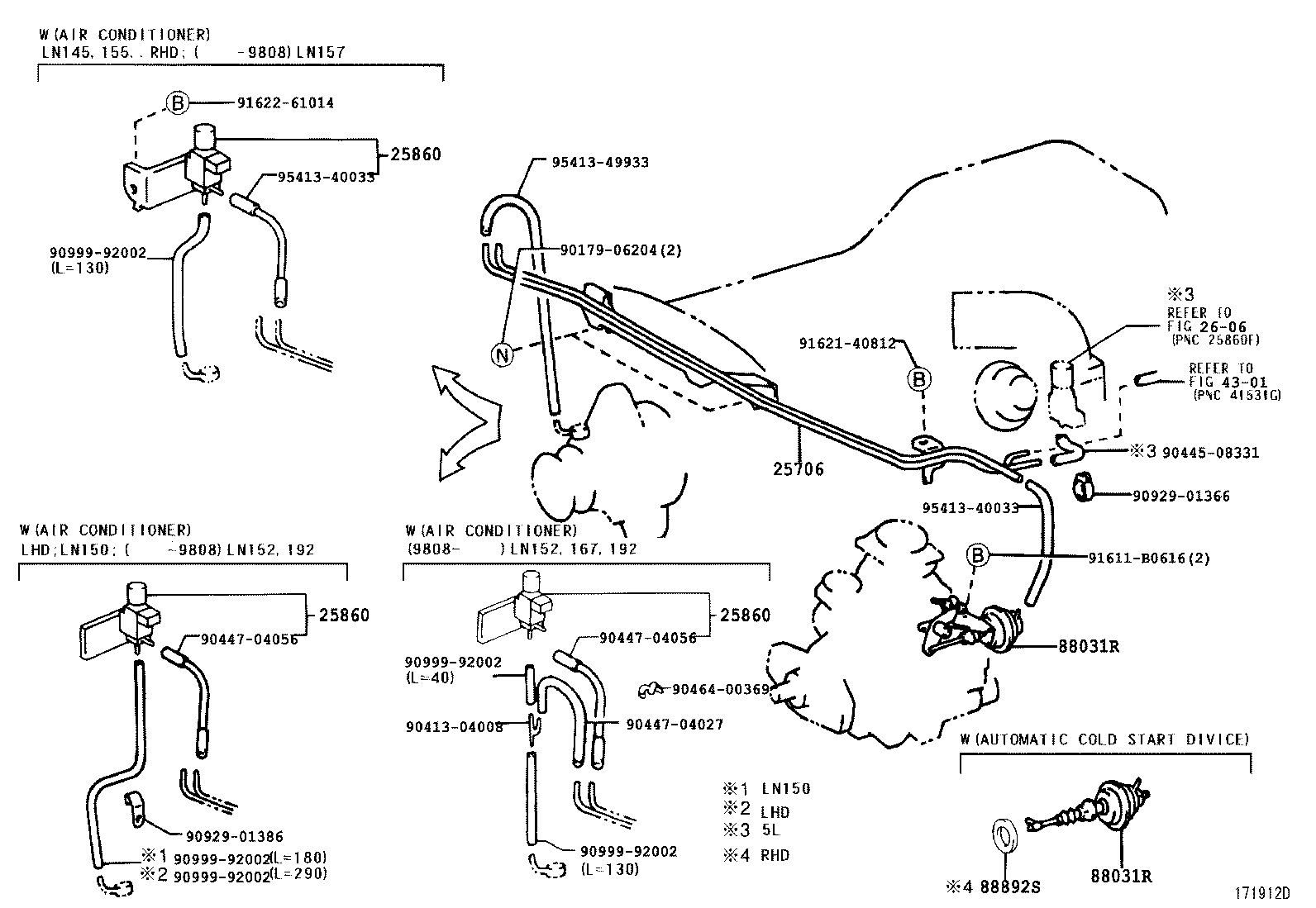

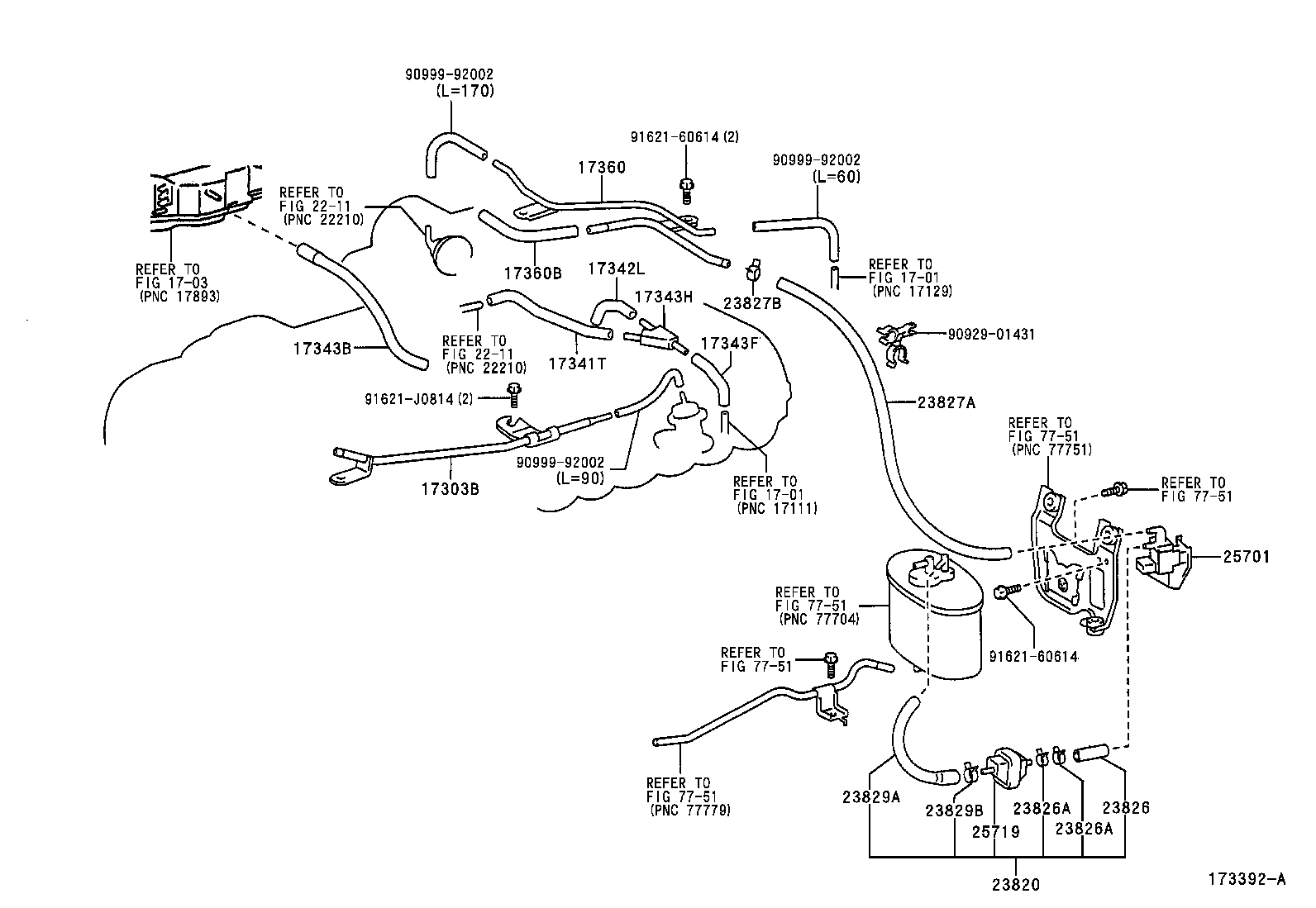

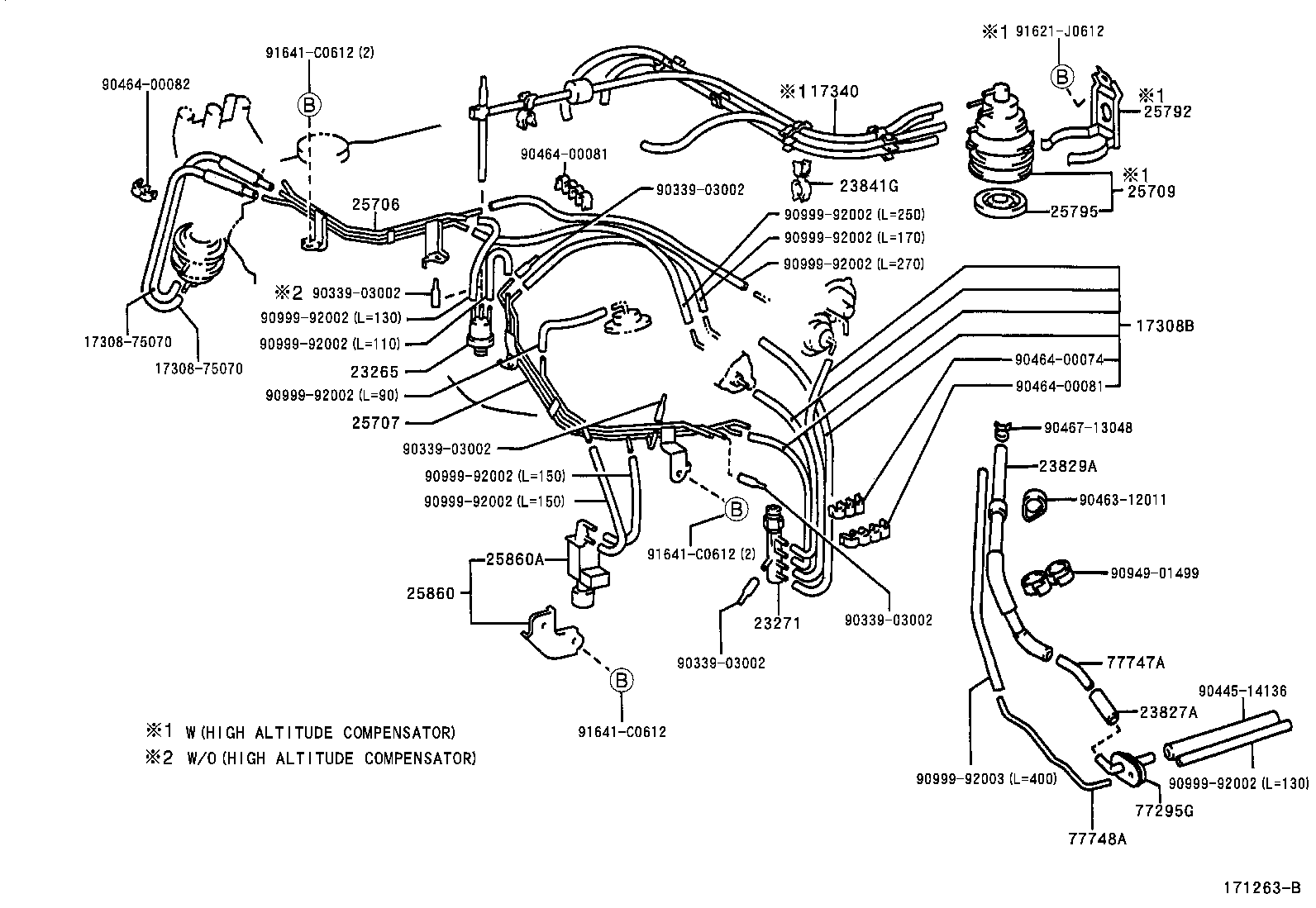

Figure 170021 170021 1997-08 → — Figure 170021 170021 2001-10 → — Figure 172216 172216 1999-09 → 2000-09 Figure 172534 172534 2000-07 → — Figure 172534 172534 2000-08 → 2002-08 Figure 172534 172534 2001-09 → 2002-08 Figure 172634 172634 2000-09 → 2002-08 Figure 172634 172634 2002-08 → — Figure 173102 173102 2001-10 → 2002-08 Figure 173339C 173339C 2002-08 → — Figure 171290K 171290K 1997-08 → 2001-08 Figure 171290K 171290K 1998-08 → 2000-09 Figure 171290K 171290K 2001-08 → — Figure 171912D 171912D 1998-06 → 1998-08 Figure 171912D 171912D 1998-08 → 2000-09 Figure 171912D 171912D 2000-09 → 2001-09 Figure 172728E 172728E 2000-09 → — Figure 173007E 173007E 2001-08 → — Figure 173007E 173007E 2001-09 → — Figure 172680N 172680N 2000-09 → — Figure 171259E 171259E 1997-08 → — Figure 171316E 171316E 1997-08 → — Figure 171260D 171260D 1997-08 → — Figure 171663D 171663D 1998-07 → — Figure 171261 171261 1997-08 → — Figure 171262C 171262C 1997-08 → — Figure 171263B 171263B 1997-08 → — Figure 171317B 171317B 1997-08 → — Figure 171264B 171264B 1997-08 → — Figure 173026B 173026B 1997-08 → — Figure 173392A 173392A 2002-08 → 2005-02 Figure 171796 171796 1998-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303R Gasket(FOR AIR PIPE)
17308B Hose Sub-assy, Vacuum
17340 Hose Assy, Vacuum Switching Valve
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17341T Hose, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343F Hose, Air, NO.3
17343H Way, 3(FOR AIR HOSE)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17360 Tube Assy, Air
17360B Hose(FOR AIR PIPE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650H Valve, Vacuum Switching
21381 Bimetal, Thermostatic
23265 Filter, Gas, NO.1
23265C Filter, Gas
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23281A Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23841G Clamp, Fuel Hose
25701 Valve Set, Emission Control
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25709 Valve Sub-assy, High Altitude Compensator
25719 Tank, Vacuum Surge
25760 Hose Assy, Vacuum Transmitting
25792 Bracket, Altitude Compensator Valve
25795 Element, Altitude Compensator Filter
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
77295G Grommet, Fuel Hose
77747A Tube, Charcoal Canister, NO.1
77748A Tube, Charcoal Canister, NO.2
88031R Actuator Set, Idle-up
88892S Plate, Cooler(FOR IDLE UP ACTUATOR)
