Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

26 part groups · 9 illustrations

Illustrations

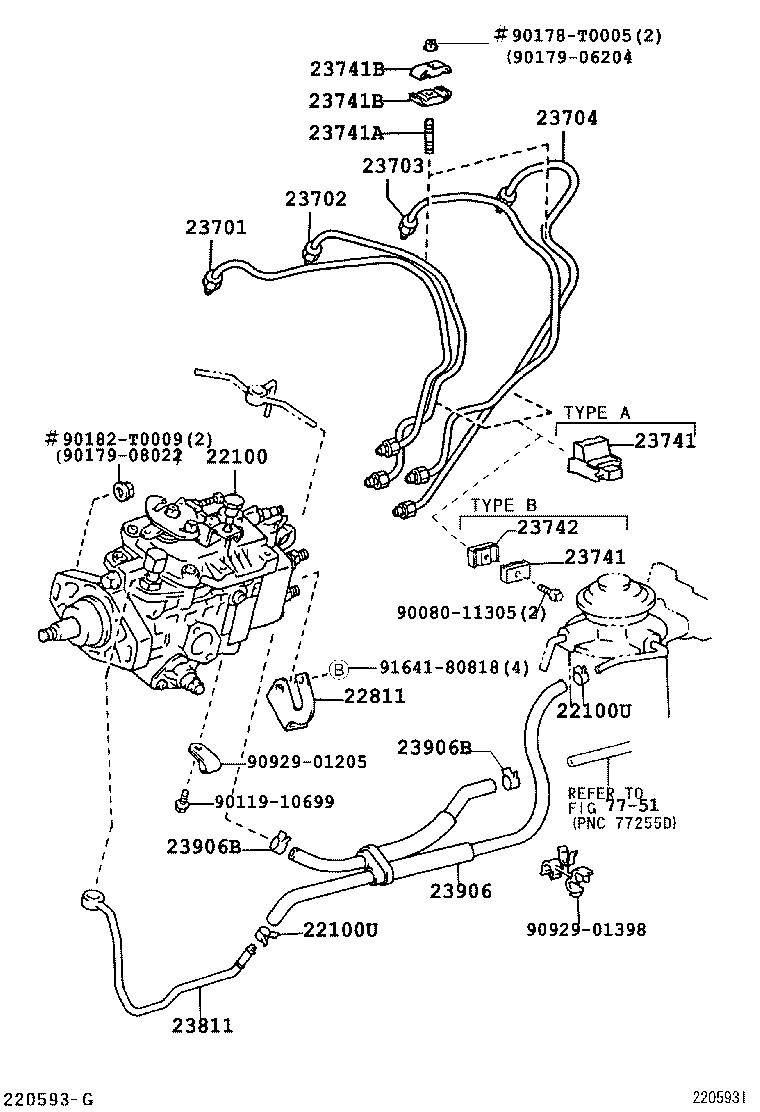

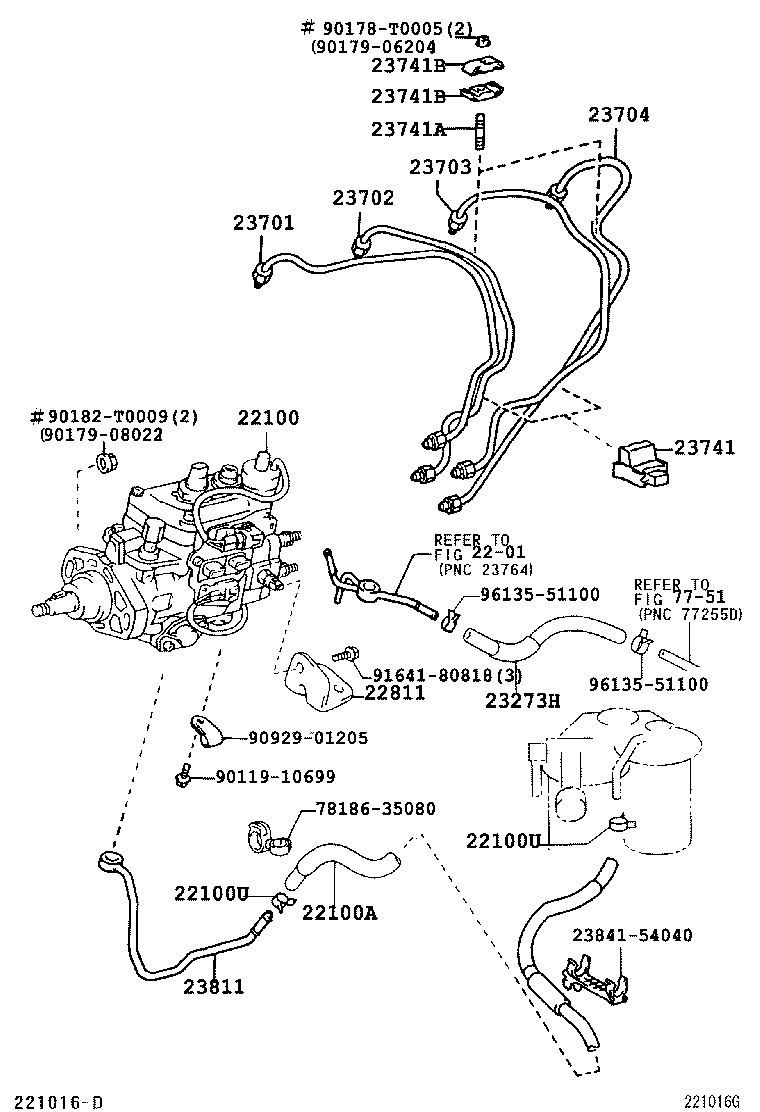

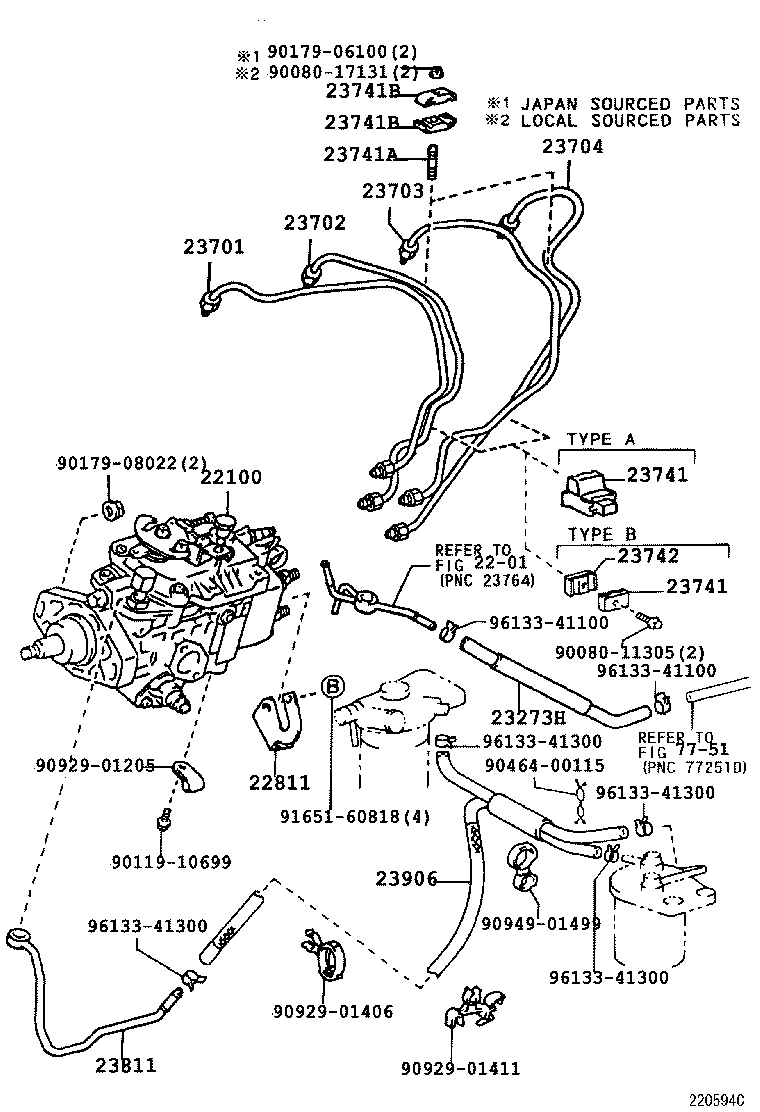

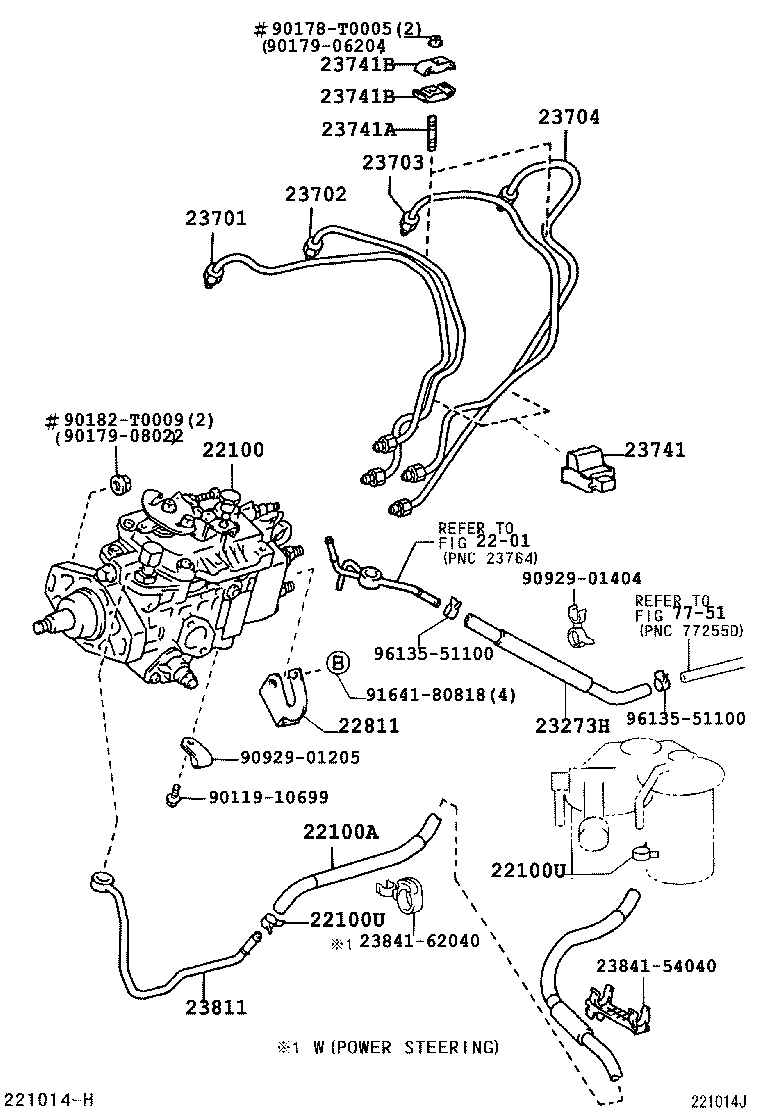

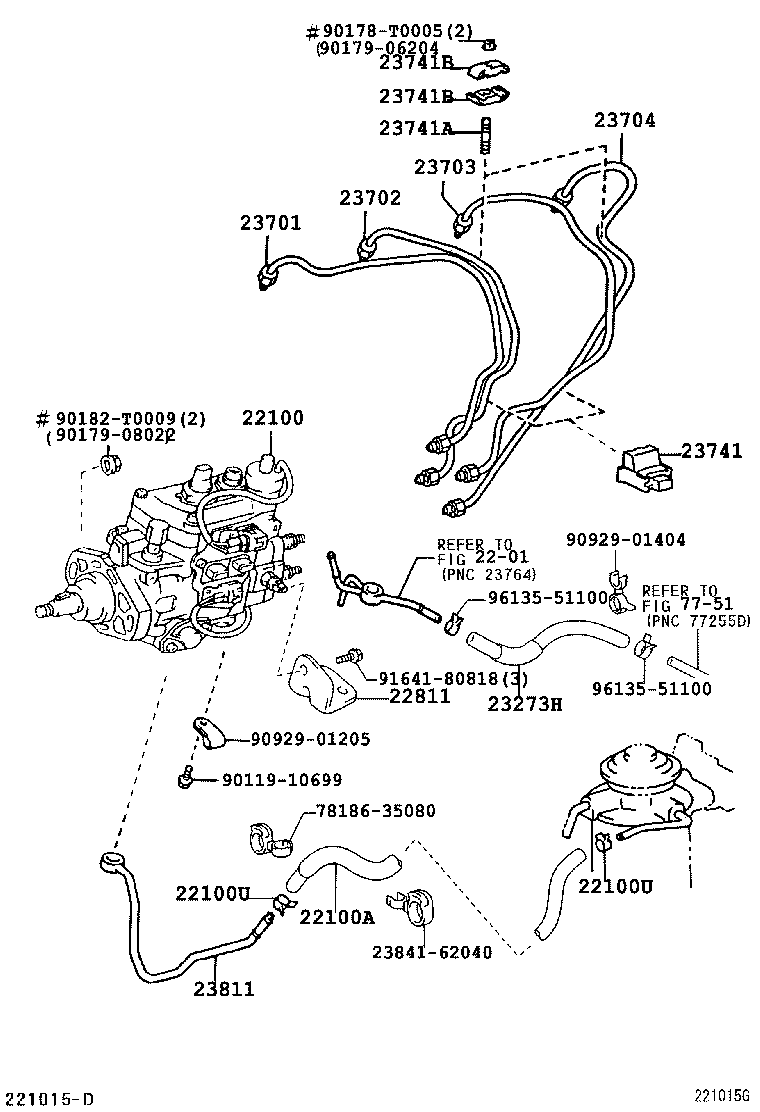

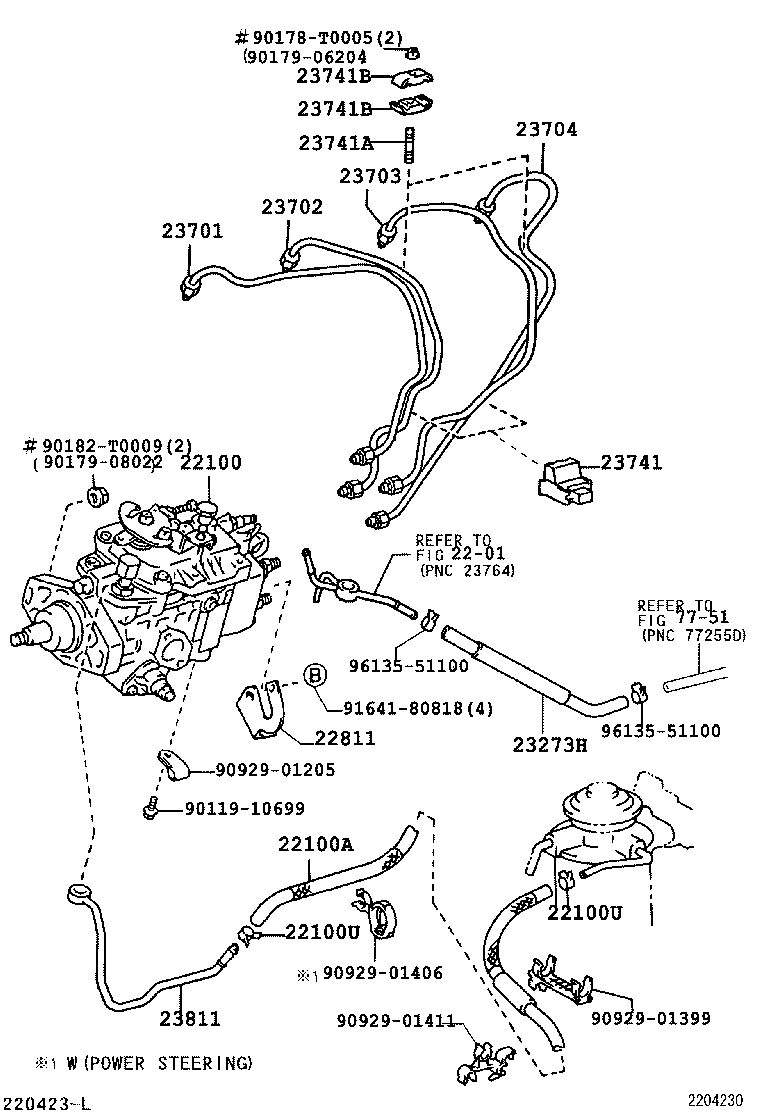

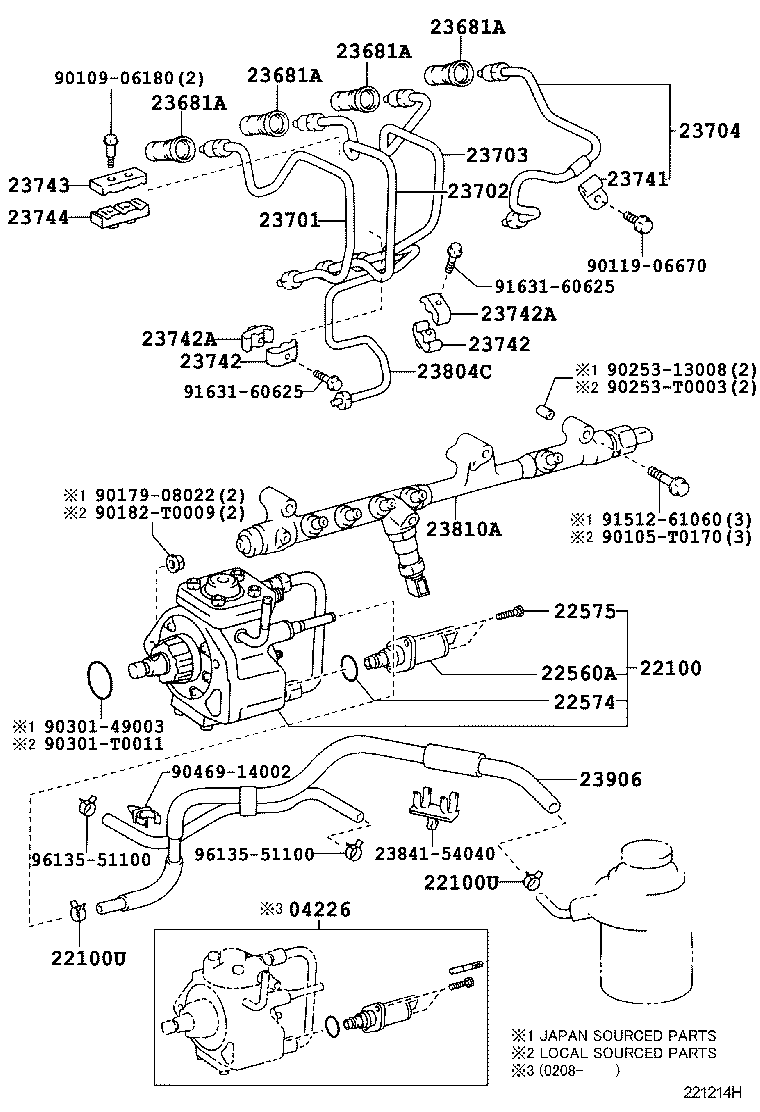

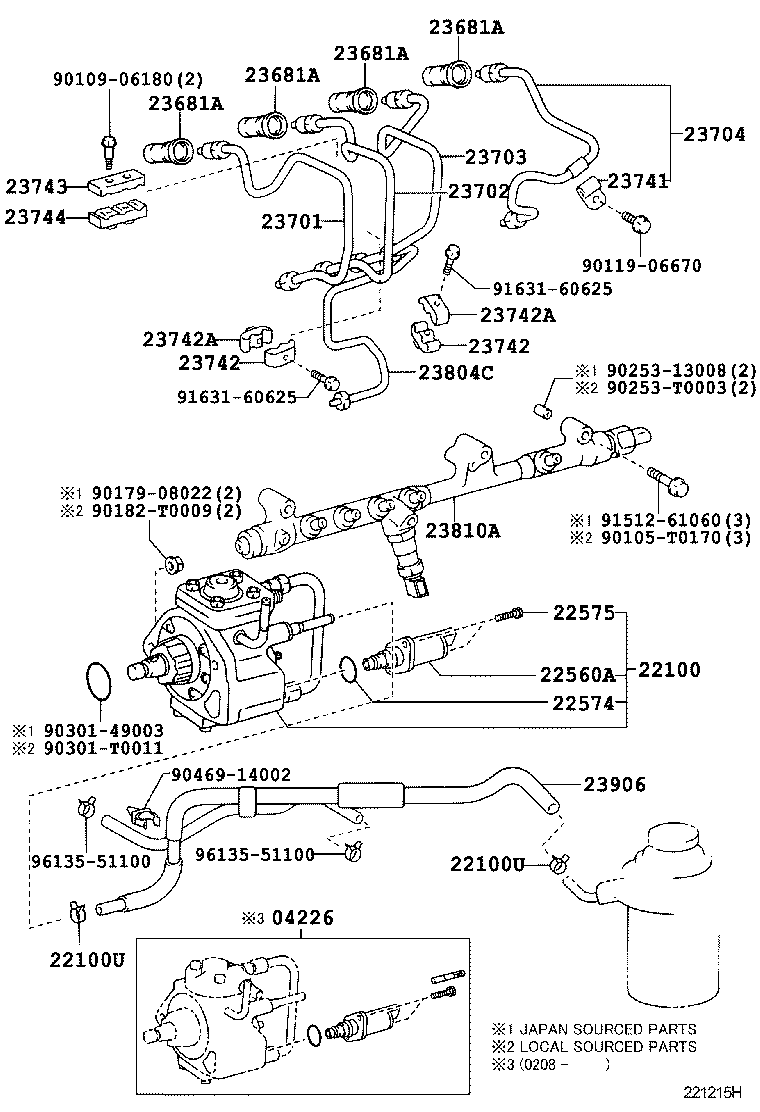

Figure 220841D 220841D 1999-09 → — Figure 221214H 221214H 2001-10 → — Figure 221215H 221215H 2001-10 → — Figure 220423O 220423O 1997-08 → — Figure 220593I 220593I 1997-08 → — Figure 220594C 220594C 1998-06 → 2000-09 Figure 221014J 221014J 2000-09 → — Figure 221015G 221015G 2000-09 → — Figure 221016G 221016G 2000-09 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100U Clip, Hose Fuel(FOR INJECTION PUMP)
22560A Valve Assy, Suction Control
22574 Gasket, Suction Control Valve Solenoid
22575 Bolt, Suction Control Valve
22811 Stay, Injection Pump, NO.1
23273H Hose, Fuel, NO.2
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741A Bolt, Stud(FOR INJECTION PIPE CLAMP)
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23744 Clamp, Injection Pipe, NO.4
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23906 Hose Sub-assy, Fuel
23906B Clip, Hose(FOR FUEL HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
