Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 7 illustrations

Illustrations

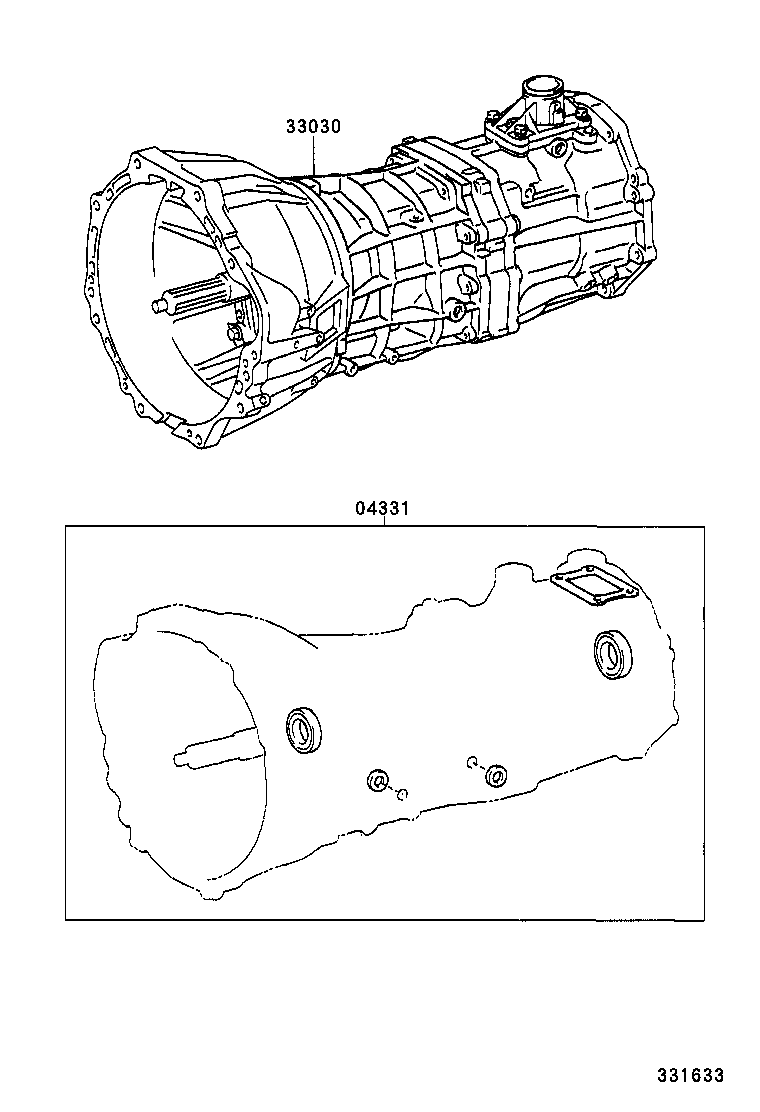

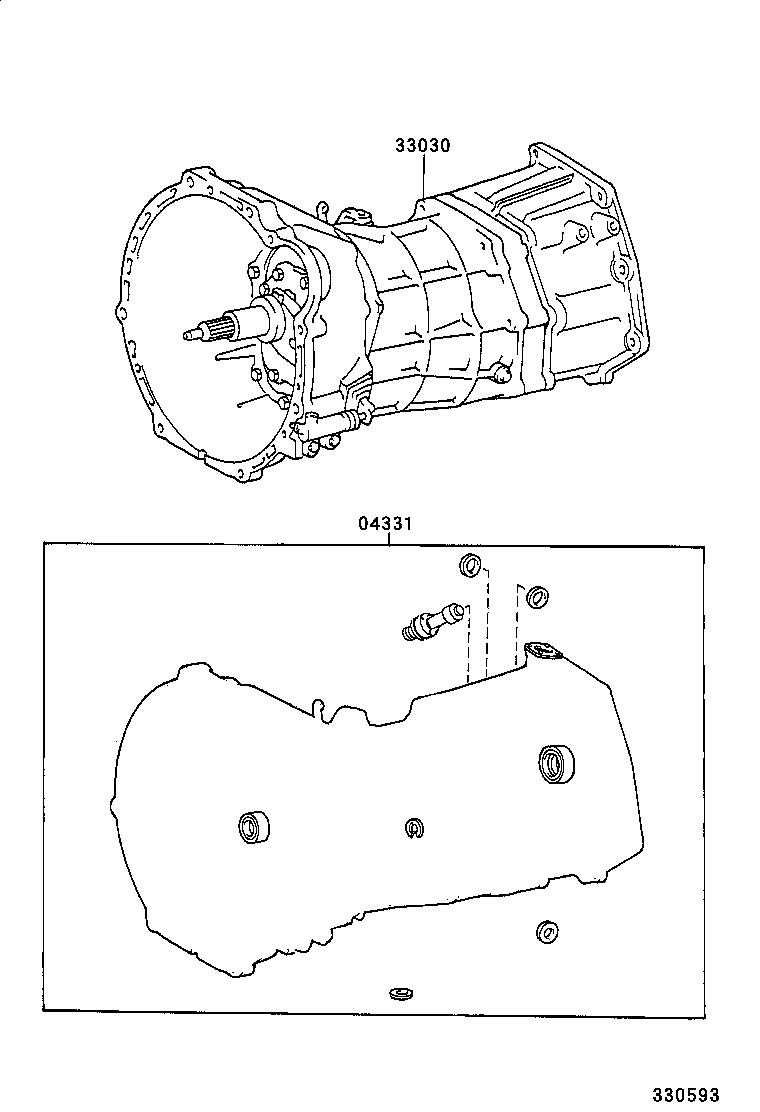

Figure 331323 331323 2000-07 → 2005-04 Figure 330898 330898 1999-08 → 2005-04 Figure 331633 331633 2001-10 → 2005-03 Figure 330592 330592 1997-08 → — Figure 330593 330593 1997-08 → — Figure 330595 330595 1997-08 → — Figure 330596 330596 1997-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
