Toyota Hilux
1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General
Discontinued model
Data version 2007-07
Disc Wheel & Wheel Cap
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

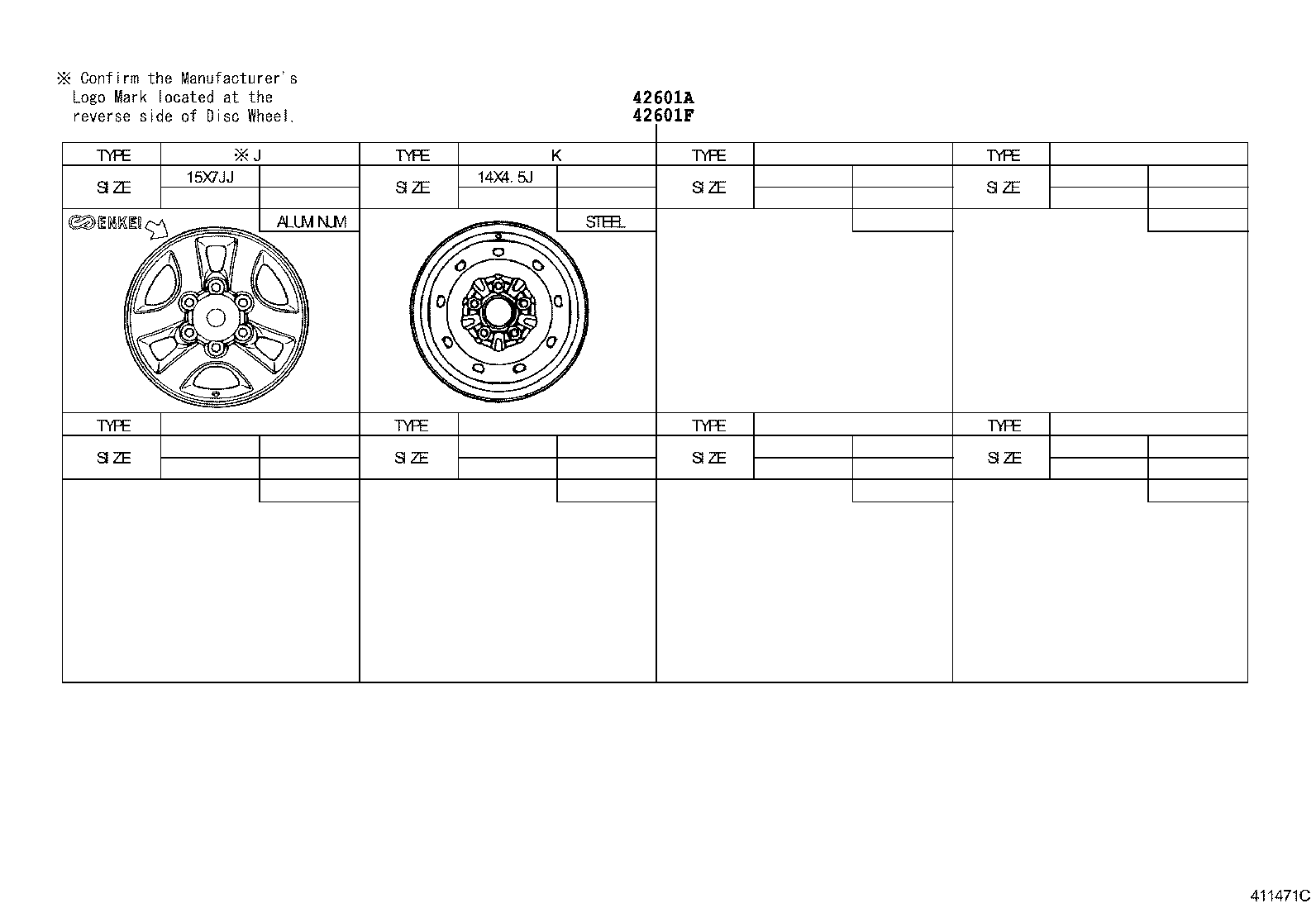

| 42601A | Wheel, Disc (FOR SPARE) |

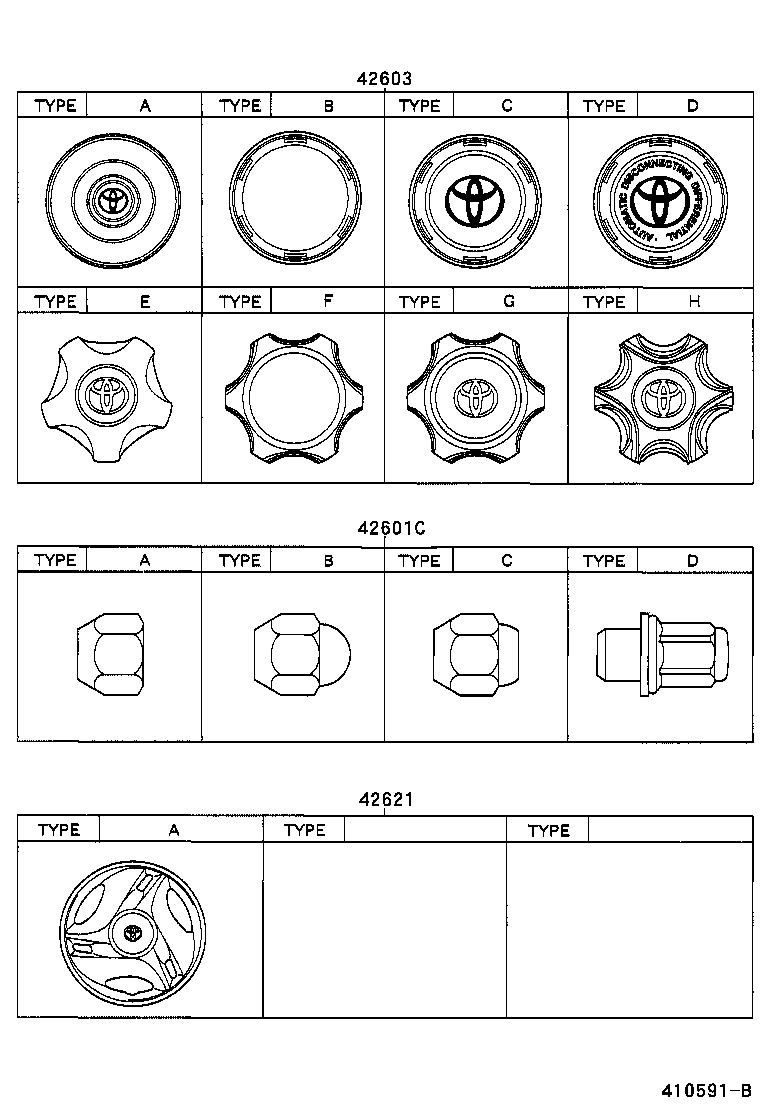

| 42601C | Nut, Hub (FOR AXLE) |
| 42601F | Wheel, Disc (FOR FRONT) |
| 42601R | Wheel, Disc (FOR REAR) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42613A | Ring, Disc Wheel Side |
| 42621 | Cap, Wheel |
| 42652 | Tire |
| 42652A | Tire (FOR SPARE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
