Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

17 part groups · 11 illustrations

Illustrations

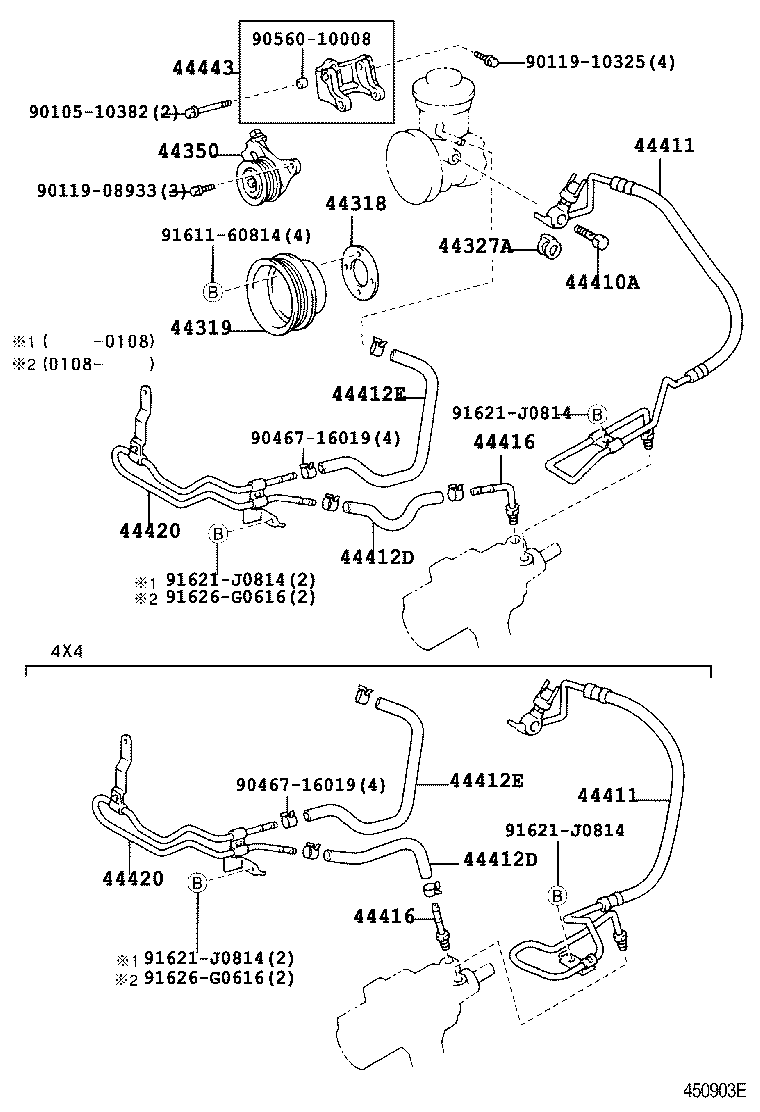

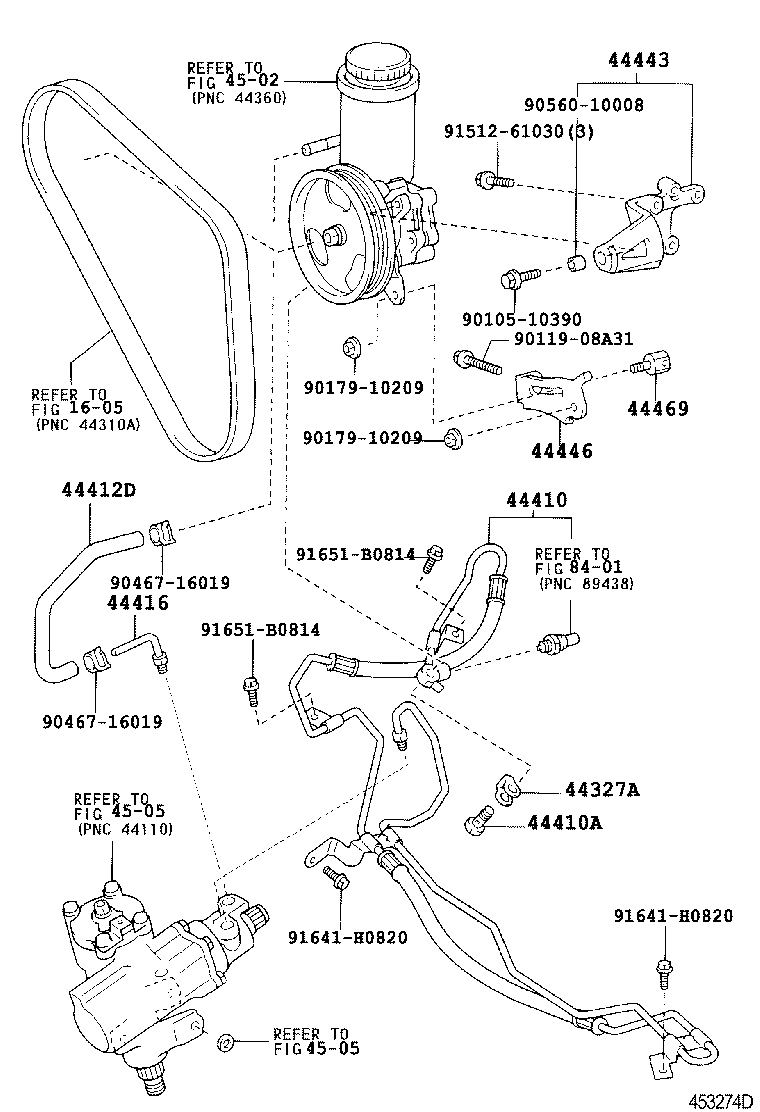

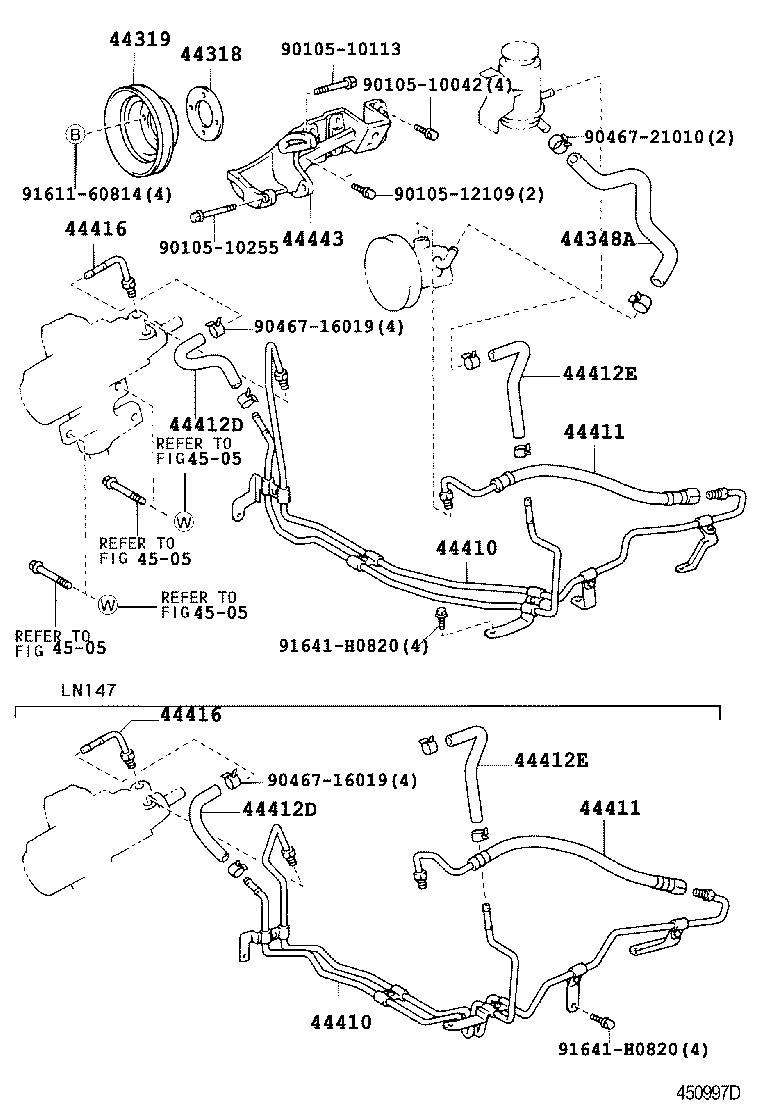

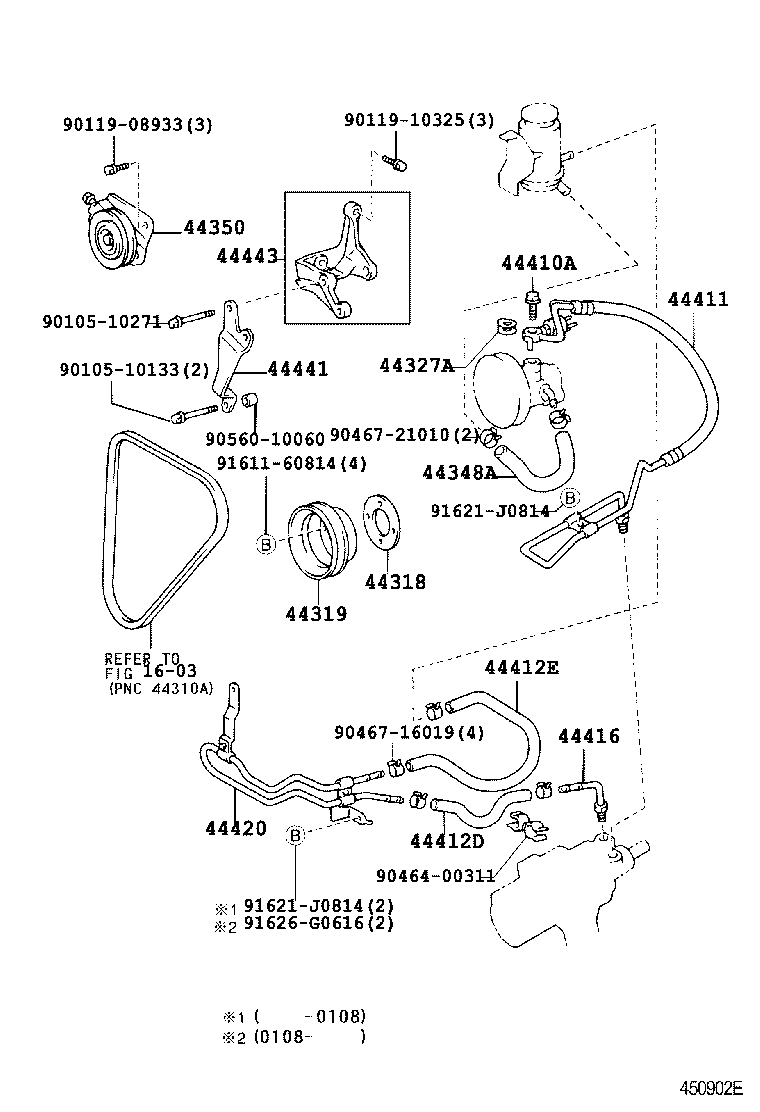

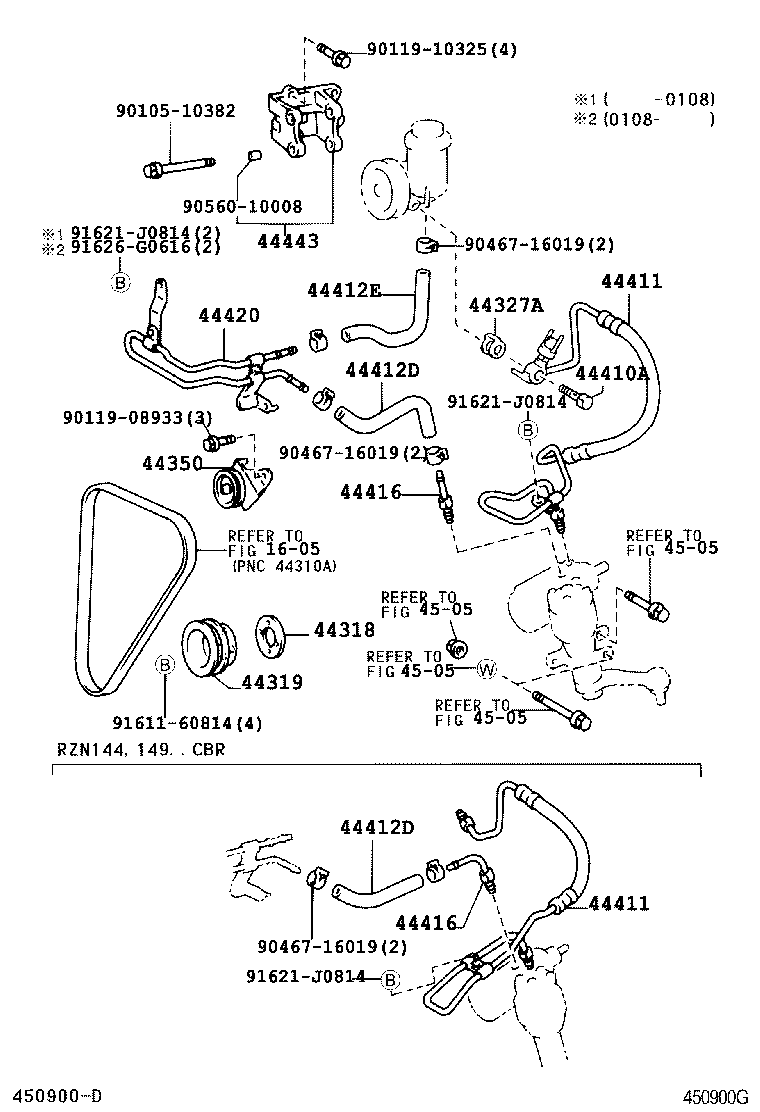

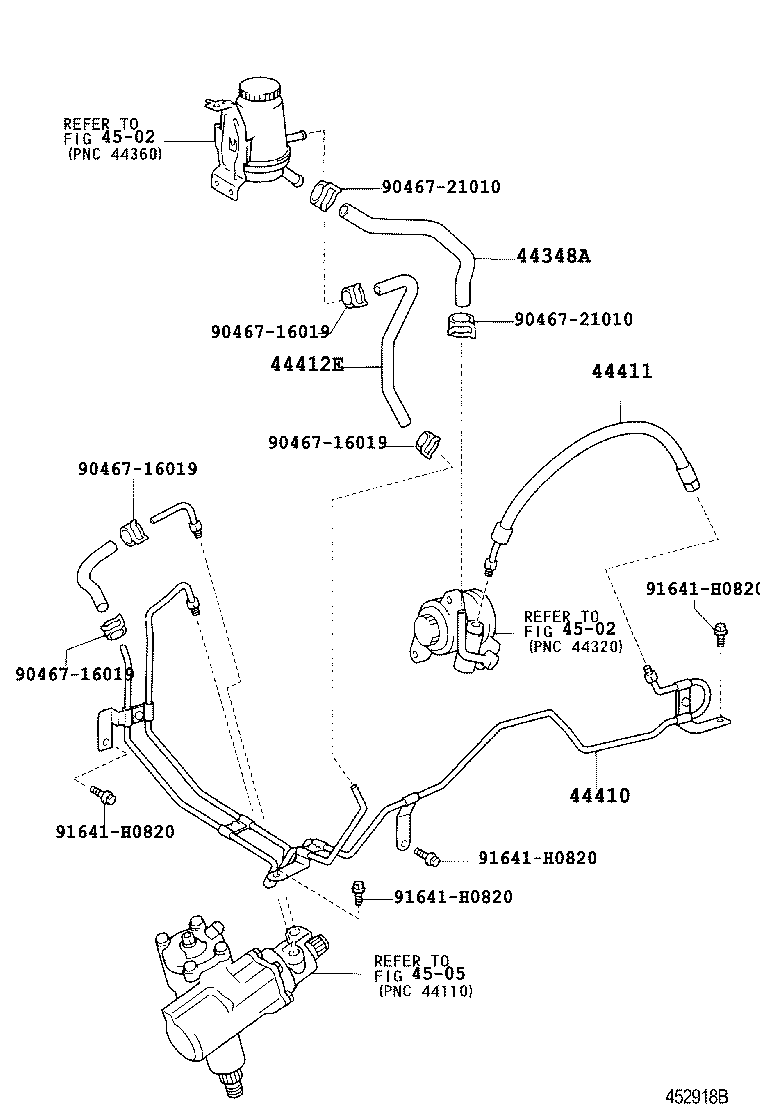

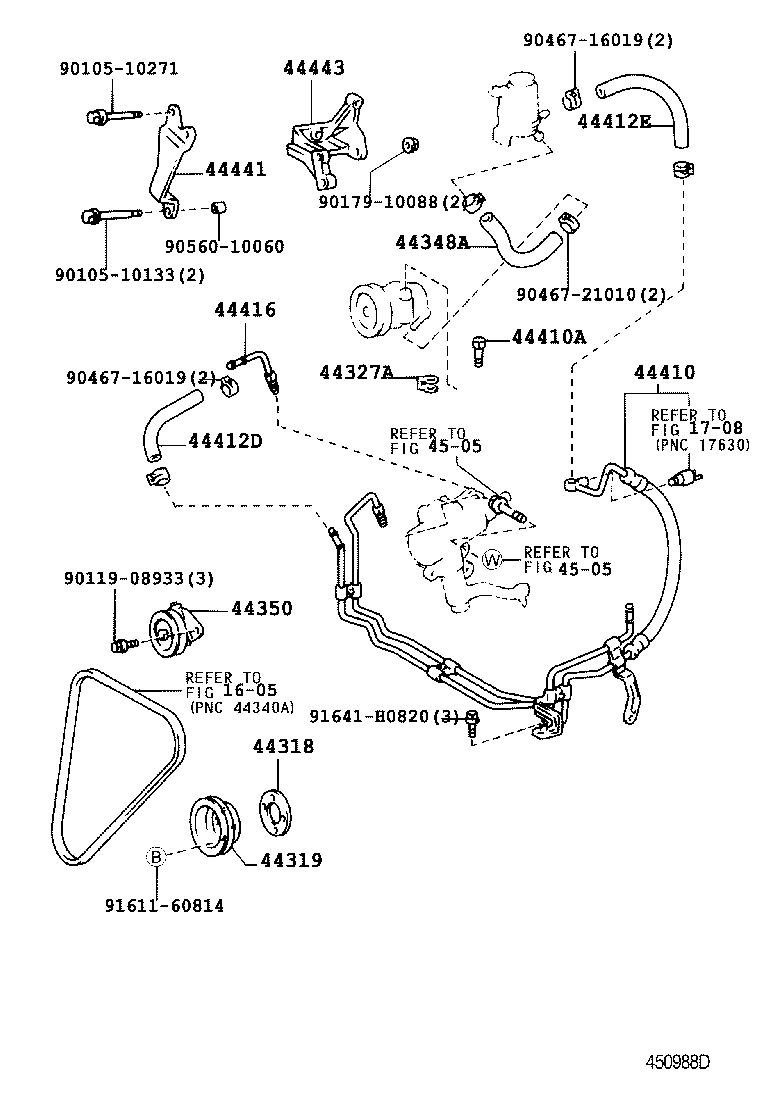

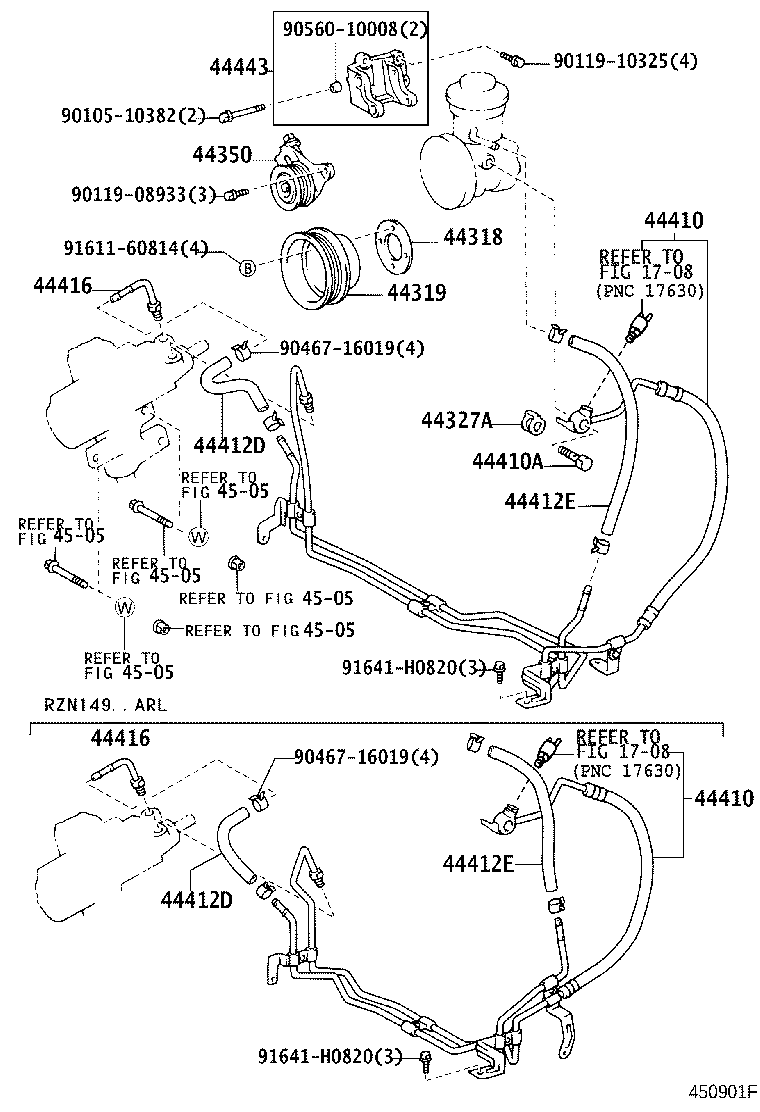

Figure 450899E 450899E 1997-08 → — Figure 450997D 450997D 1997-08 → — Figure 450900G 450900G 1997-08 → — Figure 450901F 450901F 1997-08 → — Figure 450902E 450902E 1997-08 → — Figure 450988D 450988D 1997-08 → — Figure 450903E 450903E 1997-08 → — Figure 451919D 451919D 1999-09 → — Figure 452918B 452918B 2001-10 → — Figure 452911C 452911C 2001-10 → — Figure 453274D 453274D 2002-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44428 Hose, Return, NO.2
44441 Bracket, Pump, Front
44443 Bracket, Pump
44446 Strut, Adjusting
44469 Slider, Power Steering Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
