Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 4 illustrations

Illustrations

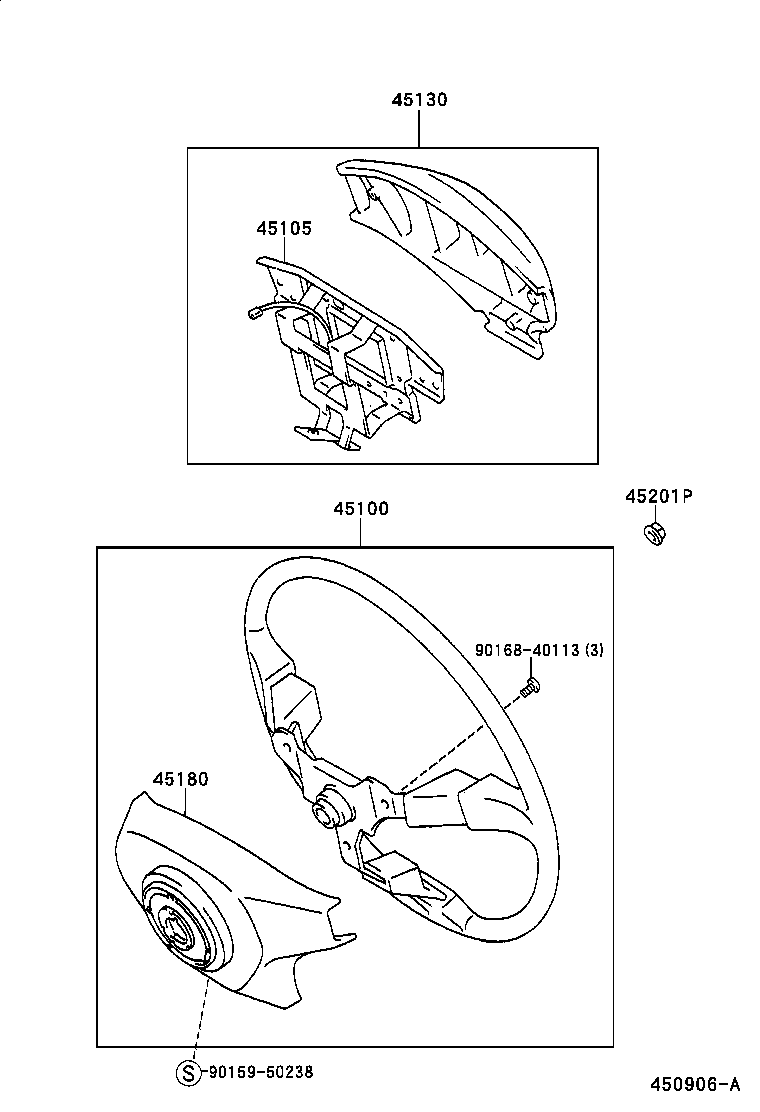

Figure 450904D 450904D 1997-08 → — Figure 450906A 450906A 1997-08 → — Figure 451711B 451711B 1997-08 → — Figure 451907A 451907A 1999-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45130 Button Assy, Horn
45155 Spacer, Horn Button Contact Plate
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
